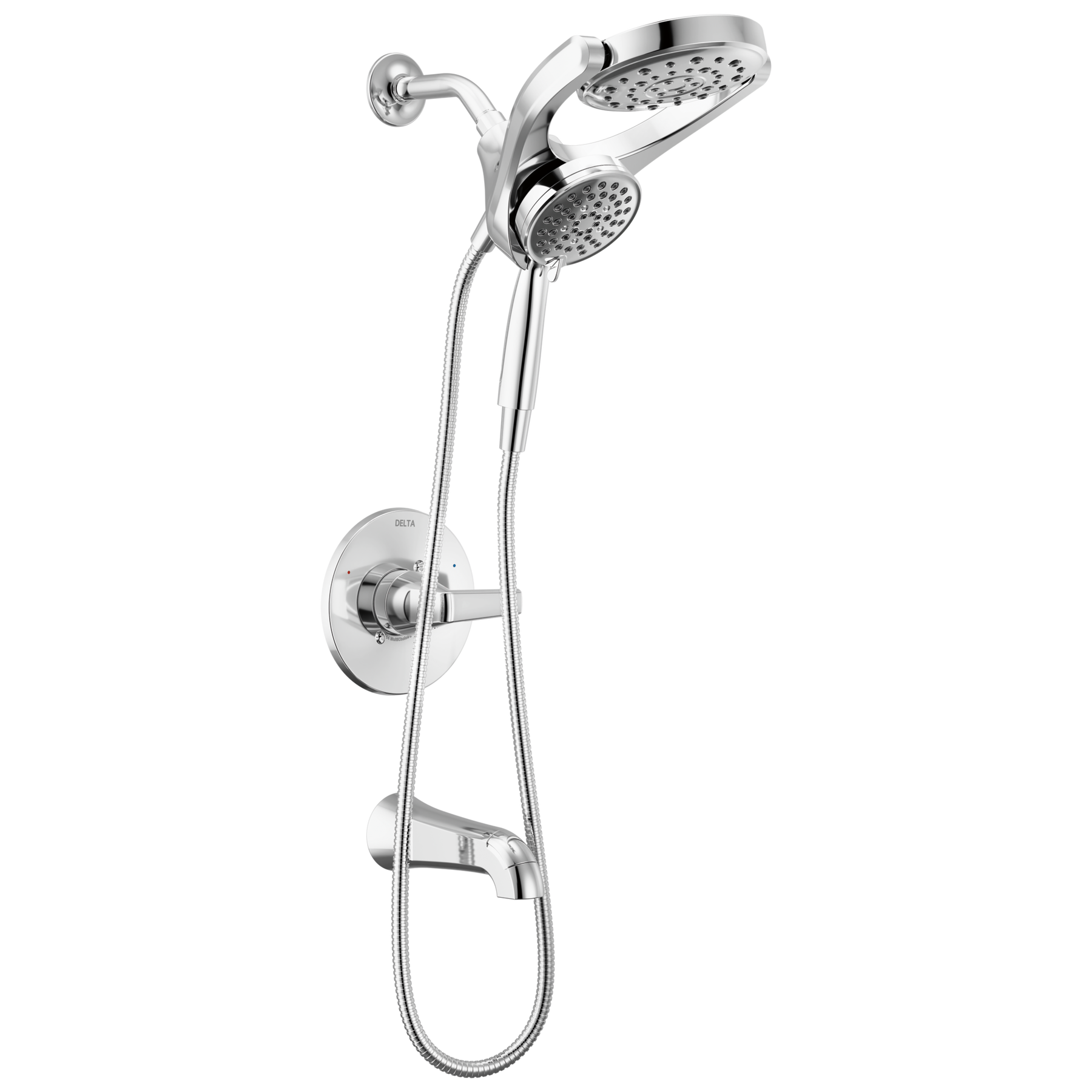

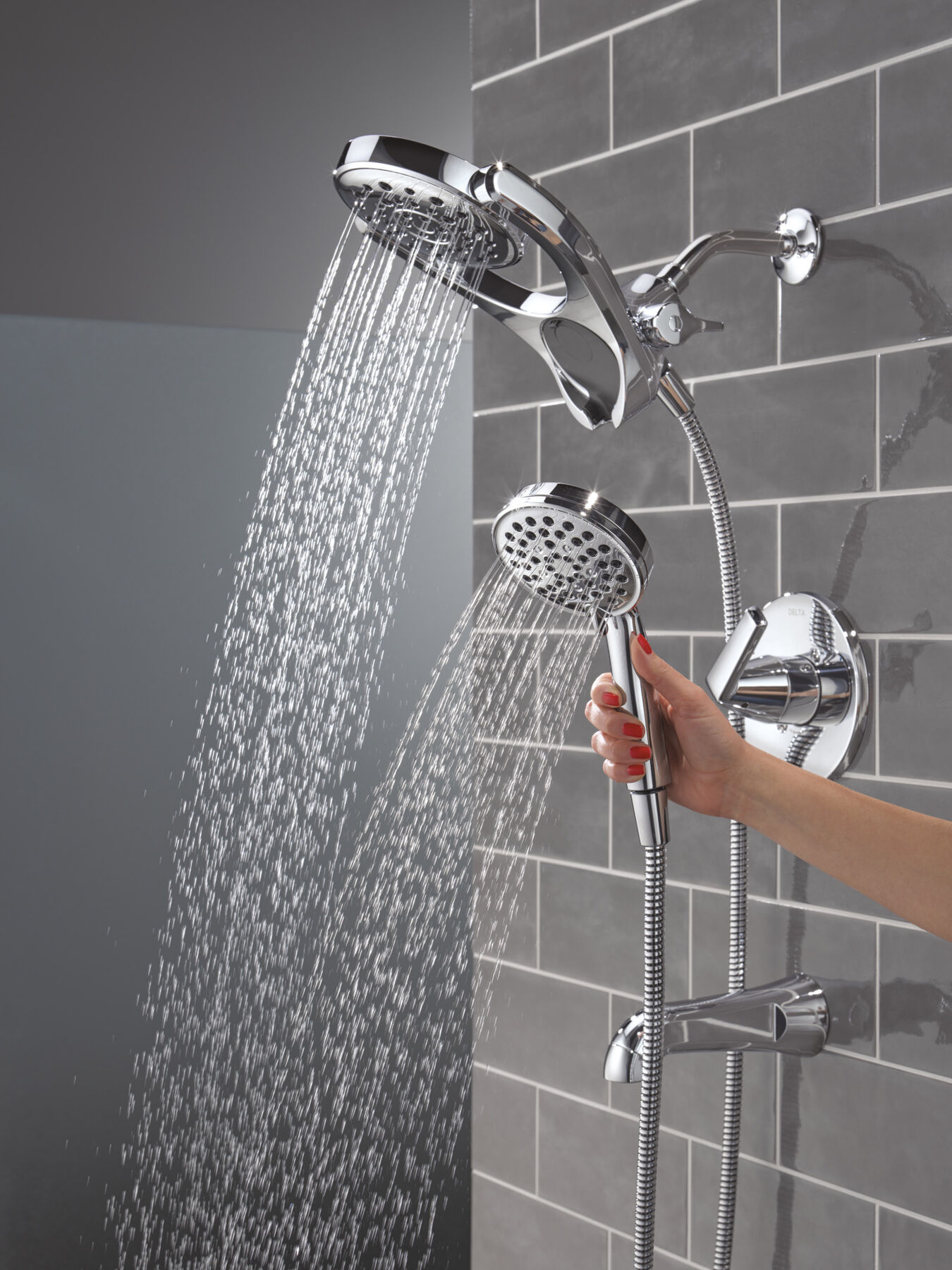

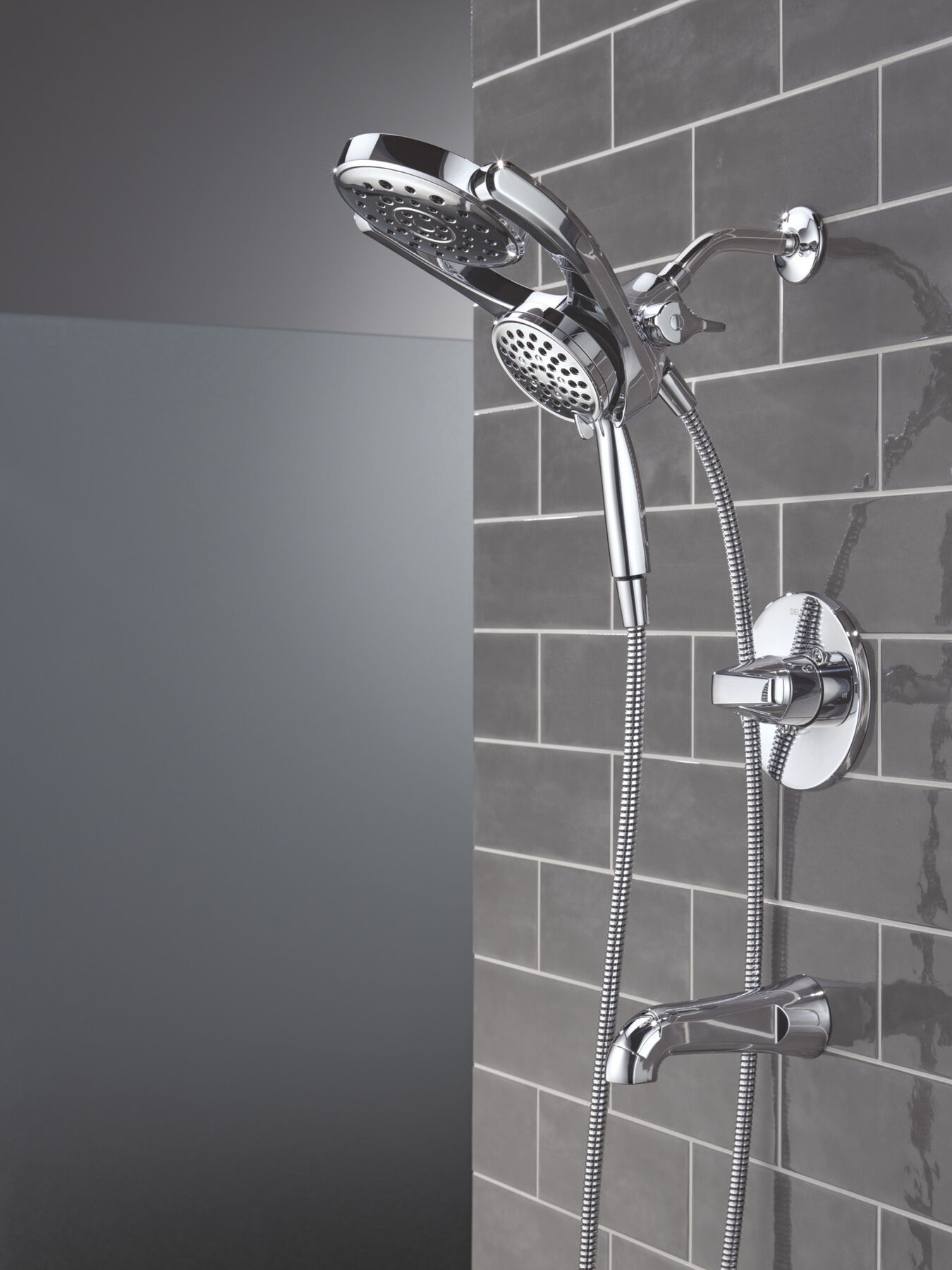

HydroRain® 14 Series Tub and Shower in Chrome
N.º de modelo: 144832-HR
CARACTERÍSTICAS DEL PRODUCTO
Bring clean lines and subtle details to your bath with the Sparrow™ Bath Collection. H2Okinetic® Shower technology sculpts water into a unique pattern, forming the powerful HydroRain® drench spray. The pause spray setting gives you ample space for shaving, lathering and other shower tasks, then easily restarts the water with the temperature where you left off. Este ajuste de rociado permite conservar agua, por lo que usted no tendrá que preocuparse por agotar el suministro de agua caliente y, además, ayudará al medioambiente. Las llaves, las duchas y los inodoros con etiqueta WaterSense® usan al menos un 20 % menos agua que los productos estándar de la industria y le permiten ahorrar agua sin sacrificar el desempeño. Puede realizar la instalación con la tranquilidad de saber que los productos de Delta® están respaldados por nuestra garantía limitada de por vida.

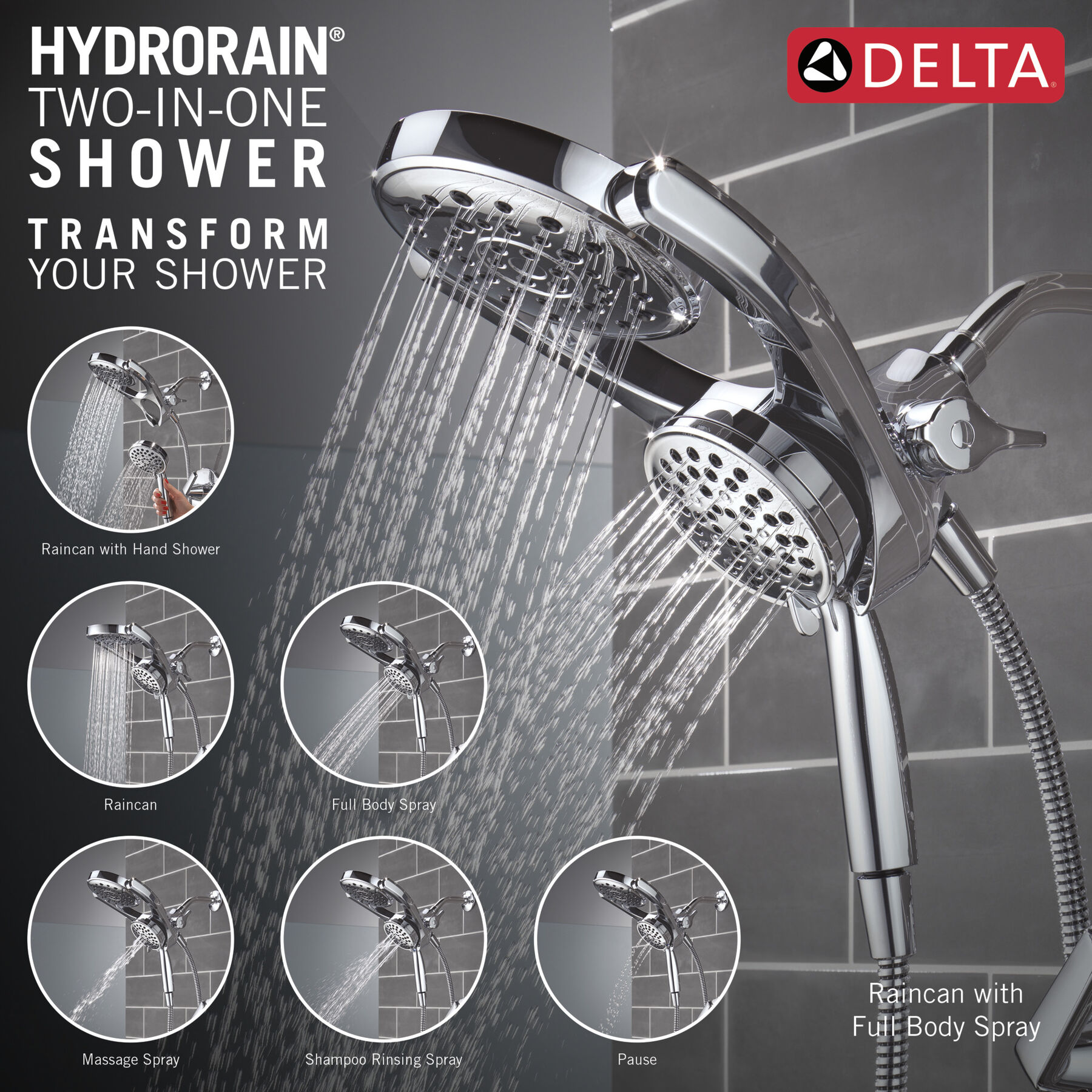

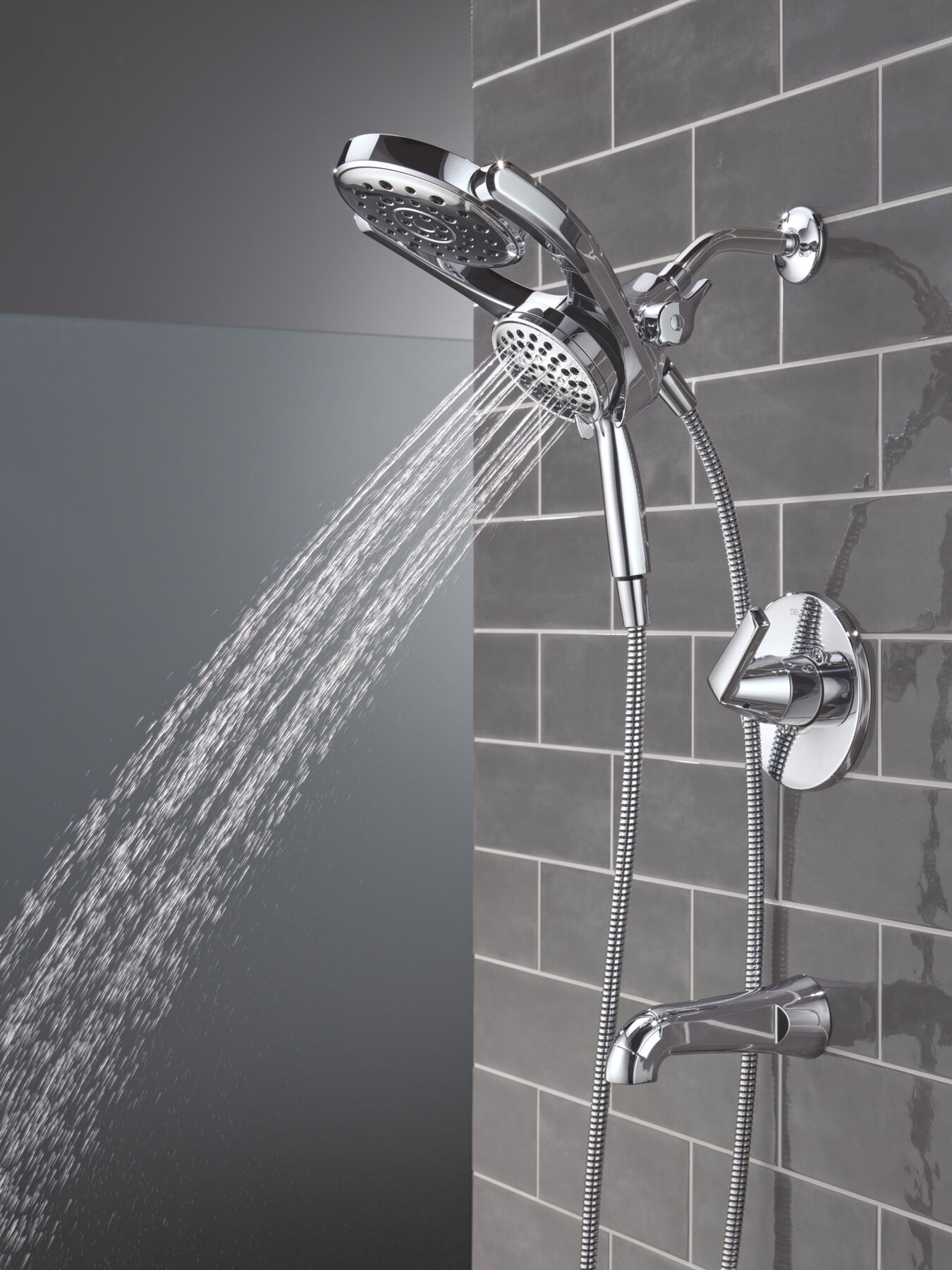

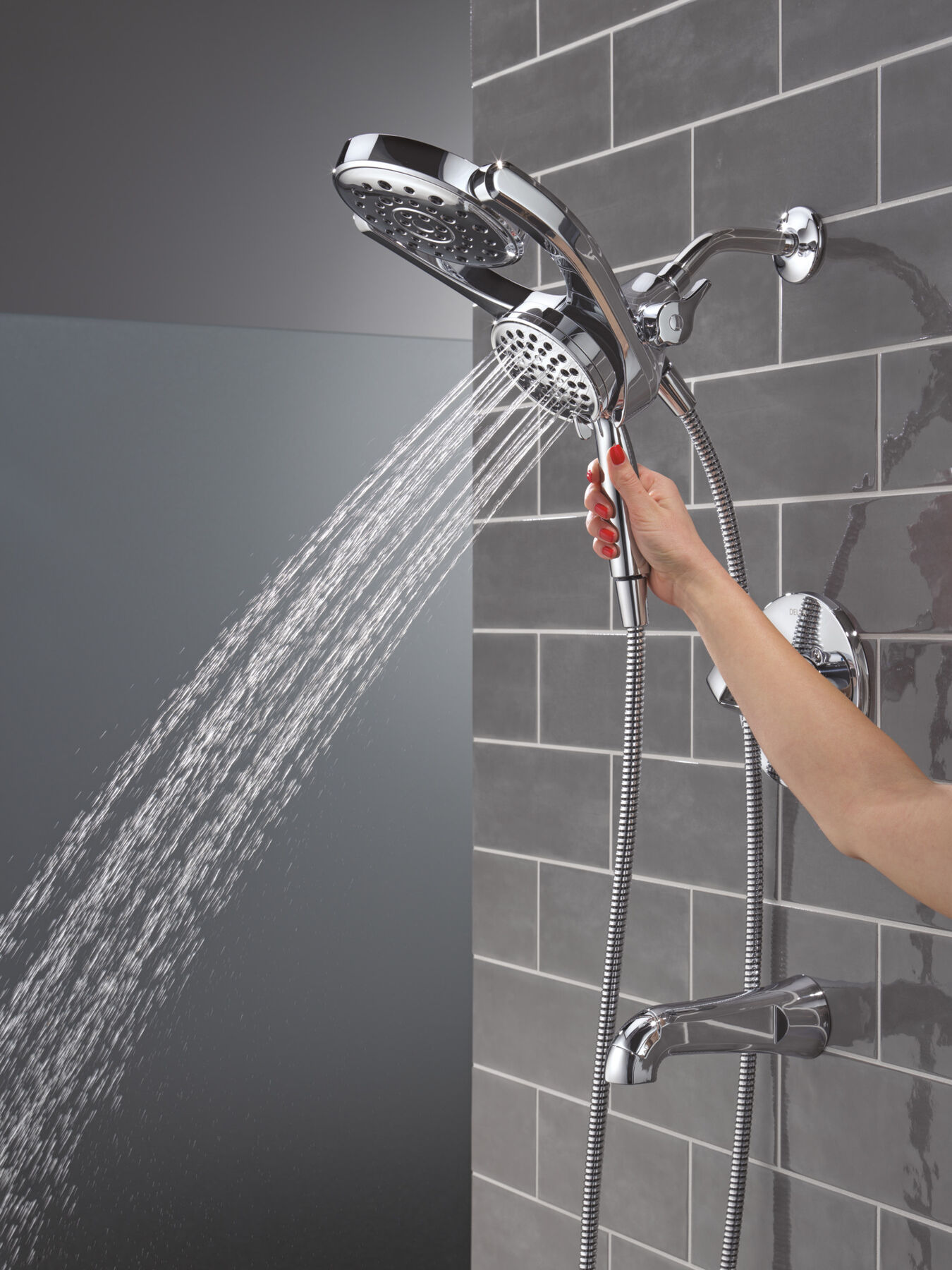

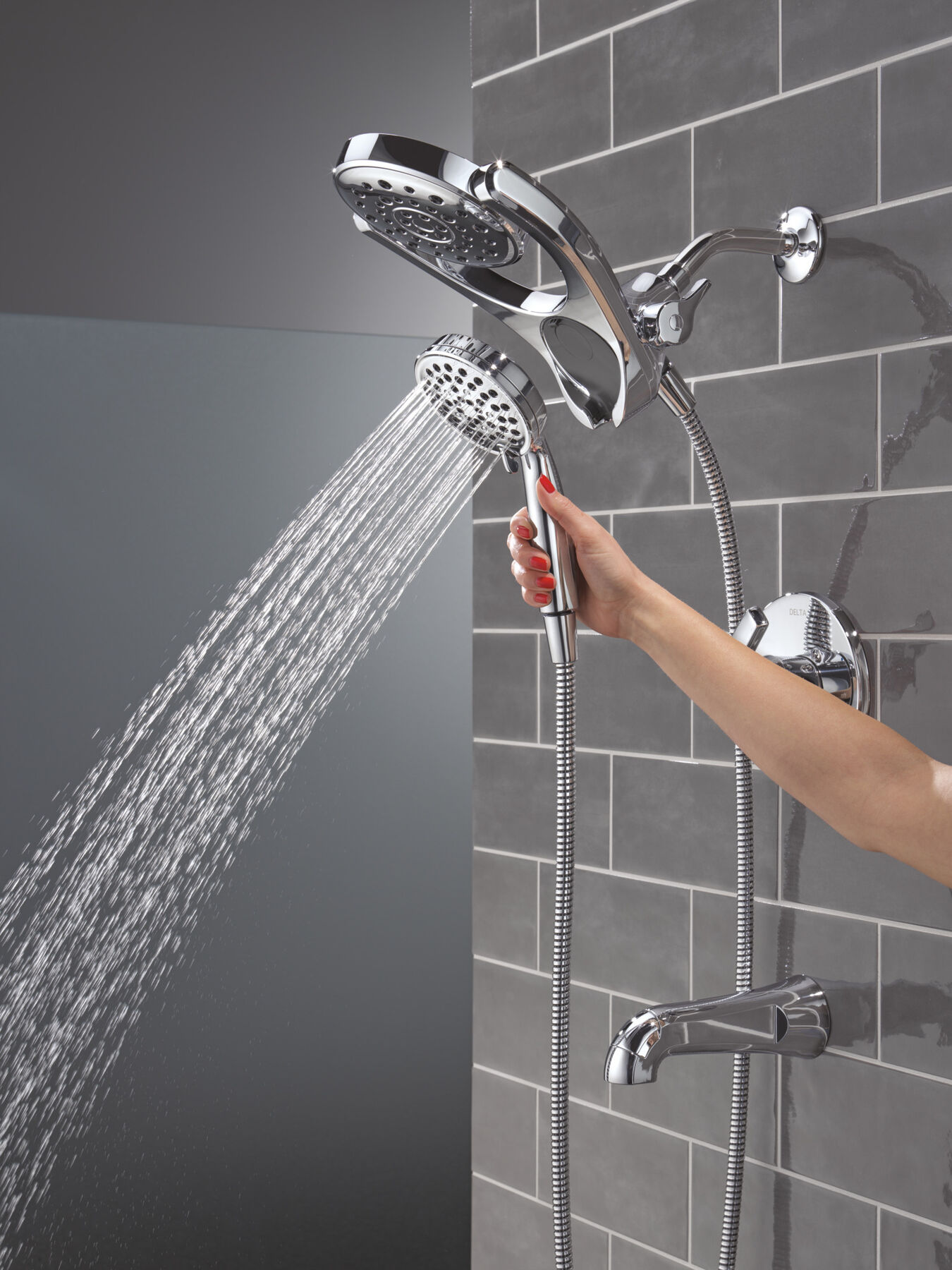

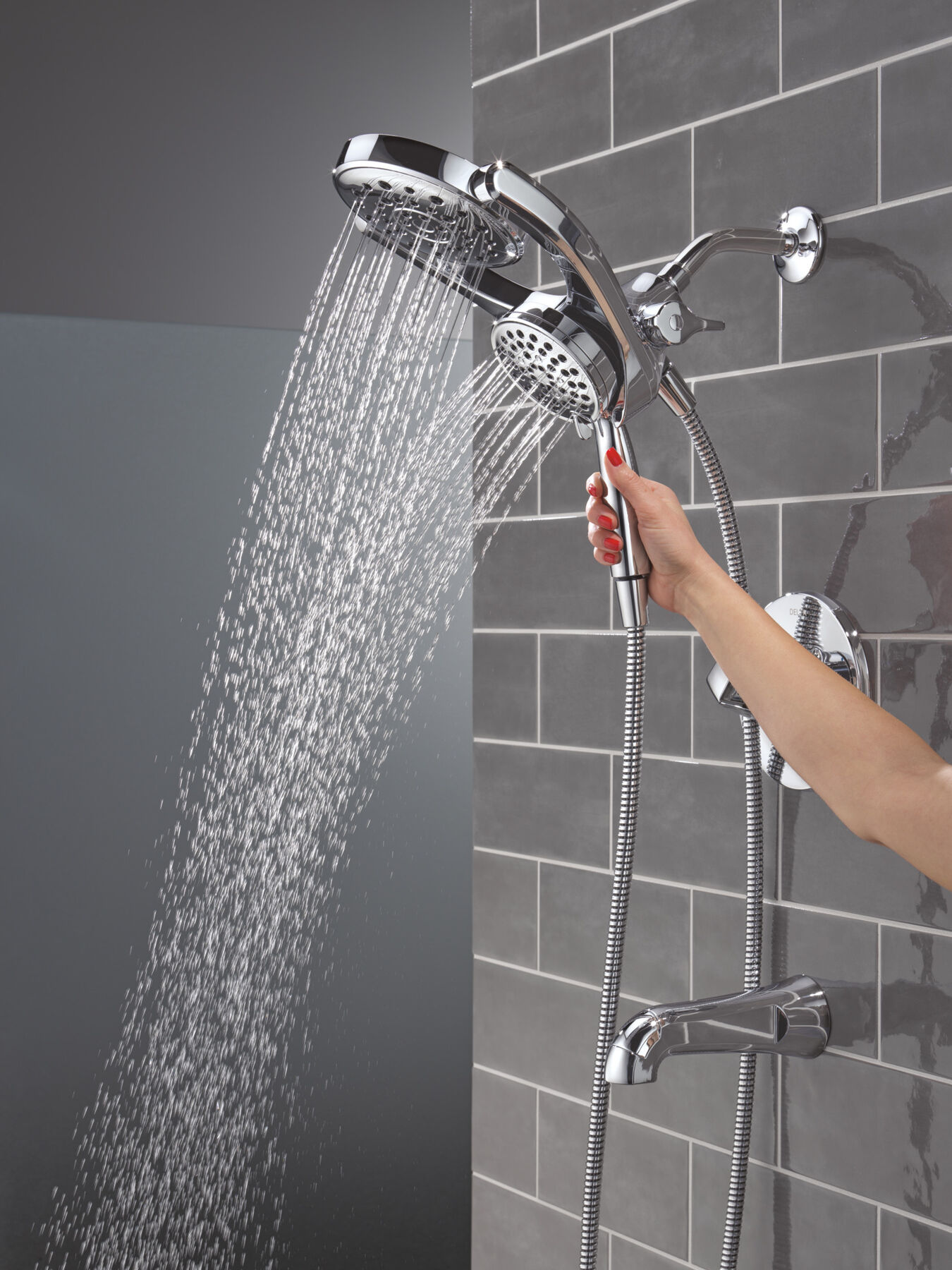

- H2Okinetic® Shower technology sculpts water into a unique pattern, forming the powerful HydroRain® drench spray
- Le brinda la sensación de contar con más agua sin utilizar más agua
- La válvula de presión balanceada Monitor® mantiene la temperatura del agua a valores seguros dentro de los ±3.6 ºF (±1.7 ºC), lo que lo protege de cambios repentinos en la presión del agua caliente o fría

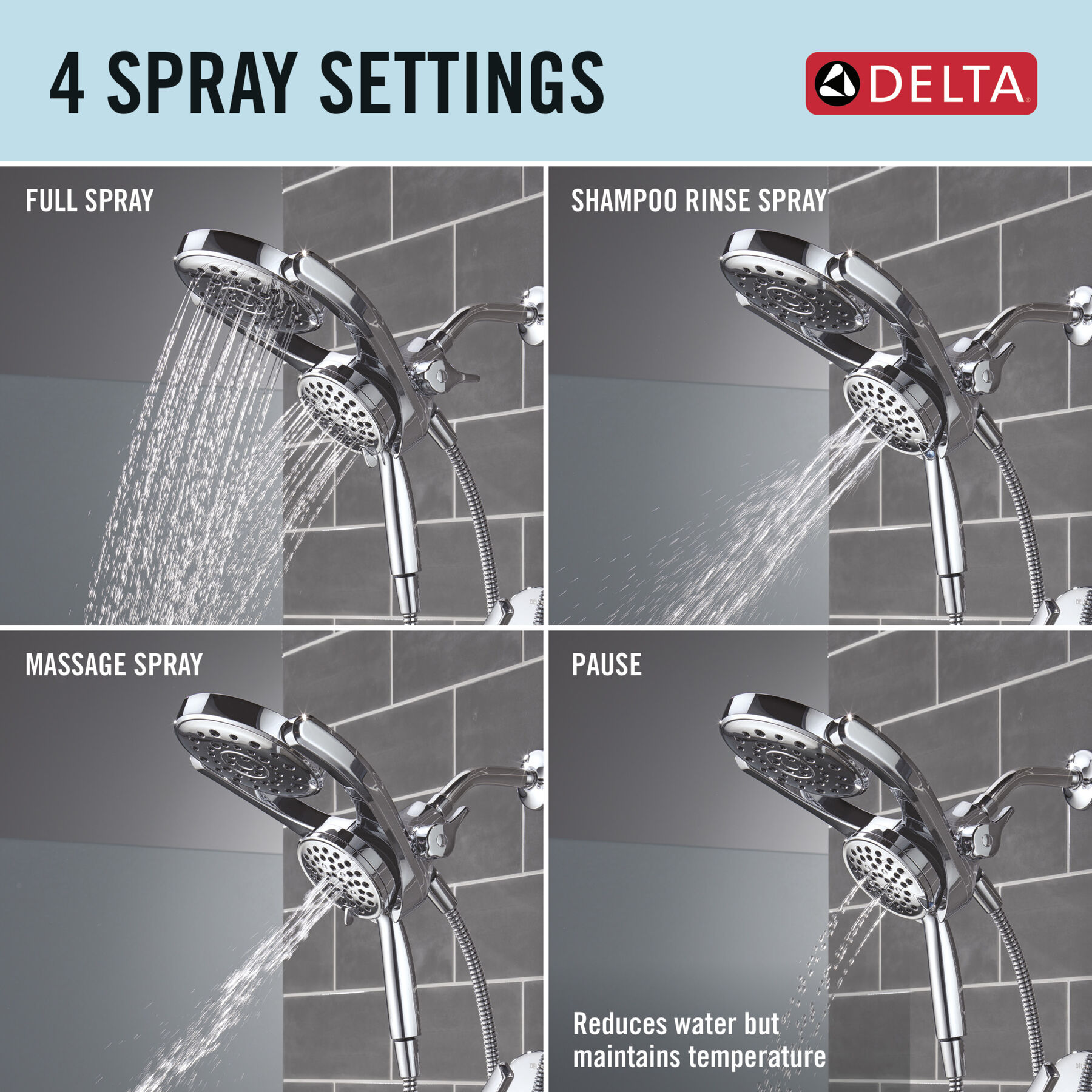

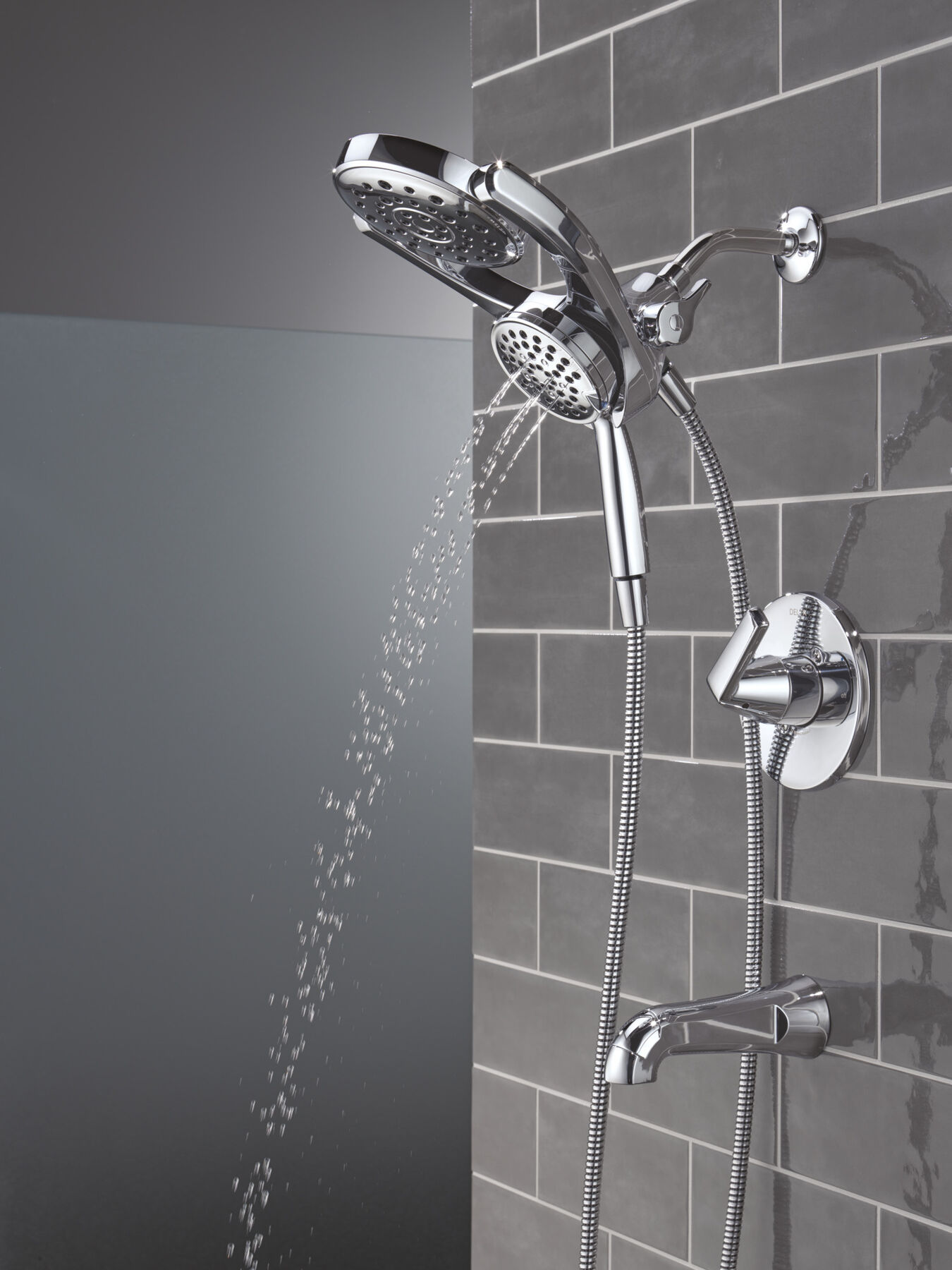

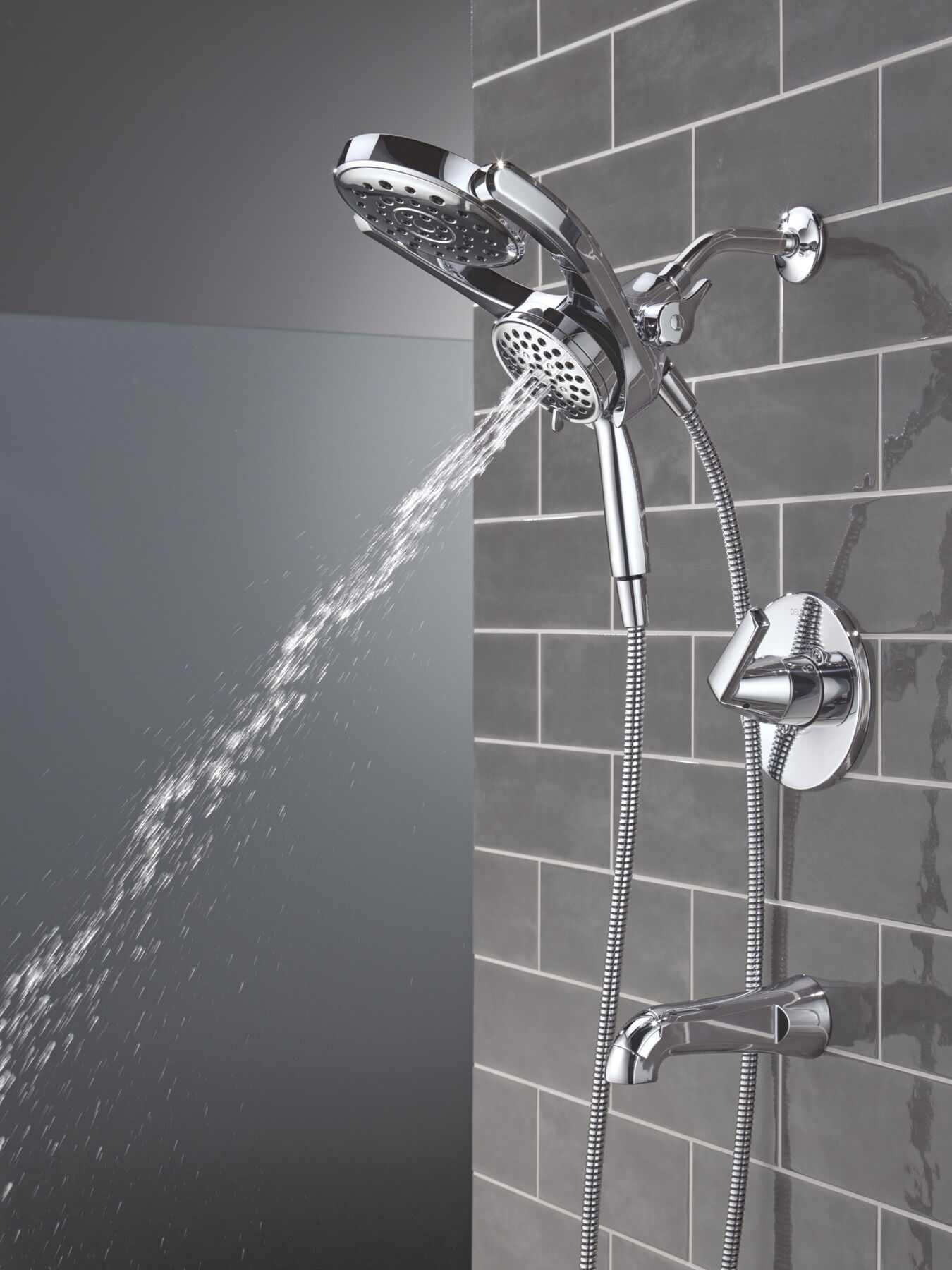

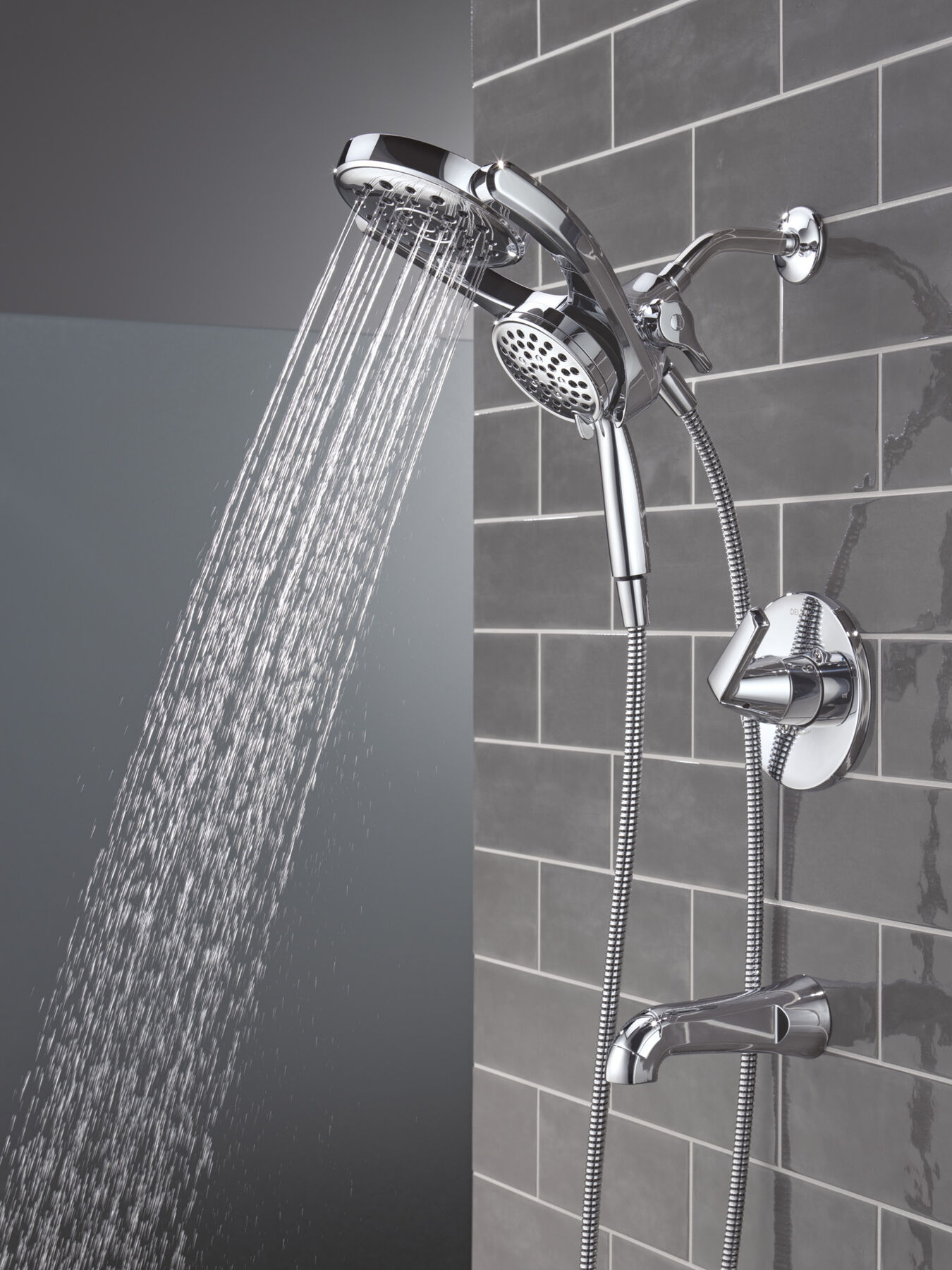

- Los ajustes de rociado incluyen: H2Okinetic® PowerDrench® Full Spray, Massage Spray, Full Spray + Massage, and Pause
- La función de pausa reduce el suministro de agua a un efecto de goteo y así, le da espacio para afeitarse, enjabonarse y otras acciones en la ducha, manteniendo a la vez la temperatura
- Los suaves orificios rociadores Touch-Clean® de caucho le permiten limpiar con facilidad la acumulación de calcio y cal del frente del cabezal de ducha y de la ducha manual con tan solo deslizar el dedo
- Incluye salida de bañera con desviador deslizable hacia arriba a juego.
- Capacidad de instalación dorso contra dorso
- Cumplimiento con la ADA
- Las regaderas con clasificación WaterSense® usan al menos 20 % menos agua que los productos estándar de la industria sin sacrificar desempeño
- Respaldado por la garantía limitada de por vida de Delta Faucet
Información especial
ADVERTENCIA de la Proposición 65 de California
ADVERTENCIA DE LA PROPOSICIÓN 65 de California
Este producto puede exponerle al plomo, que según el estado de California causa cáncer y anomalías congénitas u otros daños reproductivos.
Para obtener más información, visite http://www.P65Warnings.ca.gov.
Ecológica
Con etiqueta WaterSense®
Technology and Special Features
Cumplimiento con la ADA
Cumplimiento con la ADA
Algunas personas y códigos locales requieren que los artefactos cumplan con la Ley para estadounidenses con discapacidades (Americans with Disabilities Act). Si es posible que reciba visitas de personas con capacidades especiales o si cree que sus futuros clientes podrían apreciar esta función, Delta ofrece diversos artefactos que cumplen con esta ley.
Touch-Clean®
Touch-Clean®
Orificios de rociado de caucho que permiten una fácil limpieza simplemente deslizando el dedo.
Válvula universal MultiChoice®
Válvula universal MultiChoice®
La válvula universal MultiChoice® permite instalar una válvula interior en la pared y elegir una de tres funciones diferentes de ducha, además de varios estilos.
Tecnología H2Okinetic®
Tecnología H2Okinetic®
La tecnología H2Okinetic® patentada de Delta crea una experiencia de ducha sin igual. Cada cabezal de ducha y cada ducha manual contienen un sistema interno que controla la velocidad, el movimiento y el tamaño de las gotas de agua, lo que genera la sensación de que la salida de agua supera a la de una ducha estándar que tiene el mismo caudal.
Monitor®
Monitor®
Las llaves Monitor® de Delta cuentan con válvulas de equilibrio de presión que ofrecen protección contra los cambios repentinos de temperatura o presión y mantienen el agua de la ducha dentro de un valor seguro de ± 3.6 °F.

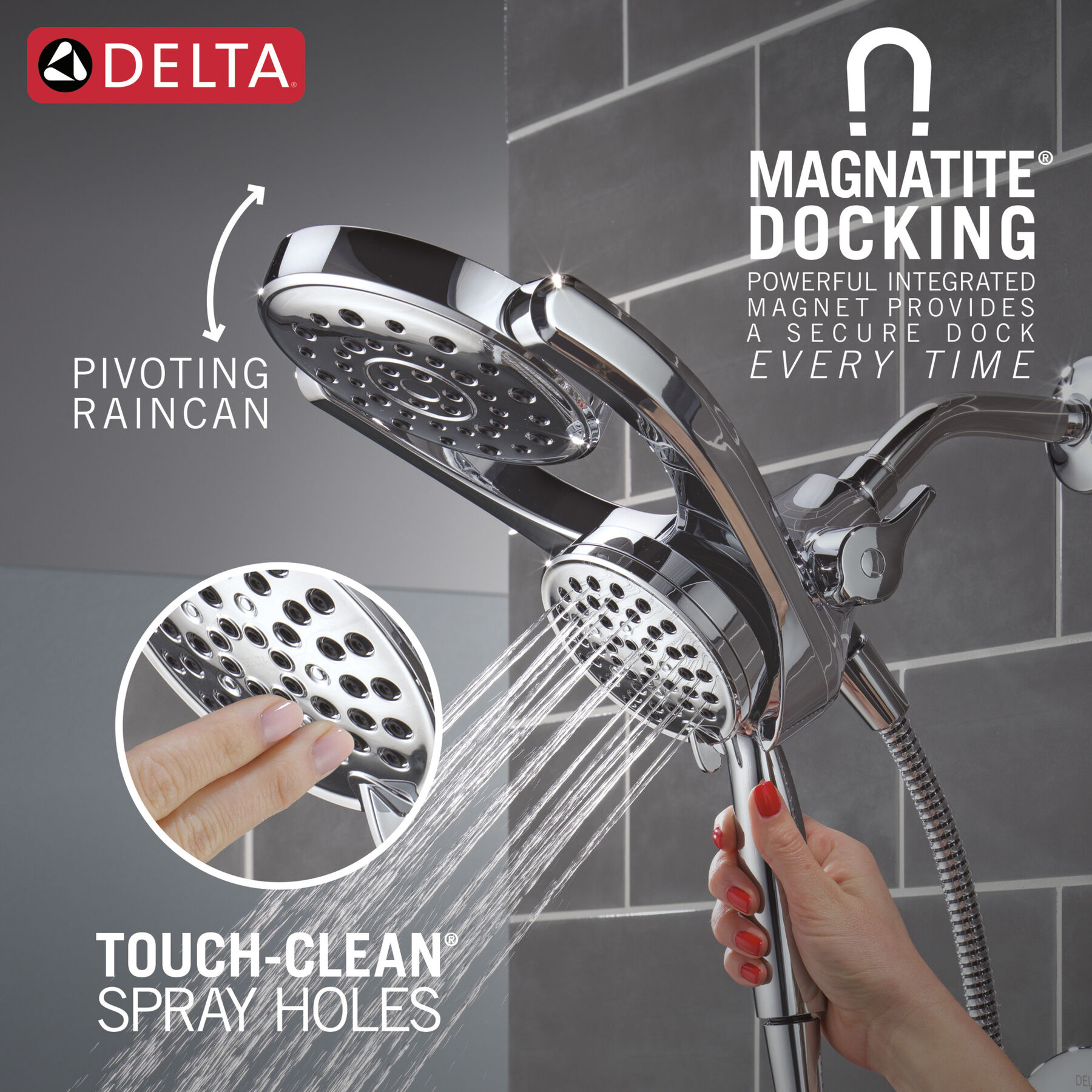

Acoplamiento MagnaTite®
Acoplamiento MagnaTite®
El cabezal de rociado deslizable utiliza un poderoso imán que mantiene la varilla fija en su lugar mientras no se usa. ¡Ya no queda colgando!
Documentos y especificaciones
Soporte para productos, repuestos y especificaciones técnicas
Información de instalación

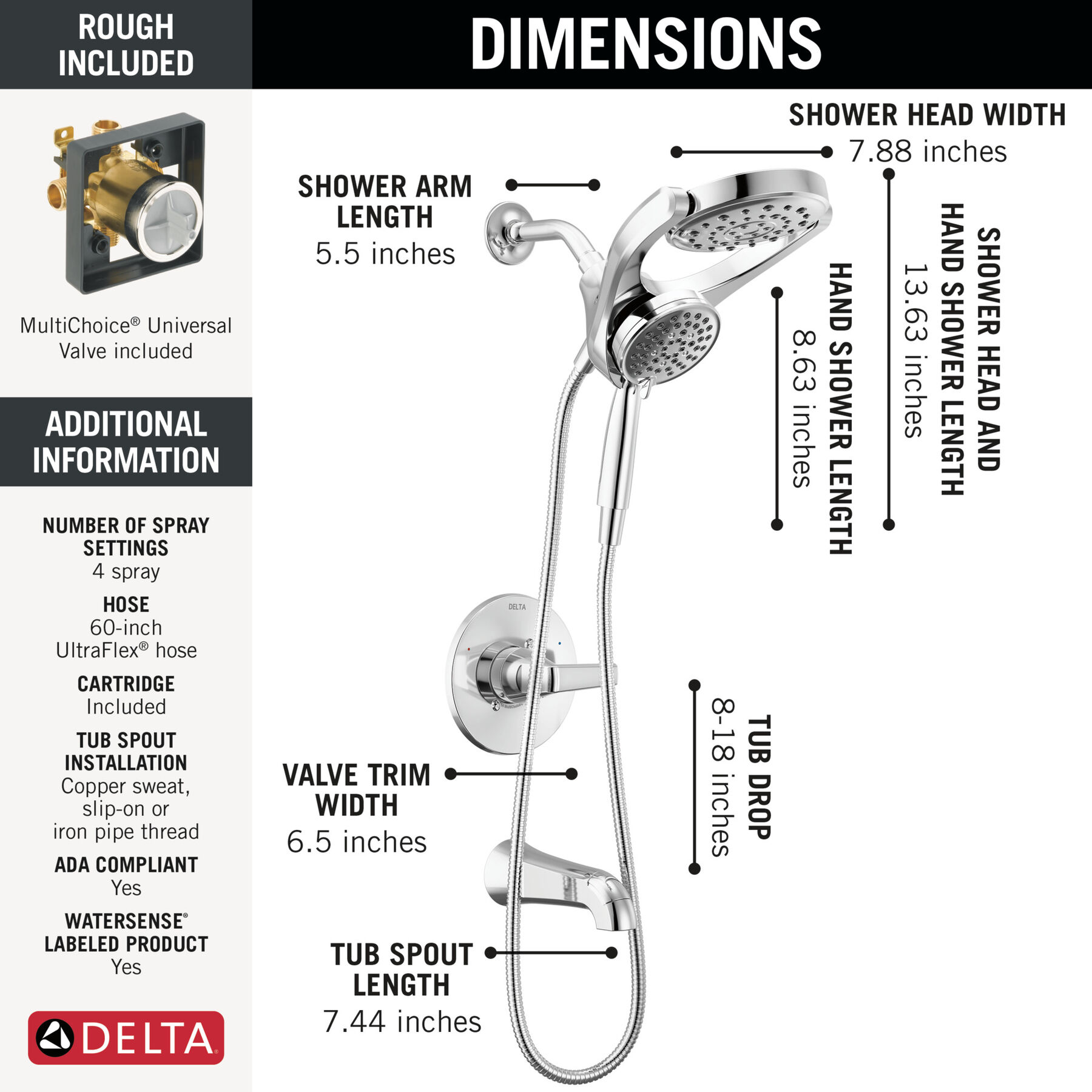

Overall Height (in.) :
13 1/8
Caudal:
1.75 gpm a 80 psi, 6.6 l/min. a 552 kPa
Tipo de válvula:
Cartucho
SOPORTE PARA LA INSTALACIÓN
¿Necesita ayuda con la instalación? Busque instaladores locales de Delta® Obtenga cotizaciones. Lea reseñas.
¿Necesita ayuda con la instalación? ¡Mike y Hannah están aquí para ayudar! Reciba consejos de los profesionales para todo, desde la instalación hasta el cuidado del producto.
RESEÑAS
Rated 5 out of
5
by
AndyG from
Shower upgrade
This Sparrow Tub & Shower Faucet by Delta was compatible with my set up and easy to install. It looks great and the experience of taking a shower is much improved and luxurious. I love the feeling of the materials too.
Date published: 2023-11-13
Rated 5 out of
5
by
Teri93 from
Delta Sparrow Tub Shower Faucet
I received the Delta Sparrow Tub Shower Faucet a couple of weeks ago and my husband finally installed it and we love it. Easy to install , and so nice to have a faucet with full power . I will definitely recommend this product to my friends and family .
Date published: 2023-11-08
Rated 5 out of
5
by
Mandy from
Love this faucet set!
I love this faucet set! The set was pretty easy to install (hubby did it) and it works great! My favorite thing is the tub spout! I love the design of it! I would definitely recommend to anybody upgrading bathroom faucets!
Date published: 2023-11-08
Rated 5 out of
5
by
TN2021 from
Sleek and eye catching fixture
This tub & shower faucet is an incredible combo. The sleek design of the faucet is coupled with the ergonomic handle for controlling the faucet. Install of this faucet was simple, while following the directions included. This tub and shower faucet has really given my bathroom an upgrade, while showcasing a more modern look with my fixtures. Delta is a great brand and a brand I trust; this tub shower faucet shows it and is another reason I love the Delta brand. Delta = Dependable and design centered!
Date published: 2023-10-03
Rated 4 out of
5
by
Holloway6ky from
Beautiful design
This shower set is wonderful. The universal rough in gives you plenty of options for just the look you want to achieve. The shower head has 5 different spray settings so you can choose which one is best for you. And cleaning is a breeze.
Date published: 2023-09-20
Rated 5 out of
5
by
VAROS from
Delta Sparrow Tub & Shower Faucet
The Delta Sparrow Tub & Shower Faucet was an excellent addition to our bathroom remodel. This tub & shower faucet enhanced the look and features of our guest shower. The shower head offers multiple flow settings including a relaxing rain fall option and much better pressure than my previous shower head. I am considering another set for my other bathroom and I highly recommend this product.
Date published: 2023-09-13
Rated 5 out of
5
by
Tkicks from
Great quality
This complete set is wonderful. It came with everything to be able to install and get the shower working in an easy one day. I love how the quality is exceptional and it really finished off the shower nicely.
Date published: 2023-09-12
Rated 4 out of
5
by
JenniferS29 from
Looks good and works!
Delta's Sparrow Tub & Shower Faucets are a very classic but nice look. The shower faucet was a super easy install with a bit of plumbers tape. The various massaging features are nice and allow for good water pressure. The tub faucet was a bit more complicated- it required opening a wall and using a solder iron, but it works. A great basic way to upgrade your combo shower/tub!
Date published: 2023-09-12
Rated 5 out of
5
by
Gabe24 from
Beautiful tub and shower faucet
We always choose Delta when it comes to changing the faucets and that’s because Delta has top notch quality products that are well made. This set for shower and tub was easy to install and works beautifully. It’s simple yet elegant and just what we needed. I would gladly recommend it.
Date published: 2023-09-11
Rated 5 out of
5
by
Sully1710 from
Beautiful finish and simple style!
I was looking to update my shower/bath fixtures and this Sparrow style is lovely! It was easy to install according to my plumber. I am a big fan of Delta products as they rarely have issues. The finish is beautiful…water droplets don’t jump out at you. The style is perfect for my “transitional” style home. The shower head is big enough but not overwhelming for my standard 5 foot tub. The temperature control is really simple, which is great. I don’t have a photo yet but I highly recommend this Sparrow design for a simple, sophisticated look!
Date published: 2023-09-10
Rated 4 out of
5
by
mtmfish88 from
Beautiful
This faucet was easy to install and the instructions were easy to follow. We set up a lot of faucets with our job and this was by far the easiest. It looks great as well. If you are doing a renovation with this color fixtures this will add a nice touch. After we installed it is did not leak and we did not have to remove it and install again like some other fixtures we have used in the past. It is very much worth it.
Date published: 2023-09-04
Rated 5 out of
5
by
Kristylynn37 from
Great features
I bought this product a month ago and I’m so happy that I did! I love the features of this product! The shower head ahas different settings which I love ! I would highly recommend this product! It’s made of high quality !
Date published: 2023-09-02
Rated 5 out of
5
by
SL38 from
Excellent!
I absolutely love the look of this faucet set! The contemporary styling and build quality are exceptional! The installation was a breeze and pretty standard. You won’t be disappointed after installation. Highly recommended!
Date published: 2023-08-24
Preguntas y respuestas
Where can I obtain the correct owners manual for the delta sparrow shower head that I purchase? The manual I received has a completely different shower head than the one that came in the box :( I believe it is a series 14 unit. Please help!!!
Hello,
I apologize for the issue you are experiencing and I am happy to help you.
Some installation manual may show photos of other showerheads but installing the main components are all the same. Please see the following links for the parts breakdown and installation instructions for your model.
https://media.deltafaucet.com/MandI/107528%20Rev%20I.pdf
https://media.deltafaucet.com/PartsDiagram/DPD-B-144832.pdf
Please reach out with further questions!
Best Regards,
Tim
Digital Communications Specialist
Date published: 2025-01-21
The instructions do NOT show how the tub spout goes on, it shows the shower head installation but not the tub spout.
Hi Valued Customer,
Thank you for your question regarding our Delta Faucet. Please accept our sincere apology for the inconvenience you are experiencing. We will be happy to assist you in resolving this issue as quickly as possible.
The spout threads on 1/2 inches pipe and uses a set screw to tighten down,
Please feel free to contact us directly for technical information at 800-345-3358. We are available Monday through Friday from 8 a.m. to 8 p.m. and Saturdays from 9 a.m. to 6 p.m. Eastern Standard Time.
Thank you for being a loyal Delta Faucet customer.
Best Regards,
Themar
Digital Communications Specialist
(800) 345-3358
customerservice@deltafaucet.com
Date published: 2025-01-09
How long to cut copper for tub spout in using sparrow line
Hi Nick,
Thank you for your question!
You will want no more than 3 1/2" of copper coming from the wall when installing this tub spout.
Please reach out with further questions!
Best Regards,
Tim
Digital Communications Specialist
Date published: 2024-04-12
Is there a mechanism on the delta monitor 14 series where you can adjust the level of hot water. We have very hot water to all other faucets in the home accept our master shower
Hi Valued Customer,
Thank you for your question! I am happy to help you!
The shower unit can be adjusted, I have attached a link to show how to adjust the RLS on our Delta shower cartridges. This will provide the option of hotter water, also we recommend making sure the water heater temperature is set to 120 or lower.
https://www.youtube.com/watch?v=By5b7uazCqM
Please contact us back for any further questions.
Best Regards,
Digital Communications Specialist
(800) 345-3358
customerservice@deltafaucet.com
Date published: 2025-01-29
Is the spout made of plastic or metal?
Hello Customer!
Thank you for your question and we are happy to help. The Delta spout is made of several materials which may include but are not limited to: Bronze, Brass, Zinc, Stainless Steel, Copper, PEX-C, Silicon, Synthetic rubber, Vinyl, Nylon, and, Plastics. With any further questions or concerns, please do not hesitate to reach out to us directly. Best Regards, Carrie
Date published: 2025-02-27
Does this come with a drain plug for a tub?
Hello Valued Customer,
Thank you for contacting Delta Faucet Company!
No, our 144832 does not include a drain. We apologize for any inconvenience this may cause.
We appreciate your inquiry. Please reach out directly if you have further questions!
Best Regards,
Kyra
Digital Communications Specialist
Date published: 2025-02-17
Does this shower faucet allow the water pressure to be independent of the water temperature. Can you have the water volume low at the same time you have the water temp high.
Can I buy the part that goes around the handle that has the hot and cold part with the red and blue diets on the opposed sides ? The guy installing mine hooked it up wrong and the only way to fix it is switch the plate.
Hi Rusty,
Thank you for your question about the Delta Faucet model 144832-BL.
Unfortunately, the escutcheon plate is not available with the hot and cold indicators reversed. For a reverse installation, flip the valve cartridge so the "hot side" of the cartridge is on the right. See the installation instructions for more information:
https://media.deltafaucet.com/MandI/107528%20Rev%20G.pdf
Please reach out with any additional questions!
Best Regards,
Bryan
Digital Communications Specialist
Date published: 2024-04-25
