Monitor® 14 Series Shower with Raincan, Hand Shower & Rough Valve in Chrome
N.º de modelo: 342701
CARACTERÍSTICAS DEL PRODUCTO
This Modern Collection bundle offers a streamlined, contemporary design and the components you need for a complete shower. Delta® showers with Monitor® pressure balance valves are engineered to make sure you don’t experience a sudden and possibly unsafe change in water temperature as a result of running water elsewhere, such as using a dishwasher, flushing a toilet or running a washing machine. Mientras que otros productos pueden generar una acumulación de minerales antiestética con el paso del tiempo, los suaves orificios rociadores Touch-Clean® de caucho permiten limpiar cualquier residuo mineral para lograr una apariencia renovada en un instante, sin necesidad de remojar ni de usar limpiadores químicos. Las llaves, las duchas y los inodoros con etiqueta WaterSense® usan al menos un 20 % menos agua que los productos estándar de la industria y le permiten ahorrar agua sin sacrificar el desempeño. Puede realizar la instalación con la tranquilidad de saber que los productos de Delta® están respaldados por nuestra garantía limitada de por vida.

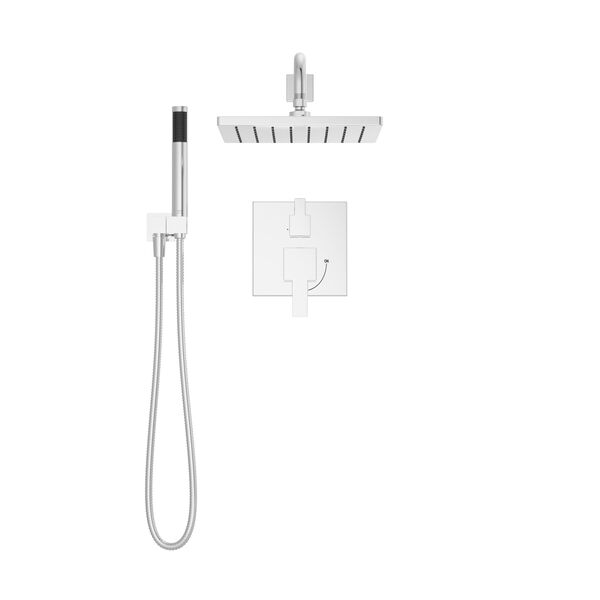

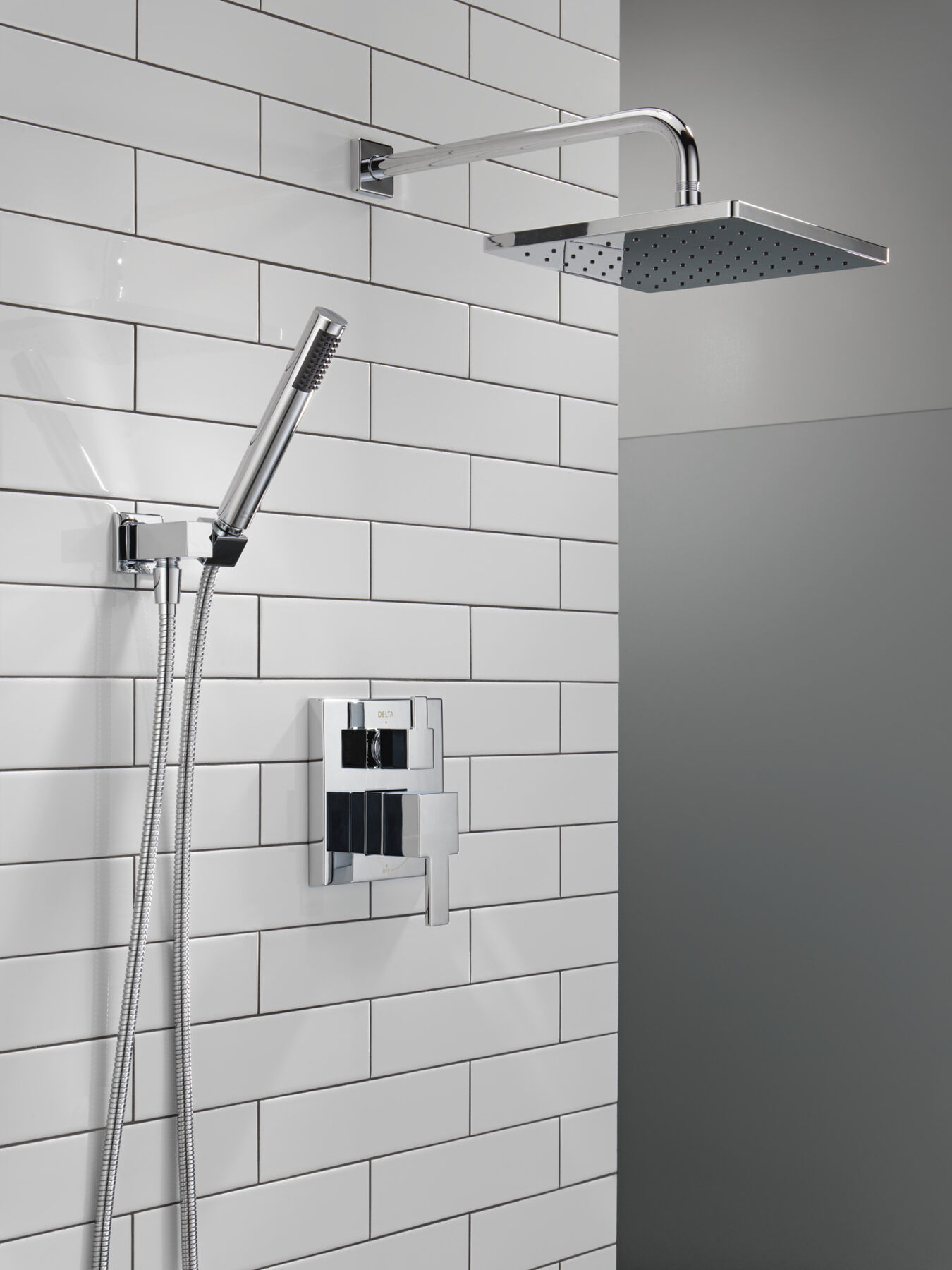

- Bundle includes complete shower trim with raincan shower head, wall mount hand shower and MultiChoice® Universal Integrated Shower Diverter Valve rough

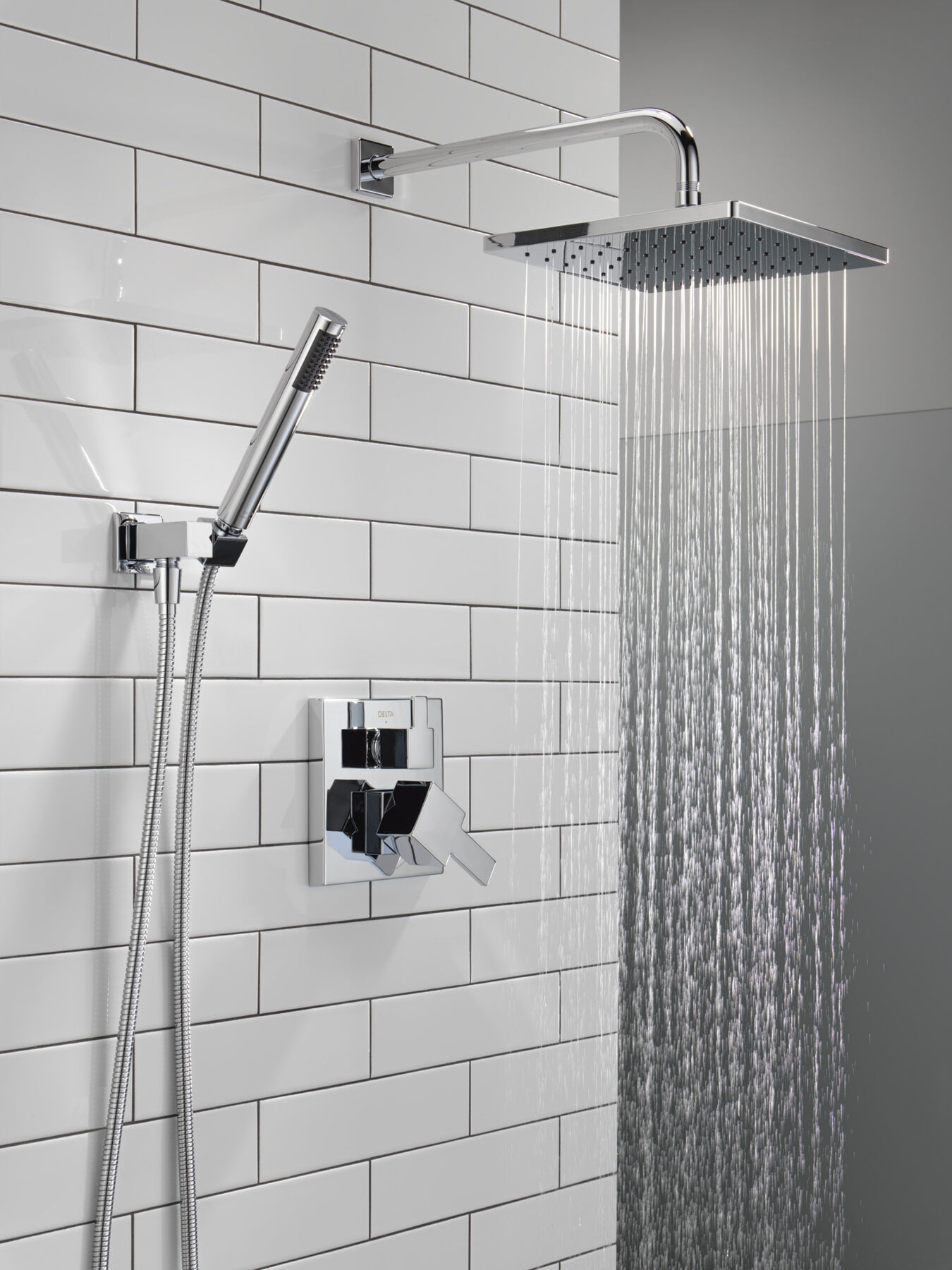

- 10-inch square raincan shower head with single spray setting

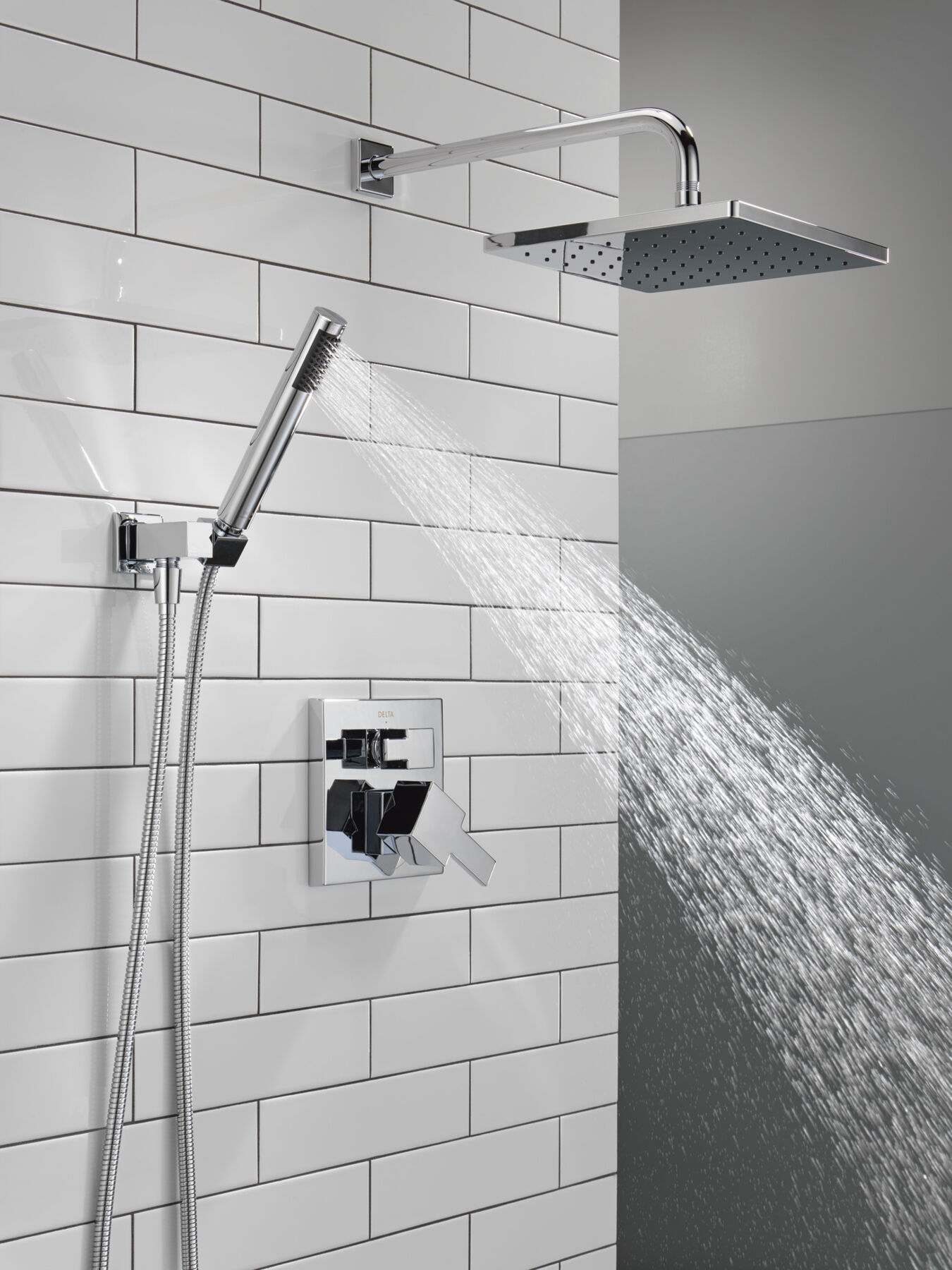

- Wall mount hand shower with single spray setting
- La válvula de presión balanceada Monitor® mantiene la temperatura del agua a valores seguros dentro de los ±3.6 ºF (±1.7 ºC), lo que lo protege de cambios repentinos en la presión del agua caliente o fría
- Los suaves orificios rociadores Touch-Clean® de caucho le permiten limpiar con facilidad la acumulación de calcio y cal del frente del cabezal de ducha y de la ducha manual con tan solo deslizar el dedo
- Includes MultiChoice® Universal Integrated Shower Diverter Valve rough (R22000 series)
- 2-function diverter offers 2 individual positions: shower head only or hand shower only
- Top handle controls diverter functions; bottom handle controls on/off and temperature
- Capacidad de instalación dorso contra dorso
- Cumplimiento con la ADA
- Las regaderas con clasificación WaterSense® usan al menos 20 % menos agua que los productos estándar de la industria sin sacrificar desempeño
- Respaldado por la garantía limitada de por vida de Delta Faucet
Información especial
ADVERTENCIA de la Proposición 65 de California
ADVERTENCIA DE LA PROPOSICIÓN 65 de California
Este producto puede exponerle al plomo, que según el estado de California causa cáncer y anomalías congénitas u otros daños reproductivos.
Para obtener más información, visite http://www.P65Warnings.ca.gov.
Ecológica
Con etiqueta WaterSense®
Technology and Special Features
Cumplimiento con la ADA
Cumplimiento con la ADA
Algunas personas y códigos locales requieren que los artefactos cumplan con la Ley para estadounidenses con discapacidades (Americans with Disabilities Act). Si es posible que reciba visitas de personas con capacidades especiales o si cree que sus futuros clientes podrían apreciar esta función, Delta ofrece diversos artefactos que cumplen con esta ley.

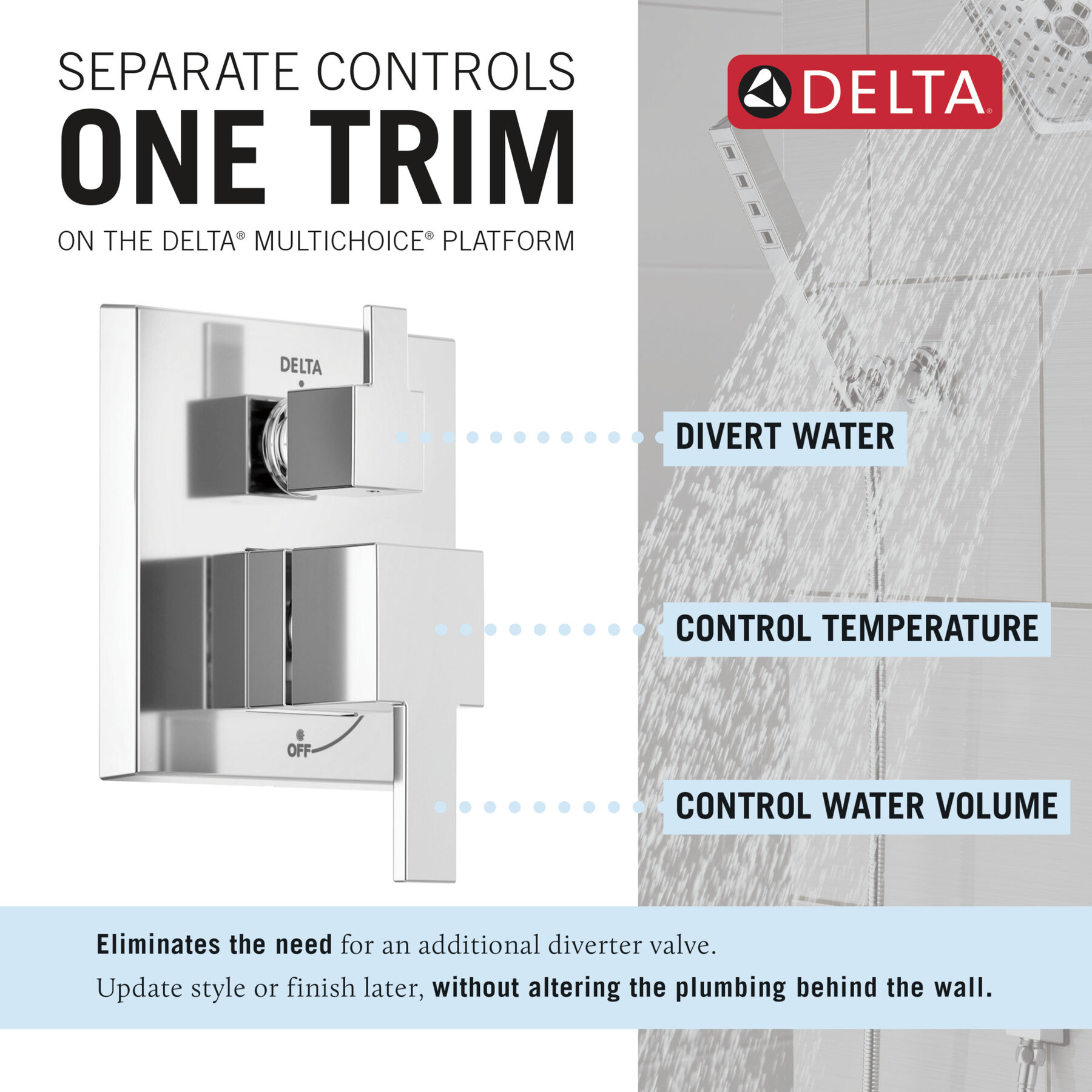

Desviador integrado
Desviador integrado
Lo bueno del desviador de ducha integrado MultiChoice es que puede usar un conjunto interior para controlar dos válvulas en la pared, lo que le proporciona una solución optimizada que es más sencilla de instalar y tiene un estilo muy interesante.

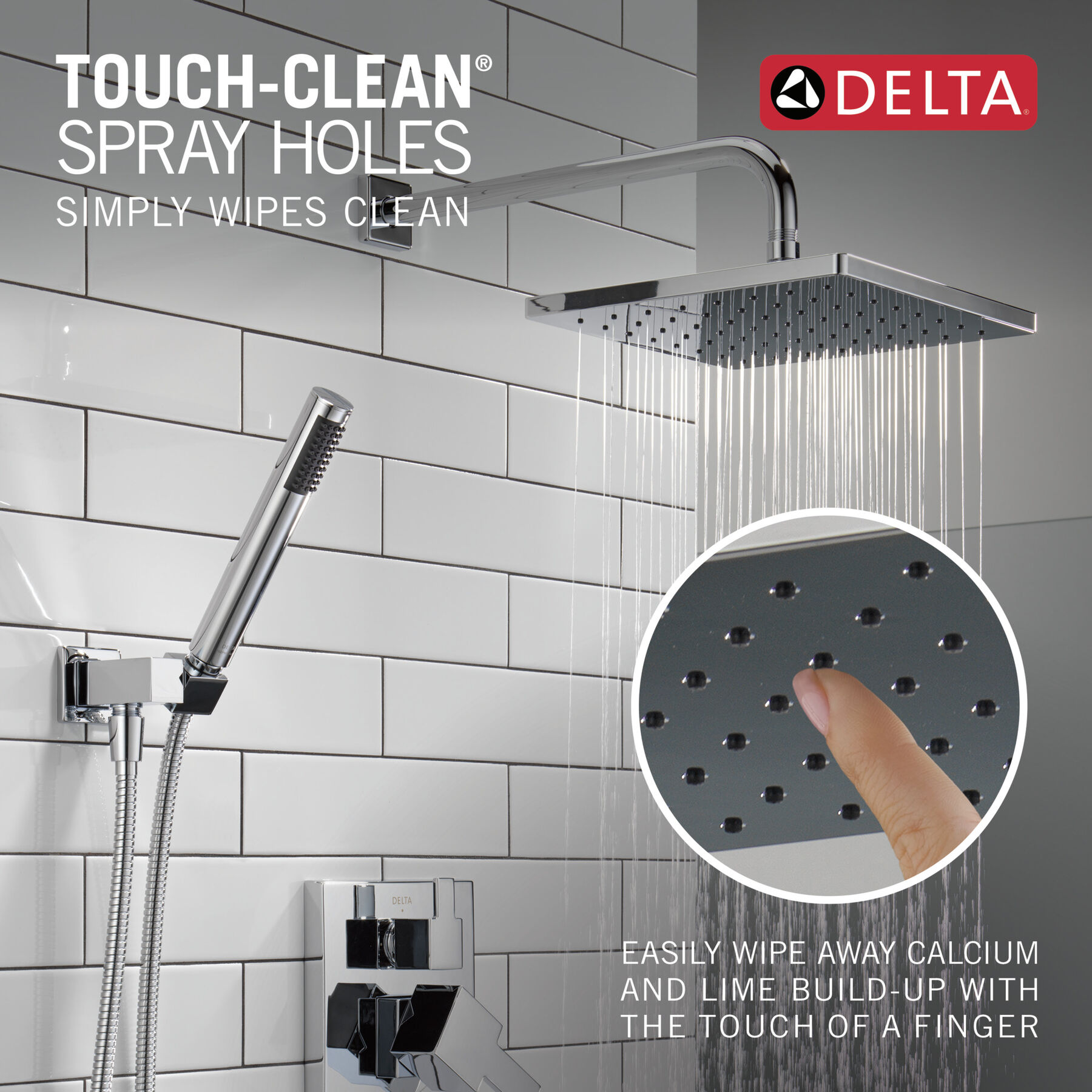

Touch-Clean®
Touch-Clean®
Orificios de rociado de caucho que permiten una fácil limpieza simplemente deslizando el dedo.
Válvula universal MultiChoice®
Válvula universal MultiChoice®
La válvula universal MultiChoice® permite instalar una válvula interior en la pared y elegir una de tres funciones diferentes de ducha, además de varios estilos.
Documentos y especificaciones
Soporte para productos, repuestos y especificaciones técnicas
Información de instalación

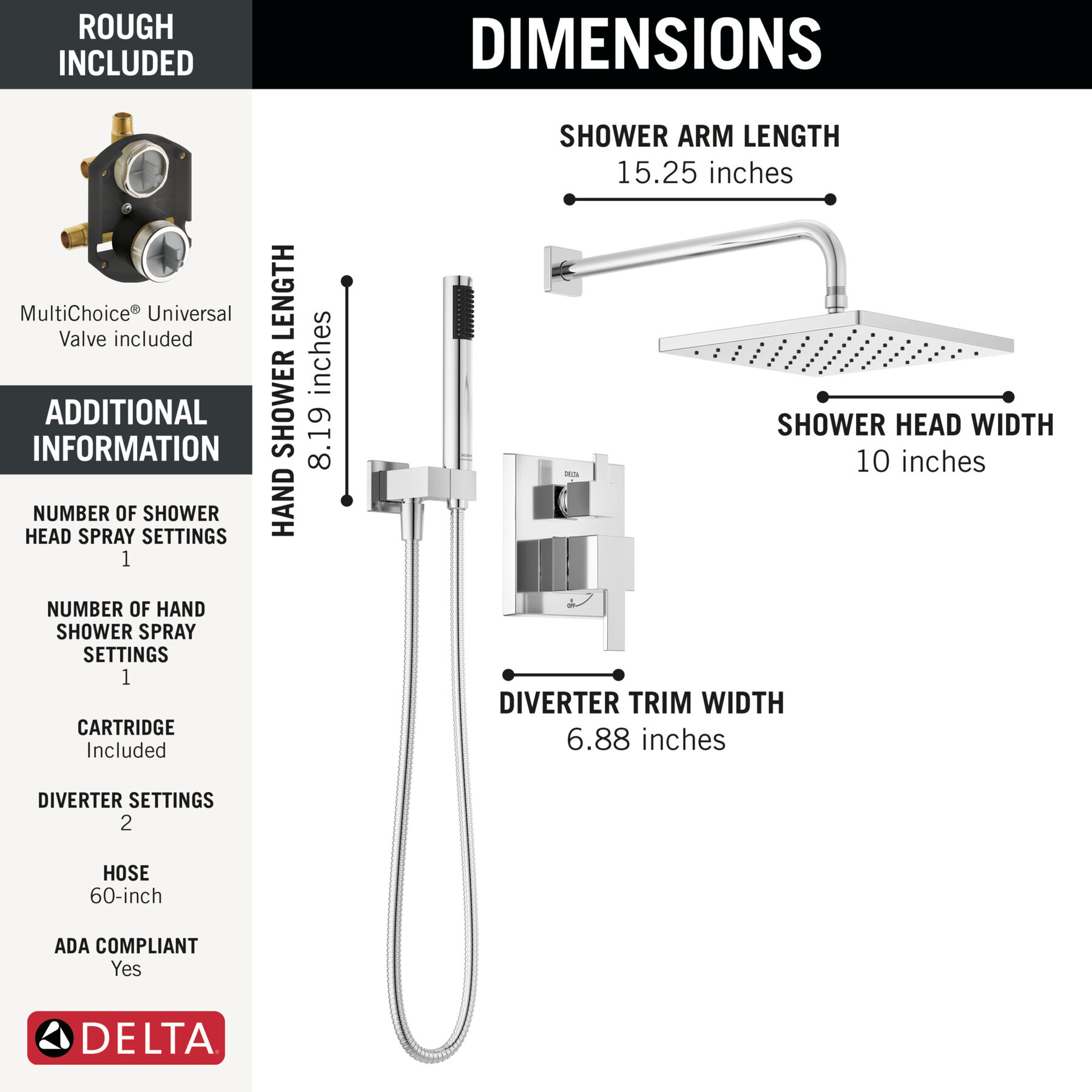

Overall Height (in.) :
8 3/4
Voltaje:
0
Caudal:
1.75 gpm a 80 psi, 6.6 l/min. a 552 kPa
Tipo de válvula:
Cartucho
SOPORTE PARA LA INSTALACIÓN
¿Necesita ayuda con la instalación? Busque instaladores locales de Delta® Obtenga cotizaciones. Lea reseñas.
¿Necesita ayuda con la instalación? ¡Mike y Hannah están aquí para ayudar! Reciba consejos de los profesionales para todo, desde la instalación hasta el cuidado del producto.
RESEÑAS
Rated 5 out of
5
by
kaitlinn11_5931 from
Great pressure
This shower head has a wide flow so lots of coverage and it provides great water pressure. Instal was easy and the directions were well written and easy to follow.
Date published: 2025-01-16
Rated 5 out of
5
by
robbinn_148 from
Beautiful and elegant
Absolutely beautiful set for a shower. You have to make sure that you have just a shower not a tub. It is made for a walk-in shower. Decent water pressure and as always Delta is very durable and very functional. The design is absolutely elegant and the installation was a bitcrazy. But finally done and the bathroom is not finished yet, but that is in the shower. I’ll try to post more pictures once it’s complete.
Date published: 2025-01-13
Rated 5 out of
5
by
melanies219_3002 from
Shower Faucet is Great
The Modern Monitor 14 Series Shower is awesome. The installation was easy and quick. My family and I love the rain forest design. The water pressure is very good. The shower faucet gives my bathroom a luxury look. I would definitely recommend this Delta Faucet to my friends and family.
Date published: 2025-01-12
Rated 5 out of
5
by
daner12_5864 from
Beautiful Upgrade
I love this waterfall showerhead! The bright silver is gorgeous and modern and the water pressure is consistent throughout all the holes. Installation was a bit intimidating, but so worth it!
Date published: 2025-01-08
Rated 5 out of
5
by
Chris from
Awsome
Great shower system love it
Date published: 2025-01-08
Rated 3 out of
5
by
alliefaye22_8283 from
Truly depends on how your bathroom is
Design is great! Was super excited for this until we put it together. You need to be able to get to the sending pipe. If you do not have access to it you can’t put the handle part or switch in. The head by itself is amazing.ing but it would need a whole renovation for us to install it 😔
Date published: 2024-12-17
Rated 2 out of
5
by
mrrame from
Check all the compoenents before installing them
Bought the shower system from amazon. None of the individual components of the shower system were sealed, so not sure if they sent me a used item.Contractor started installing it, and we had the shower rough in inside the wall, all tiled up. When he tried to insert the cartridge, he noticed the cartridge wont fit in the valve.
Amazon only had options to refund, but half of the shower components are already insdie the wall. I had to contact Delta support ( 5 starts to them), and they are shipping me a replacment cartridge.
But I need to stop the work for next week until i receive the cartrige.
When you get the box, make sure to check every thing.
Also the list price is $800, but the quality is no where close to that price.
Date published: 2024-12-06
Rated 4 out of
5
by
allisongio716_1384 from
Spa like shower head
Installation required a handy man as we are not the handiest! We did notice the water pressure lessened a little with this new shower head set, however the rainfall is AMAZING. These are like the shower heads you see in spas. The attachment is great for shampooing and also cleaning the tub. I would recommend this product- just make sure your pressure is great prior to installation.
Date published: 2024-12-02
Preguntas y respuestas
Hello, my tile guy made the tile a bit thick. The screws provided are too short, what size are they so I can try to find a longer screw Thank you
Hello,
Thank you for your question!
This model features a screw size of #10-24x1.74-Phillips-Pan.
Please reach out with further questions!
Best Regards,
Tim
Digital Communications Specialist
Date published: 2024-12-10
Does raincan tilt?
Hi TeresaM!
Thank you for your question and we are happy to help. The Delta 34701 does not tilt. With any further questions or concerns, please do not hesitate to reach out to us again.
Best Regards,
Carrie
Date published: 2024-11-12
Why can’t I add this to my cart
Hi Chuck,
Thank you for your question!
Unfortunately this item is not available for purchase directly through us. Please see the following link on where to purchase.
https://www.deltafaucet.com/where-to-buy?pid=342701
Please reach out with further questions!
Best Regards,
Tim
Digital Communications Specialist
Date published: 2024-03-19
Can I use RP51919 to utilize the third output of the diverter valve?
Hello Valued Customer,
Thank you for contacting Delta Faucet Company!
Yes, you can purchase the RP51919 to use a third component.
We appreciate your inquiry. Please reach out directly if you have further questions!
Best Regards,
Kyra
Digital Communications Specialist
Date published: 2024-12-16
How do we get the shower head and handheld water to go at the same time?
Hi Fred,
Thank you for your question!
The small handle on the valve trim is the diverter which will allow you to run the showerhead only, hand shower only or both at the same time.
Please reach out with further questions!
Best Regards,
Tim
Digital Communications Specialist
Date published: 2024-03-25
Where can I buy the model 14 version. Nobody has them. Even inline
Hi James!
Thank you for your question and we are happy to help. The Delta 342701 is not available until 1/30/2024. With any further questions or concerns, please do not hesitate to reach out to us again.
Best Regards,
Carrie
Date published: 2024-01-31
Is this available in the 17 series?
Hi Phil,
Thanks so much for contacting Delta Faucet Company!
Unfortunately, the MODERN™ Monitor® 14 Series Shower With Raincan, Hand Shower & Rough Valve MODEL#: 342701 is not available in a 1700 Series.
Please reach out with further questions!
Best Regards,
Kelley
Digital Communications Specialist
Date published: 2024-02-15
I bought this system from Amazon. This only give cold water. How do I make it warmer
Hi Raja,
Thank you for contacting Delta Faucet Company!
Our 342701 uses a 1400 series cartridge that comes adjusted to the middle setting. The middle setting provides equal hot and cold water, resulting in the water being cooler than expected. The rotational limit stop will need to be adjusted to your preference and the instructions can be found on page 4 box 3 in the link below!
https://media.deltafaucet.com/MandI/115669%20Rev%20A.pdf
We appreciate your inquiry. Please reach out directly if you have further questions!
Best Regards,
Kyra
Digital Communications Specialist
Date published: 2024-09-09
