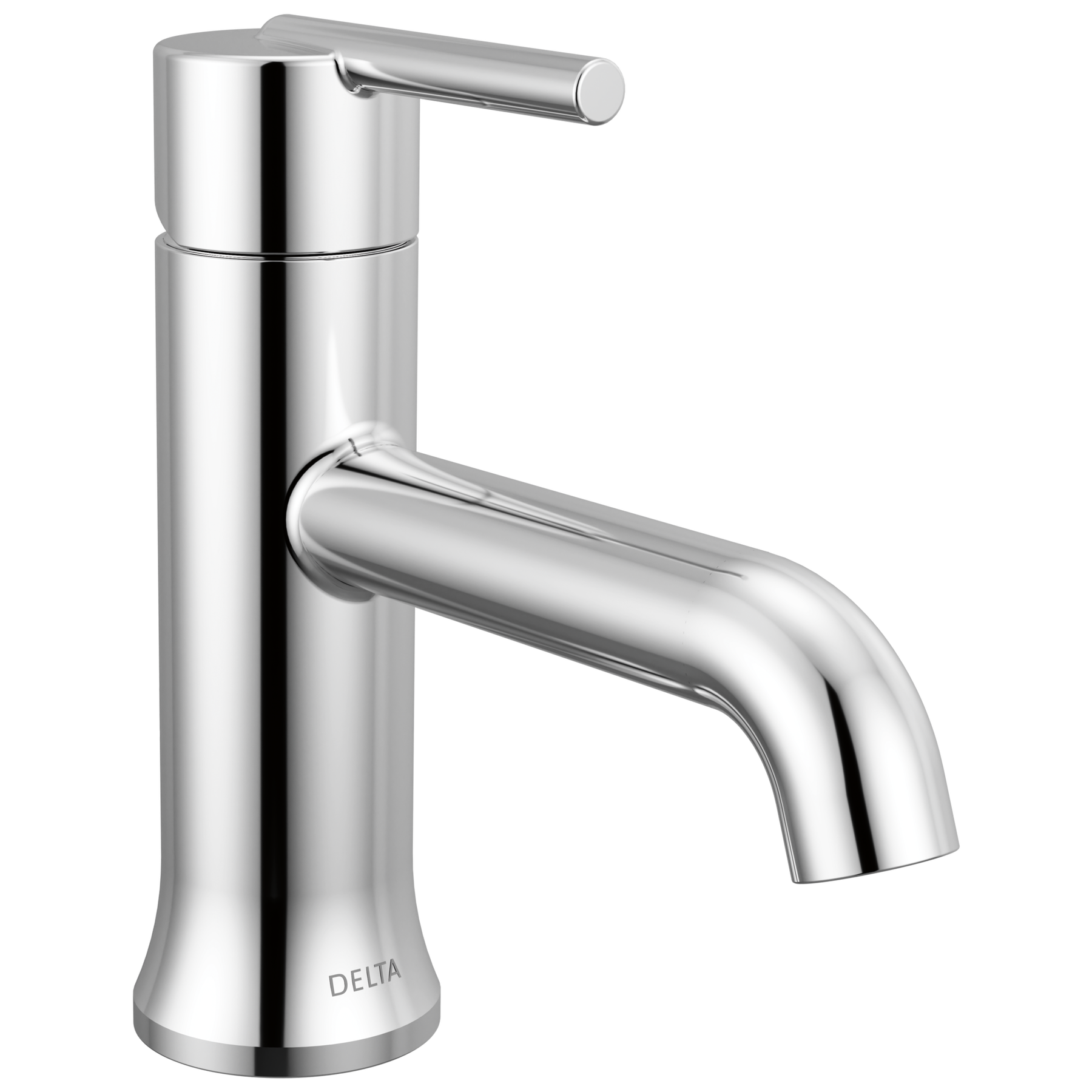

Llave para baño de una manija en cromado
N.º de modelo: 559LF-GPM-MPU
Image Thumbnail, click to view zoomed product image
nulo
nulo
CARACTERÍSTICAS DEL PRODUCTO
La colección para baño Trinsic® se inspira en la elegancia del diseño europeo moderno para completar el estilo de cualquier baño contemporáneo, desde clásico hasta rústico. Las llaves con tecnología de sellado DIAMOND Seal® de Delta® funcionan como si fueran nuevas de por vida porque cuentan con un diseño patentado gracias al cual se reducen los puntos de fuga, la instalación es más sencilla y duran el doble que el estándar de la industria. Las llaves con etiqueta WaterSense® de Delta usan al menos un 20 % menos agua que los productos estándar de la industria y le permiten ahorrar agua sin sacrificar el desempeño. Usted puede realizar la instalación con confianza, ya que tendrá la tranquilidad de saber que las llaves de Delta están respaldadas por nuestra garantía limitada de por vida.
- La tecnología de sellado DIAMOND Seal® facilita la instalación y permite que su llave funcione como si fuera nueva toda la vida, ya que reduce los puntos de fuga y dura dos veces más que los productos estándar de la industria.
- Todo lo que necesita en una conveniente caja, que incluye líneas de suministro PEX InnoFlex®
- Se adapta a instalaciones de 4" con 1 o 3 orificios.

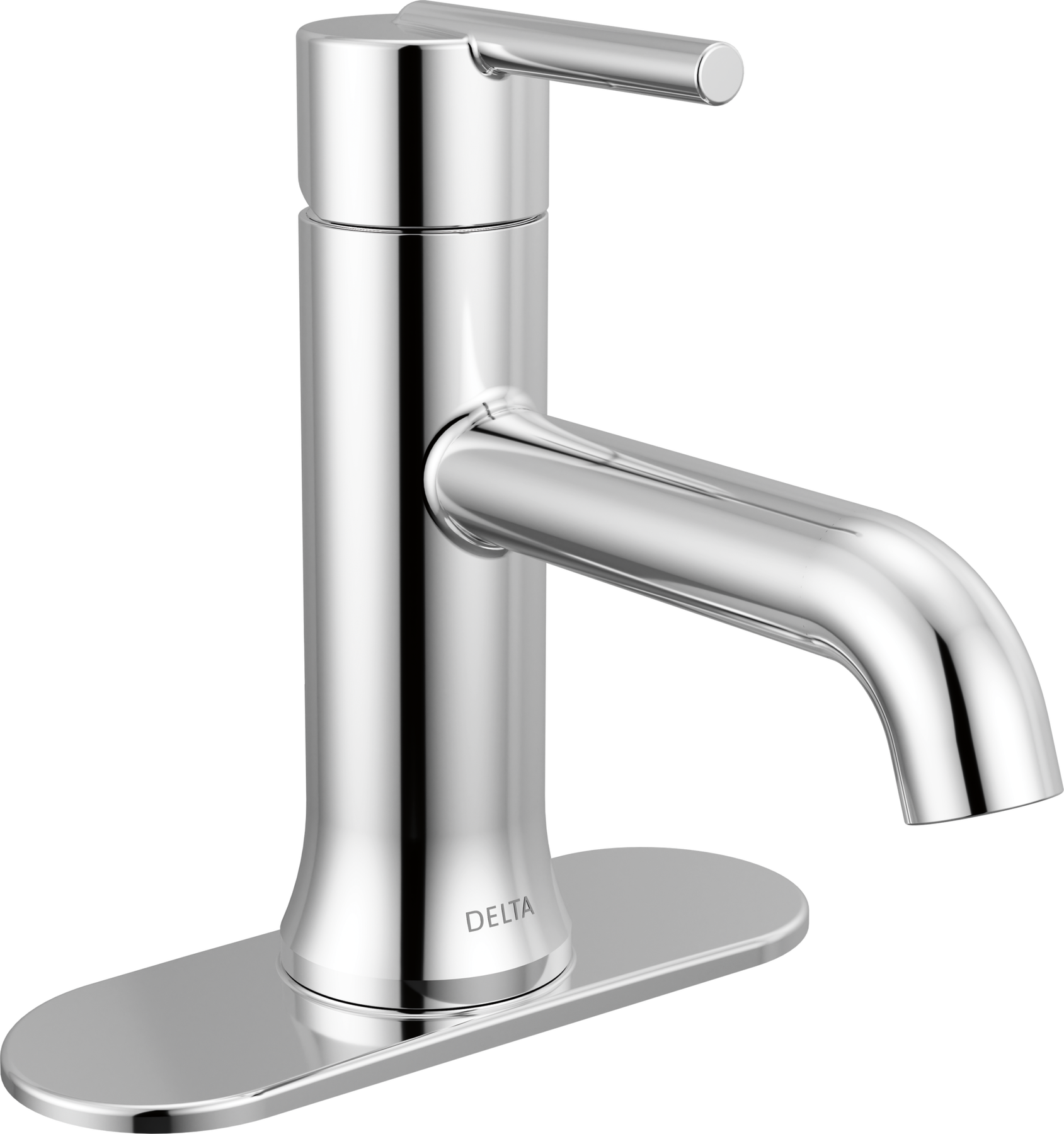

- Incluye placa de encimera opcional para instalaciones con 3 orificios
- Se incluye anillo indicador de temperatura rojo/azul opcional.
- El conjunto de desagüe con emergente a presión de metal con acabado a juego (incluido) cumple con la ADA y es fácil de instalar, operar y limpiar.
- Cumple con la ADA.
- Las llaves con clasificación WaterSense® usan al menos 20 % menos agua que los productos estándar de la industria sin sacrificar desempeño
- La salida de tina rígida no gira
- Accesorios de compresión de 3" a 8"
- Respaldado por la garantía limitada de por vida de Delta Faucet
Ecológica
Con etiqueta WaterSense®
Technology and Special Features
Libres de plomo
Libres de plomo
Cumplimiento con la legislación estatal y federal de agua potable.
Tecnología de sellado Diamond Seal®
Tecnología de sellado Diamond Seal®
La tecnología de sellado DIAMOND™ es parte del nuevo y revolucionario sistema de distribución de agua de Delta. La superficie de contacto interna, compuesta por pequeños diamantes, hace que la válvula sea muy duradera y no tenga fugas. También evita que el agua entre en contacto con posibles contaminantes metálicos.
Documentos y especificaciones
Soporte para productos, repuestos y especificaciones técnicas

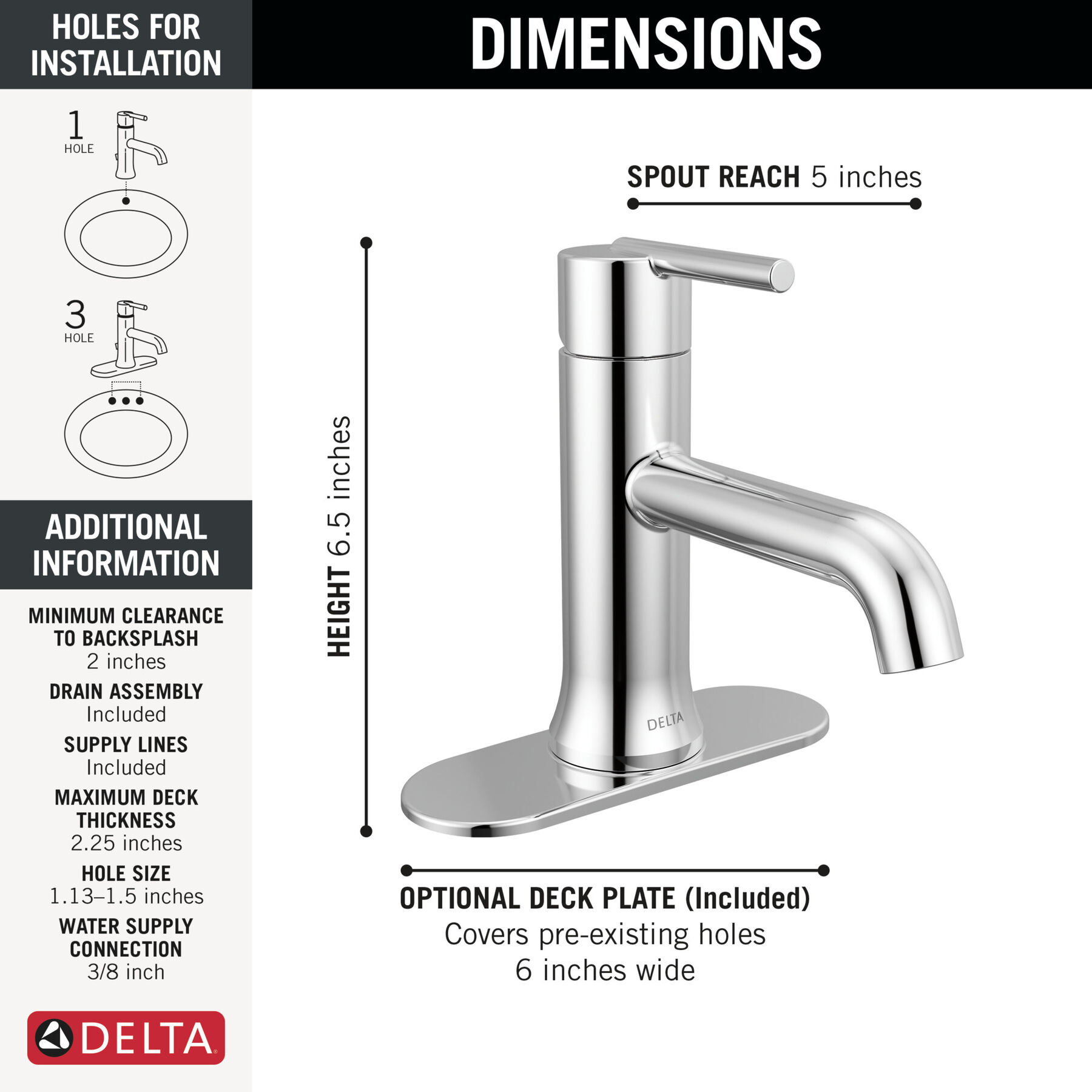

Información de instalación
Instalación con 1 o 3 orificios de 4"
Altura total:
6 1/2
Voltaje:
0
Caudal:
1.0 gpm a 60 psi, 3.8 l/min. a 414 kPa
Tipo de válvula:
Disco cerámico
SOPORTE PARA LA INSTALACIÓN
¿Necesita ayuda con la instalación? Busque instaladores locales de Delta® Obtenga cotizaciones. Lea reseñas.
¿Necesita ayuda con la instalación? ¡Mike y Hannah están aquí para ayudar! Reciba consejos de los profesionales para todo, desde la instalación hasta el cuidado del producto.
RESEÑAS
Rated 4 out of
5
by
Wendy from
Nice faucet
We have the brushed nickel and it does get a bit spotty with our hard water, but overall I am happy with the quality of the faucet and the clean design.
Date published: 2024-11-03
Rated 2 out of
5
by
Bath remodeler from
Not what expected
Looks nice. But I didn’t realize the water only comes out as a spray, not a normal stream.
Date published: 2024-09-08
Rated 5 out of
5
by
d berry from
Delta faucet
Item arrived when it was scheduled in perfect condition!!! Great selection & service
Date published: 2024-04-07
Rated 5 out of
5
by
Kaia from
Perfect faucet
Love this simple faucet!!! The water flow is very quiet!
Date published: 2023-08-13
Rated 4 out of
5
by
Linda from
Faucet
Easy to use and install. Looks great with latest trend in marble and bathroom
Surfaces
Date published: 2023-04-22
Rated 5 out of
5
by
Anonymous from
Beautiful update
Purchased for a client in conjunction with other Delta Trinsic bath fixtures. Excellent quality. Finish is even and color is true between different fixtures.
Date published: 2023-04-13
Rated 5 out of
5
by
Rob L from
Hollywood Glam!
This faucet is perfect. Fits the Hollywood glam decor I was going for in my half bath.
Date published: 2023-03-19
Rated 3 out of
5
by
Hot Cold Missing from
Delta Trinsic Single Hole Faucet
This model of Trinsic does not include 2 dots silkscreened to the top cap which indicates cold and hot water. ( red & blue dots) All the other Trinsic bath, shower sets, tub etc faucets I have used include these 2 colored dots. Even the picture in this review page shows the 2 colored dots but it is not on the product. Instead this model has an all chrome top without the dots, and so to indicate hot and cold it includes a plastic color coded ring that you must insert under the top cap, by pulling up on it,removing it completely, and then removing the bonnet ring, placing it. then placing the 2 parts back on top that must snap back into place. HUH?? yes! Well, this is an accident waiting to happen as the top of the faucet can develop a leak from the pressure of the pull to remove the top. There is absolutely no cost saving in manufacturing to change the cosmetic look so why was this done??
Furthermore, there is no indication in any of the literature or photos that the traditonal , trademark and forever Trinsic 2 colored dots are not on this caps model. Perhaps some people want an all chrome top without colored dots? WHY? but the dots are so small I cannot see this being a requirement. Someone messed up in product marketing..
As a contractor I have installed dozens of these and the lack of the top cap color code is a major oversight.
I use this series in all contemporary & transitional design homes and the look is outstanding so much so that you are seeing knock offs everwhere these days. I recommend the series & the brand but not this model.
Date published: 2023-03-17
Preguntas y respuestas
do you have cad files for this faucet
Hi Brad,
Thank you for your question! The CAD files are available under the Product Support, Repair Parts, and Tech Specs tab.
Best regards,
Jon
Date published: 2024-03-28
Does the drain have overflow capability?
Hi, Brooke!
Thank you for your question. The Delta 559LF-GPM-MPU faucet metal pop up drain assembly does include overflow holes.
Best Regards,
Rosanna
Date published: 2024-03-28
Our old plate is 6 in. Long. Will the trinsic faucet for (sink) work with that? I ordered Trinsic on Sat. May 25, 2019 And just realize all your faucets say fit 3 to 4 in I need to cancel order if won't work Thank you
Thank you for your question, Marylene! I apologize for any confusion and I am happy to clarify. This model can be installed as a 1 or "single hole" installation or as a 4" (4 inches from each center of the installation hole to the next hole center) installation when using the included optional 3-hole 6" escutcheon plate which will also cover your existing holes.
https://media.deltafaucet.com/SpecSheet/dsp-l-559lf-mpu_F.pdf
Best regards, Edward
Date published: 2024-03-28
Delta 559LF Trinsic installation. Eschuteon used; faucet sits on eschuteon. One hole sink surface. Do I use the white rubber gasket between the faucet and the eschuteon in one-hole eschuteon installation? Or gasket only w/out use of eschuteon?
Thank you for your question, Daniel! If you are not using the escutcheon, then you will need to use the single hole gasket provided, however if you are installing this model with the three hole escutcheon, even on a single hole installation, you will not use this gasket but will still need to use the three hole gasket. The information on installing this faucet as a three hole mount or single hole mount can be found on pate 3, Step 1 of the Maintenance and Installation manual below.
https://media.deltafaucet.com/MandI/86674%20Rev%20D.pdf
Best regards, Edward
Date published: 2024-03-28
I purchased this faucet for a small sink with no overflow. Can the drain be installed?
Good morning Joe S!
Thank you for your question!
The drain for this faucet does have an overflow, so we would not recommend installing it in a sink that does not have an overflow. We apologize for the inconvenience.
Please contact us back for any further questions.
Best Regards,
Frank
Date published: 2024-03-28
HOW DO YOU CHANGE THE CARTRIDGE ON THIS FAUCET
Hello JEFF,
Thank you for your question! I am happy to help you!
Looking into this, I have found instructions to replace the cartridge to the Delta Faucet TRINSIC® Single Handle Bathroom Faucet MODEL#: 559LF-GPM-MPU. Please refer to the information below. I apologize again for any inconvenience this may cause.
Please shut off the water supplies, gather your 1/8" allen wrench, wrench, and strap wrench before we begin.
1. Please remove your handle with the 1/8" allen wrench. There may be a button you can remove with your fingernails first.
2. Once you remove the handle, you should see the cap or sleeve assembly. Remove this with your strap wrench if you cannot remove it with your hand.
3. After the cap or sleeve has been removed, you should see a brass bonnet, please use your wrench to remove this part.
4. Your cartridge is now free to be removed. Please ensure there is no debris on the puck piece inside the valve. If there is, please grab q-tips or paper towels to clean it out.
5. You are now able to install your new cartridge.
Thank you for being a loyal Delta customer. Please contact us back for any further questions.
Best Regards,
Nicole
Date published: 2024-03-28
Where can I buy the tool to remove the aerator in this faucet
Hello Tommy!
Thank you for your question and we are happy to help. We apologize for this information not being readily available to you. The Delta Faucet Trinsic® Single Handle Bathroom Faucet In Chrome MODEL#: 559LF-GPM-MPU aerator removal tool is part number RP71260 and can be ordered through us. With any further questions or concerns, please do not hesitate to reach out to us directly. Thank you for being a loyal Delta Faucet customer.
Best Regards,
Carrie
Date published: 2024-03-28
