Kit SimpleSteam™
SimpleSteam™ Kit - 4kW in Lumicoat® Chrome
N.º de modelo: 5P-EST04-PR
Image Thumbnail, click to view zoomed product image
nulo
nulo
nulo
nulo
nulo
nulo
nulo
nulo
CARACTERÍSTICAS DEL PRODUCTO
Fácil de pedir y de usar, el kit SimpleSteam™ es simple por una razón: para que pueda disfrutar de los beneficios del vapor en casa siempre que lo desee. El vapor puede ser más que una escapada relajante. Descubra cómo los sistemas de vapor Delta® pueden mejorar su bienestar general. Además, conserve agua y energía sin que eso afecte su experiencia: una ducha de vapor promedio de 20 minutos consume menos de un galón de agua. Disfrute del vapor con tranquilidad; el generador SimpleSteam está cubierto por nuestra garantía limitada de por vida, y las piezas electrónicas tienen hasta dos años cobertura.

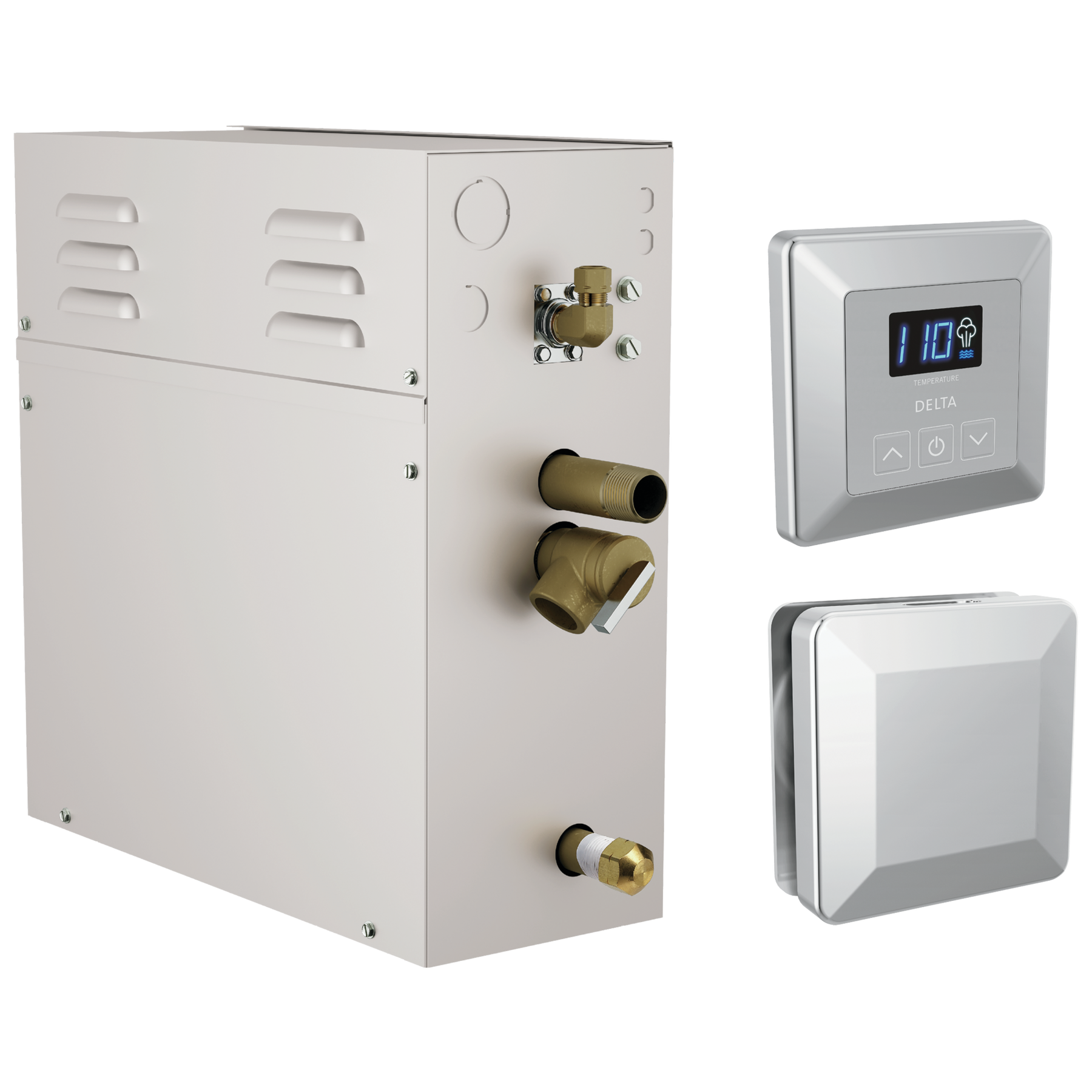

- El kit incluye un generador SimpleSteam™, un control cuadrado SimpleSteam™ y un cabezal de vapor cuadrado
- Generador disponible en distintos tamaños: 4, 6, 7.5, 10, 12 y 15 kW
- Su diseño compacto permite instalar el generador en un tocador, un armario o un ático o sótano aislado
- Incluye un cable de 35' (se venden alargadores de otras longitudes por separado)
- La bandeja de generador y el desagüe automático 5GA-PAD-240 recomendados están disponibles para comprarlos por separado
- Depósito de acero inoxidable
- El generador está homologado por UL y tiene una garantía limitada de por vida
- Control turns system off and on and adjusts temperature
- El control debe instalarse dentro del área de ducha
- Cabezal de vapor con rosca NPT de 3/4"; incluye cubierta de silicona
- Reserva de aceites esenciales en la parte superior del cabezal de vapor
- Lumicoat® Finishes are guaranteed to resist water spots and mineral buildup and easily wipe clean without chemicals or cleaners
Información especial
ADVERTENCIA de la Proposición 65 de California
ADVERTENCIA DE LA PROPOSICIÓN 65 de California
Este producto puede exponerle al plomo, que según el estado de California causa cáncer y anomalías congénitas u otros daños reproductivos.
Para obtener más información, visite http://www.P65Warnings.ca.gov.
Documentos y especificaciones
Soporte para productos, repuestos y especificaciones técnicas

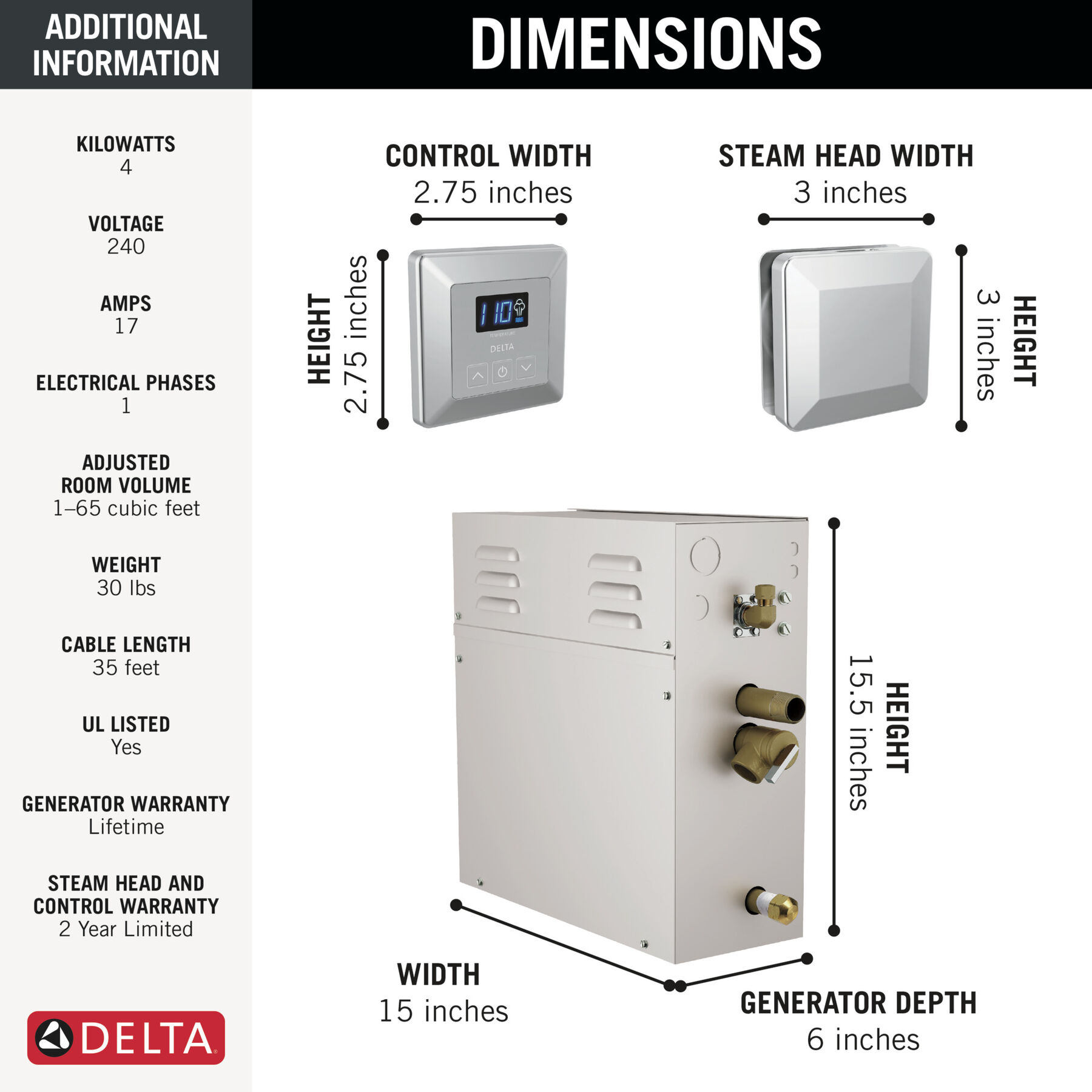

Información de instalación
Overall Height (in.) :
21 7/16
Volumen máx. de la ducha:
75
Unidad de control incluida:
Sí
Generador incluido:
Sí
Cabezal de vapor incluido:
Sí
Cubierta de silicona incluida:
Sí
Fases eléctricas:
1
Capacidad del disyuntor:
25
Frecuencia:
60
Voltaje:
240
Voltaje:
4000
Cantidad de cabezales de vapor:
1
Altura de la unidad de control:
3 3/4
Profundidad de la unidad de control:
5/8
Alto del cabezal de vapor:
3
Ancho del cabezal de vapor:
3
Profundidad del cabezal de vapor:
1
Alto del generador:
15 1/2
Profundidad del generador:
15
Kilovatios:
4 kW
Tipo de válvula:
NA
SOPORTE PARA LA INSTALACIÓN
¿Necesita ayuda con la instalación? Busque instaladores locales de Delta® Obtenga cotizaciones. Lea reseñas.
¿Necesita ayuda con la instalación? ¡Mike y Hannah están aquí para ayudar! Reciba consejos de los profesionales para todo, desde la instalación hasta el cuidado del producto.
RESEÑAS
Rated 5 out of
5
by
Kimberly C from
Awesome Addition
This Delta SimpleSteam kit is an AWESOME addition to our Master Bathroom. I never knew a steam shower could relax my whole body and mind so much. It truly is amazing. Installation was as easy as looking up a professional plumber in my area and scheduling an appointment. We opted for the add on of the generator pan and auto drain basically for peace of mind against leaks and/or condensation build up. The system fit in a small space in our basement. The control unit is located handily in our shower. From the shower we turn it off and on, set the temperature and the duration of time its on. I don't know how we were living without this set up! Especially now that its winter time, the steam REALLY helps to open up your sinuses. It is one of those things you have to experience for yourself to know the difference it makes.. We plan on adding another in the guest bathroom, just to keep the kids out of ours....... They love it too! All in all super glad we have this spa like experience in our home at the touch of a couple buttons. Wow, highly recommend.
Date published: 2023-12-19
Rated 5 out of
5
by
joecm26 from
Very cool!
I have been using my steam machine (as I call it) for a little while now and wow it’s amazing! I didn’t do the installation myself as my brother is a contractor so I had him do it. He said it really wasn’t that bad to install and only took him about a half hour! Now if you want the benefits of a steam room without having to go to a gym or ymca then this should be your answer! I personally have seen my nose being clear again and my skin just feels better all the way around! I highly recommend this! Seriously!
Date published: 2023-12-18
Rated 5 out of
5
by
Rmc122 from
Amazing
Delta is superior when it comes to bathroom and kitchen. I love their designs and how durable their products tend to be which is why I had no hesitation that this model would work great for my home project. It looks great and low profile which I love.
Date published: 2023-12-18
Rated 5 out of
5
by
thomaswbo from
Spa at home!
We had this installed in our master bathroom by a plumber sure it would be a diy project if you know plumbing! If you ike the steam room at the spa you will like this spa in your very own home. Steams the shower and our bathroom! Easy to clean and wipe down. Easy to use and set the temp and a timer and relax and enjoy a spa day at home! Feeling down amd need to relief some congestion this will do the trick! Work hard and just need to relax in a steam room this is it! Enjoy it anytime you need it right at home!
Date published: 2023-12-13
Rated 5 out of
5
by
LisaNc43 from
Great steam system!
My husband and K installed this steam shower system about a month ago and wrote couldn't be happier with it. My husband did most of the installation while I helped but it was overall a pretty easy process. The system itself works great. The amount of steam it produces is perfect and I love having the controls right on the wall. It's so convenient and easy to use. The finishes are beautiful and fit on with most any decor you might have. We just love everything about it. I highly recommend this unit if you are in the marker for a steam shower.
Date published: 2023-12-12
Rated 5 out of
5
by
mmhollywood from
Great shower experience!
Kohler Shower Steam Kit Model 5P-EST12-BL: A Spa Getaway Every Day
I recently splurged on the Kohler 5P-EST12-BL shower steam kit, and let me tell you, it's been a game-changer. Let's just say goodbye to those boring, routine showers and hello to a luxurious spa experience every single day.
What I like:
Easy Setup: I'm no handyman, but even I managed to install this steam kit myself. The instructions were clear and straightforward, and the whole process took less than an afternoon.
Steam Powerhouse: Forget those weak, wispy steam showers. This baby cranks out enough steam to turn your bathroom into a tropical rainforest in minutes. It's the perfect way to unwind after a long day or soothe sore muscles.
Aromatherapy Bliss: This is where things get really fancy. The AromaSteam feature lets you add essential oils to your steam, creating a truly customized and therapeutic experience. Lavender for relaxation? Eucalyptus for a clear head? The possibilities are endless!
Color My World: ChromaSteam is another cool feature that lets you change the color of the steam. It may sound gimmicky, but trust me, it adds a whole new dimension to your shower. Blue for calming, red for invigorating, or just go for a rainbow effect!
Music to My Ears: SoundSteam allows you to stream your favorite music through the steam generator. Picture this: you're enveloped in a warm, aromatic cloud, your favorite tunes playing softly in the background. Relaxation heaven!
Digital Control at Your Fingertips: The intuitive digital control panel makes it easy to adjust all the settings, from temperature and steam intensity to aromatherapy and lighting. No more fiddling with knobs or trying to decipher cryptic symbols.
Highly recommend!
Date published: 2023-12-12
Rated 5 out of
5
by
pixxiestix from
love it!
I installed this unit in my newly redone bathroom, and wow this unit is the best! I turn it on and in seconds my shower is filling up with steam. It was a real easy installation with the instructions, per my husband who knows basically nill about plumbing. I love being able to get a nice hot steam after a workout at home! The look of the module adds to my bathroom as well. I love it!
Date published: 2023-12-05
Rated 5 out of
5
by
Veraf from
We're so excited to try out this stream unit
Unfortunately, we've run in to a delay at having our steam shower built and installed. Our contractor had a family emergency and won't be available until after the first of the year to build and install. I took photos of our existing shower ; the new shower will be tiled from floor to ceiling with custom made glass entry doors replacing the prefab unit currently in ours.
I'm very excited about this unit as I suffer with year-round allergies and the associated sinus congestion and headaches so using the steam will greatly improve my symptoms and discomfort.
The steam unit arrived in excellent condition. There are several sets of instructions included for both the unit as a whole and also for the steam and unit control modules. It is definitely necessary to have a professional install this due to specifications and for prevention of standing water/condensation/moisture damage.
I will update a review on Delta's website once my project is complete. Based on reviews I've read, this is a very effective, reliable and high quality product!
Date published: 2023-12-04
Rated 2 out of
5
by
CeCe from
Excellent!
Delta products are a trusted brand throughout my home, and I absolutely love my new Delta SimpleSteam Steam Generator. I love being able to have a nice steam shower while using less water. I also like that it has an essential oil reserve. This product comes with a lifetime warranty, which is a huge plus for me. If you're looking for a steam generator, look no further!
Date published: 2023-12-01
Rated 5 out of
5
by
Loohoo502 from
Simply wonderful!
We built a new master bath; it is a large space, and it was designed oversized mostly for adding resale value to our home but also for luxury and specially for my husband who is very tall. We had the shower area built with steam rated material and the shower is fully enclosed. We put off adding the steam shower generator because we wanted to use a different contractor after having problems with a heated floor. We got busy and put the steam shower on the back burner. When the Delta steam shower became available, we were thrilled we were able to select one from Delta because it is an excellent brand that we are familiar with through plumbing fixtures, trust, and know from experience Delta is committed to quality throughout the life of their products.
Our installation was fairly easy as our bathroom had been designed and built to have a steam shower, all we needed was to coordinate the professionals to install it. We used a plumber and electrician in the installation, and I did have our tile installer come back and cut the shower tile simply to avoid any damage.
All one sees from the shower is the Control Panel and Steam Head. Both are nicely sized; they are not bulky but look understated and sleek. The finish matches our existing finishes and looks great in the shower. The control panel is simple to use and is basically self-explanatory it allows you to set, raise and lower the steam level and displays the temperature. The digital display lights up well and looks nice and is easy read. The generator was installed in a utility room under the shower the generator is fairly small, it runs smoothly and when turned on fills the shower area with steam quickly.
Being a first-time user of a steam shower, the steam feels really moist, it is not dry like a sauna. It feels really good to sit in the steam. Things I have noticed are, it does make my skin feel moisturized and soft. It does relieve my dry sinuses and congestion. It does relax tight muscles. My husband says he finds the stream shower relaxing but I actually feel more energized after using it.
Overall, a steam shower is an optional item we wanted. We really like having it. We did not do the best job of measuring and could have gone with a smaller unit, so a good tip is to measure well. Delta has a nice tool for this on their website. Still, this uses very little water, and we don’t think the electric will be considerable. We are especially glad to have a Delta brand. I feel assured that we have a great product that is well made and will perform well for many years to come. We know from experience Delta has a great warranty and offers excellent support and service. A steam shower is definitely something you have to plan for. We were thrilled to get a Delta steam shower kit.
Date published: 2023-11-28
Rated 5 out of
5
by
Bobb from
Amazing
This SimpleSteam™ Kit - 12kW is like a magic wand for the house! It can make steam for all sorts of things, making chores easier and quicker. But here's the catch – it might take a while, up to 12 weeks, to arrive. So, if you're okay with a bit of waiting, it's like having a helpful wizard in your home, ready to make life a little bit easier with its steamy powers!
Date published: 2023-11-28
Rated 5 out of
5
by
Christen89 from
Simply wow!
This product has blow my expectations out of the water. Not only does it work wonderful; it also is very easy to assemble for a complete product. I highly recommend this to anyone looking to add a little luxury to their shower routine. I am so beyond glad I got to receive and try this product!!
Date published: 2023-11-27
Rated 5 out of
5
by
aisling from
I love it
I recently got thisDelta - 5P-EST12-BL SimpleSteam kit and I absolutely love it. I'm so happy that I got it. installation and setup with simple I set it up in my main bathroom. I highly recommend it..
Date published: 2023-11-15
Rated 5 out of
5
by
Kellie2 from
AMAZING!! Best steam shower! LOVE it!
Can’t say enough good things about this Delta SimpleSteam! It’s life-changing! Love coming home after a long day and sit in my steamy, warm shower. It opens up my lungs and sinuses, warms my soul and helps me feel relaxed and happy. Turns your bathroom into a luxury spa! LOVE it!
Date published: 2023-11-13
Rated 5 out of
5
by
Thanllj from
So relaxing!
We had our plumber come and install this 2 weeks ago and we have been using it ever since. It is amazing!! Where has this been all my life?! After a hard day of work, it just feel so good to sit in the steam shower and relax and unwind. It doesn’t take long at all to start the steam and it looks beautiful installed. My husband says he loves to get in there when he’s feeling a little sick and it helps to clear his sinuses. We love it. It’s worth the investment 100 fold! You will not be disappointed!!
Date published: 2023-11-13
Rated 5 out of
5
by
KyleH from
Spa-quality steam shower at any time
I recently installed the Delta SimpleSteam Shower Kit in my bathroom, and it has been a game-changer for my daily routine. Daily steam showers are an incredible luxury and I'm so excited to be able to enjoy a spa-like retreat whenever I want. I'm thrilled with the results!
Installation was quite involved and not something I'd recommend as a DIY project. I hired out installation to a contractor who was handling the rest of my bathroom remodel as it involved quite a bit of plumbing and wiring. I had the generator installed in my bathroom vanity since it was close to my shower and had access to the required water supply lines and power. The kit comes with detailed installation instructions and recommended configuration diagrams.
The steam generated by this kit is exceptional. The unit quickly produces a steady and consistent stream of steam, which fills my shower enclosure nicely. The digital temperature and timer controls are really easy to use, allowing me to quickly customize the temperature to my liking. I've found that steam showers are not only great for relaxation but also for relieving muscle tension after a long day at work or an intense workout. I really like to turn on the steam while taking normal showers to provide extra warmth and make my morning routine feel extra luxurious.
The Delta SimpleSteam Shower Kit has truly elevated my daily routine. I love being able to enjoy a spa-quality steam shower at any time in the comfort of my home.
Date published: 2023-11-13
Rated 3 out of
5
by
Katko from
Missing part
I was so excited to receive this shower steamer and couldn’t wait to set it up. I have bad back pain so I really was looking forward to relaxing in a steam shower. I was missing a small white connector piece. I did find it at Home Depot but I was aggravated because I had to waist time to go to store then had to come home and finish. Works good. A little noise but not too bad.
Date published: 2023-11-11
Rated 5 out of
5
by
Huey87 from
Love it
When building our forever home, adding a steam generator was always been on my wishlist. We use mostly delta faucets and luckily they also have the Simplesteam generator. I was worried about installing a steamer due to reliability, but Delta has a limited lifetime warranty to ease my mind. The steamer is a game-changer for your shower experience. It produces a consistent flow of high-quality steam, providing a spa-like atmosphere and deep cleansing experience. The user-friendly design makes it easy to operate and maintain. Highly recommended for a relaxing and refreshing shower!
Date published: 2023-11-11
Rated 5 out of
5
by
Srm277 from
Luxury shower while at home
I recently how this steam shower kit installed and it does not disappoint. The installation seemed straightforward and easy, but I opted to take the safe route with a professional. Using this steam shower I have noticed my sinuses being much clearer especially in this dry winter weather. I also have noticed feeling more relaxed after using it as well. This has definitely spoiled me with my showers!
Date published: 2023-11-10
Rated 5 out of
5
by
cj4199 from
Had this installed in a recent bathroom remodel. Installation was pretty straight forward and works as expected. Would recommend!
Date published: 2023-11-10
Rated 5 out of
5
by
Nathan from
Could never show again without steam!
Cannot describe how much I love this steam unit. I built a large custom shower in my master bath and incorporated the steam unit into the design. I went for the whole "total sense" package so we have steam, lights, aroma and sound. It's been in daily use ever since I set it up and both my wife and I are hooked. Although I do occasionally use my shower as a steam room, (I have fold-down teak benches mounted to the shower wall) The real value and luxury to me is in the typical daily shower. No more feeling cold when you are not directly under the shower head water flow. You simply turn off the water and lather up in a warm steamy heaven. I can't imagine what it's like to shower without steam anymore.
Date published: 2023-11-08
Preguntas y respuestas
Can the Delta unit be used as a direct replacement for 1 year old Elite Steam unit? (Will controls and connections be the same?)
Hi JBurns719,
Yes, the Delta Simple Steam will be a direct replacement for the Elite Steam Product.
Date published: 2024-05-16
what is the maximum steam temperature I can get? dial shows106 but set to 124
Hi T Clark,
The control's maximum set point is 125°F. The maximum temperature the steam room can reach will vary depending on how the steam was constructed and sized.
Date published: 2024-11-06
I have a new 72”x42 shower what size unit should I install?
To select the proper model steam generator, we also need to know the Height, Wall Material and if there are any exterior walls/windows.
Date published: 2025-02-20
Can I use the gold round Control from the other units for the simple steam?
Hello,
You can only use the control that comes with the Simple Steam Kit. The other controls will not work and could damage the system. Upgrade to the Delta Steam Scape or Brizo Mystix generators if you want the round and gold control.
Date published: 2024-09-24
SimpleSteam Kit 10kW. The plumber wants to install it under wife's vanity punch a hole thru the wall run the steam pipe up the wall into & across the attic into the MB down the MB wall & into the MB. Toal pipe ft = 40 with 4 right angles. Will this work?
Hi Batman0015,
This is acceptable.
Date published: 2024-09-11
how far can i run the steamer
For optimum performance, we recommend keeping the steam pipe run under 25'.
Date published: 2025-02-11
Is this a direct connection or does it require a plug? If so, what is the NEMA configuration
This is a hard wire, a 30amp double breaker is required and depending on the layout, a local disconnect may also be needed.
Date published: 2024-07-09
Can you use the old controller from previous steamist 79 model
Depends on the exact model and serial# of the existing steam generator.
Date published: 2025-02-11
