Delta®

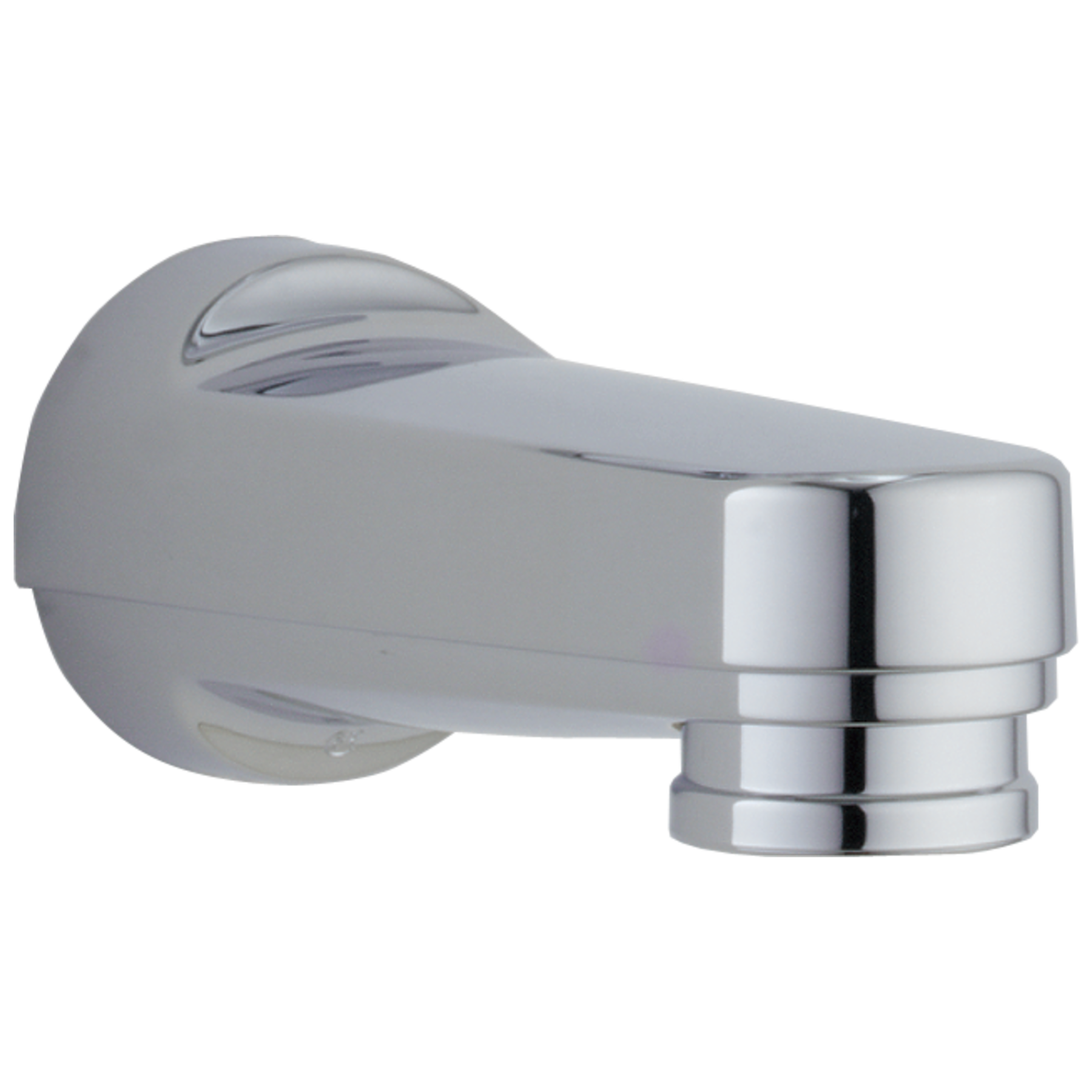

Tub Spout - Pull-Down Diverter in Chrome
N.º de modelo: RP17453
Image Thumbnail, click to view zoomed product image
CARACTERÍSTICAS DEL PRODUCTO
- Cerrar para desviar
- Longitud total de 5 1/4 "
- Soldar en tubo de agua de cobre (CWT, por sus siglas en inglés) de 1/2 " o enroscar en boquilla del tamaño de las cañerías de hierro (IPS, por sus siglas en inglés) de 1/2 "
Información especial
ADVERTENCIA de la Proposición 65 de California
ADVERTENCIA DE LA PROPOSICIÓN 65 de California
Este producto puede exponerle al plomo, que según el estado de California causa cáncer y anomalías congénitas u otros daños reproductivos.
Para obtener más información, visite http://www.P65Warnings.ca.gov.
Documentos y especificaciones
Soporte para productos, repuestos y especificaciones técnicas
Información de instalación
Overall Height (in.) :
2 1/2
Voltaje:
0
Tipo de válvula:
NA
RESEÑAS
Rated 1 out of
5
by
Sammi from
No set screw for a 80 diverted basic faucet
Didn’t come with set screw and ahit straight off the pipe! Can only replace delta with delta and they can’t even make their own stuff work with the items that are out in by contractors. So annoyed.
Date published: 2024-11-03
Rated 5 out of
5
by
Mar59 from
Ours has lasted.
We have had ours for 27 years and only now do we need to replace it. I’m looking for the part and hoping the newer ones last as long.
Date published: 2024-10-20
Rated 5 out of
5
by
FairyTalePink from
Excellent spout!
In the past several months I did some updates to my shower. I recently got a Moen Verso showerhead, and I wanted my Delta valve trim and spout to aesthetically match my showerhead in style. For the valve trim I went with the Delta Modern Series.
For the spout, I went with this one with the pull-down diverter. It has a nice modern design that seems to go well with my valve trim and showerhead. It fit right onto my existing Delta adapter with ease. The best part about this spout is that the diverter completely seals while showering, resulting in higher shower pressure. I would definitely recommend this spout if you want to improve your shower pressure.
Date published: 2023-12-16
Rated 1 out of
5
by
JT922 from
Don’t buy
Had installed for less than a year and it leaks out when trying to shower. Go with something that has less plastic components.
Date published: 2023-08-11
Rated 5 out of
5
by
Woodhead from
Awesome product & service
I've had this tub spout 3 yrs and noticed issues with the finish when I removed it to work on the shower grout. After contacting customer service, Daishana handled it smoothly and in a professional and quick manner. The spout has been exceptional with no issues and I highly recommend it, Also, their customer care group is always outstanding!
Date published: 2023-04-06
Rated 1 out of
5
by
Ga Mom honest review from
The diverter allows allot of water to leak
My 15 yr old tub spout diverter started squealing and needed replaced. You would think you could access the O-rings inside this reliable spout but I was told it has to be replaced. Got the pull down one and when activated it isn’t stopping the water flow. Please go back to the old 1990 style Delta.
Date published: 2021-09-24
Rated 1 out of
5
by
Furious from
Very disappointed
The inner plastic cracked allowing water to bypass when attempting to divert.
Date published: 2021-09-06
Rated 2 out of
5
by
Roger B from
Disappointed
I purchased your Delta Tub Spout Model RP17453 because the one that was included with my original tub/shower faucet stopped diverting to the shower. When I installed the new spout, it does divert to the shower, but as much water still comes from the spout as from the shower head. No better than my 21 year old original one.
Date published: 2020-03-14
Preguntas y respuestas
we have a RP17453 in our bathroom.Guests at times can't figure out how to turn on the shower. When installed this came with a sticker to be installed on the spout where water flows into the tub. Can we get a replacement sticker from you?
Hello Michele,
Thank you for your question. The RP17829 and RP17472 are the stickers that inform others of how to use the RP17453. These stickers can be purchae from any local or online dealer that sells Delta products.
Best regards,
Tanya
Date published: 2024-03-28
Is this style and/or model faucet available in steel with chrome? I do not want chrome over plastic if I can help it.
Hi, Russell S!
Thank you for your question. The Delta RP17453 Diverter Tub Spout is non-metallic. The Delta RP17454 Diverter Tub Spout is metallic. Here is a link to this model:
https://www.deltafaucet.com/parts-product-detail?modelNumber=RP17454
Best Regards,
Rosanna
Date published: 2024-03-28
What is the difference between the RP17453 & RP17454
Hi Jim, Thank you for your question. The tub spouts are the same except for the materials used to make them. The RP17454 is metal, the RP17453 is non-metallic.
Thanks,
Dave
Date published: 2024-03-28
The item RP17453 is fit for pipe protruding 3.5" from the wall?
Thank you for your question, Raymond! This tub spout will sweat onto a smooth copper pipe extending 2 - 4" from the finished wall, or thread onto a 1/2" IPS nipple extending 5/8 - 1 5/8" from the finished wall.
Best regards,
Jon
Date published: 2017-06-10
Hello, I am trying to replace the faucet in my tub, But the brass fitting it screws onto is larger than all of the standard size one's. When I measure the plastic thread hole in the old one, it measures 1 1/4" (inches)
Thank you for your question, JJWeb! RP17453 connects by either sweating onto 1/2" C.W.T. (copper water tube) or threading onto 1/2" IPS (iron pipe size). If your previous tub spout was installed onto another manufacturers adapter, this will need to be removed before using this tub spout.
Best regards, Edward
Date published: 2024-03-28
what size o ring do i need for this part RP17453
Dear Rick,
Thank you for your inquiry! The Delta Pull-Down Diverter Tub Spout RP17453 comes with an the RP1745 O-ring that measures 15/16" x 1/8" x 3/32".
Best regards,
Tanya
Date published: 2017-08-05
Does this the 17453 faucet have a matching escutcheon? I have a 1/4" gap between the base of the faucet and the tub that I am trying to cover.
Thank you for your question. Delta Faucet model # RP17453 does not have a matching escutcheon. However, we do manufacture tub spouts that contain escutcheons that might work for your application. Both Delta Faucet models RP52148 and RP53419 have escutcheons.
Date published: 2024-03-28
How long of a 1/2" pipe stub is needed for the adapter?
The distance from the wall to the end of the 1/2" copper pipe on my bathtub is 1 1/4". Is this long enough to use with the brass adapter that comes with this Delta tub spout? If not, what is the recommended way to install the spout? I looked on-line for detailed installation instructions, but could not find any.
Hi AW, Thank you for your question. You will need at a minimum 1-1/2" and preferably 1-3/4" of copper to solder on the adapter. The only other option is if you can solder on a 1/2" copper male adapter keeping your overall length to 1-1/4" at the maximum, 1/2" at the minimum and then threading the tub spout adapter on.
Date published: 2024-03-28
