Delta®

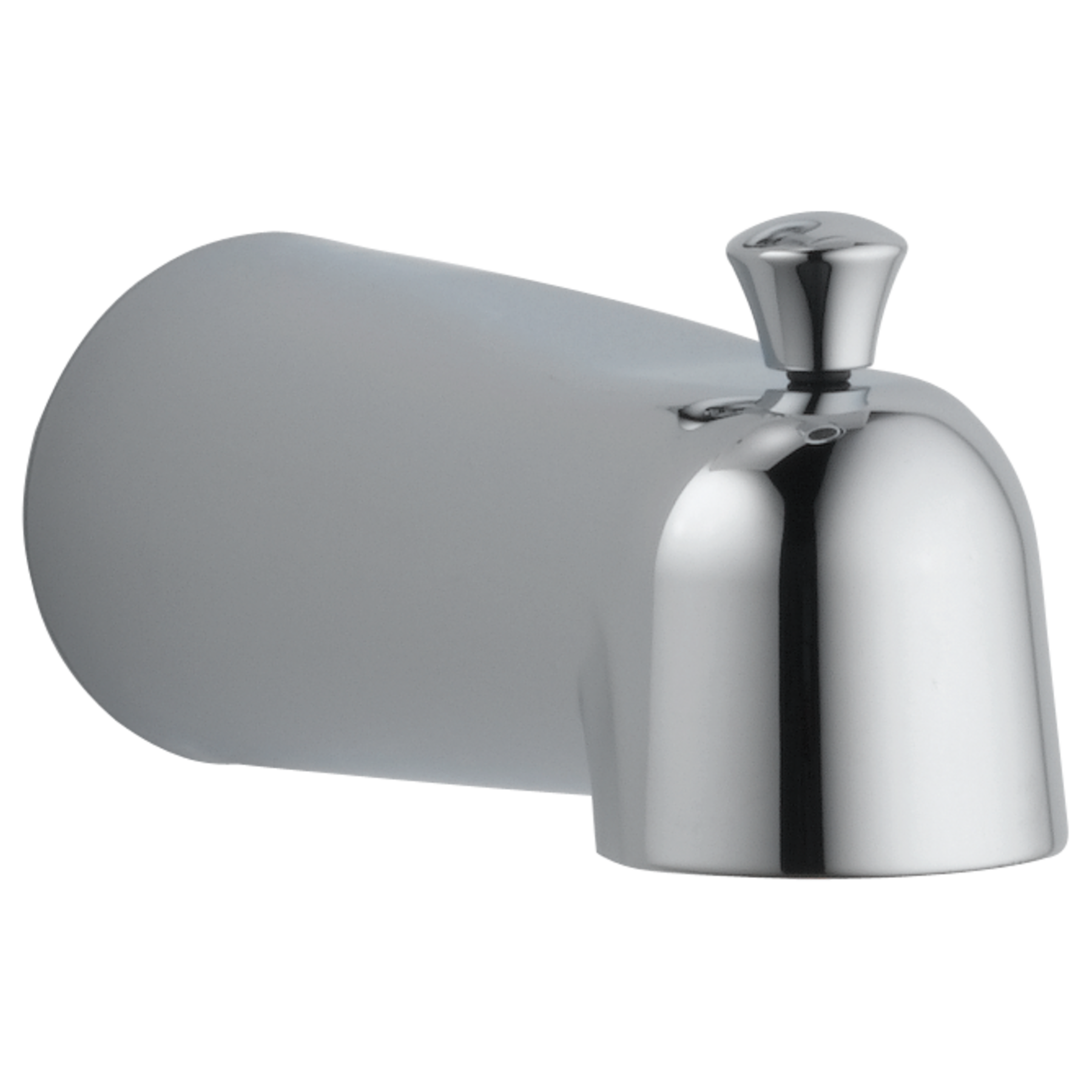

Tubo de salida para bañera - Desviador con tirador hacia arriba en cromado
N.º de modelo: RP48718
Image Thumbnail, click to view zoomed product image
CARACTERÍSTICAS DEL PRODUCTO
- Desviador deslizable
- Longitud total de 6"
- Deslizar en CWT de 1/2".
Información especial
ADVERTENCIA de la Proposición 65 de California
ADVERTENCIA DE LA PROPOSICIÓN 65 de California
Este producto puede exponerle al plomo, que según el estado de California causa cáncer y anomalías congénitas u otros daños reproductivos.
Para obtener más información, visite http://www.P65Warnings.ca.gov.
Documentos y especificaciones
Soporte para productos, repuestos y especificaciones técnicas
Información de instalación
Overall Height (in.) :
3 1/2
Voltaje:
0
Tipo de válvula:
NA
RESEÑAS
Rated 4 out of
5
by
Avman2 from
Only a few tub spout that is made of metal
It's so hard to to find a tub spout that is not made of plastic. This one is an exception- could have been cheaper- this not made of brass.
Date published: 2021-04-22
Rated 5 out of
5
by
SMerrill from
Had to go with original
Hard water really did a number on the original spout and couldn't hardly get it to divert to use shower. Tried using a generic spout from a box store but it was just not the same quality as original, hareder to install and actually sounded noisier (slightly annoying). Went with the OEM part now everyhing good to go and like it was when originally installed. As a side note, also installed water softener.
Date published: 2013-07-25
Preguntas y respuestas
Copper pipe length for RP64721 tub spout
To install a slip on tub spout RP64721 what should the length be of the copper pipe coming out of the wall? Right now it is too long so I need to cut it (5"), but I put the spout on to try it and it seemed like it stopped after about an inch, seems like it should go further into the spout to me.
Hi Derek, Thank you for your question. When installing the RP64721 slip-on tub spout, the tubing should be cut 1 ½ – 2 ¾” from the finished wall with a tubing cutter. Prior to inserting the tube into the adapter, the end should be chamfered free of burrs (on outside of the tube) to prevent cutting or nicking of o-ring. Do not over-tighten set screw.
Thanks,
Dave
Date published: 2024-03-28
directions for soldering adapter to copper pipe unclear where to solder adapter
Thank you for your question. When installing Delta Faucet model # RP48718, the tubing should be cut 2 3/4" - 4 1/4" from the finished wall with a tubing cutter. Prior to inserting the tube into the adapter, the end should be chamfered free of burrs on the outside of the tube to prevent cutting or nicking of O-ring.
Date published: 2024-03-28
does the rp48718 just push on or push so far and then screws on? thanks.
Hi, Jackleg!
Thank you for your question. The RP48718 slips onto the 1/2" c.w.t. and then tightened by a set screw on the bottom of the tub spout assembly.
Best Regards,
Rosanna
Date published: 2024-03-28
How long does the 1/2 copper pipe from the wall have to be?
replacement part # for the Tub Spout
RP48718
Thank you for your question. When using the Delta Faucet part # RP48718, the copper pipe should be from 5/8 to 1 5/8 inches from the wall. That measurement is from the wall to the end of the pipe threads.
Date published: 2024-03-28
Does this tub spout have an aerator?
Hi, Kevin!
Thank you for your question. The Delta RP48718 Diverter Spout Assembly does not have a removable aerator.
Best Regards,
Rosanna
Date published: 2024-03-28
Can you do an iron pipe installation with this spout? If so, how far should the threaded pipe nipple extend from the finished wall?
Also, if you are able to do an iron pipe installation, how do you remove the parts for the copper pipe installation? I have tried to remove the parts but i'm afraid i'm going to break something. Should the copper pipe installation parts just screw back out? Any help or suggestions would be greatly appreciated.
Thank you for your question. Delta Faucet model # RP48718 can only be used as a slip on to a copper pipe. It can not be used with an iron pipe.
Date published: 2024-03-28
Need 1" SAE threads - does this spout have it.
Thank you for your question. Delta Faucet model # RP48718 uses 1/2 inch threads.
Date published: 2024-03-28
The lenght of the copper pipe from the tile only measure 3/4 of an inch. In one of your answer, you said that 5/8 of an inch was sufficient.
in another answer yo say that the pipe should be cut at 2 3/4 inches from the wall?? Bottom line, I don't want to call plumber to extend my pipe from the wall, would it fit on my short pipe? thanks for your help.
Hi Marc, Thank you for your question. The copper tube should be at least 2-3/4" long and no longer than 4-1/4" to work with the model RP48718 spout.
Thanks,
Dave
Date published: 2024-03-28
