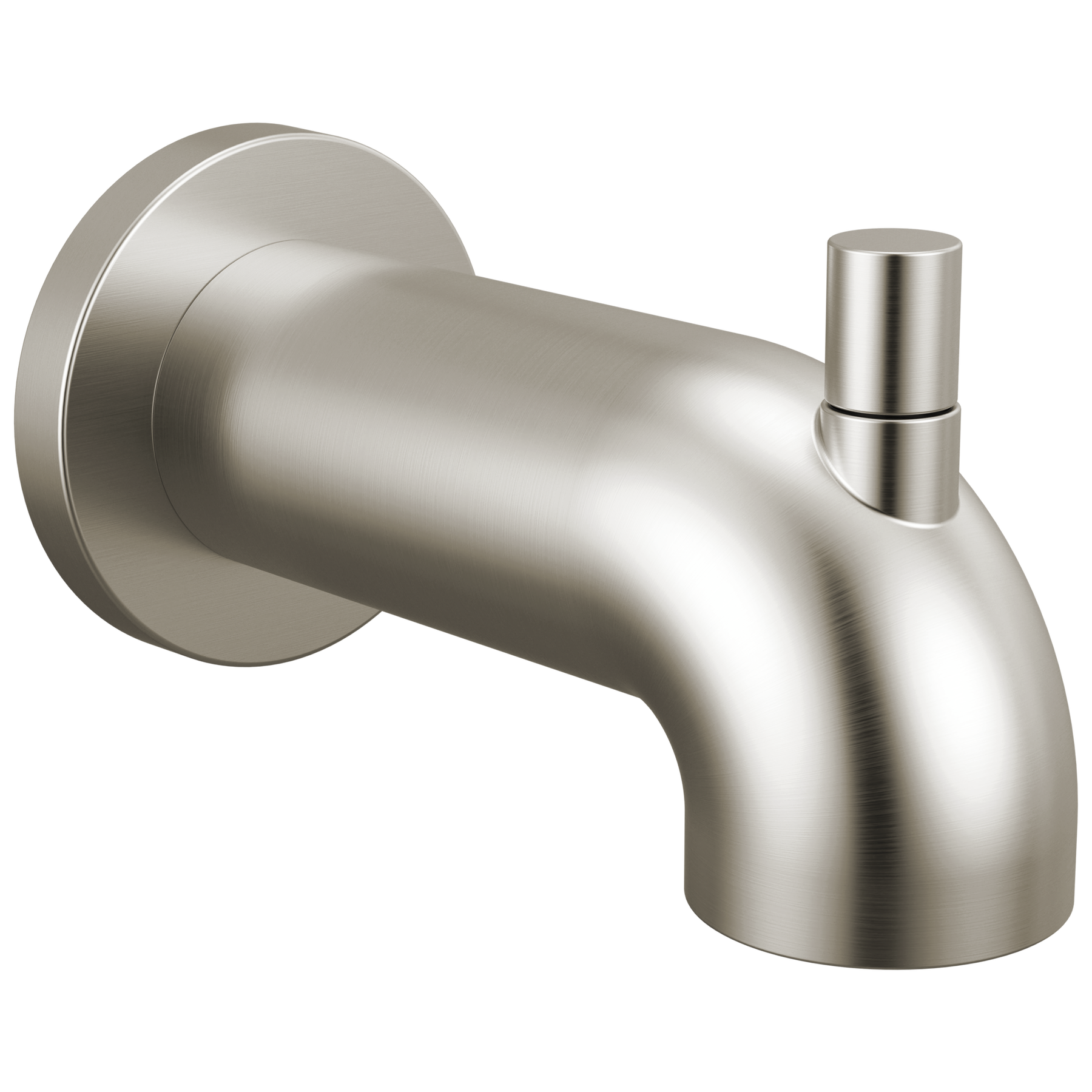

Tubo de salida para bañera - Desviador con tirador hacia arriba en acero inoxidable
N.º de modelo: RP73371SS
Image Thumbnail, click to view zoomed product image
CARACTERÍSTICAS DEL PRODUCTO
Esta salida de bañera con desviador deslizable hacia arriba Trinsic de 6 1/8" complementa la colección para baño Trinsic a la perfección. En toda su casa, usted puede contar con la fiabilidad de los productos de Delta, incluidos nuestros accesorios y piezas de repuesto. Respaldamos todos los artículos con nuestra garantía limitada de por vida.
- Combina con la colección para baño Trinsic (se vende por separado).
- Desviador deslizable
- Longitud total de 6 1/8".
- Salida de bañera deslizante para CWT de ½". .
- Construcción no metálica duradera.
- Se incluye el conjunto de adaptador RP33794
Información especial
ADVERTENCIA de la Proposición 65 de California
ADVERTENCIA DE LA PROPOSICIÓN 65 de California
Este producto puede exponerle al plomo, que según el estado de California causa cáncer y anomalías congénitas u otros daños reproductivos.
Para obtener más información, visite http://www.P65Warnings.ca.gov.
Technology and Special Features
Acabado Brilliance®
Acabado Brilliance®
Muchos productos de Delta se fabrican con acabados Brilliance®, que resisten el desgaste y la decoloración mejor que el bronce tradicional o incluso el cromo.
Documentos y especificaciones
Soporte para productos, repuestos y especificaciones técnicas
Recursos
Información de instalación
Overall Height (in.) :
3 7/32
Voltaje:
0
Tipo de válvula:
NA
RESEÑAS
Rated 1 out of
5
by
nope from
Do Not Buy
I purchased this tub spout as part of a kit from amazon, and immediately the diverter did not fully function. The spout was leaky and had poor water pressure out of the shower head. I filed a warranty claim and was send a second unit, which worked great for one shower, then got stuck in the down position and I had to yank it up with pliers to unstick it. now it does not go fully up or down and still leaks.
Date published: 2024-07-24
Rated 1 out of
5
by
MWMM from
It is too bulky
The spout is bulky, the pull up diverter is insecure, and overall we are not pleased.
Date published: 2020-08-24
Rated 4 out of
5
by
dndff from
Does the job
[This review was collected as part of a promotion.] The spout is sturdy and simply attractive. It works well with our other fixtures and tubular sink faucet.
Date published: 2017-12-09
Rated 5 out of
5
by
AimeO from
Ordered for a client with the Trinsic shower set.
As always with Delta, great looks and complete package of coordinating pieces. Very sleek and modern without being too edgy.
Date published: 2017-09-11
Preguntas y respuestas
Where are the documents and installation instructions? Come on...
It is 2017, get your website in order.
Dear Brad,
Thank you for your inquiry! The RP73371SS is the tub spout that comes with the Trinsic 14 Series Tub and Shower T14459-SS model. The tub spout will include a brass slip-on adapter (RP33794) that you can remove from the tub spout. The 1/2" copper pipe should extend 2" to 4" from the finished wall. Install the adapter so that there is a 1/4" to 1/2" between the adapter and the finished wall. Tighten the set screw, then thread the tub spout onto the adapter. Please page 5 of the below Maintenance/Installation document link, for these directions.
https://media.deltafaucet.com/MandI/68881%20Rev%20M.pdf
Best regards,
Tanya
Date published: 2024-03-28
installation instructions?
Thank you for your inquiry, David! This tub spout is only designed for a slip-on connection to a 1/2" smooth copper pipe with the set screw as seen on page 5 module 2 C-1 of the maintenance and installation manual (link below). The o-ring inside the tub spout will provide a proper seal.
https://media.deltafaucet.com/MandI/68881%20Rev%20M.pdf
Best regards,
Tanya
Date published: 2024-03-28
Tub spout I purchased, marked 00125-773502 L-2-3, came with adaptor. Manual page 5, C-4, suggests soldering adaptor to copper. But it has an inner O-ring, therefore can't solder. Or is it a slip-on as in C-1? Is that O-ring is enough of a seal?
Thank you for your question, Wayne! This tub spout is only designed for a slip-on connection to a 1/2" smooth copper pipe with the set screw as seen in C-1 of the maintenance and installation manual. The o-ring inside the tub spout will provide a proper seal.
https://media.deltafaucet.com/MandI/68881%20Rev%20M.pdf
Best regards, Edward
Date published: 2024-03-28
Where can I find the installation instructions for this spout RP73371?
Thank you for your question, Beth! I have included a link to a maintenance and installation sheet, that covers several tub spouts we manufacture. For installation instructions on model RP73371, please refer to page 5, diagram C1. If you need further assistance, feel free to contact us directly.
https://media.deltafaucet.com/MandI/68881%20Rev%20M.pdf
Best Regards, Benjamin
Date published: 2024-03-28
Can I use the Delta Faucet RP12307 Adapter with O-Ring with this tub spout?
Hi Trim Less Showerhead!
Thank you for your inquiry. The RP73371BL tub spout is only meant to be used with the slip on adapter RP33794 and unfortunately can not be interchanged with the RP123007 adapter.
https://media.deltafaucet.com/MandI/68881%20Rev%20M.pdf
Best regards,
Edward
Date published: 2024-03-28
This tub spout came with my shower/tub model T17T459-H2O. Tub spout came with a brass tub adaptor which includes 2 o-rings & set screw to install the brass adaptor. How far should brass adaptor slide over the 1/2" copper line to tighten set screw?
AllisonPA,
Thank you for your question! We recommend that the copper pipe be 2" to 4" from the finished wall. The back of the adapter should be 1/4" to 1/2" from the finished wall when installed.
Best regards, Jon
Date published: 2024-03-28
WHAT IS THE LENGTH?
Thank you for your question, AMBER! The Delta tub spout model RP73371 is exactly 6 3/16" (157 mm)long.
https://media.deltafaucet.com/SpecSheet/DSP-B-T17T059%20Rev%20D.pdf
Best regards, Edward
Date published: 2024-03-28
Which adapter is the right for this? The Delta Faucet RP33794 or the Delta Faucet RP12307? Thanks!
HI Martin!
Thank you for your question. This model RP 73371 is a slip on tub spout will include a brass slip-on adapter (RP33794).
Best regards,
Edward
Date published: 2024-03-28
