Delta®

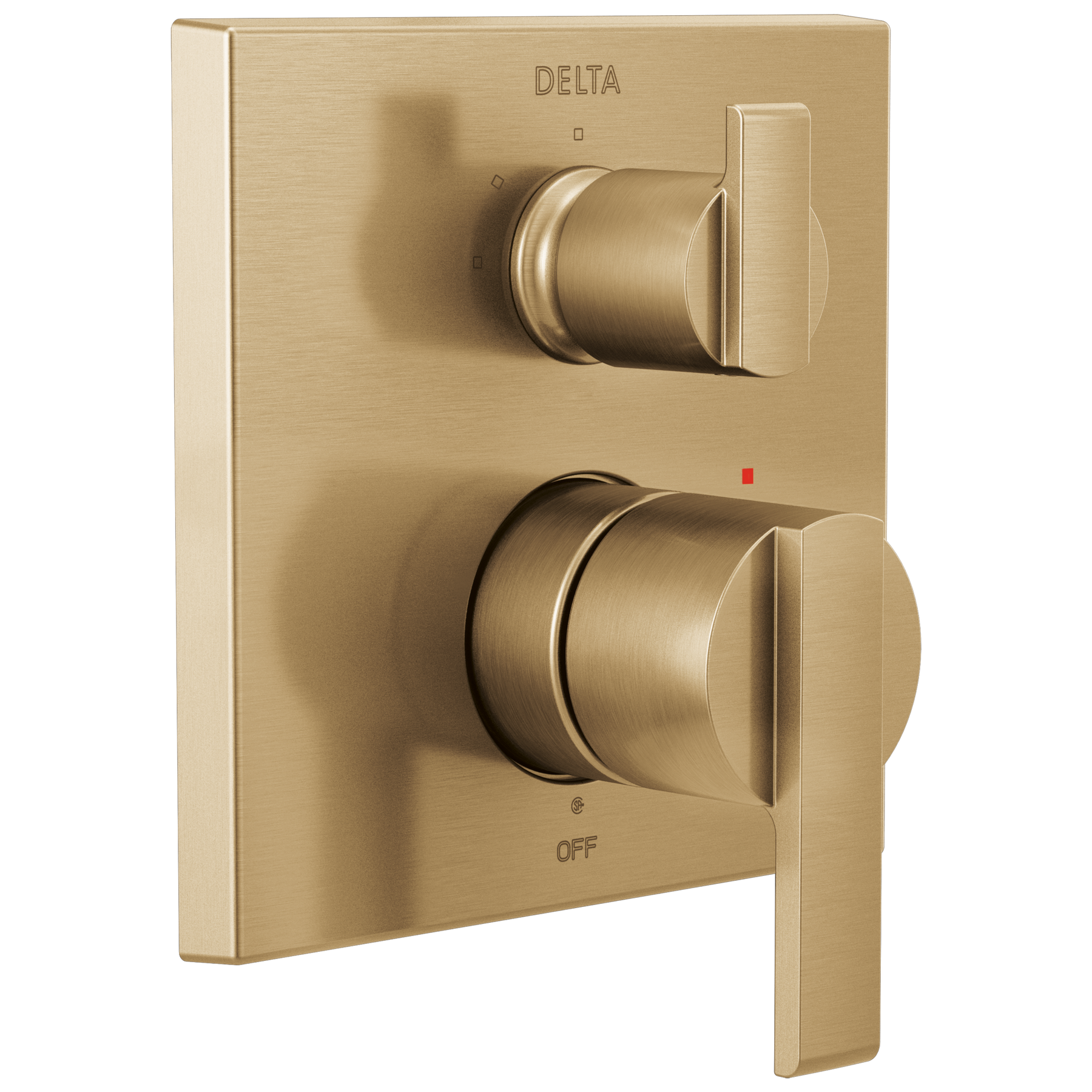

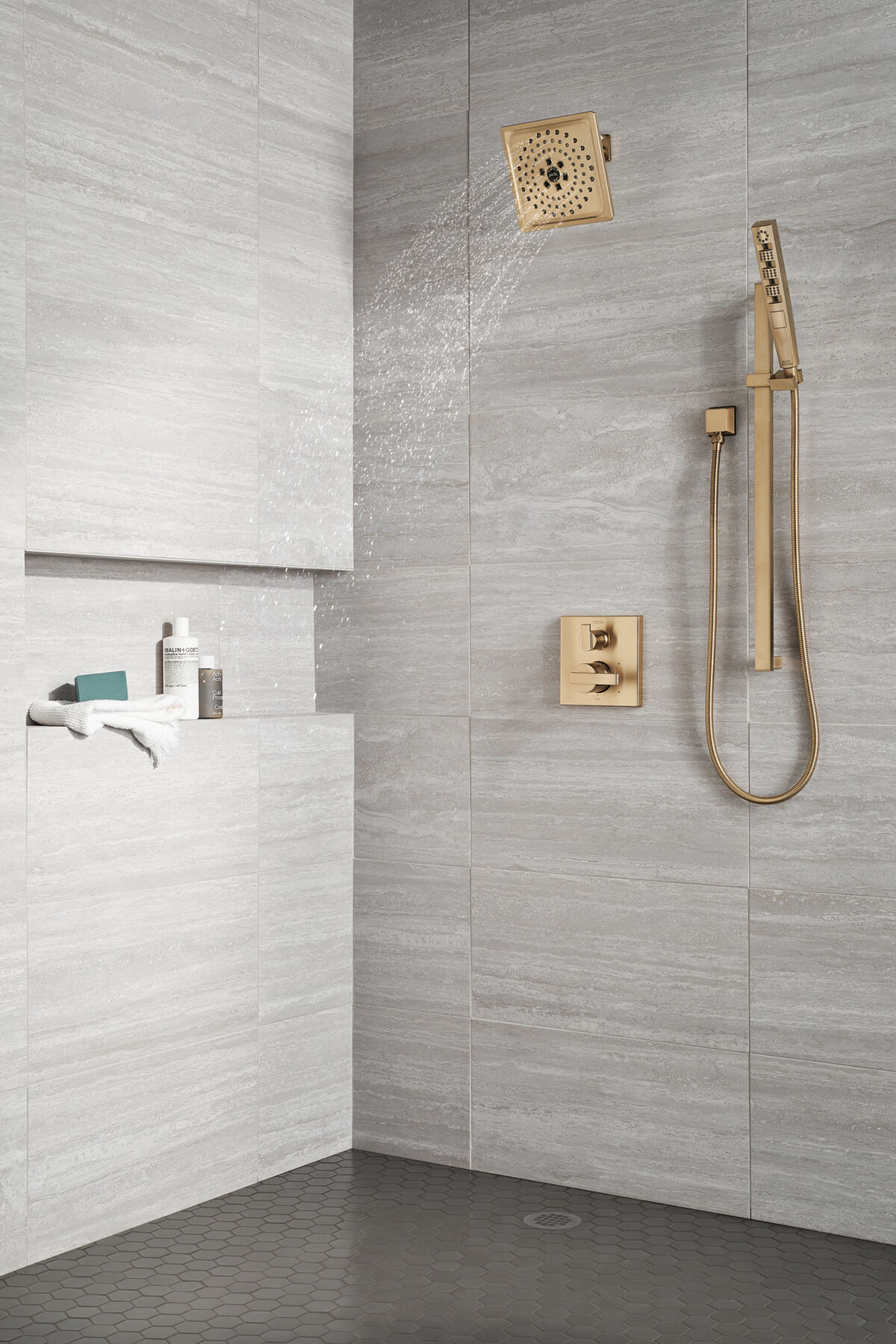

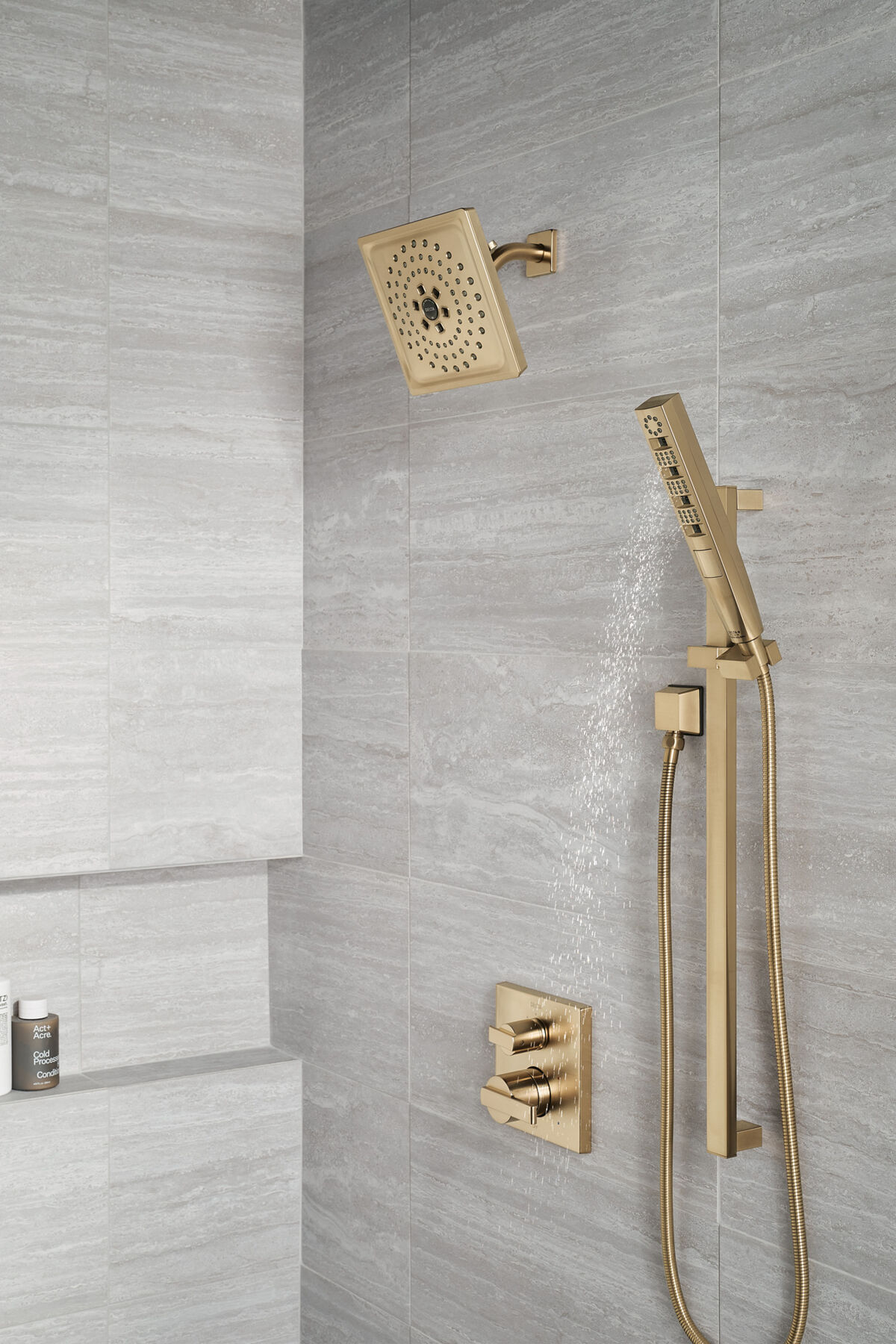

Angular Modern Monitor® 14 Series Valve Trim with 3-Setting Integrated Diverter in Champagne Bronze

N.º de modelo: T24867-CZ
Agregar a favoritos
Busque instaladores locales de Delta®
Delta®
Angular Modern Monitor® 14 Series Valve Trim with 3-Setting Integrated Diverter in Champagne Bronze
N.º de modelo: T24867-CZ
Precio de lista: $63535
Agregar a favoritos
Busque instaladores locales de Delta®
CARACTERÍSTICAS DEL PRODUCTO
El desviador para ducha integrado MultiChoice® de Delta® consolida el diseño personalizado de la ducha con el estilo elegante preferido de los consumidores que elimina la necesidad de una válvula adicional para el desviador. El estilo moderno angular es audazmente contemporáneo, con líneas nítidas para una sensación de lujo. Con tres opciones populares de estilos para combinar con cualquier decoración de baño, usted cuenta con la flexibilidad de seleccionar el tipo de función de ducha personalizada que prefiera. Con el sistema de válvula universal MultiChoice®, usted tiene la libertad de mejorar el estilo y la funcionalidad más adelante. Y, como no hace falta modificar la plomería detrás de la pared, ahorra tiempo, esfuerzo y dinero en futuras actualizaciones por renovación.
  • Accesorios para desviador con 3 funciones
  • Accesorio para 2 manijas
  • La válvula de presión balanceada Monitor mantiene el agua a una temperatura segura dentro de los +/-3º F (+/-1.6º C) y así, protege contra cambios repentinos en la presión del agua fría o caliente.
  • Juego de terminación solamente, se debe pedir la válvula universal MultiChoice por separado para completar la unidad
  • El juego de válvula interna recomendado R22000 se vende por separado.
  • Cumple con las normas de la Ley para Estadounidenses con Discapacidades (ADA, por sus siglas en inglés)
  • Rotación de manija inferior máxima de 90°.
  • Marcas de indicador en rojo/azul
Información especial
Imagen de advertencia
ADVERTENCIA de la Proposición 65 de California
Documentos y especificaciones
Soporte para productos, repuestos y especificaciones técnicas
Ver especificaciones técnicas
Ver hoja de mantenimiento e instalación
Ver diagrama de repuestos y accesorios
Registrar su producto
Recursos
Archivos de diseño
Información de instalación
Overall Height (in.) :
7 5/8
Voltaje:
0
Tipo de válvula:
Cartucho con equilibrio de presión de función única

SOPORTE PARA LA INSTALACIÓN

¿Necesita ayuda con la instalación? Busque instaladores locales de Delta® Obtenga cotizaciones. Lea reseñas.

IR
Escriba un código postal válido.
Mike y Hanna
Miniatura del logotipo de Delta

¿Necesita ayuda con la instalación? ¡Mike y Hannah están aquí para ayudar! Reciba consejos de los profesionales para todo, desde la instalación hasta el cuidado del producto.

Explorar videos
RESEÑAS
Rated 5 out of 5 by from Delta Quality Delta makes a quality mixing and diverted valve.
Date published: 2023-06-28
Rated 5 out of 5 by from Trim kit for shower Very attractive in our new shower!
Date published: 2022-09-29
Rated 4 out of 5 by from Dual shower & hand held control I love the look & functionality but it spots terribly. I’ve got to investigate how to avoid all the water spots.
Date published: 2022-04-16
Rated 5 out of 5 by from Clean and modern lines My client loves the clean and modern lines this trim kit gave to their farmhouse bathroom.
Date published: 2022-01-11
Rated 5 out of 5 by from Delta Ara Monitor 14 Series [This review was collected as part of a promotion.] It works perfectly and looks beautiful. We love it!
Date published: 2019-07-22
Rated 4 out of 5 by from Love the style Very well made. The reason we selected is because the trim is solid metal. We have installed in 2 of our bathrooms
Date published: 2019-07-07
Rated 4 out of 5 by from Good So far I bought the rough-in valve and trim kit and installed it myself, everything went in very well. I found the instructions to be well written, Delta may have updated their instructions since the other reviews. Good construction, felt sturdy. It was a bit pricey, compared to the other brands out there.
Date published: 2019-02-04
Rated 5 out of 5 by from Excellent choice Lives up to our expectations and more. High quality, smooth, predictable operation. Easy to install.
Date published: 2018-12-22
  • y_2024, m_12, d_23, h_7
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.42
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_9
  • loc_en_US, sid_T24867-CZ, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 5ms
  • reviews, product
Preguntas y respuestas

Can you confirm that MODEL#: T24867 can select between two different shower heads when using the R22000-WS? Thank you.

Asked by: Wulf77
Thank you for your question, Wulf77! The R22000-WS integrated diverter valve will allow you to switch between two or more devices depending on the trim purchased, for a customized mix of either shower heads, hand showers or even body jets. This rough in valve is not, however, intended for use with tub spouts. Best regards, Edward
Answered by: Delta Faucet
Date published: 2024-03-28

What is the difference between the series ARA 14 and ARA 17 series

Asked by: Dave22
Thank you for your question, Dave22! A Delta Monitor 14 series trim will operate by moving the handle counter-clockwise from coldest to hottest while also increasing flow rate. A 17 series unit will also have a volume control lever but with an additional temperature knob allowing you to set the preferred temperature for future use. A MultiChoice trim and valve makes it quick and easy change trims when upgrading. https://www.deltafaucet.com/design-innovation/innovations/shower/multichoice-universal-valve Best regards, Edward
Answered by: Delta Faucet
Date published: 2024-03-28

need installation instruction forT24867-SS

Asked by: Clifford
Hi, Clifford! Thank you for your question. Here is a link to the instructions manual for the Delta T24867-SS trim kit: https://media.deltafaucet.com/MandI/84892%20Rev%20D.pdf Best Regards, Rosanna
Answered by: DeltaFaucet11
Date published: 2024-03-28

Do it make a difference which side of the divirter valve body sprayers are conneted to when roughing in with hand held and head

Asked by: Doing it myself
Hi Doing it myself, Thank you for your question! With a 3-Setting Diverter Trim, only the top and left port can be used. If you wish to connect three shower components, please purchase the 6-Setting version of the trim kit (T24967). The shower heads and sprays can be connected to any of the 3 ports with a 6-Setting diverter. However, we recommend connecting the shower head to the top port. Please refer to page 7 of the instructions for reference as to which ports will run at each setting. https://media.deltafaucet.com/MandI/84892%20Rev%20B.pdf Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28

I only get water from the top shower and nothing on the handshower, what did I do wrong

Asked by: Rolly
Hi, Thank you for contacting us. We apologize for any inconvenience. We are more than happy to help you. We would recommend checking the diverter on the valve trim and mode selector on the hand shower are in the correct positions. Please contact us at 1-800-345-3358 if you have any further concerns. We are open Monday through Friday 7:00 AM to 7:00 PM central time, and 8:00 AM to 5:00 PM on Saturday. Best Regards, Bethany
Answered by: DeltaFaucet7
Date published: 2024-03-28

Is the diverter cartridge included in this trim kit or do I need to purchase it separately?

Asked by: jkirk
Hi, jkirk! Thank you for your question. The T24867 Integrated valve and diverter trim does include both the valve cartridge assembly and diverter cartridge assembly. The diverter cartridge assembly is a 3 setting diverter cartridge. Best Regards, Rosanna
Answered by: DeltaFaucet11
Date published: 2024-03-28

Hi, please explain the difference between the T24867 and the T27867.

Asked by: Jackie
Hi, Thank you for contacting us. We apologize for any inconvenience with your Delta Faucet Company product. I am also more than happy to have this opportunity to help you. The difference between the T24867 and T27867, is the T27867 has an additional knob to control just the temperature. Please contact us back if you have any questions or if you need further assistance you may call us at 1-800-345-3358. We are open Monday through Friday 7:00 AM to 7:00 PM central time, and 8:00 AM to 5:00 PM on Saturday. Thank you for your cooperation. Best Regards, Bethany
Answered by: DeltaFaucet7
Date published: 2024-03-28

is there a extension kit for both handles??

Asked by: steve
Thank you for your question, Steve! RP90542 is the only extension kit we manufacture for this model. Best regards, Edward
Answered by: Delta Faucet
Date published: 2024-03-28
