Delta®

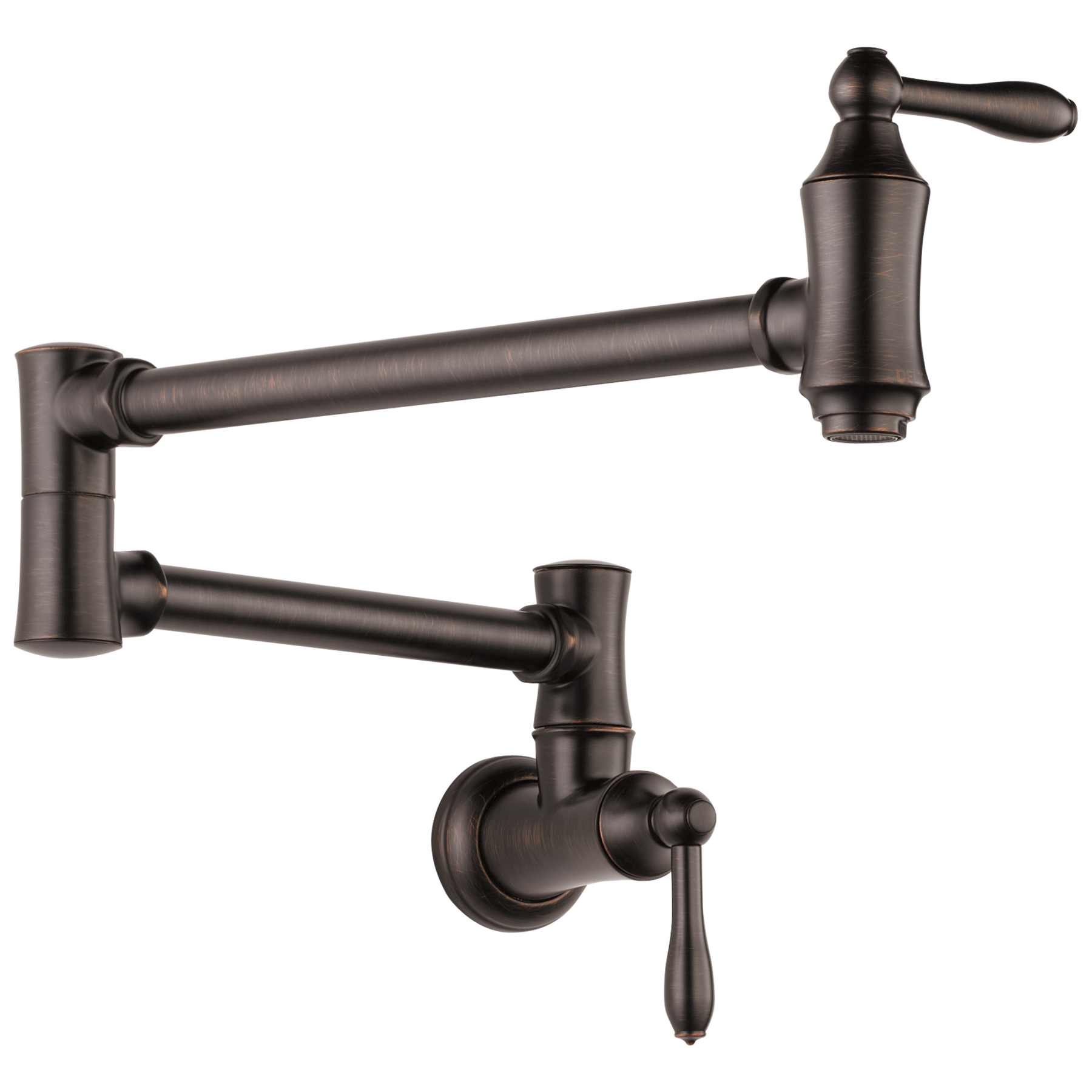

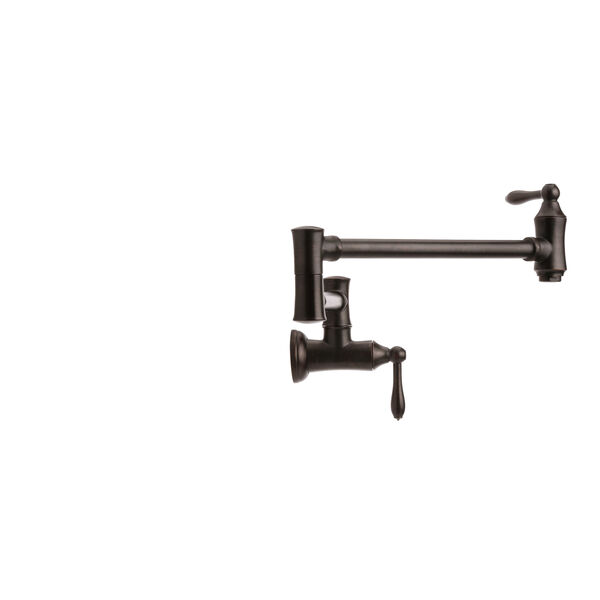

Llave para llenar ollas de montaje en pared estilo tradicional en Venetian Bronze

N.º de modelo: 1177LF-RB
Delta®
Llave para llenar ollas de montaje en pared estilo tradicional en Venetian Bronze
N.º de modelo: 1177LF-RB
Precio de lista: $91145
CARACTERÍSTICAS DEL PRODUCTO
Llenar ollas en el calentador nunca fue tan fácil ni económico gracias a la nueva llave para llenar ollas de Delta. Con un precio muy competitivo, la llave para llenar ollas que cumple con la Ley para Estadounidenses con Discapacidades (ADA, por sus siglas en inglés) incluye montaje en pared, diseño de articulaciones oscilantes dobles con válvulas de cierre dobles y un caudal de 4 GPM para llenar ollas grandes en un instante. Una llave para llenar ollas facilita el proceso de llenar recipientes grandes para cocinar, sin tener que ir del lavabo al calentador.
  • El cierre doble de Delta en la llave para llenar ollas permite al usuario cerrar el agua en la pared o en la salida de tina para controlar el flujo de agua en el punto de uso
  • Las articulaciones oscilantes dobles de 24 in permiten que la llave para llenar ollas se pliegue de manera simple cuando no se utiliza.
  • Apertura y cierre sencillos con un cuarto de giro de la manija
  • Apertura y cierre sencillos con un cuarto de giro de la manija
  • Cumple con las normas de la Ley para Estadounidenses con Discapacidades (ADA, por sus siglas en inglés)
  • Instalación con un solo orificio

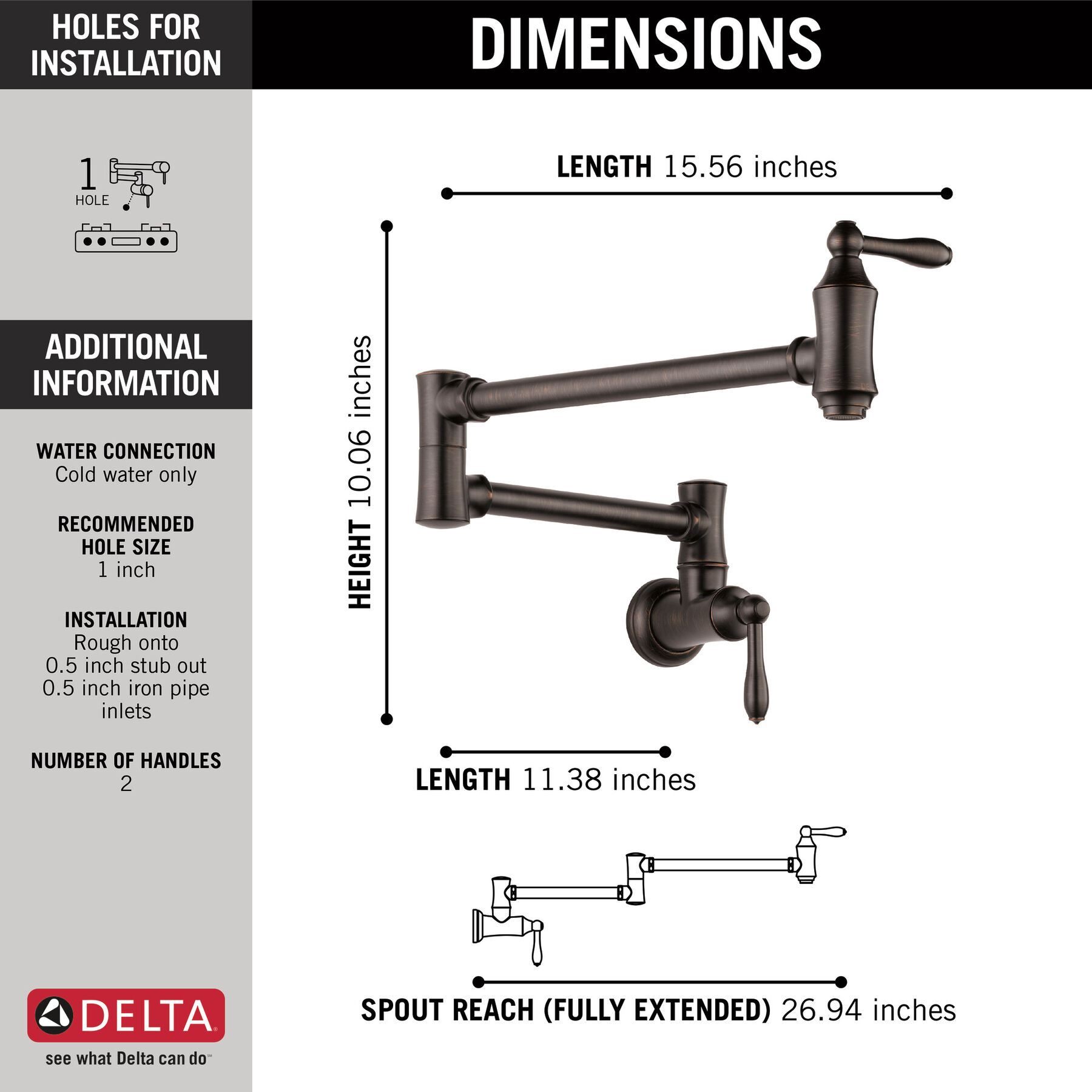

  • Dimensiones una vez montado: 8-17/32 in. H x 26-31/32 in. D x 2-3/8 in. W
Technology and Special Features
Cumplimiento con la ADA
Libres de plomo
Documentos y especificaciones
Información de instalación

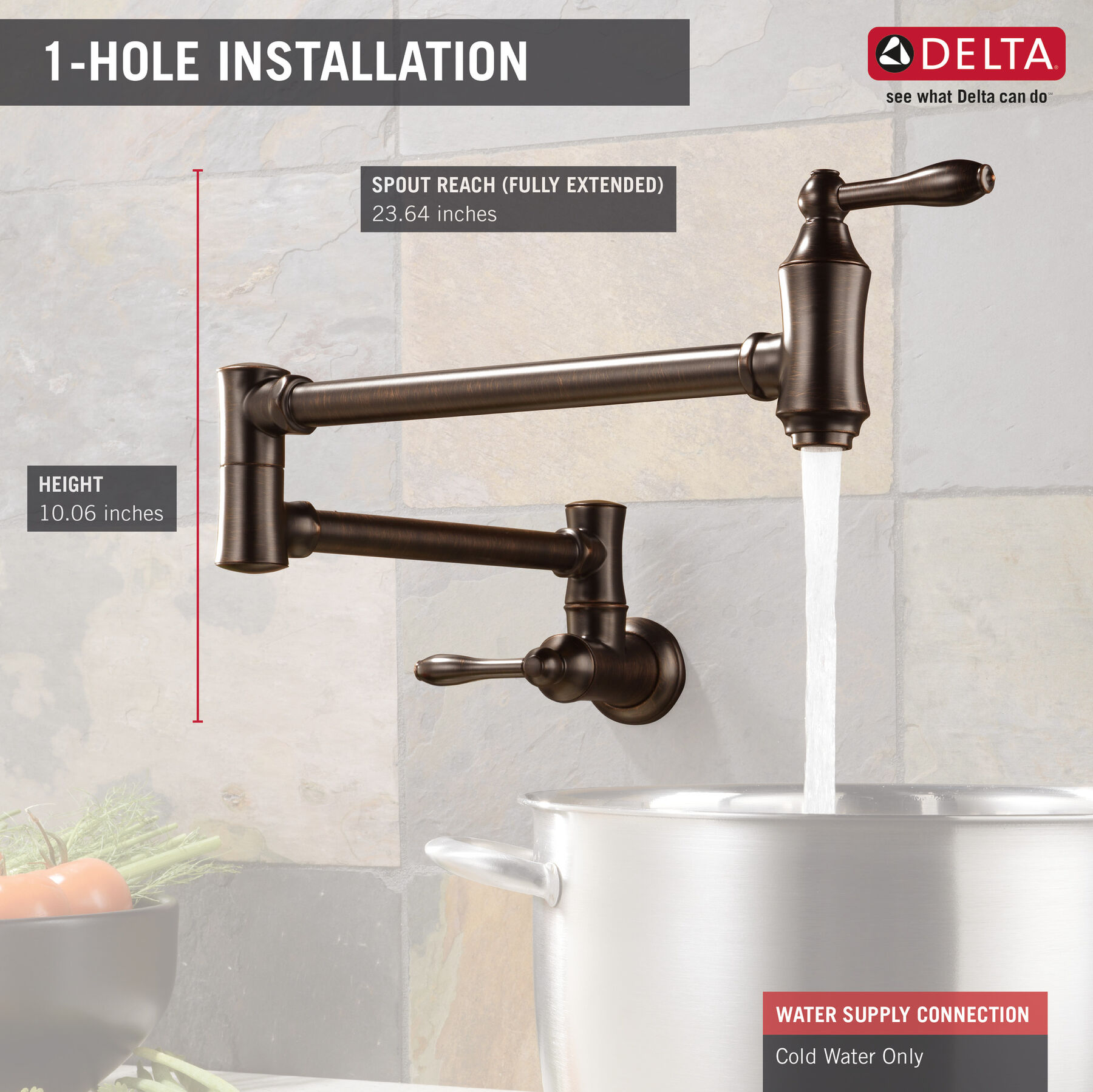

Instalación para montaje en pared con un orificio.
Altura total:
8 17/32
Voltaje:
0
Caudal:
4.0 gpm a 60 psi, 15.1 l/min. a 414 kPa
Tipo de válvula:
Válvula de cerámica

SOPORTE PARA LA INSTALACIÓN

¿Necesita ayuda con la instalación? Busque instaladores locales de Delta® Obtenga cotizaciones. Lea reseñas.

IR
Escriba un código postal válido.
Mike y Hanna
Miniatura del logotipo de Delta

¿Necesita ayuda con la instalación? ¡Mike y Hannah están aquí para ayudar! Reciba consejos de los profesionales para todo, desde la instalación hasta el cuidado del producto.

LISTA DE PIEZAS

LISTA DE PIEZAS

Image-RP61824

Addison®

Addison® Cartridge Fluehs - Cold

Precio de lista: $73.00
Precio en línea: $58.40
Envíos sin cargo para todos los pedidos de más de $49
Acabados estándar

RP61824

5.00 2
Image-Master-RP64633

Delta®

Delta® Aireador - Llave para llenar ollas - 4.4 GPM

Precio de lista: $14.80 - $15.30
Acabados estándar

RP64633

Image-Master-RP64632

Delta®

Delta® Conjunto de manija tipo palanca de metal

Acabados estándar

RP64632

Image-Master-RP74972

Delta®

Delta® Kit de manija tipo palanca de metal con cartucho - Llave para llenar ollas

Precio de lista: $82.25 - $109.75
Envíos sin cargo para todos los pedidos de más de $49
Acabados estándar

RP74972

RESEÑAS
Rated 5 out of 5 by from My Customer Was Thrilled My customer was thrilled with the look, feel and performance of this pot filler.
Date published: 2024-07-30
Rated 1 out of 5 by from Leaks We have only had this pot filler for a few years and it leaks from multiple spots.
Date published: 2024-04-14
Rated 5 out of 5 by from Gorgeous and functional Very heavy and works well. Love the dual turn on off to protect from leaks
Date published: 2024-03-17
Rated 1 out of 5 by from Leaking After 2 years, this product started leaking at the middle joint. Was charged $350 by plumber for repairing.
Date published: 2024-02-08
Rated 1 out of 5 by from Leaking and I'm told that it's garbage this is leaking from the middle joint and i'm gobsmacked that there's no possibility of repair.
Date published: 2023-09-15
Rated 5 out of 5 by from Decorative Accent Beautiful piece. Accents the backsplash, it is decorative and functional. Makes our showroom that much more appealing and custom for our clientele.
Date published: 2023-08-21
Rated 1 out of 5 by from Right fixture, wrong finish Right brand but not a polished nickel, chrome plated
Date published: 2023-08-14
Rated 3 out of 5 by from Loved it till it leaked. Middle swing joint is leaking and the bottom round cover of middle swing joint has came off. Our parts diagram doesn't show available parts to fix middle swing joint.
Date published: 2023-07-22
  • y_2024, m_9, d_19, h_2
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.42
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_110
  • loc_en_US, sid_1177LF-RB, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 5ms
  • reviews, product
Preguntas y respuestas

Inverted nstall possible?

Is it possible to install "inverted" like this picture? The delta spout would of course be rotated 180 degrees. This would make sure the first arm could clear even the ttallest pot that may be next to the wall while filling a pot on the front side of the stove.
Asked by: Eric
Hi Eric, Thank you for your question. Both arms can be rotated over 180 degrees, so the spout can be positioned on the right or left. I hope this answers your question! Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28

What is the measurement from the center of wall nipple to bottom of faucet?

I am setting the plumbing and want the bottom of the faucet to be 14" above the deck. Need to know exactly where to stub out the nipple. Thank you
Asked by: Rick
Hi Rick, Thank you for your question. The distance from the bottom of the faucet to the center of the pipe nipple is 3.12". Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2024-03-28

We are getting ready to install a new back splash & cannot figure out how to get the flange cover to slide away from the wall.  It spins but will not back up.  Thank you.

Asked by: Julie
Thank you for your question, Julie! Model 1177LF-AR will require you to remove a set screw underneath as well as un-thread the faucet. The part you are referring to is a decorative cover that simply snaps in place. Please refer to Page 3, Step E of the Maintenance and Installation manual below for reference. Best regards, Edward
Answered by: Delta Faucet
Date published: 2024-03-28

What is the distance from the stove top to pot filler wall connection

Asked by: Mark
Hi, Mark! Thank you for your question. There is not a required measurement from the stove top to the Delta 1177LF-PN pot filler. We do leave that decision up to the end user. Here is a link to the technical specifications for measurements for the faucet itself: https://media.deltafaucet.com/SpecSheet/dsp-k-1177lf-a_F.pdf Best Regards, Rosanna
Answered by: DeltaFaucet11
Date published: 2024-03-28

I only see pictures of the pot filler mounted on the left. Can we mount it on the right side? Do the arms pivot either direction?

What are the dimensions of each arm? Is the top arm longer?
Asked by: Mike_Jen
Hi Mike_Jen, Thank you for your question. The spout on the model 1177LF can swing to either the right or left hand side. The bottom arm center to center is 9.72" long, the top arm center to center is 12.34" long. The top arm is longer. Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2024-03-28

What is the difference between the Arctic Stainless and the Stainless finishes?

Which will go better with my stainless appliances?
Asked by: Kathie
Hi Kathie, Thank you for your question. The Arctic stainless (AR) has a blue tint to the finish which coordinates with many of todays appliances. The Brilliance stainless (SS) has a gold tint to the finish, it is similar to brushed nickel finishes. Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2024-03-28

AB1953 certified?

Is this pot filler ASTM AB1953 certified, and if so, can you please provide the Massachusetts approval code? Thank you.
Asked by: Erica
Hi Erica, Thank you for your question. Attached is the spec sheet for the model 1177LF that covers the lead free legislation compliance and a link to the Massachusets product approval website for this product.. http://www.deltafaucet.com/customersupport/documentation/1177lf-ss.html?document=ts&documentIndex=0#flashWrapper http://license.reg.state.ma.us/pubLic/pl_products/pb_search.asp?type=P&manufacturer=Delta+Faucet+Company&stype=spec&model=1177lf&product=&description=&psize=50 Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2024-03-28

Delta Wall Mounted Pot Filler Handle Options?

Does Delta have any different handle options for the Pot Filler? Is it possible to order different handles as an extra? If so, what options are available?
Asked by: Dennis
Thank you for your question. Delta Faucet model # 1177LF does not have any other handles available at this time.
Answered by: Delta1
Date published: 2024-03-28

Is it OK to hook up this faucet to hot water? What kitchen sink faucets are of the same design/style? Thanks

Asked by: Ronald
Hi, Ronald! Thank you for your question. The Delta 1177LF-SS pot filler faucet is a cold water connection only. This unit fits other Traditional style faucets. Here is a link for these options: https://www.deltafaucet.com/kitchen/sink-faucets?StyleIsTraditional=T&facetFinish=stainless Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

How high above the counter top should a pot filler  be installed at ?

Asked by: TomS
Hi, TomS! Thank you for your question. There is not a required measurement from the stove top to the Delta 1177LF pot filler. We do leave that decision up to the end user. Here is a link to the technical specifications for measurements for the faucet: https://media.deltafaucet.com/SpecSheet/dsp-k-1177lf-a_F.pdf Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

WHAT IS THE ADA MOUNTING HEIGHT ABOVE COOKING SURFACE?

Asked by: HTEEL
Hello HTEEL, Thank you for your question! I am happy to help you! Our Delta Faucet Pot Filler 1177LF has no specific install height, this is based off the kitchen design and customer preference. I have included a link below to show the measurements of the unit to assist in pot filler placement. https://media.deltafaucet.com/SpecSheet/DSP-K-1177LF%20Rev%20G.pdf Please contact us back for any further questions. Best Regards, Nicole
Answered by: Delta7
Date published: 2024-03-28

Does this have a kitchen sink matching faucet?

Asked by: Shemom
Hello, Shemom! Thank you for contacting Delta Faucet Company! I am sorry this information was not readily available, and I am happy to help you! Our Delta Faucet DELTA® Traditional Wall Mount Pot Filler In Chrome MODEL#: 1177LF is not designed to match a specific collection but is intended to match many different styles. Our model 1177LF-CZ fits closely to the Cassidy Collection. Here is the link to our faucets. https://www.deltafaucet.com/kitchen/faucets/sink-faucets Thank you for being a loyal Delta customer. Please feel free to call, email, or message us on social if you need anything else. Best Regards, Themar
Answered by: Delta
Date published: 2024-03-28

Is there a 12" extension available for this filler? We get a lot of splatter when filling a pot directly. If so... Where could we purchase one? Thanks & enjoy the day! Paul

Asked by: Paul
Hi Paul, Thanks so much for contacting Delta Faucet Company about 1177LF-RB! We do not manufacture an extension kit for the wall mount pot filler, I am sorry for the inconvenience you are experiencing. Due to the splashing, we would recommend removing the aerator and cleaning it with a 50/50 solution of white vinegar and water. Please contact us directly if you have any questions or need additional assistance. Best Regards, Nicole Digital Communications Specialist
Answered by: Customer Service
Date published: 2024-01-31

I have a 1177LF-RB pot filler. I am needing the parts for the swivel on arm of the filler. it is a brass bolt with 3 o-rings, 2 plastic bushings that connect the two arms.

Asked by: P Jones
Hi P Jones, Thank you for reaching out to Delta Faucet Company! We apologize for the issues you are experiencing and we are happy to help! We have reached out to you directly to further assist you with this matter. We appreciate your inquiry. Please reach out directly if you have further questions! Best Regards, Kyra Digital Engagement Specialist
Answered by: Customer Service
Date published: 2024-01-31

Is this pot filler compatible with reverse osmosis-filtered water?

Asked by: Ben
Hi Ben, Thank you for your question. The pot filler faucet is not designed for reverse osmosis systems. RO water’s pH and total dissolved solids concentration may cause corrosion to the internal components. Best Regards, Delta Faucet
Answered by: DeltaFaucet
Date published: 2023-05-25

The cap/cover for the screw on the handle is missing.  Is this available as a replacement part.

Asked by: Kim P
Hello Kim P! Thank you for your question! I am happy to help The Delta 1177LF-RB handle cap is not available on its own. However, it is included with the handle assembly RP74972 . Please reach out to us directly if you need further assistance. Best Regards,
Answered by: Delta7
Date published: 2021-02-01

Are the screw covers for 1177LF-CZ available for purchase?

Asked by: Chris h
Hi Valued Customer, Thank you for your question regarding our Delta Faucet 1177LF-RB. The screw covers are not available to purchase separate. Thank you for being a loyal Delta Faucet customer. Best Regards, Themar Digital Communications Specialist (800) 345-3358 customerservice@deltafaucet.com
Answered by: Customer Service
Date published: 2024-07-08

I have a 1177LF-RB pot filler. I am needing the parts for the swivel on arm of the filler. it is a brass bolt with 2 o-rings, 2 plastic bushings that connect the two arms.

Asked by: Phil
Hi Phil! Thank you for your question and we are happy to help. The Delta 1177LF-RB does not have repair parts for this. With any further questions or concerns, please do not hesitate to reach out to us again. Best Regards, Carrie
Answered by: Customer Service
Date published: 2024-01-31

We installed this filler in our kitchen several years ago. It is now leaking at the two pivot joints. I have been unable to find rebuild parts. Can anyone assist?

Asked by: Frosty
Hello, Please accept our sincere apology for the inconvenience you are experiencing. We have reached out to you via email to further assist at this time. Best Regards, Tim Digital Communications Specialist
Answered by: LAngel
Date published: 2024-05-21

I have a Delta 1177LF installed. It is about 7 years old and now the elbow joint between the two faucets is leaking. I had a plumber come and he changed the o ring but this did not stop the leak. Is there a refurbish kit available? What else can be tried.

Asked by: Rfamily
Hi Rfamily, Please accept our sincere apology for the inconvenience you are experiencing. We have reached out to you via email to further assist at this time. Best Regards, Tim Digital Communications Specialist
Answered by: Customer Service
Date published: 2024-08-22

Is there an extender piece for the Delta Pot Filler 1177LL-SS to make more space between the mounting bracket and water dispenser?

Asked by: Pamela
Hi Pamela, Thank you for your question about the Delta Faucet model 1177LF Traditional Wall Mount Pot Filler In Stainless. I am sorry this information was not readily available, and I am happy to help! We don't currently make an extender for this faucet. I apologize for any inconvenience this causes. Please contact us directly if you have any questions or need additional assistance. We appreciate your business and look forward to continuing to serve you! Best Regards, Bryan Digital Communications Specialist
Answered by: Customer Service
Date published: 2024-03-28

What is the difference in arctic stainless and brilliance stainless ?

Asked by: Cindy
Hello Cindy, Thank you for contacting Delta Faucet Company! I am sorry this information was not readily available, and I am happy to help you! Our Delta Faucet DELTA® Traditional Wall Mount Pot Filler MODEL#: 1177LF is our brilliance stainless finish which is described as a neutral, low-gloss nickel finish. The Arctic Stainless finish is described as a glossy finish with icy tones, which would match the stainless steel product in your home best. Thank you for being a loyal Delta customer. Please contact us back for any further questions. Best Regards, Nicole
Answered by: Delta7
Date published: 2024-03-28

My pot filler model 1177LF is leaking at the center joint at the bottom.  I replaced the “O” ring and it continues to leak , about 1 drop per minute.  Making a mess on the cooktop.  Can you send a repair kit for this joint  Handle at wall doesn’t shut o

Asked by: Johnny
Hello Johnny, Thank you for reaching out to Delta Faucet Company! We apologize for the issues you are experiencing and we are happy to help! We have reached out to you directly to further assist you with this matter. We appreciate your inquiry. Please reach out directly if you have further questions! Best Regards, Kyra Digital Engagement Specialist
Answered by: Customer Service
Date published: 2024-01-31

Our pot filler is leaking water from the joint between the 2 arms.   Do you have repair parts for that?   It is about 8 years old.

Asked by: RonV
Hi RonV, thank you for contacting Delta Faucet Company! Our pot fillers have cartridges in each of the handles to prevent leaking and to turn the unit on/off. We have reached out to you directly to further assist you with this matter! We appreciate your inquiry. Please reach out directly if you have further questions! Best Regards, Kyra Digital Communications Specialist
Answered by: Customer Service
Date published: 2024-03-28

We need to replace our existing pot filler. The water source was positioned to the left. We require a pot filler that can be unscrewed at the arms, otherwise the mechanism hits the range hood. Do you have a pot filler that can be separated at home?

Asked by: phranny
Hi! Thank you for your question! I will be happy to help. Unfortunately no, we do not currently manufacture a potfiller that can be disconnected at the arms. We apologize for any inconvenience this may have caused. Best Regards, Tim
Answered by: Delta
Date published: 2024-03-28

Do you have a RO certified pot filler

Asked by: Marion
Hi Marion, Please accept our sincere apology for any inconvenience you are experiencing with the Delta Faucet model 1177LF-AR Delta® Traditional Wall Mount Pot Filler In Arctic Stainless. Here is what we can do to resolve your issue for you. We thank you for being a loyal Delta Faucet customer! No Delta Faucet pot fillers are compatible with a reverse osmosis system. Please contact us back directly via email with any further questions. Best Regards, Skyler
Answered by: Customer Service
Date published: 2024-03-28

What rough-in kit and/or supply line do I need to purchase to install this?

Asked by: CustomHomeBuildDIY
Hello CustomHomeBuildDIY! Thank you for your question and we are happy to help. We apologize for this information not being readily available to you. The Delta Traditional Wall Mount Pot Filler In Chrome MODEL#: 1177LF does not require a rough-in kit. We recommend installing it with your cold water supply line. The mounting kit is included with the product. With any further questions or concerns, please do not hesitate to reach out to us directly. Thank you for being a loyal Delta Faucet customer. Best Regards, Carrie
Answered by: Delta7
Date published: 2024-03-28

How high off the cooking surface  does a Delta pot filler need to be  installed to comply with the warranty

Asked by: Angela
Hi Angela, Thank you for your question about the Delta Faucet model 1177LF-PN. There is no set height for a pot filler faucet. Every kitchen is unique. The wall outlet connection could range from 18 to 30 inches above the stovetop. A pot filler faucet should be set at a height that accommodates the tallest pot in that kitchen's collection, is not blocked by the range hood, and the user can reach it. Please reach out with any additional questions! Best Regards, Bryan Digital Communications Specialist
Answered by: Customer Service
Date published: 2024-01-31

Why is my 2 year old pot filler faucet model 1177LFAR leaking profusely at the first joint when the filler valve is turned on and dripping at the first valve when both valves are turned off?

Asked by: Hes4934
Hi hes4934, Thank you for contacting Delta Faucet Company! Please accept our sincere apology for the inconvenience you are experiencing. We will need more information to assist you better. Please watch out for an email from customerservice@deltafaucet.com. Best Regards, Emma Digital Communications Specialist
Answered by: Customer Service
Date published: 2024-01-31

Can a pot filler model #1177-LF be installed on a hot water line and not damage the internal parts or must it be put on a cold water line only??

Asked by: Ashley86
Hello Ashley86, Thank you for your question, I would be happy to assist you today! The Delta 1177LF pot filler faucet is a cold water connection only. This unit fits other Traditional style faucets. Here is a link for these options: https://www.deltafaucet.com/kitchen/sink-faucets?StyleIsTraditional=T&facetFinish=stainless Please contact us if you have any further questions. Best Regards, Angel
Answered by: Delta7
Date published: 2024-03-28
