Duchas universales

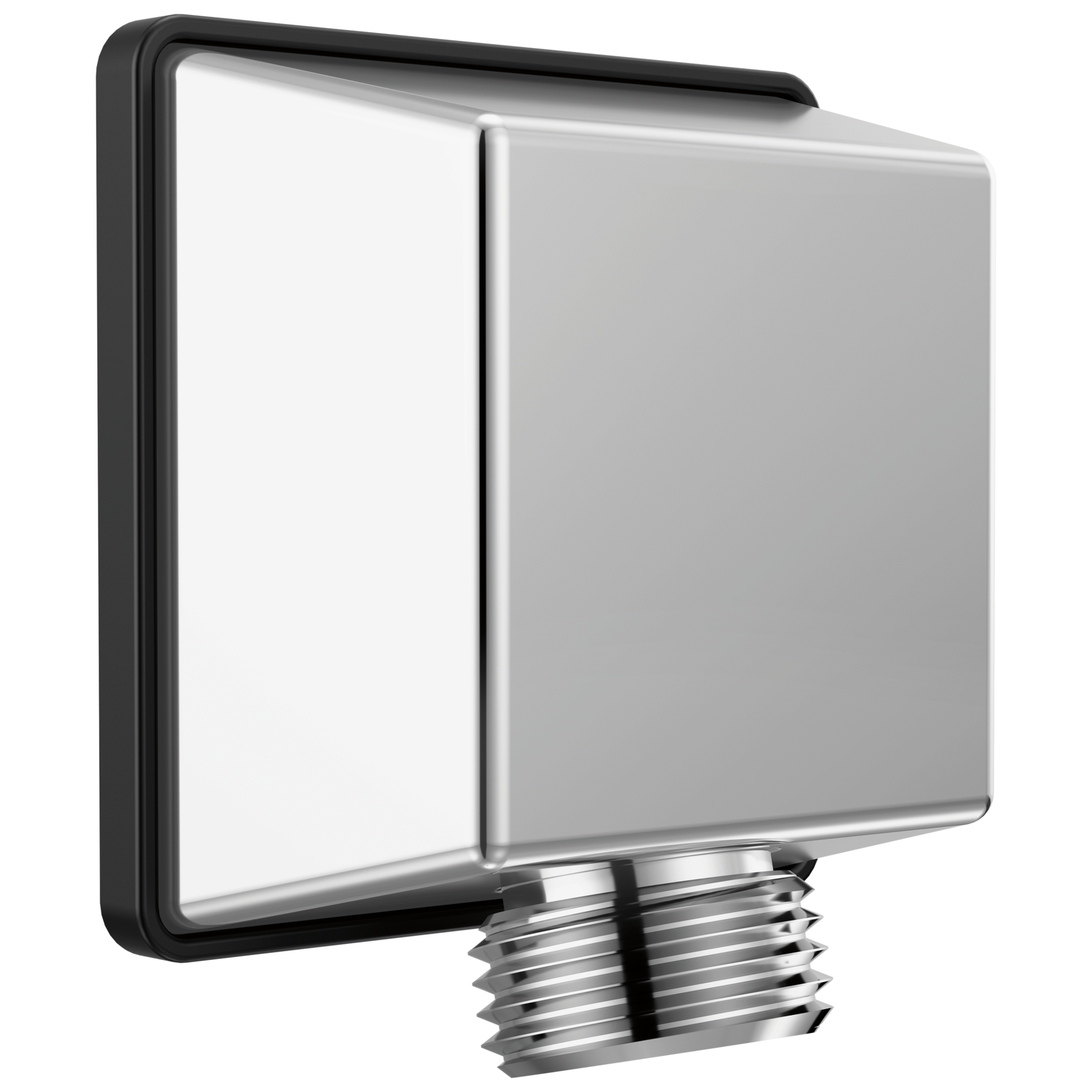

Codo de pared cuadrado para ducha manual en cromado

N.º de modelo: 50570
Agregar a favoritos
Busque instaladores locales de Delta®
Duchas universales
Codo de pared cuadrado para ducha manual en cromado
N.º de modelo: 50570
Precio de lista: $7560
Agregar a favoritos
Busque instaladores locales de Delta®
CARACTERÍSTICAS DEL PRODUCTO
La ducha se convierte en su refugio privado, donde los rociadores para el cuerpo y las regaderas funcionan en perfecta armonía. Prepararse en la mañana no es un acto de rutina cuando está rodeado por un baño que refleja su estilo personal. Personalice su experiencia con duchas manuales, rociadores para el cuerpo, chorros para el cuerpo y regaderas tipo lluvia. Usted puede realizar la instalación con confianza, ya que tendrá la tranquilidad de saber que Delta respalda esta barra deslizante ajustable con una garantía limitada de por vida.
  • Codo de pared cuadrado para ducha manual
  • Puede usarse con duchas manuales de Delta (se venden por separado).
  • 1/2 in. Entrada hembra IPS.
  • 1/2 in. Salida NPSM para conectar a las mangueras de la ducha.
  • Diseño cuadrado con un aspecto más moderno.
  • Fácil de instalar.
  • Se vende por separado
  • Respaldado por la garantía limitada de por vida de Delta Faucet
Documentos y especificaciones
Soporte para productos, repuestos y especificaciones técnicas
Ver especificaciones técnicas
Ver hoja de mantenimiento e instalación
Registrar su producto
Información de instalación
Overall Height (in.) :
2 1/8
Voltaje:
0
Tipo de válvula:
NA

SOPORTE PARA LA INSTALACIÓN

¿Necesita ayuda con la instalación? Busque instaladores locales de Delta® Obtenga cotizaciones. Lea reseñas.

IR
Escriba un código postal válido.
Mike y Hanna
Miniatura del logotipo de Delta

¿Necesita ayuda con la instalación? ¡Mike y Hannah están aquí para ayudar! Reciba consejos de los profesionales para todo, desde la instalación hasta el cuidado del producto.

Explorar videos
RESEÑAS
Rated 1 out of 5 by from Dumb design Should have just designed this where it comes out from the pipe where the shower head is or at least this option for small showers.
Date published: 2024-10-02
Rated 5 out of 5 by from Quality item Nice and heavy. Finish is very good.
Date published: 2024-08-28
Rated 5 out of 5 by from Excellent As described, stylish easy to install
Date published: 2024-04-16
Rated 5 out of 5 by from No or No problem with this part
Date published: 2023-10-15
Rated 5 out of 5 by from Delta brand I would buy nothing but Delta brand
Date published: 2023-09-27
Rated 5 out of 5 by from Excellent quality This item woks as intended so far.
Date published: 2023-09-16
Rated 5 out of 5 by from Nice look Sleek design
Date published: 2023-05-16
Rated 5 out of 5 by from Handle Works good looks good fast delivery
Date published: 2022-12-17
  • y_2024, m_11, d_21, h_6
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.42
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_63
  • loc_en_US, sid_50570, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 6ms
  • reviews, product
Preguntas y respuestas

What does this look like installed? Does the black gasket show or is it recessed ?

Asked by: Jb
Hi JB, Thank you for your question. When installed, model 50570 looks exactly as it does in the picture provided. The black gasket will show once it is installed. Best Regards, Courtney
Answered by: DeltaFaucet12
Date published: 2024-03-28

1/2" pipe nipple length

Hello, My 1/2" pipe nipple extends 1/4" from the finished surface. At this point, I'm not able to replace the pipe nipple. Is there any kind of extension or additional gasket that I can install. Thanks,
Asked by: Dan
Hi Dan, Thank you for your question. Unfortunately we do not offer an extension or gasket to solve your issue of the pipe nipple extending too far from the wall. You may be able to use caulk to make up the 1/16" difference in depth if you cannot change the nipple. Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2024-03-28

What material nipple should be used?

What type of metal should be used for the nipple (brass, black steel, etc.) where's a good place to get it from also?
Asked by: Andrew T.
Dear Andrew T, Thank you for your question. To install the Delta Square Wall Elbow for Hand Shower 50570-SS, you would need 1/2" copper or galvanized pipe. The nipple should extend past the finished wall no more than 3/16" (4.8 mm) and no less than 1/16" (1.6 mm). You would want to check with your local plumbing dealer for these types of pipes. https://media.deltafaucet.com/MandI/68432%20Rev%20A.pdf Best regards, Tanya
Answered by: Tanya
Date published: 2016-10-24

Is there any reason this cannot be installed without the gasket?

The wall tile it will be installed on is textured and wouldn't provide a water tight seal anyways. So, is there any harm in installing without the gasket and adding a bead of silicone? I need to do this because the required nipple length is in between 1/2" sizes and I need the extra 1/8" of threading to get a good seal.
Asked by: Kevin
Hi Kevin, Thank you for your question. We recommend using the gasket as it helps to protect the wall during installation as well. You may use a bead of silicone to help provide a water tight seal. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28

Do you have wall elbow square with 3/4 female inlet and 1/2 male outlet ?

Asked by: STEPHEN
Hi, Stephen! Thank you for your question. At this time, we only make wall elbows with 1/2" connections for both male outlets and female inlets. We do apologize for any inconvenience this may cause. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

How high from the floor would I mount the elbow and how far from the floor should the bottom of the shower bar be installed? Thank you.

Asked by: Dale
Hi, Dale! Thank you for your question. We do not have a recommended measurement for the Delta 50570-SS Wall Elbow from the floor or the shower bar. We leave this measurement up to the end user for their own custom shower convenience. Best Regards, Rosanna
Answered by: DeltaFaucet11
Date published: 2024-03-28

why are there 2 lines? your catalog shows 1 line

Asked by: long ball
Hi Long Ball, Thank you for your question. The 1/2" IPS female inlet is where the wall elbow attaches to the supply line in the wall. The 1/2" IPS male outlet is where the single hose attaches. Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2024-03-28

Is this metal or ABS?

Asked by: RexH
Hi RexH, Thanks for your question. This elbow is composed of metal and non-metallic components. Thanks, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28
  • y_2024, m_11, d_21, h_6CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.42
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_18
  • loc_en_US, sid_50570, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 18ms
  • questions, product
