Sistema rociador para el cuerpo HydraChoice®

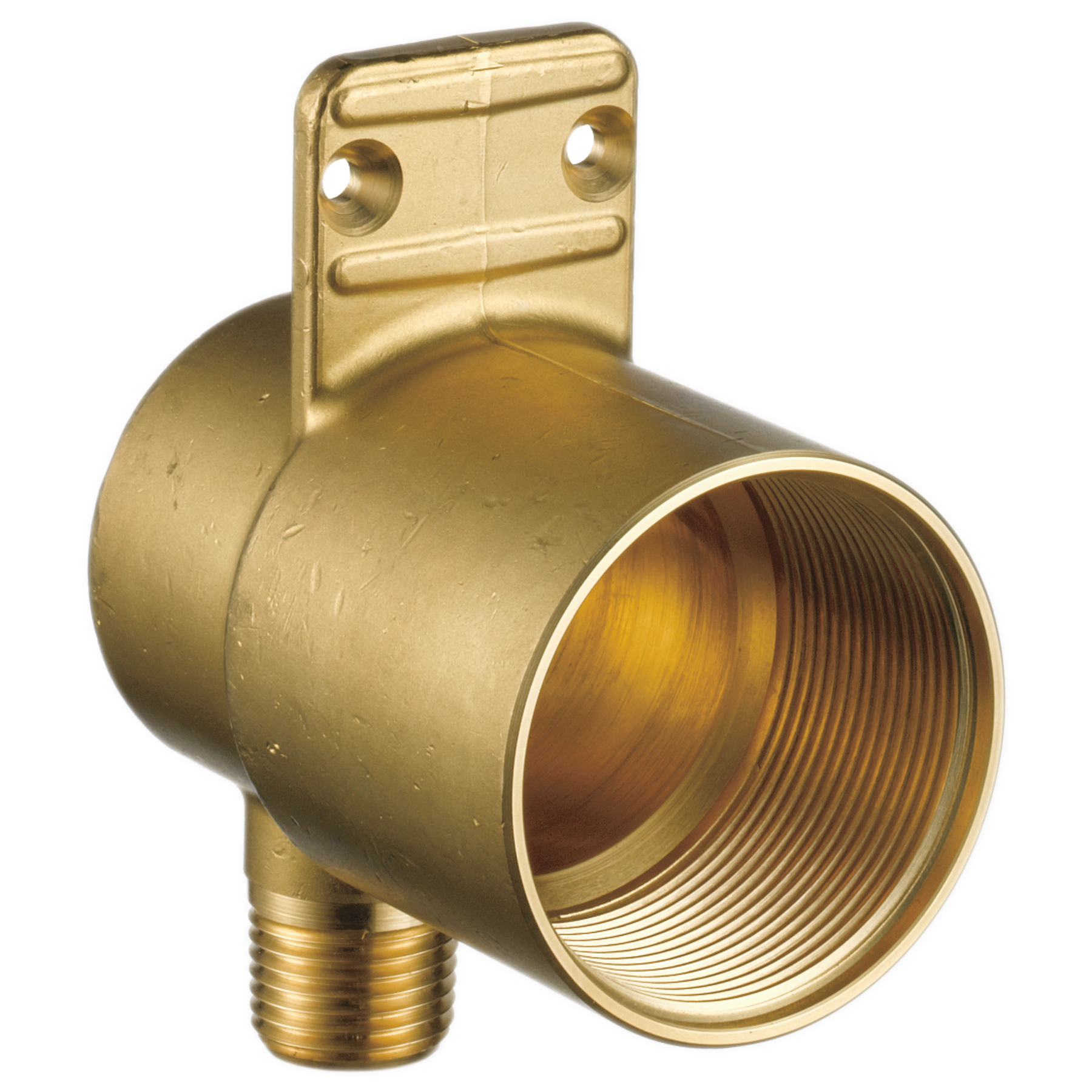

Conjunto interior del rociador para el cuerpo HydraChoice®
N.º de modelo: R50200
Image Thumbnail, click to view zoomed product image
CARACTERÍSTICAS DEL PRODUCTO
Este juego de tubería interna puede instalarse antes de elegir la terminación y el acabado específicos. Permite continuar sin demoras con la construcción o con un proyecto de renovación al delimitar un estilo de diseño. El juego de accesorios se vende por separado y se requiere para completar la unidad. Ahorre tiempo, esfuerzo y dinero en futuras actualizaciones por renovación porque no es necesario modificar la plomería detrás de la pared.
- Juego de tubería interna únicamente
- Debe comprarse el juego de accesorios y los cabezales de rociado por separado para completar la unidad.
- Tubería interna de 1/2".
- Orificio de 2 9/16" en la pared.
- Cuerpo de bronce forjado
- Incluye tapón de prueba y protector de enlucido.
- Se adapta a un espesor de pared de 3".
- Se recomiendan los juegos de terminación T50010 y T50210.
- Se recomiendan los cabezales de rociado SH5000, SH5002, SH5003 o SH5005.
Información especial
ADVERTENCIA de la Proposición 65 de California
ADVERTENCIA DE LA PROPOSICIÓN 65 de California
Este producto puede exponerle al plomo, que según el estado de California causa cáncer y anomalías congénitas u otros daños reproductivos.
Para obtener más información, visite http://www.P65Warnings.ca.gov.
Documentos y especificaciones
Soporte para productos, repuestos y especificaciones técnicas
Información de instalación
Overall Height (in.) :
2 11/16
Voltaje:
0
Tipo de válvula:
NA
SOPORTE PARA LA INSTALACIÓN
¿Necesita ayuda con la instalación? Busque instaladores locales de Delta® Obtenga cotizaciones. Lea reseñas.
¿Necesita ayuda con la instalación? ¡Mike y Hannah están aquí para ayudar! Reciba consejos de los profesionales para todo, desde la instalación hasta el cuidado del producto.
RESEÑAS
Rated 5 out of
5
by
Anonymous from
Excellent modular rough-in for body sprays
This is great. Plumber installed it in new shower, and the rough-in comes in with a plastic cover, so the hanger and the tiler can work without worrying about damage because this is only the rough-in piece. I also like that there are no other parts except for the solid brass piece. Everything else goes in after installing the shower tiles, so in the event that something needs to be fixed, or want to change the finish, this will stay as-is.
Date published: 2021-08-23
Preguntas y respuestas
Does the mounting flange on the R50200 have to be verticle, or can it be horizontal?
Hi Big Daddy,
Thank you for your question. The valve may be installed horizontally.
Best regards,
Jon
Date published: 2024-03-28
The valve was roughed in to far back. Is there some sort of extension kit or a deeper body spray that will work for this.
Unfortunately no we had to cut in to the wall and move it forward. It was a huge pain and I haven’t use that valve since.
Date published: 2024-03-28
Can the body spray rough in R50200 be mounted with the water supply line inlet pointing up instead of down?
Thank you for your question, Kevin! Although possible, we recommend installing these types of roughs with a pressure balance loop for adequate pressure to all of the body spray systems. This will work best with the rough-ins installed as shown in the installation manual below and would depend on the PSI to the system as well as how many other products water will need to be diverted to. If you have any further questions on this, please feel free to contact us directly.
https://media.deltafaucet.com/MandI/75391%20Rev%20D.pdf
Best regards, Edward
Date published: 2024-03-28
I purchased the R50200 rough-in valve and the 50150 body spray. The rough-in valve opening is significantly larger than the 1/2" connector for the body spray. Both are female connections. Am I missing an adapter or is this the wrong rough-in valve?
Thank you for your question, soppliger! I'm sorry for any confusion and we would be happy to help. The 50150 body spray trim includes all necessary components and is meant to install directly to 1/2" male threaded pipe fitting to extend 1/4" beyond the finished surface. The HydraChoice rough-in R50200 is to be used with models (T50010 or T50210) and spray heads (SH5000, SH5002, SH5003, or SH5005).
https://www.deltafaucet.com/search-results?searchTerm=HydraChoice#resultPage=0&offset=0
Best regards, Edward
Date published: 2024-03-28
good afternoon. in your installation instructions you recomend "balance loops". I'm wondering what will happen without them?
The homeowner wanted a 4 jet square layout with the on/off temp adjust valve and diverter valve in the center
Hi Michael,
Thank you for your question. We recommend using balance loops to help ensure that each body spray gets an equal amount of pressure. Without the balance loops, some sprays may have better flow than others.
Best regards,
Jon
Date published: 2017-02-08
the r50200
I have finished a shower install. And found the plumber never picked any body spay when doing install. The shower is tiled so I am wondering do you have to use this. Exact rough in. I believe he just has a 90` 1/2" elbow.
Dear Jim,
Thank you for your question. Any of the Delta HydraChoice Body Spray Trim and Body Spray units will work with the Delta HydraChoice Body Spray Rough R50200.
https://www.deltafaucet.com/search-results?searchTerm=HydraChoice
Best regards,
Tanya
Date published: 2017-03-04
Surface of the finished wall
Referring to the R50200 Installation Guide, is the surface of the finished wall referring to the back of the finished wall (backer board) or the front of the wall (tiled)? Also, what does the stud face referring to? The open wall width is 3-1/2" and I calculate that my finished wall thickness will be 7/8".
I'm trying to calculate where to place the stringer back plate to mount the shower body spray.
Hi Mxplea10, Thank you for your question!
The finished wall the instructions is referring to is the tile. Also, the face of the stud is the very front of the stud.
Best regards,
Brandis
Date published: 2024-03-28
Good afternoon. Where can i purchuse the cross that is shown in the diagram?
Hello Larryluggs,
Thank you for reaching out to Delta Faucet Company!
We apologize that this information was not readily available to you and we are happy to help! We have reached out to you directly to further assist you with this matter.
We appreciate your inquiry. Please reach out directly if you have further questions!
Best Regards,
Kyra
Digital Engagement Specialist
Date published: 2024-01-31
