DELTA

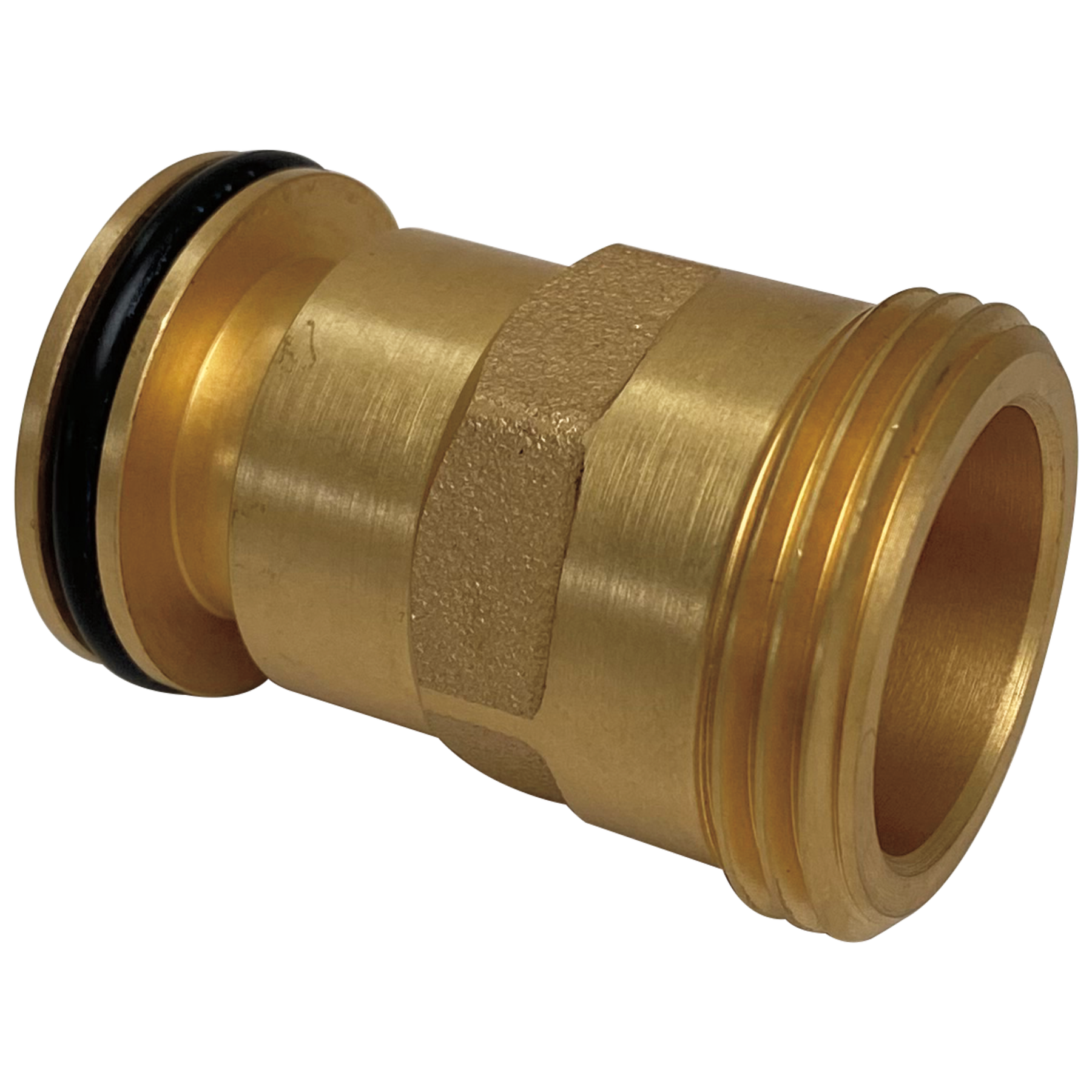

Adaptador de tubo de salida de bañera, Tri Universal
N.º de modelo: RP100154
Image Thumbnail, click to view zoomed product image
Documentos y especificaciones
Soporte para productos, repuestos y especificaciones técnicas
Información de instalación
Altura total:
1 1/4
Voltaje:
0
Tipo de válvula:
NA
RESEÑAS
Rated 1 out of
5
by
jcnlv from
Not included! But necessary!
The Tub Shower set looks beautiful. BUT...I am missing the part I need to finish my tub shower! Could not figure out if I had lost a part or what. Spent way too much time on this. Like everyone else... terrible instructions... everything is in three languages... That's great! But... please, give us three sets of instructions! instead of all together in one giant fold up piece of paper. On Wayfair the specs say this 144749 Nicoli Single-Function Tub Shower Faucet Set is for Water Inlet Pipe Thread NPT; Copper / CC; Pex. Perfect! BUT... it will not function with 1/2" NPT without an adaptor that is not included!!! Now I find I have to order it and wait another week to get the part. Inconvenient?! Definitely. So now I have to order this part for an additional cost + shipping and wait. For a company that is not that highly regarded by home improvement professionals I talked with, you should do everything you can to help the DIY community by giving clear and accurate instructions... (and by using a web form form that does not make you disable ad blockers to use.)
Date published: 2024-09-21
Rated 3 out of
5
by
Jon16 from
Good, but BAD directions.
This came with the tub spout I ordered. The bag has instructions printed on it but there are no paper instructions. If there were proper instructions I would realize you could EITHER, sweat it onto copper OR slip fit it over copper with the interior O ring and included set screw. I tried to sweat it on. However, with the interior O ring in place (instructions didn't say anything about it), it pushed all the flux out of the way. And also caught on fire when sweating-that's when I realized it was in there. So now I am going to have to sweat it off, clean it and the copper pipe, then re-sweat it into place. OR order another one and just use the slip fit option.
There's no excuse for such poor instructions. Hindsight tells me I should have known better, but such is life.
Date published: 2023-10-18
Rated 1 out of
5
by
boyt from
Terrible Quality Control
I purchased a Delta Shower and Tub Kit over the weekend. I've spent the past two days trying to figure out why my spout kept leaking when I turned the shower on. After doing some research last night I realized that I had the wrong adapter. According to Delta this part is needed based on their instructions. However, they don't tell you that you have to order this separate. To add to the issue, this part isn't considered an expedited part and will take up to 10 days to get to me!!!
Date published: 2022-12-15
Rated 2 out of
5
by
Eroc from
Why is this part not included in tub shower kit
Just purchased a porter tub shower kit
Trying to figure out why my tub faucet wasn’t fitting had to come to faucet directions. This part I. Not in the kit. What a joke. So I’m stuck not being able to finish remodel till I get this part. QC issue or what I’m not sure
Date published: 2022-10-16
Rated 1 out of
5
by
PariahJ from
Wrong part
It’s the only adapter listed in the installation booklet but it the wrong part. It doesn’t fit in the tub spout.
Date published: 2021-12-04
Preguntas y respuestas
What specific tub spouts will work with this adapter? Currently replacing our tub spout and this adapter is already in place. It seems that many of the tub spouts we have looked at can't be used with this adapter.
Hi, Nina T!
Thank you for your question. The tub spouts in the Monitor 14 Series trim kits in the Delta Ashlyn Collection will have the RP100154 adapter assembly. Here is a list of Ashlyn Trim kits:
T14464
T14464-RB
T14464-SS
T14464-LHD
T14464-RBLHD
T14464-SSLHD
Best Regards,
Rosanna
Date published: 2024-03-28
looking for part rp100154, seems like there are two versions of this part, need the universal and can only find sweat/thread adapter. HELP!
Hello radko!
Thank you for your question! I am happy to help.
We manufacture three different types of adapters for Delta Tub Spouts. Thread on, slip-on and sweat on. We do not manufacture a universal tub spout adapter.
Please reach out to us directly if you need further assistance.
Best Regards,
Antoine
Date published: 2021-02-12
Really, almost 200 dollars for a Porter set and it doesnt come with what is needed to instal the Tub spout. Please advise me on where to get this adapter for the 144984C-BN-A set i will be using the Slip on instalation.
Hi William,
Thank you for your question!
I apologize for any confusion. The Delta RP47841 tub spout assembly that is included with the Delta Monitor 144984 Trim Kit does not come with an adapter assembly. This is designed to thread into the nose only.
Please reach out with further questions!
Best Regards,
Tim
Digital Communications Specialist
Date published: 2024-01-31
Does this work for unthreaded copper pipe with PN RP64862? If not is there another adapter available that does?
Hello KT Henna,
Thank you for your question. We are happy to help!
The Delta Faucet RP100154 spout adapter can install to 1/2" copper tube using solder sweat joint, slip-on using supplied set screw and o-rings, or thread onto 1/2" pipe.
The RP64862 tub spout includes the RP12307 spout adapter which can install to 1/2" copper tube using solder sweat joint or thread onto 1/2" pipe. This tub spout can also be installed with the RP100154 adapter.
Best regards,
Bryan
Date published: 2024-03-28
WHAT IS THE THREAD SIZE FOR THE SET SCREW ON THE RP100154?
Is the RP100154 supposed to be able to be used with a 1/2" iron pipe? It doesn't fit and that adapter model is what came with my tub/shower kit.
Hi Lisa,
Thanks so much for contacting Delta Faucet Company!
Yes, the Tub Spout Adapter MODEL#: RP100154 can be installed with a slip-on connection to a 1/2" copper tube using the included set screw and o-rings. A solder sweat joint is not needed for the slip-on installation method. See the manual for more information:
https://media.deltafaucet.com/MandI/100838%20Rev%20C.pdf
Please reach out with further questions!
Best Regards,
Kelley
Digital Communications Specialist
Date published: 2024-03-28
I just received my BT14496-OB trim kit. Only hang up is the tub spout, instructions say a universal adapter is needed but this one doesn't look right. What adapter(s) are available to fit my spout??
Hello lar10,
Thank you for your question! I am happy to help you!
Our Delta BT14496-OB comes with a tub spout that threads directly onto a 1/2" pipe near the nose. The installation sheet is a universal guide for more then one type of tub spout install.
Please contact us back for any further questions.
Best Regards,
Nicole
Date published: 2024-03-28
Last question. Does copper pipe need to connect be sweated to a copper elbow per directions or can a brass drop ear elbow be used for stability? I would imagine the copper pipe to copper elbow would be easier to sweat but not as stable behind wall.
Hi Gret,
Thank you for your question about the Delta Faucet RP100154.
If this adapter is installed with a Delta MultiChoice valve rough, the pipe to the tub spout must be a minimum of 1/2" copper or iron pipe. No push fittings and no "shark-bite" fittings. No cast or drop ear elbows. See here for more information:
https://support.deltafaucet.com/s/article/Shower-Rise
Please reach out with any additional questions!
Best Regards,
Bryan
Digital Communications Specialist
Date published: 2024-04-19
