Delta®

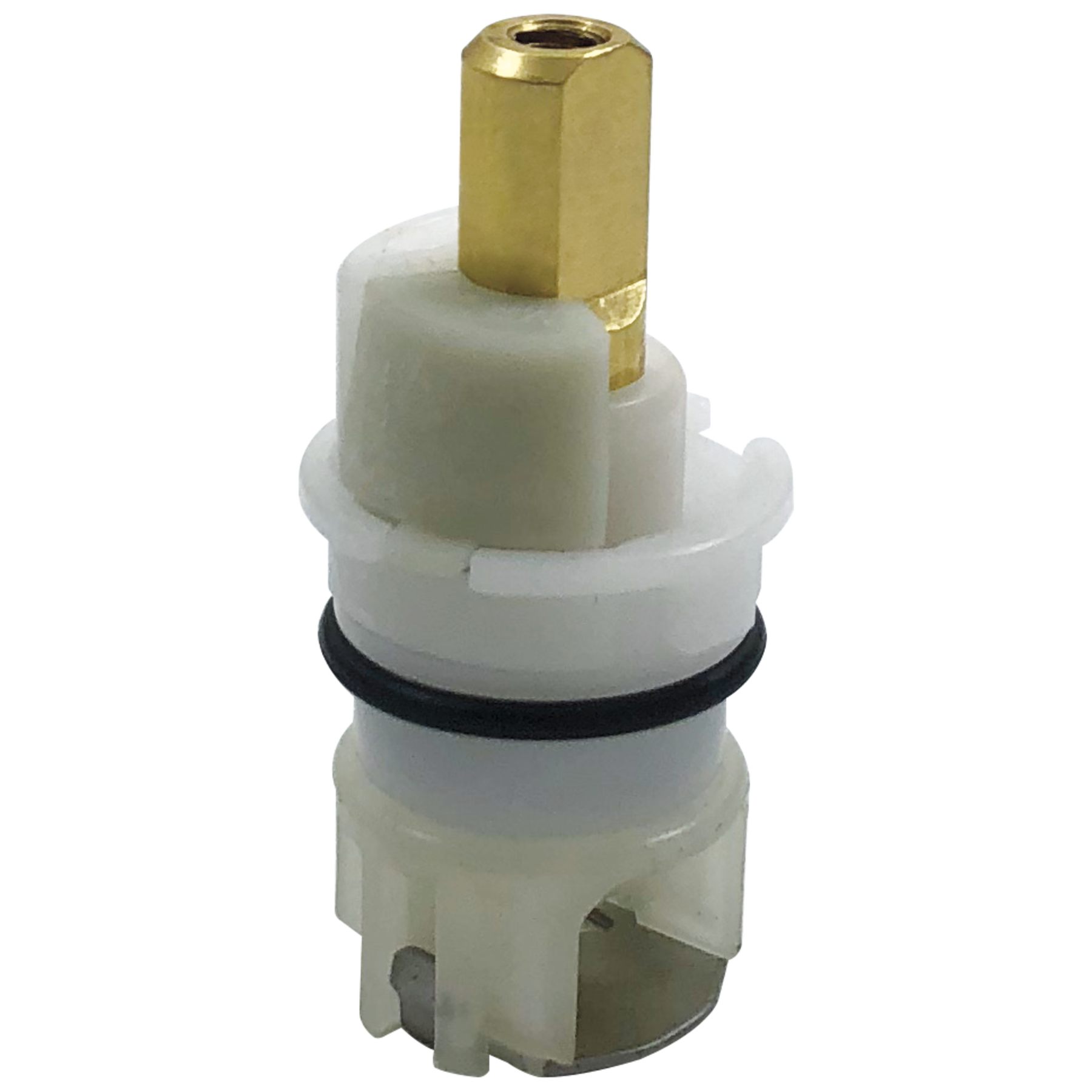

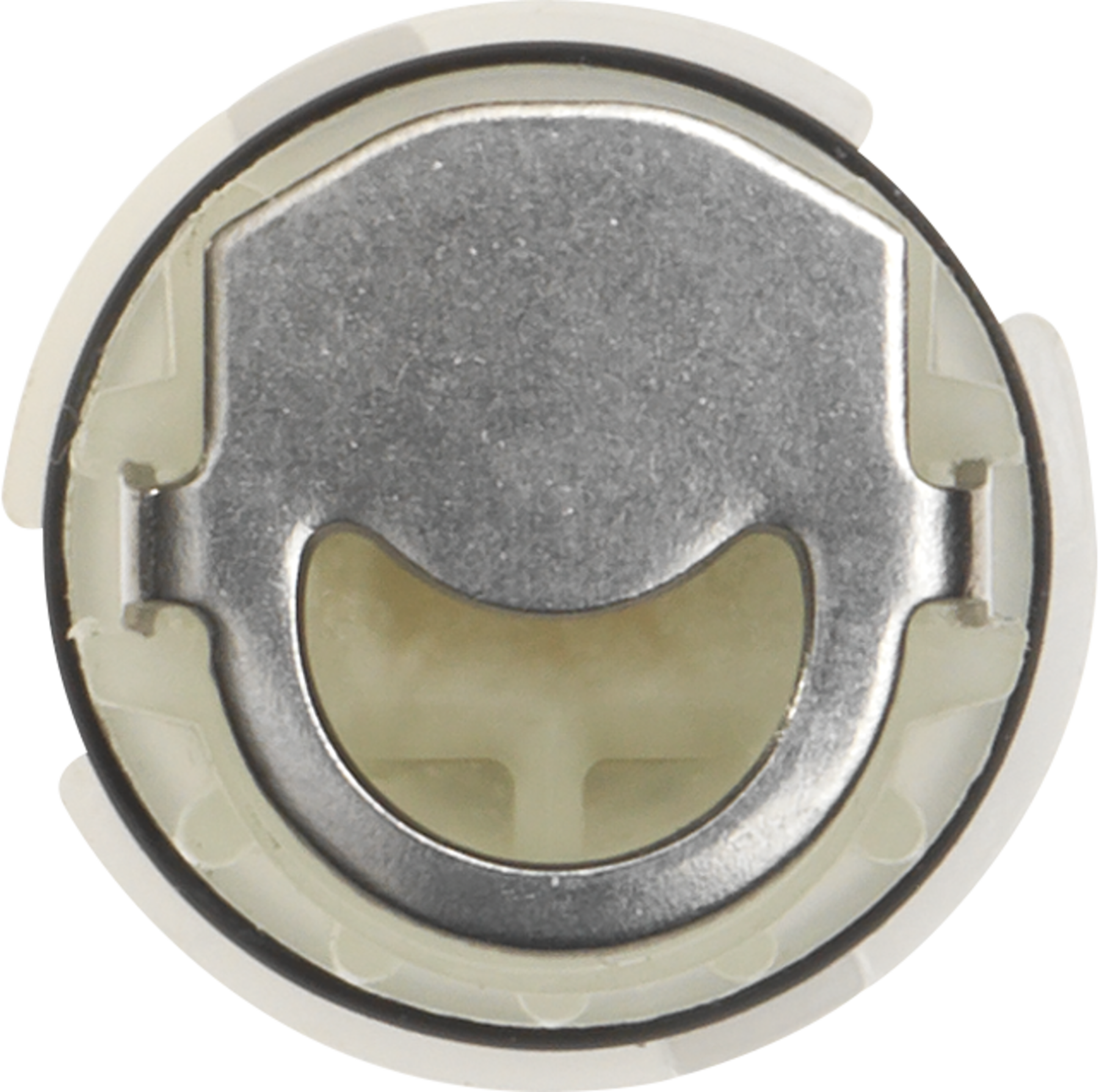

Conjunto de vástago, 2H
N.º de modelo: RP25513
Image Thumbnail, click to view zoomed product image
nulo
CARACTERÍSTICAS DEL PRODUCTO
Información especial
ADVERTENCIA de la Proposición 65 de California
ADVERTENCIA DE LA PROPOSICIÓN 65 de California
Este producto puede exponerle al plomo, que según el estado de California causa cáncer y anomalías congénitas u otros daños reproductivos.
Para obtener más información, visite http://www.P65Warnings.ca.gov.
Documentos y especificaciones
Información de instalación
Overall Height (in.) :
1 7/8
Tipo de válvula:
Cartucho
RESEÑAS
Rated 5 out of
5
by
Chaz from
Impressive support from Delta
This part (Delta RP25513) fixed my 2 handle Delta faucet problem, where I had leaking coming out from the handle. This is the first time I ever attempted a faucet repair myself and it went without a hitch. A video from the Lowes website was a great help. And I have to say, I used the chat feature from the Delta website and it did a great job pointing me to a PDF on their website that told me the exact part that I needed! Very helpful! Then Delta Customer Support followed up with an email to me to see if I needed any assistance. Impressive support from Delta.
Date published: 2023-04-23
Rated 4 out of
5
by
dcgoz from
Easy to replace, but
I love working with Delta. Their parts are easy to find and work with. That said, these replacement cartridges should really come with the spring and seal also.
Date published: 2022-12-07
Rated 5 out of
5
by
Anonymous from
Parts for faucets
They came quickly, they were the correct part, they have been installed, they are working well.
Good job !!!!!
Date published: 2022-02-14
Rated 5 out of
5
by
Lindamp2 from
Works great
Installed this cartridge in a matter of minutes and it works great! No more leaks!
Date published: 2021-12-22
Rated 5 out of
5
by
bodo from
Did the trick.
fit perfectly, would buy again.
Date published: 2021-11-04
Rated 5 out of
5
by
Tony from
Repair/Replacement
Quick turn around service after order. Parts were correct, and fairly easy to install.
Date published: 2021-09-13
Rated 5 out of
5
by
Happy from
The stem (RP25513) really fixed all our problems!!
We bought this stem (RP25513) in 2014 and it fixed our needs, I guess it pays to investigate the parts, or we would be paying out tons of dollars had we not have done it ourselves.
Date published: 2021-05-10
Rated 5 out of
5
by
Sidro from
The exact product
Previously I purchased a replacement part from Lowes. Yes it stated it was for a Delta product. From the very first you couldn't turn the handle all the way to the off position or water would drip.
The Delta part fit perfect and works perfect. Thank goodness, I was beginning to doubt my plumber skills due to the aftermarket part.
Date published: 2021-02-04
Preguntas y respuestas
What is the part # for the spring and seal for the PR25513
Hi, MCPO!
Thank you for your question. The RP25513 stem unit assembly works with the RP4993 seat and spring kit. Here is the link to this kit:
https://www.deltafaucet.com/parts-product-detail?modelNumber=RP4993
Best Regards,
Rosanna
Date published: 2024-03-28
are the RP25513 and RP24096 stem assemblies interchangeable
Hi, kolsonaz!
Thank you for your question. The Delta RP25513 and the Delta RP24096 stem unit assemblies are interchangeable. The only difference the two stems have is the RP25513 includes a 1/4 turn stop. the RP24096 does not include a 1/4 turn stop. The 1/4 turn stop to order with the RP24096 is RP24097.
Best Regards,
Rosanna
Date published: 2024-03-28
How modify it to make it turn clockwise?
Previous post says take out the stem assembly and rotate 180 degrees. How do you do that?
Hi Ken,
Thanks for your question! To make the handle turn the opposite direction, first make sure that the water supplies are shut off under the sink. Next, remove the handle and bonnet nut. On the cold side, the removable 1/4 turn stop should be in the back, and on the hot side it should be in the front. Moving the position of the quarter turn stop changes the direction the handle will turn.
If you need to flip the stem unit around, you can pull it completely out, rotate it 180, and reinstall it.
Thanks,
Jon
Date published: 2024-03-28
I have a part to repair a leaky faucet, # RP1991 cartridge, but do not know the model # / way the valve is constructed. My concern is that
the brass nut in front did not come off easily with pliars but some leaking started at the rear of the valve, which was not visible with the hub on the stem. (The leak did stop when I re-tightened). I now have a strap wrench hoping that will help loosen the nut but do not want to shut down three + units in a condo complex if I end up breaking and having to replace the valve.
Hi Dave, Thank you for your question. I have attached the parts break down to the 1600 series faucet below. Hopefully the image of the valve gives you your answer.
Thanks,
Dave
Date published: 2024-03-28
If you’re replacing the stem unit, do you recommend also replacing seats and springs to fix water leaking from handle problem? Thank you.
Hello Bc Miller,
Thank you for your question. If your two handle faucet is leaking water underneath the hot and cold handles, then the RP25513 (brass with ¼ turn stops) stem units will need to be replaced. If your faucet is just dripping water from the spout when the faucet is not in use, then the RP4993 seats and springs will need to be replaced under both handles.
Best regards,
Tanya
Date published: 2024-03-28
Stem o-ring for faucet model 2530
Hello, what size is the o-ring on the stem of faucet model 2530? Do you sell Delta brand o-rings at local or big box hardware stores?
Dear Independence,
Thank you for your question! The oring that is on the Delta Stem Assembly RP25513 is not a replaceable separate part. To replace the oring you would simply replace the full stem assembly.
Best regards,
Tanya
Date published: 2018-10-04
What is the difference between part #RP25513 & #RP24096
I have two faucets that are beginning to show signs of wear and tear.
On one faucet the hot water handle is beginning to stick slightly when turning it off or on.
On the other faucet the faucet is leaking and the leak can be stopped by applying pressure to the hot water handle.
I am going to attempt to repair the faucets as opposed to replacing them. On your website I notice that there are two stem unit assembly replacement parts listed along with seats and springs. I want to make sure I order the correct stem unit assembly and I would like to know what the difference is between part #RP25513 & #RP24096 ?
Thanks for your assistance.
Hi Al,
Thank you for your question. The stems are the same except for 1 feature. The RP25513 has what is called a 1/4 turn stop. This is a small removable piece that is placed either in front or back of the stem assembly for use on lever handles. It is not used on knob style handles.
Thanks,
Dave
Date published: 2024-03-28
how to remove the stem from the faucet
Thank you for your question, brigitta! The stem unit assemblies can be removed from the valve body once the bonnet nut that holds them in place is removed. The water supplies to the unit must be fully turned off before removing the bonnet with an adjustable wrench, turning counter-clockwise. The stem units will then lift out of the valve body revealing the seats and springs below.
Best regards, Edward
Date published: 2024-03-28
How do you remove the small screw insert when it is stripped?
It is located on the side of the faucet at the base. it needs to be removed to change the stem.
Hi Ray, Thank you for your question. To remove a stripped out set screw you will have to drill it out. Be careful to not damage the threads in the handle or it will have to be replaced.
Thanks,
Dave
Date published: 2024-03-28
Where can I the bonnet nut for this part
Trying to replace RP25513 on faucet, and cannot find a bonnet nut for the part. I bent it is the removal process
Hi Nanner,
Thank you for your question. The bonnet nut needed for a unit that takes the RP25513 is RP6060.
Thanks,
Alexis
Date published: 2024-03-28
Can stem assembly RP25513 be used as a substitute for RP24096?
I have a tub facuet T2775 and the pamplet that came with it does not specify the part number for stem replacement?
Hi Zhoomer, Thank you for your question!
The RP25513 and the RP24096 stem units are the same. The only difference is the RP25513 inlcludes the 1/4 stop ( RP24097) which you will not use for the T2775.
Best regards,
Brandis
Date published: 2024-03-28
Is the stem assembly RP25513 for Delta faucet 3544 interchangeable with RP1740?
I'm replacing the stem assembly because water leaks out through it when I turn on the faucet. If RP25513 and RP1740 are interchangeable, and I leave out the 90 degree stop insert for RP25513 when I install it, will it open 180 degrees like the RP1740? Is it ok to use RP25513 for the cold water faucet and RP1740 for the hot water faucet?
Hi Randy, Thank you for your question. The RP25513 without the 1/4 stop can be used in place of the RP1740. The RP1740 is used on knob style handles that thread in the top of the stem assembly. The RP25513 is used on lever style handles that attach with a set screw into the side of the metal stem on the stem assembly. Both cartridges are used on the hot and cold water sides.
Thanks,
Dave
Date published: 2024-03-28
Does Delta package the o-rings for the RP25513 Stem Assembly as a separate repair part item?
no...you can usually purchase them at your local plumbing store.
Date published: 2024-03-28
Are replacement faucet stems, RP25513 and RP25513-3, interchangeable? If not what are the differences
Thank you for your inquiry, Lloyd! The Delta Stem Assemblies RP25513 and RP25513-3 are the exact same parts. The RP25513-3 comes as a pack of three stem assemblies sold exclusively at Home Depot.
Best regards,
Tanya
Date published: 2024-03-28
what is the difference between # RP24096 & RP25513 ?
Thank you for your question, Dave! The RP25513 assembly includes a 1/4 turn stop and the RP24096 does not. Otherwise, they are the same. Please note that the original 1/4 turn stop can be reused.
Best regards, Jon
Date published: 2024-03-28
Model 3578 Faucet
i need to replace a stem unit. Your parts book says it is P/N RP24096. My store has a stem P/N RP25513. Will this stem work? Thanks.
Thank you for your question. Part #RP25513 will work on Delta Faucet model #3578. This stem unit includes a 1/4 turn stop which is not found on part #RP24096.
Date published: 2024-03-28
Is the RP25513 faucet interchangable on hot and cold taps?
Thank you for your question, Thomas! All Delta Stem Unit Assemblies can be used interchangeably with the hot or cold valve. The stem unit orientation will be different on both sides however so that the handles work accordingly.
Best regards, Edward
Date published: 2024-03-28
Faucet Leaking
Hello,
I have a Delta faucet with two handles.
Problem:
The water is dripping slowly at the faucet. Therefore, I replaced the hot and cold handles with the Delta Faucet RP25513 Stem Assembly. However, the water is still dripping slowly.
Please advise.
Thank You,
Chau
Hi Chau, Thank you for your question. To stop a leak at the faucet you will also want to change out the RP4993 seats and springs. The seats and springs are located in the valve body directly underneath the RP25513 stem assemblies. The metal plate on the bottom of the stem assembly rotates on top of the rubber seat creating the seal. Over time the seats wear and lose the seal. Changing these out should solve your issue.
Thanks,
Dave
Date published: 2024-03-28
Does Delta make a brass valve assy for this model??
Hi Outta-line, Thank you for your question. The RP25513 is the version of the stem assembly with the brass stem. An all brass stem assembly is not available.
Thanks,
Dave
Date published: 2024-03-28
What are the dimensions for the O-Ring that goes on the Delta RP25513 stem?
Hi, Denny!
Thank you for your question. Although we do recommend to replace the whole stem unit assembly if the o-rings are an issue, we do have replaceable o-rings. The outer o-ring is RP1129 which is 11/16" ID x 13/16" OD x 1/16" thick. The inner o-ring is RP75547 which is .339ID x .545OD x .103 thick. Here are the links to each o-ring.
https://www.deltafaucet.com/parts-product-detail?modelNumber=RP1129
https://www.deltafaucet.com/parts-product-detail?modelNumber=RP75547
Best Regards, Rosanna
Date published: 2024-04-30
what hex key size do I use to replace RP25513 for bath room faucet?
Thank you for your question, kredd! Most 2-handle faucets require a 3/32" Allen wrench to loosen the set screw. Some models have a cap on the top of the handle with a Phillips head screw.
Best regards, Jon
Date published: 2024-03-28
Is RP25513 stem assembly the correct part for the H678RB Handle assembly? If not, which is the correct part?
Dear Mike,
The Delta Stem Assembly RP25513 can be used with a H678RB handle, you would just not use the 1/4 turn stop piece that comes with it. The RP24096 is the stem assembly that does not come with the 1/4 turn stop.
Best regards,
Tanya
Date published: 2017-07-08
Replacement Cartridge for the Dryden D3551LFSS. Trying to determine exactly what cartridge to use replace the leaky Dryden faucet indicated.
Dear Asker George,
Thank you for your question, I will be more than happy to help you with this. The replacement stem units for this faucet are part RP25513. If you need further assistance, please contact us directly.
Best Regards, Samantha
Phone: 1-800-345-3358 | Email: customerservice@deltafaucet.com
Date published: 2024-03-28
My Handle will not attack to the stem assemby
I currently have a faucet with a notch carved out of the copper stem assembly causing the cold water handle to not be able to be attached with the allen bolt.
the handle will come loose under small presume.
I can not find a Stem Assembly which correctly replaces it.
It is shaped like the RP1740 however it has a copper piece rather than a plastic piece like the RP25513 does. Which part is the correct replacement part?
Hi Bob, Thank you for your question. The stem assembly that is shaped like the RP1740 but has the metal stem is the RP24096.
Thanks,
Dave
http://www.deltafaucet.com/repairparts/details/rp24096.html
Date published: 2024-03-28
how to change stem assembly p25513
Dear Ytee,
Thank you for your inquiry. I have provided below, a link with directions for replacing the RP25513 stem assembly. The document also advises what tools maybe needed. If you need further assistance please call the toll-free Delta Help Line at 1-800-345-3358 between the hours of 7:00 AM to 7:00 PM Monday ~ Friday as well as 9:00 AM to 6:00 PM Saturday EST. You can also contact us via email at customerservice@deltafaucet.com.
https://www.deltafaucet.com/service-parts/faq#answer-ca53be00-d24a-4f80-b49d-74838bca5514
Best regards,
Tanya
Date published: 2021-02-10
Does stem assembly part #RP25513 work for both hot and cold ?
Thank you for your question. Delta Faucet model # RP25513 works on both the hot and the cold sides of your faucet.
Date published: 2024-03-28
What size hex key is required to remove the lever handles on this faucet
Thank you for your question. Our typical size of allen is wrench is 3/32.
Date published: 2024-03-28
The faucet leaks below both handles. What part will most likely fix the problem? The bonnet nut is really tight, is there a trick to loosening it?
Model 2500 series, correct?
Hi Dennis, Thank you for your question. You will want to replace the RP25513 stem assemblies and the RP4993 seats and springs to stop the leaks. Often mineral build up will make it difficult to remove the bonnet nuts. We recommend soaking a towel in a 50/50 solution of vinegar and water and wrapping the towel around the bonnet nut. Allow the solution to soak in overnight if possible to help break up the mineral build up, making the bonnet nut easier to remove.
Thanks,
Dave
Date published: 2024-03-28
What is the size of the O Ring on the RP25513?
Hi Bill, Thank you for your question. The o-ring on the outside of the RP25513 stem assembly measures 11/16 x 13/16 x 1/16. The o-ring is available to order as the RP1129.
Thanks,
Dave
Date published: 2024-03-28
Is the stem unit assembly for the 2530 faucet the same for hot and cold (RP25513)?
Thank you for your question, Kent! The RP25513 stem unit assemblies are not hot or cold specific and can be used on either side. The placement of these will determine the handle movement.
Best regards, Edward
Date published: 2024-03-28
