Delta®

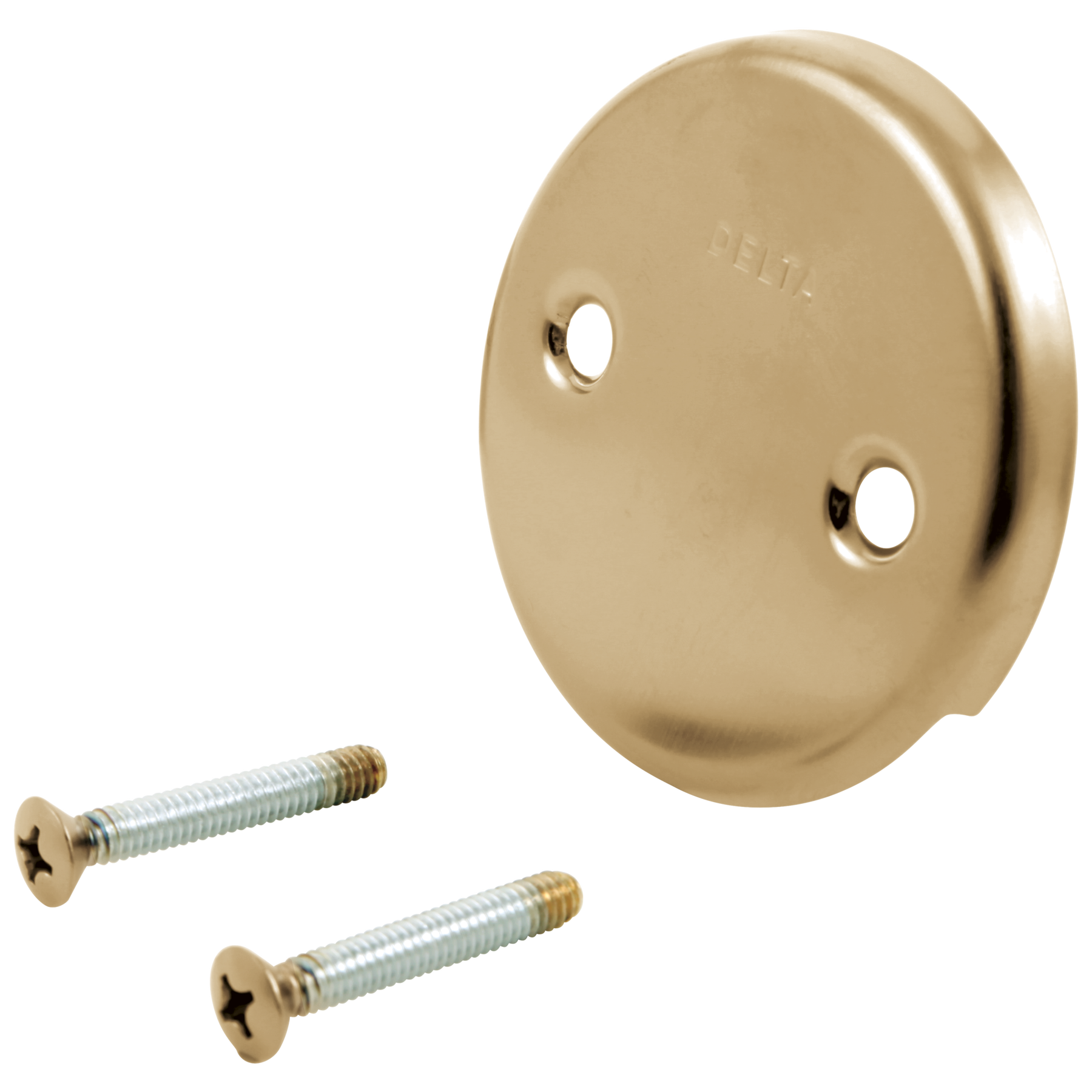

Overflow Plate & Screws - No Trip Lever in Champagne Bronze
N.º de modelo: RP31556CZ
Image Thumbnail, click to view zoomed product image
CARACTERÍSTICAS DEL PRODUCTO
Technology and Special Features
Acabado Brilliance®
Acabado Brilliance®
Muchos productos de Delta se fabrican con acabados Brilliance®, que resisten el desgaste y la decoloración mejor que el bronce tradicional o incluso el cromo.
Documentos y especificaciones
Información de instalación
Overall Height (in.) :
3 3/8
Tipo de válvula:
NA
RESEÑAS
Rated 5 out of
5
by
Ed from
Had what need
Easy to find what one needs
Date published: 2025-05-15
Rated 2 out of
5
by
Kasen Construction LLC from
Screws did not fit standard tub overflow
The two mounting screws are too large for the standard tub overflow on my tub which is new and was just installed. Are there champagne bronze screws available in a smaller diameter thread pattern? I would absolutely give it five stars if I can get some screws that will work. Any ideas or help would be greatly appreciated
Date published: 2024-03-11
Rated 5 out of
5
by
KC from
Perfect match.
Matches Delta champagne broze perfectly.
Date published: 2023-11-15
Rated 5 out of
5
by
Pattily from
perfect replacement
[This review was collected as part of a promotion.] I updated the hardware in my tub from silver to oil rubbed bronze. I was happy to find the perfect replacement parts. It looks great and installed in a minute.
Date published: 2017-12-19
Rated 5 out of
5
by
Eliza from
Super easy update
[This review was collected as part of a promotion.] This matched the new shower head perfectly! Swapped out the builders grade chrome plate myself.
Date published: 2017-12-08
Rated 5 out of
5
by
sem0 from
I was looking for a drain stop that wasn't fixed on so that I could use a catch screen in the drain. This one screws in easily and holds the water well when I need to use the tub. I just unscrew and store when not needed.
Date published: 2015-05-14
Rated 5 out of
5
by
ole6015 from
Looks Great
Redecorated the bathroom and the local big box only carried the newer style kits. Found this, ordered, quick shipping, easy install. Couldn't ask for more. Thanks
Date published: 2010-10-31
Rated 5 out of
5
by
John from
An Exact Match
This is the perfect item to finish my bathroom remodel. The finish perfectly matches the Delta Venetian Bronze of the faucet and spout (Delta Model 1400 series). I tried another "Venetian bronze" tub waste/stopper and the finish didn't quite match.
Date published: 2008-01-02
Preguntas y respuestas
I lost one screw, is there anyway to order just the screws
Thank you for your question, bgibbons! The screws are available separately as part number RP6404.
https://www.deltafaucet.com/parts-product-detail?modelNumber=RP6404
Best regards, Jon
Date published: 2024-03-28
Compatible waste assembly?
Is this compatible with RP293?
Hi, Nej,
Thank you for your question! The RP31556CZ will work with the RP293 bath waste assembly.
Best Regards,
Rosanna
Date published: 2019-03-12
Do you make this or a similar overflow plate in matte black?
Hello LC85,
Thank you for your question. The Delta Overflow Plate and Screw RP31556 is not manufactured in the Matte Black finish.
Best regards,
Tanya
Date published: 2024-03-28
Delta Faucet model # RP31556 has a diameter of 3.39 inches Is this spec inside or outside diameter?
I need the largest plate I can get and I think this is it.
Problem is I can not find the associated gaskets/washers for this overflow plate. there must be an over-sized rubber gasket/washer that is made for this plate specifically.
Dear Joe,
Thank you for your inquiry! The Delta OverPlate and Screws RP31556 has an outer diameter of 3.39 inches and the holes are 1.94 inches apart. This is the only size we manufacture to fit our bath waste assemblies. Unfortunately, this plate does not come with a gasket or washers.
Best regards,
Tanya
Date published: 2017-07-31
P31556RB Overflow Plate. - did not come with the bracket for installation - how do I screw it in without the bracket and where do I get the bracket?
Thank you for your question, Kristina! RP31556RB is the overflow plate and screws only. A bath waste assembly will need to be purchased such as RP391 along with a RP7430RB strainer.
https://www.deltafaucet.com/bathroom/product/RP391
Best regards, Edward
Date published: 2024-03-28
I have an older tub that the overflow plate has gone bad. It takes a 3.5 inch inside diameter plate with two screw holes 2 inch center.
All I can find are 3 inch plates. They are too small. Is anything like that available?
Thank you for your question. Delta Faucet model # RP31556 has a diameter of 3.39 inches and the holes are 1.94 inches apart. This is the only size we have available. You might check with the tub manufacturer to see if they can recommend anything if this size will not fit.
Date published: 2024-03-28
What is the depth of the plate?
Distance from front face of plate to back edge that touches the tub. My tub overflow install requires ~1/2" depth.
Thank you for your question. Delta Faucet model # RP31556 is 3/8" thick.
Date published: 2024-03-28
What are the sizes of the screws (thread size and length) used with this overflow plate?
Thank you for your inquiry, Dave! The screw that come with the Delta No Trip Lever Overflow Plate RP31556 are 1/4-20 X 1.75".
Best regards,
Tanya
Date published: 2024-03-28
