Delta®
Drain - Tub in Champagne Bronze
N.º de modelo: RP31558CZ
Image Thumbnail, click to view zoomed product image
nulo
CARACTERÍSTICAS DEL PRODUCTO

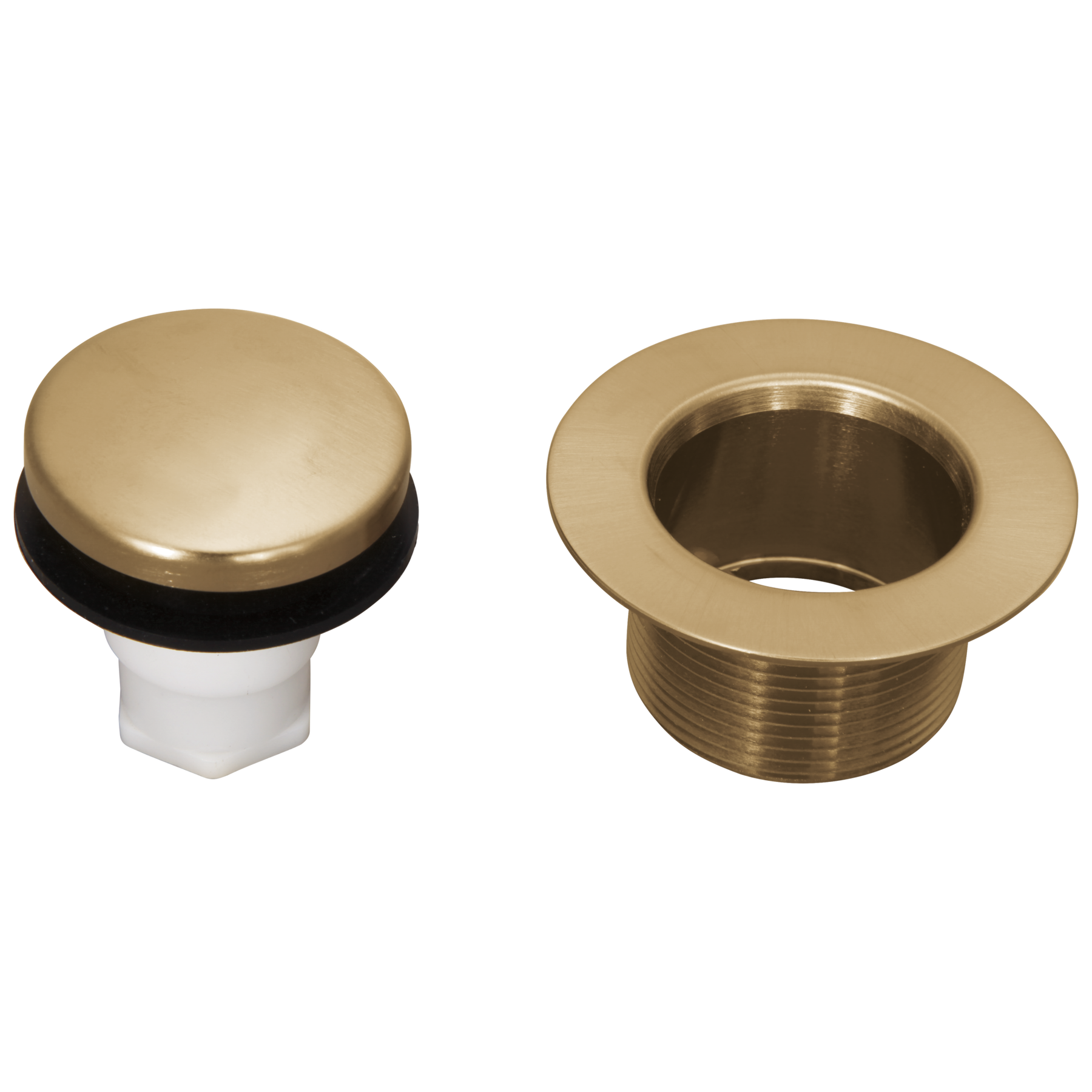

- Tapón y filtro de desagüe
- Operado con el pie
- Las roscas del tornillo del tapón miden de 5/16" a 18".
Technology and Special Features
Acabado Brilliance®
Acabado Brilliance®
Muchos productos de Delta se fabrican con acabados Brilliance®, que resisten el desgaste y la decoloración mejor que el bronce tradicional o incluso el cromo.
Documentos y especificaciones
Información de instalación
Overall Height (in.) :
1 3/8
Voltaje:
0
Tipo de válvula:
NA
RESEÑAS
Rated 1 out of
5
by
DadofTim from
Finish peeled
Finish peeled off the pop up button
Date published: 2025-01-18
Rated 1 out of
5
by
GregS from
Looks great, but does not function.
I should have read the reviews better. The toe open and close function does not work at all. We have to push the stopper with our fingers to get it to work. It’s not worth the money.
Date published: 2024-12-30
Rated 1 out of
5
by
Wayne N from
Constantly gets stuck and won’t drain
This product installed easily and looks very nice but that is where the positives stop. Since almost immediately after installation, the stopper will get stuck in the down position and not allow you to drain the tub.
Date published: 2024-09-22
Rated 2 out of
5
by
Homeowner from
Delta Push Drain Stopper
Difficult to close. Often takes several pushes to seal closed.
Date published: 2024-05-05
Rated 5 out of
5
by
TheGreyGhost from
Love it
Perfect for my need. Very pretty.
Date published: 2024-04-08
Rated 5 out of
5
by
RS from
Drain part.
It arrived quickly and was exactly as described.
Date published: 2024-02-11
Rated 1 out of
5
by
JHoff513 from
Terrible Design, Read the Reviews
Do NOT buy this product. I ordered two of them despite the bad reviews because my plumber with 30+ years experience said he has never had issues with toe stoppers. Well, he could not make this product work no matter what. We returned them and went with another brand even though the new product color was slightly off from my current Delta hardware because I wanted high quality.
Date published: 2023-11-27
Rated 5 out of
5
by
KC from
Perfect match
I was afraid the metals wouldn't match. Delta champagne bronze. Looks high-end. Love it!
Date published: 2023-11-15
Preguntas y respuestas
what are the exact dimensions of the product? the flange diameter and the inner pipe diameter
Hello abeadel,
Thank you for your question. The Delta Tub Drain RP31558CZ model has an outer diameter of 2.83" and an inner diameter of 1.60".
Best regards,
Tanya
Date published: 2024-03-28
Which drain assembly (for a 20" deep tub) works with this trim?
Hi Marsha,
Thank you for your question. This drain is included with the RP693CZ bath waste assembly.
http://www.deltafaucet.com/bath/details/rp693cz.html
Best regards,
Jon
Date published: 2024-03-28
Our drain is 1-1/4", do you have a tub drain in champagne bronze that would fit?
Hi, Michael!
Thank you for your question. The RP31558CZ fits in the RP693CZ drain assembly. here is a link to the technical specifications sheet:
https://media.deltafaucet.com/SpecSheet/DSP-B-RP293_Rev_B.pdf
Best Regards,
Rosanna
Date published: 2024-03-28
I need a tub drain like RP31558CZ but about 1/8 th inch smaller with fine threads - is it available and if so what is the part # for champagne bronze finish? My old one that we are replacing has a twist and drop down stopper. Thanks
Thank you for your question, Barbara. Unfortunately, we do not have a drain flange with another kind of threads. We recommend shopping locally or online for a suitable drain.
Best regards, Jon
Date published: 2024-03-28
Can you revise your specification DSP-B-RP293_Rev_B.pdf (& other related Spec Sheets) to show the exact diameter of the threaded area of the bath tub drain/stopper RP31558? Apparently, there was an "old" standard size & now a "new" standard size.
Hi, Dontx1945!
Thank you for your question. We will work to update the technical specifications. In the mean time, here are the measurements for the drain flange:
Outer Diameter: 2.83"
Inner Diameter: 1.60"
Depth: 1.37"
Shank Threads: At least 1" long with .3125-18 UNC-2B threading.
Best Regards,
Rosanna
Date published: 2024-03-28
I am purchasing Delta shower + faucets in Stryke, and would like to purchase a Delta bathtub in 60 inch alcove size, in white, that will allow me to have MATCHING drain in Champagne Bronze. Can Delta provide a list of its bathtub models that would fit?
Thank you for your question, Meli! Our drain flanges are a standard size that should fit most bath waste assemblies as well as all of our tubs. Please be sure to check with the Technical Specifications Sheet for the tub as well as the Maintenance and Installation Manual for the Bath Waste Assembly to be sure they are compatible.
Best regards, Edward
Date published: 2024-03-28
How does this operate? Is it a lift and turn operation?
Thank you for your question. Delta Faucet model # RP31558CZ is a toe operated bath waste assembly. The user operates it with their toe and push it down to close and then again pushes it to open it for water release.
Date published: 2024-03-28
Is there a similar drain for a smaller opening?
This one did not fit my roman tub. I took a chance since you do not give dimensions, etc
Thank you for your question. Delta Faucet model # RP31558CZ is designed to fit the standard drains. The waste plug flange is 1 1/2" and the waste plug threads are 5/16" -16 threads.
We do not make a smaller version of this model. We recommend checking with the tub manufacturer for their suggestions.
Date published: 2024-03-28
