Delta®

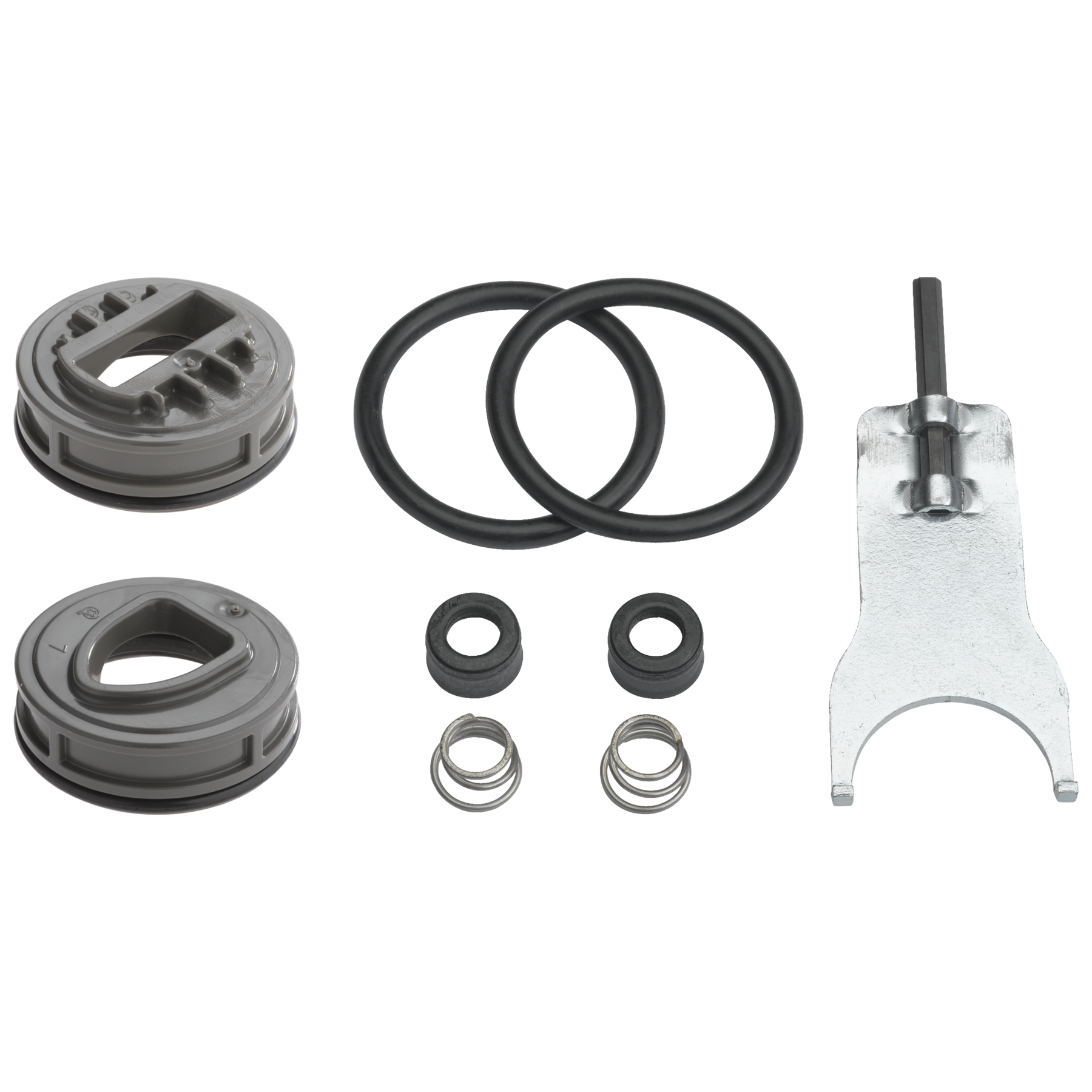

Juego de reparación, perilla o palanca 1H
N.º de modelo: RP3614
Image Thumbnail, click to view zoomed product image
CARACTERÍSTICAS DEL PRODUCTO
Documentos y especificaciones
Información de instalación
Overall Height (in.) :
5
Voltaje:
0
Tipo de válvula:
NA
RESEÑAS
Rated 5 out of
5
by
Donaldm from
Perfect replacement parts
Bought 2 of the RP3614 repair kits for our bathroom faucets. Worked perfectly.
Date published: 2022-11-17
Rated 1 out of
5
by
Mark from
Kit shown and matching spherical ball not here
I'll use your example and state that "I ordered this kit and the spherical actuator a month ago and was hoping that I would be so happy I did....but it has not yet been delivered". The money is gone that paid for it with no product delivery.
Date published: 2022-06-15
Rated 5 out of
5
by
Vito3 from
Great Customer support!
Great Customer support! after finding the correct Delta part #
Date published: 2021-11-01
Rated 5 out of
5
by
ABC123 from
Worked as expected
Delta parts always work great.
Date published: 2021-09-26
Rated 5 out of
5
by
Ron164 from
Lifetime Warranty didn't start untill 1996
Bought my faucet in 1993. At that time warranty was for only 2 years. Delta sending me a repair kit free as a courtesy
Date published: 2021-09-22
Rated 5 out of
5
by
Fan from the Big Apple from
Unbeatable customer service
I have a kitchen faucet (Delta 470SS) installed back in 2006. Developed a slight leak over a year ago -- handle/lever had to be in a particular/off-center position to prevent drips. A few weeks ago, nothing would stop the dripping. Called Delta, they were kind enough to send this repair kit as well as a new ball assy - no charge! Although intimidating at first glance, very easy to install and now faucet works/feels like new. Delta fully supported my 14 year old faucet - how is that for customer service?! I am a huge Delta advocate.
I actually bought a fancy new Kohler touchless faucet to replace the Delta, but I will now return it.
Date published: 2020-07-21
Rated 5 out of
5
by
sergio23 from
It works! And easy to install.
I have a 2004 Delta faucet, model 174-NNWF, whose handle bar started to leak when opened. I had bought a Danco repair kit, and spent an hour installing and tightening and reinstalling, but could not fix the problem. I asked customer support whether I could buy just a new handle bar, but the product is discontinued. They offered to send a repair kit, free! What the heck, I would give it another try. The kit arrived, I installed it in 10 minutes, and everything works like new. Thanks for the great service ... and I learned my lesson.
Date published: 2019-05-16
Rated 5 out of
5
by
Wizeguy from
WORKS GREAT WITH ONE EXCEPTION
My Kitchen Faucet (model 174) was constantly leaking at the end of the spout, even after replacing the ball and seats/springs TWICE. I contacted Delta and they sent me this kit (RP3614A) and an aerator and the leak is finally gone - YEAH, THANK YOU DELTA!
A couple things to note: 1) Definitely remove the white adjusting ring on the top of the cap assembly before removing the cap. This kit won't work without removing the ring. 2) The two o-rings supplied in the kit are too big for the spout. They are approx 4cm OD and the o-rings in my spout are approx. 3cm OD. Not a big deal since my spout didn't leak at the base.
Date published: 2019-04-13
Preguntas y respuestas
Diverter in bath tub spout leaking
Does the repair kit RP3614 include parts that can repair the diverter on the spout? The color of the whole set of fixture is no longer available from Delta. I want to keep the matching spout, and not replacing it, if I can. The spout was installed 34 years ago.
Thank you for your question. If your tub spout is leaking, the only way to repair it is to replace it. The tub spout does not break down into parts that can be replaced.
Date published: 2024-03-28
is this the repair kit for the lewiston 11926-SS-DST ?
Hello Cindy! Thank you for your question. The Delta single handle repair kit (rp3614) will not fit the Delta kitchen faucet model 11926-SS-DST. This faucet instead uses a cartridge (rp50587).
Thanks, Antoine.
Date published: 2024-03-28
Leaving Off the Adjusting Ring on Older Models
All my faucets are from 1993 when home was built.
Single Handle Kitchen (probably Model 300) looks like RP61 cam is used for repair with RP70 ball.
For the single handle (Acrylic Knob) bathroom faucets and shower faucets it looks like cam is RP188.
All my older faucets have the white plastic adjusting ring on the chrome bonnet/cap.
Not clear in kit instructions... but I'm being told that with newer cams such as RP61 and RP188 that the white plastic adjusting ring should be discarded, even if using the ORIGINAL serrated (no wrench flats) bonnet. If using RP50 replacement bonnet, also discard adjusting ring. Newer RP1050 replacement bonnet doesn't have/need the adjusting ring..
So is it true that adjusting ring should be discarded?
Hi wraujr, Thank you for your question. The older versions of the RP61 and the RP188 cam and packing came as 2 separate pieces, these units used the adjusting ring if necessary to tighten down the cam. The new RP61 and RP188 cam assemblies are a 1 piece design and are thicker. If you replace the older models with the new you will want to remove the adjusting ring in the cap/bonnet.
Thanks,
Dave
Date published: 2024-03-28
is this kit applicable to my delta 187-wf ?
Thank you for your question, Bob46! Model 187-wf will use the RP3614 for a drip or leaking issue.
Best regards, Edward
Date published: 2024-03-28
Re - Inserting Ball ( RP212) into faucet body
When re-inserting the Ball into the Faucet body ( My faucet is Model 502 Single Handle Delta faucet using RP188 Cam Assembly ) ----Is there a PIN inside the Value Body that you need to match up with a Slot in the RP212 Ball?
Hi AV,
Thank you for your question. If you have an RP212 ball, there will not be a pin in the valve. Only lever handle models (which use the RP70 ball) have a pin.
Best regards,
Jon
Date published: 2024-03-28
Was I sent the correct part from Delta?
I received part numbers RP70 and RP3614A to fix my leaky faucet (slow drip from spout). My instruction sheet from the purchase of my faucet, model 174SSWF, indicates the part numbers are RP70 and KP4993 for this fix. Just wanted to be sure I have the right part before beginning the repairs.
Dear DA,
Thank you for your inquiry! The Delta Repair Kit RP3614 comes with the Seat and Springs RP4993, needed to repair your leaking faucet Delta Waterfall 174-SSWF faucet.
Best regards,
Tanya
Date published: 2017-08-06
Does this work wit the 9192T-AR-DST Touch 2O kitchen faucet?
Thank you for your question, Joe A!
The Delta RP3614 will not work with your Delta 9192T-AR-DST.
The Delta RP50587 (https://www.deltafaucet.com/parts-product-detail?modelNumber=RP50587) does however work with the Delta 9192T-AR-DST.
Best Regards,
George
Date published: 2024-03-28
How can you tell what model of single lever bath sink faucet I have? I has both a drip problem and water under the valve lever on the cold side. Thanks, Mike
Hi, Thank you for contacting us.
We apologize for any inconvenience. We are more than happy to help you.
I have sent an email. You may attach pictures of your complete product to your reply e-mail. Please use the jpeg file format and the maximum size per email is 2.0 MB. You may need to send more than one e-mail if you are sending multiple pictures.
Please contact us at 1-800-345-3358 if you have any further concerns. We are open Monday through Friday 7:00 AM to 7:00 PM central time, and 8:00 AM to 5:00 PM on Saturday.
Best Regards,
Bethany
Date published: 2024-03-28
