Delta®

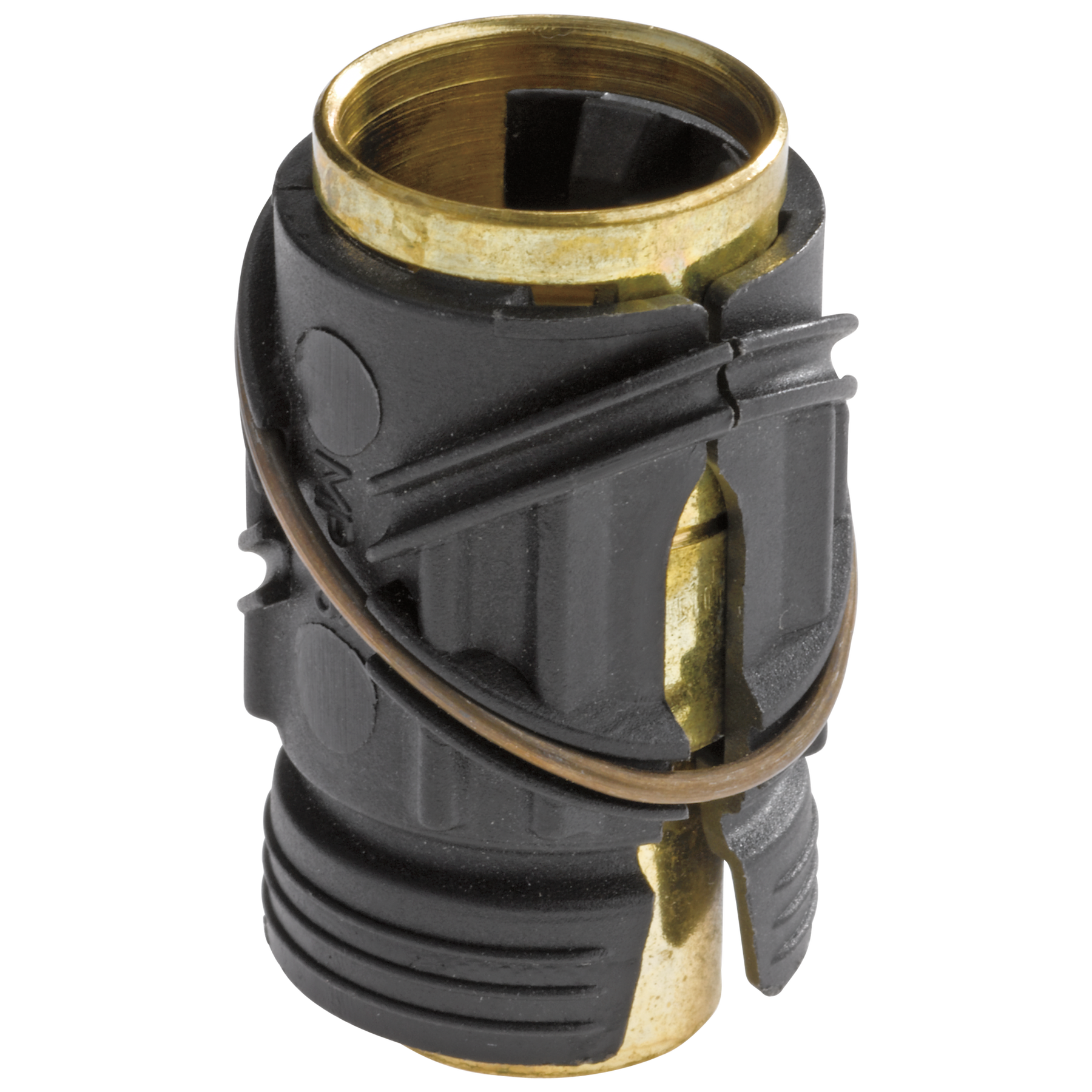

Tapa de entrerrosca de rociador para vegetales - Conexión rápida
N.º de modelo: RP40301
Image Thumbnail, click to view zoomed product image
Documentos y especificaciones
Información de instalación
Overall Height (in.) :
1 7/32
Voltaje:
0
Tipo de válvula:
NA
RESEÑAS
Rated 5 out of
5
by
Slw411 from
Just right
[This review was collected as part of a promotion.] The part to my sink got damage during a recent kitchen renovation. Was so grateful to find a replacement at a very low cost and finally have a working sink again.
Date published: 2017-02-06
Rated 5 out of
5
by
BethCfromOK from
Glad to find this Item!!
I have a faucet that I paid 250 dollars for and when I moved I took it with me, but when I took it out these clips got lost between the removal and the new installation. I though my faucet was trash! I am so glad to have found these clips so that I could use my faucet again!!
Date published: 2011-04-18
Preguntas y respuestas
Vegatable spray hose
My wife purchased a replacement vegatable spray hose. The hose (where it connects to the supply line under the sink) has a grey quick-connect. My supply line is a standard threaded nipple. Is there an adaptor that will connect the threaded nipple and receive the Delta quick-connect on the hose side?
Thank you for your question. Based on your description, I believe that you need Delta Faucet model # RP37034GR. This does not include the vegetable spray head. You may want to contact our Home Owner/Warranty line if you also need a spray head.
Date published: 2024-03-28
How does the Quick-Connect disconnect
I'm changing out my sprayer and ended up removing this part. How do I disconnect my hoses from the faucet?
Thanks
Hi Barry, Thank you for your question. To remove the quick connect on the spray hose you will want to squeeze the bottom of the black/gray plastic quick connector right above the brass fittting. You should be able to see the top of the connector open up as you squeeze the bottom. Once open slightly push up and then pull down to remove the quick connect.
Thanks,
Dave
Date published: 2024-03-28
Is a brass plug available to install once nipple removed
Wouldn't removing the sprayer nipple and installing a brass plug be easier? What is the thread size on the sprayer nipple?
Thanks,
Jim
Hin JD, Thank you for your question. The sprayer nipple is machined in during the manufacturing process. We do not recommend removing this piece and replacing it with a plug.
Using the RP40301 cap is the recommended course of action if you want to eliminate the vegetable sprayer.
Thanks,
Dave
Date published: 2024-03-28
How do you remove rp40301 connector from faucet? Does it take a tool?
Thank you for your question, Dedoc! The quick-connect fitting can be removed by squeezing the tabs at the bottom and pulling downward. It may help to wiggle the clip as you pull down. Please note that we do not recommend to remove the metal spring or disassemble the clip.
Best regards, Jon
Date published: 2024-03-28
I have a Peerless P299575LF-SS kitchen faucet and do not want to use the vegetable sprayer. Will the Delta RP40301 work to cap the sprayer quick connect. Thanks in advance
Hi, Frank!
Thank you for your question. The Peerless P299575LF-SS takes the RP60295 square cap. The RP40301 is a round cap and will not fit the square connection the P299575LF-SS has.
Best Regards,
Rosanna
Date published: 2024-03-28
Do I take out the diverter when I cap the sprayer, to avoid further problems....if so what do I put in the diverter hole? Anything- nothing ?
Hi Copswife, Thank you for your question!
You do not have to remove the diverter assembly when using a spray cap.
Best regards, Brandis
Date published: 2024-03-28
How do I remove the sprayer and does RP40301 just snap on?
Hi Philsnana,
Thank you for your question. You can remove the Quick-Connect hose by squeezing the two tabs together like a clothes pin and then pulling it down. The cap will simply click into place when you press it onto the brass nipple.
Best regards,
Jon
Date published: 2016-08-16
Can I buy just the clips for a RP34352 Quick Connect Hose Assembly?
I am installing a 3555RB-216RB faucet and I took the black clips off of the ends of my Quick Connect Hose Assembly (RP34352), thinking that they were packing material placed there to protect the brass fitting, before I saw the tag instructing me not to remove them. A replacement Quick Connect Hose Assembly costs $35.00. Can I but just the (3) black plastic clips in order to complete my install?
Hi Randy, Thank you for your question. Unfortunately the black clips are not available to order as a separate item, only as part of the hose assembly. The entire RP34352 hose assembly would have to be replaced.
Thanks,
Dave
Date published: 2024-03-28
