Delta®
Conjunto de cartucho, MultiChoice® Universal, serie 17
N.º de modelo: RP46463
Image Thumbnail, click to view zoomed product image
nulo
CARACTERÍSTICAS DEL PRODUCTO

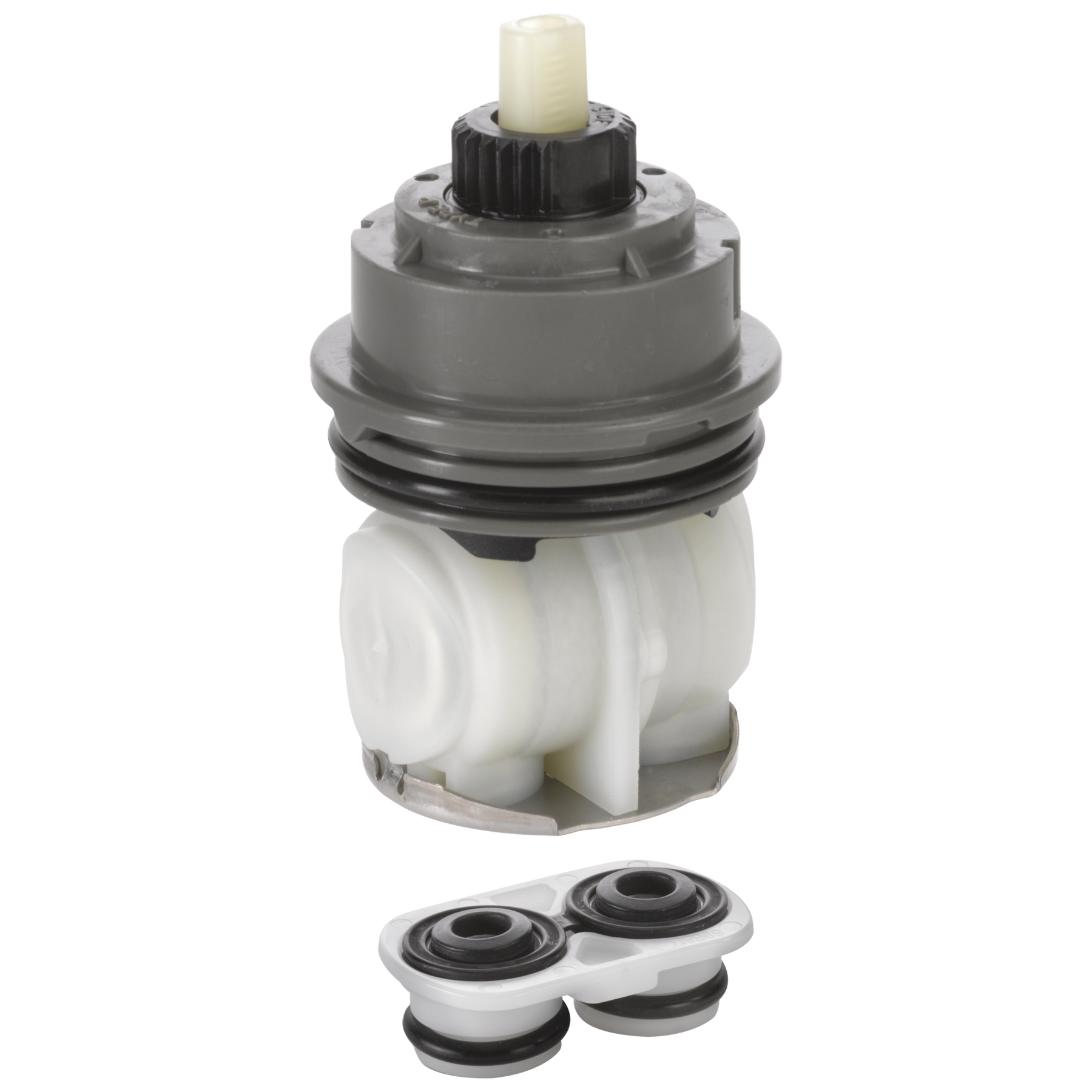

Dual-function valve cartridge maintains a consistent water temperature from one shower to the next. Monitors water pressure to balance temperature. Todas las llaves para bañera y ducha de Delta están diseñadas para mantener una temperatura del agua segura de ±3.6 °F (±1.7 °C)*. Esta tecnología garantiza que su familia no sufra un cambio repentino y posiblemente poco seguro en la temperatura del agua porque se hace correr el agua en otra parte, como mediante el uso de un lavavajillas, la descarga de un inodoro o el uso de una lavadora. The valve cartridge features an adjustable handle limit stop that, when properly set, helps ensure the handle cannot be turned to a position that is too hot for comfort*. Easily replaced seals make maintenance a snap. This cartridge is included with tub and shower trim packages. *Requiere que la temperatura del agua de entrada se haya establecido correctamente. Puede requerir un ajuste según la estación.
- Monitor® dual-function pressure balance cartridge
- Use with MultiChoice® 1300/1400 Series tub & showers produced after March 2006
- Permite tener controles diferentes para el volumen y la temperatura
- ASSE certified (ASSE 1016)
Documentos y especificaciones
Información de instalación
Overall Height (in.) :
8
Voltaje:
0
Tipo de válvula:
NA
RESEÑAS
Rated 1 out of
5
by
Ocean View from
Dripping rain head.
Less then a year old on a new shower and a constant drip. Nothing but a headache.
Date published: 2024-11-17
Rated 1 out of
5
by
Nat10 from
NOT Universal - beware!!!!
This replacement valve is NOT a Universal fit as is stated. I just spent $100 for nothing! I will be contacting the company. If you have a 17 or 1700 series shower and it is leaking, chances are you just need to replace the seat springs and seals. This cartridge does not fit because it has two triangular notches on either side that should fit flat into the shower receptacle stem, but mine has a one sided square notch, which means this one cannot seat properly in the stem. My shower is circa 2004??? Not happy.
Date published: 2024-11-17
Rated 1 out of
5
by
Mike from
Frustrating; Don’t Purchase Series 17 Products!!!
I did a bathroom remodeling and installed the valve body and this valve in the new tiled shower. I have had to replace this valve every 8 - 12 months over the last several years as it develops a constant drip from the shower head. This house has numerous plumbing fixtures but only this one has been a consistent problem. If it wasn’t for all the work to remove and replace the tile, I’d pull out this combination and replace it with another manufacturer as this situation appears to normal for this valve. This week I have another dripping shower after replacing this valve last year. With the consistent failure rate of this particular product, I’m inclined to move away from your products as the quality appears to be in decline. I have another shower in this house that has worked flawlessly for almost 30 years but not this one as it barely lasts one year. I think the longest stretch without a dripping shower head may have been around 14 months which is extremely poor performance for any shower valve. I would not recommend anyone purchase a series 17 product to avoid being in the same situation I find myself in regularly.
Date published: 2024-07-17
Rated 5 out of
5
by
David from
Delta series 17 cartridge
This Delta replacement cartridge was an absolute perfect replacement for the shower valve I installed when I built my home 11 years ago.
Date published: 2023-12-31
Rated 2 out of
5
by
TheMutt06 from
OE parts at a reasonable price!
OE parts at a reasonable price!
Date published: 2023-12-04
Rated 1 out of
5
by
MAD from
JUNK
I purchased This pc-of CRAP after I had purchased the Delta edge shower walls ,and bass .tested it before I put My shower kit in it worked ok then I purchased the shower door kit .then the shower value would not work .DELTA and J D POWER CAN KISS MY ---
Date published: 2023-11-26
Rated 1 out of
5
by
Megp849 from
46463 piece of crap
Almost $100 and it doesn’t work. Handle turns on and off way too easily and it does not stop turning so the hot and cold sides were getting switched. I was unable to turn the water off at one point. I tried to troubleshoot it for about 2 weeks. Waste of time and money. I bought it at ace hardware and obviously no longer have the packaging or receipt… I reinstalled my old one and continue to have a constant drip. How annoying
Date published: 2023-11-10
Rated 1 out of
5
by
Lynn4444 from
Tub spout has a constant drip after 10 months
Just had mine replaced after 10 months because of a constant drip. The contractor mentioned that other customers are having issues with this cartridge leaking and are replacing them. Hopefully delta will fix this problem.
Date published: 2023-10-11
Preguntas y respuestas
I just bought this house. In the master bath, the hot and cold water are reversed. Are the lines hooked up backwards?
Hi Doc, Thank you for your question. You should just be able to remove the cartridge, rotate the cartridge 180 degrees, and reinstall to solve this issue. I have attached a picture of this step from the installation manual to guide you.
Thanks,
Dave
Date published: 2024-03-28
Can you replace 14 series cartridge with a 17 series cartridge in a multi choice universal valve body
Hi Tom,
Thank you for your question! An R10000 MultiChoice Univarsal Valve will allow you to install the 14, 17, or 17T series trim kits and cartridges.
Thanks,
Jon
Date published: 2024-03-28
is this an oem part?
Thank you for your question, JImmy! RP46463 is manufactured directly by us here in the United States.
Best regards, Edward
Date published: 2024-03-28
1700 Series Shower only, New House Mid 2008

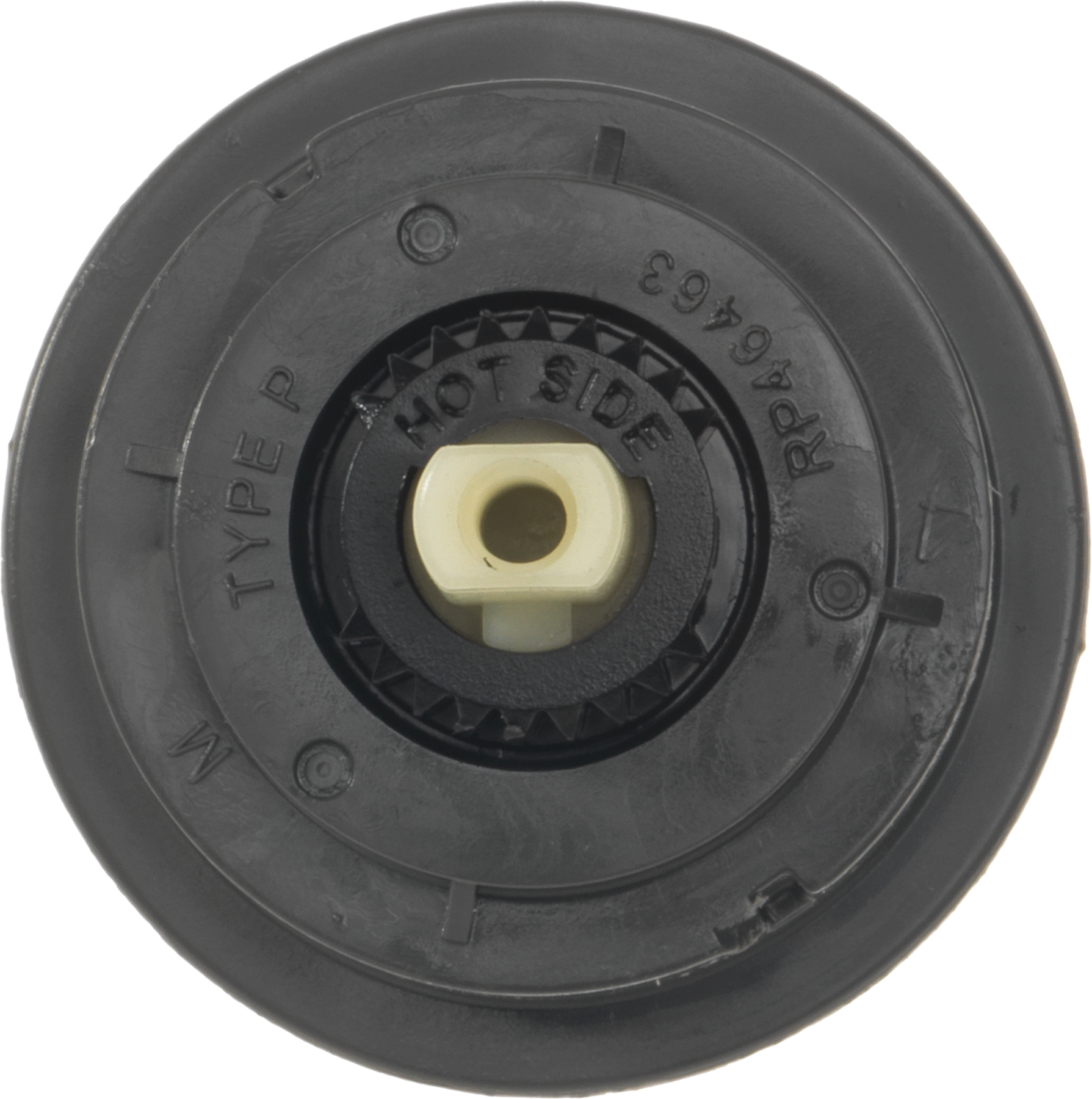

Shower when I turn handle to far left for hot water from cold, the water pressure drops and not much hot water comes out. If I move handle back to the right pressure goes high but it is only cold water. I took off both hadles & unscrewed the screw & removed grey plastic lever and & the black round plastic part. The cartridge is grey and says #46463, Type P. There is a Brass fitting holding the cartridge in. Is there adjustments that can be done with either the grey plastic lever or the black round plastic part because both have grooves on outer edges? How does Cartridge come out? Brass won't turn. Please assess.
Thank you for your question. It sounds like your rotational limit stop may need adjusting. Included here are the instructions on how to do this. This will allow more hot water to come through your valve. The instructions are on page 9.
http://www.deltafaucet.com/customersupport/documentation/t17430.html?document=mi&documentIndex=0#flashWrapper
Date published: 2024-03-28
How can the cartridge be removed on the monitor 1700 series?
Thank you for your question. Removing Delta Faucet part # RP46463 can be done by first turning off the water and then removing the handle. This should expose the cartridge to be able to remove it. Sometimes the trim sleeve may have to be removed also to get a better grip on the cartridge but it will slide out of the valve.
Date published: 2024-03-28
How do I adjust the cartridge for the water to get hotter. No problem with tub faucet in same bath.
Thank you for your question. Your cartridge contains a rotational limit stop that can be adjusted to allow more or less hot water to flow through the valve. Included here are the instructions for adjusting your limit stop. The directions are on page 9 of the booklet.
http://www.deltafaucet.com/customersupport/documentation/t17294.html?document=mi&documentIndex=0#flashWrapper
Date published: 2024-03-28
Is this compatible with Delta Lewiston shower valve?
Thank you for your question, Manny! The RP46463 is the current 17 series MultiChoice cartridge. This would be the correct cartridge for the Lewiston model 174902.
Best regards, Edward
Date published: 2024-03-28
Does cartridge RP 46463 work with the Lahara T2738SS2 handle Roman tub fixture. Note I am installing the new fixture with older (2002) existing rough in for an older Delta tub fixture.
Hi, ThomasW!
Thank you for your question. The RP46463 does not work with the T2738-SS unit. We recommend the stem unit assemblies, RP24096 and the seats and springs, RP4993. Here are the links to the parts:
https://www.deltafaucet.com/parts-product-detail?modelNumber=RP24096
https://www.deltafaucet.com/parts-product-detail?modelNumber=RP4993
Best Regards,
Rosanna
Date published: 2024-03-28
