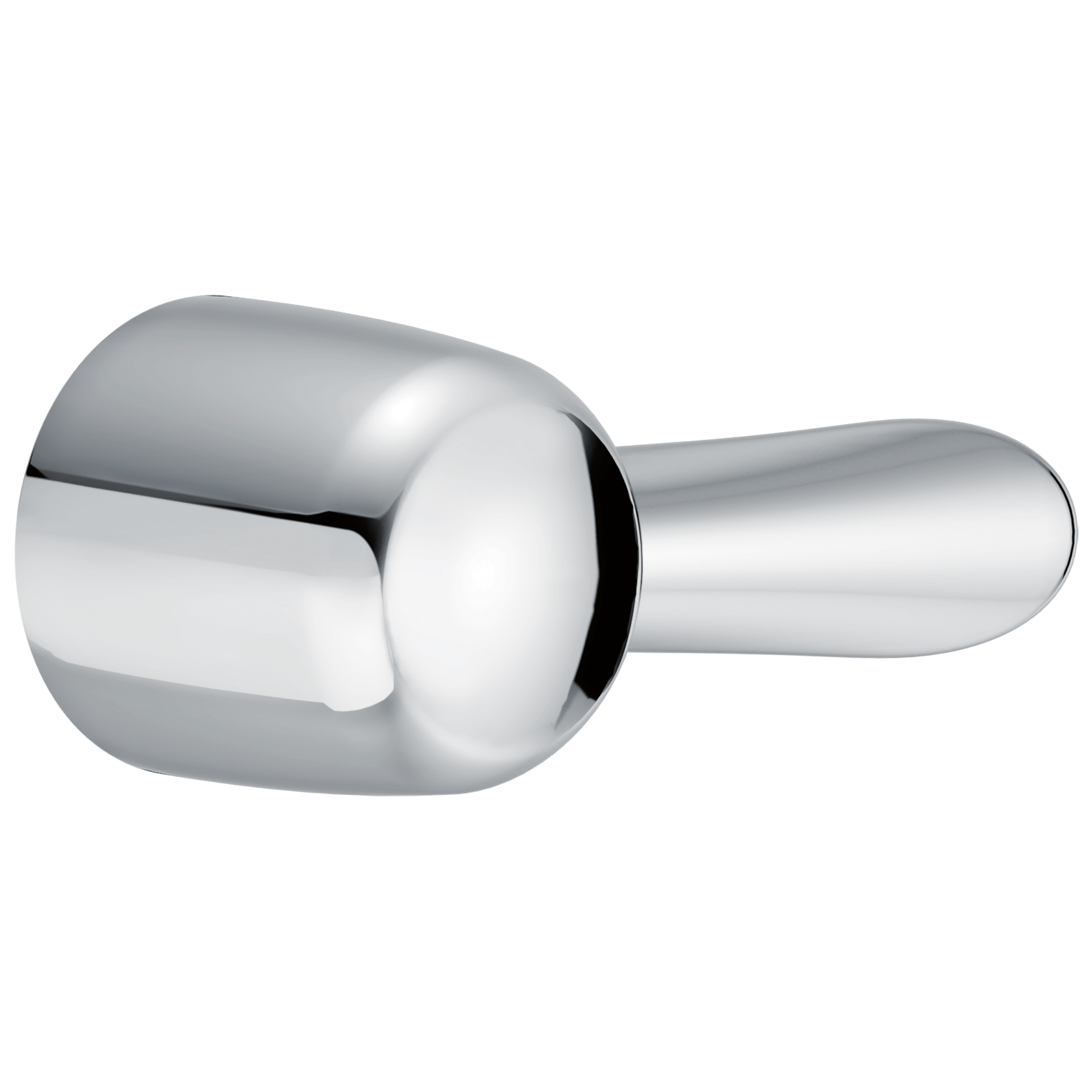

Kit de manija tipo palanca de metal - Serie 14 en cromado
N.º de modelo: RP51304
Image Thumbnail, click to view zoomed product image
Documentos y especificaciones
Información de instalación
Overall Height (in.) :
2 1/4
Voltaje:
0
Tipo de válvula:
NA
RESEÑAS
Rated 3 out of
5
by
Bob s son from
The right part
Yes I got the right part but there was no set screw and there was a green substance like corrosion on it like it was old stock
Date published: 2022-09-01
Preguntas y respuestas
how to disassemble the handle since the tub tap is leaking
Hi Ding, Thank you for your question. To remove the RP51304 handle from the faucet you will need to loosen the set screw found on the bottom of the handle if you are facing the faucet. Once loosened the handle should pull off. You can then remove the trim sleeve and the bonnet nut to access the cartridge. Here is a link to the parts diagram of the model T14438 trim that uses this handle.
http://www.deltafaucet.com/customersupport/documentation/t14438.html?document=pd&fromDetailArea=bath&documentIndex=0#flashWrapper
Thanks,
Dave
Date published: 2024-03-28
What is the correct set screw & button for this handle?
When I purchased this handle kit it did not include a set screw nor a button.
Hi Cody, Thank you for your question!
The RP51304 handle takes the RP25620 set screw. There is no button cover for this handle.
Best regards,
Brandis
Date published: 2024-03-28
Is the Delta handle RP51304RB supposed to come with the set screw?
Hi Jeremy,
Thank you for your question. The set screw is included with the handle.
Best regards,
Jon
Date published: 2024-03-28
Can I use these handles to replace an old 2 lever (separate hot and cold) Delta shower only?
Hello,
Thank you for your question!
No, the 2600 series shower unit described can only use the H41 handles.
https://www.deltafaucet.com/parts/product/H41.html
Please reach out with further questions!
Best Regards,
Tim
Digital Communications Specialist
Date published: 2024-12-13
Is this part brush nickel
Hi neil,
Thank you for your question about the Delta Faucet RP51304SS.
The finish of this part is stainless not brushed nickel. It is a similar brushed finish.
Please contact us directly if you have any additional questions!
Best Regards,
Bryan
Digital Communications Specialist
Date published: 2024-03-28
What is the spec of Allen locking screw. I wll dind it arround here, cause it's not in my pacjage.
Hello Bruno,
Thank you for your question regarding Delta Faucet RP51304SS! We apologize that this information was not readily available to you, we are happy to assist!
The size of the set screw (RP25620) included with RP51304SS is #10-32 x .25. It uses a 3/32" allen wrench.
We appreciate your inquiry and look forward to better serving you in the future. Please contact us directly with any further questions.
Best regards,
Kyra
Digital Engagement Specialist
Date published: 2024-03-28
Does this handle (RP51304) come with a set screw?
Hello Dr Z,
Thank you for your question! I am happy to help you!
Our Delta handle RP51304SS does not include the set screw, the part number for the set screw is RP25620. I have included the parts diagram below for the 13/14 series Lahara.
https://media.deltafaucet.com/PartsDiagram/DPD-B-T14038_A.pdf
Please contact us back for any further questions.
Best Regards,
Nicole
Date published: 2024-03-28
Is this the same as an H79 handle
Hi sim40,
Thanks so much for contacting Delta Faucet Company!
The Transitional Temp2O® 14 Series Valve Only Trim MODEL#: T14003-SST2O-LHP--RP513 uses the NURA® Metal Lever Handle Kit Monitor® MODEL#: RP71023. Please refer to the parts diagram for more deatils. I have attached the link below.
https://media.deltafaucet.com/PartsDiagram/DPD-B-T14403-T2O.pdf
Please reach out with further questions!
Best Regards,
Kelley
Digital Communications Specialist
Date published: 2024-02-21
