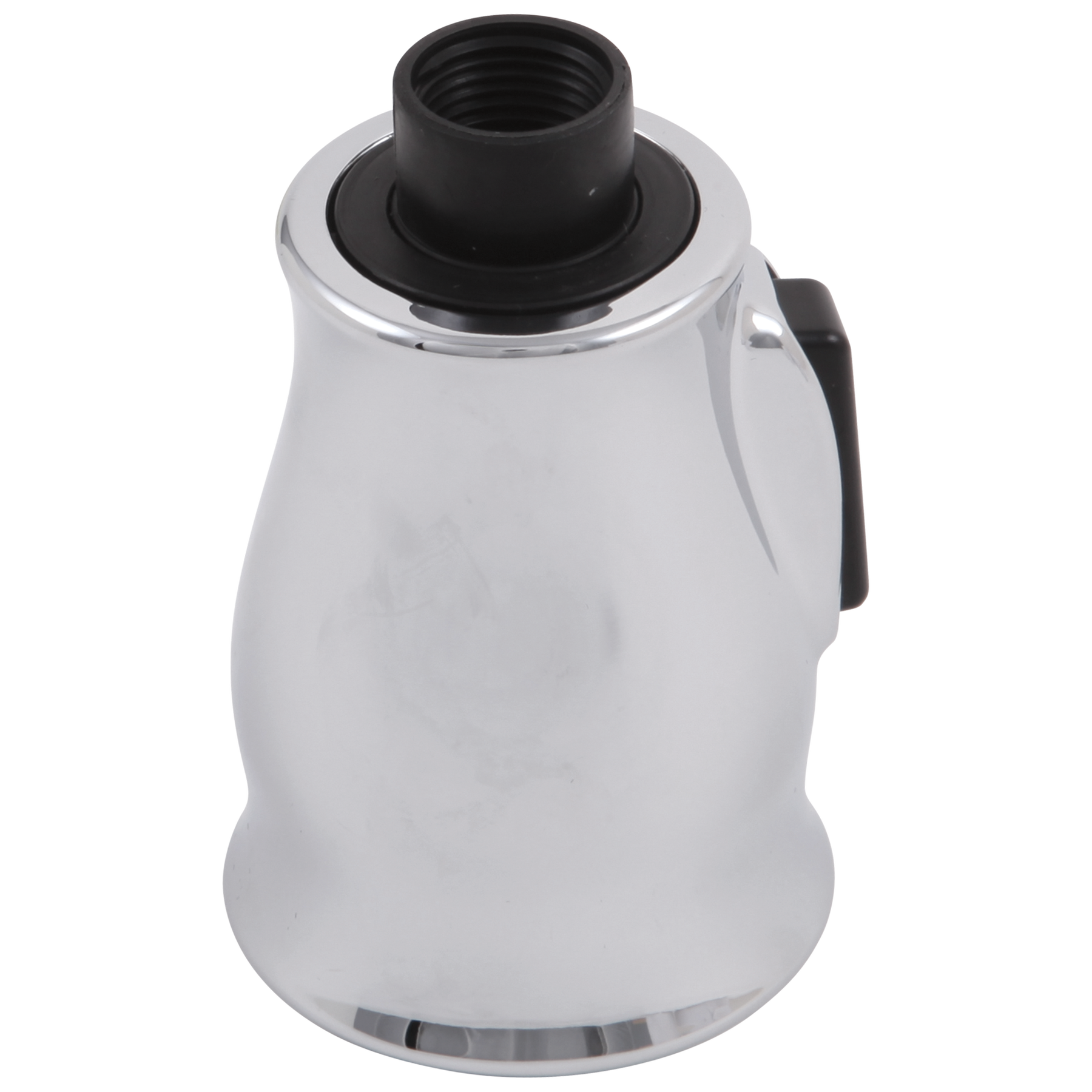

Spray Assembly - Pull-Down Kitchen in Chrome
N.º de modelo: RP51480
Image Thumbnail, click to view zoomed product image
Documentos y especificaciones
Información de instalación
Altura total:
1
Voltaje:
0
Caudal:
1.8 gpm a 60 psi, 6.8 l/min. a 414 kPa
Tipo de válvula:
NA
RESEÑAS
Rated 1 out of
5
by
Randy from
This faucet is terrible.
I had this faucet and all of a sudden no water pressure. Have been dealing with this for over a week. I'm soaking it in vinger and water like I seen on here to do. I will be calling in the morning for a replacement if this does not fix it. mine is less than 1 year old. Maybe 6 months.
Date published: 2024-03-02
Rated 4 out of
5
by
LoFlo from
Low water flow
I am suddenly experiencing low water flow from my faucet. It is currently soaking in 1:1 vinegar:water solution to hopefully remove the mineral deposits
Otherwise the faucet works as expected
Date published: 2024-02-02
Rated 2 out of
5
by
Monty from
Sprayer is junk
I had this faucet for over 2 years and I have been living with a spay nozzle that drips , clogs, sticks in different spray modes . I hate the way the magnet rusts the internal goose neck. I changed the magnet but it keeps falling out and not holding the nozzel. Also the touch light works but the tester will not come out unless I manually open the fauect. I am used to leaving the fauect handle in my preferred position for touch IQ and Alexa command. Why do the parts cost so much if they break?
Date published: 2023-08-05
Rated 1 out of
5
by
Texasgirl from
UGH this product is frustratingly not working!
I loved this faucet initially but after about a year the water pressure is so low. I clean it regularly but no improvement. The price on the replacement is so unreasonable. I might as well buy a whole new faucet.
Date published: 2023-03-30
Rated 3 out of
5
by
Kahuna from
Trouble with water flow!
The faucet-spray assembly is very susceptible to clogging, drastically reducing water pressure flow, from sediment in the city water. This is the 2nd time in 3 years this has happened and no solvent cleaner including a vinegar soak will clear up the clogged faucet head. The only way to resolve is to purchase and expensive replacement.
Date published: 2022-10-30
Rated 4 out of
5
by
Tom V from
sprayer hose hard to get through faucet
It took a couple of hours, but it works great.
Date published: 2022-07-03
Rated 3 out of
5
by
avoirdupois from
Long term maintenance issues
Having learnt that this spray head needs to be soaked frequently in a vinegar solution to counter the mineral build up inside that stops it switching fully from spray to stream, I now find that the iron ring that works with the magnet to hold the head in place is susceptible to rusting (not good for a water device). This was just a nuisance for a while but now the iron has rusted away completely, so the head is no longer held in place but just dangles. Sadly, it seems the only option is to replace the complete head, which is very expensive.
Date published: 2022-03-21
Rated 4 out of
5
by
schawk from
reliable and nice appearance
installed over eight years ago and very pleased with appearance and excellent customer/warranty service from Delta. needed cartridge replacement and two parts after six and eight years everyday use and items sent within ten days at no cost, I will continue to use Delta for plumbing needs for the service
Date published: 2021-08-26
Preguntas y respuestas
Delta recently sent me a replacement head(rp51480rb) for a 978-DST faucet. Could you tell me the gpm flow rating for this head and is the flow rate determined by the aerator size? Thanks
Hi, John13!
Thank you for your question. The Delta RP51480RB Sprayer Assembly is 2.2 gpm.
Best Regards, Rosanna
Date published: 2024-03-28
Repair Aerator for RP51480RB
I am trying to locate the repair aerator for the above model number. I do not need the whole wand assembly. The text on the wand assembly indicates 2.2 GPM. Can you please direct me to the correct part and how can I get a replacement for my faucet? Thank you.
Hi txhawk, Thank you for your question. The RP53998 is a 2.2 gpm cache aerator that will fit the RP51480RB wand assembly. The aerator can be ordered online at deltafaucet.com.
http://www.deltafaucet.com/repairparts/details/rp53998.html
Thanks,
Dave
Date published: 2024-03-28
How do you clean this? Can the aerator be clean?
Hi Will312!
Thank you for your question! You will need the RP50815 aerator and wrench in order to remove and clean the RP51480 wand assembly.
Bets Regards, Tim
Date published: 2024-03-28
We had a Delta Leland in Arctic Stainless with 2 spray settings. I replaced it with the same faucet (I thought) in Venetian Bronze. It has 3 spray settings, one of which we never use, and works terribly. Does this part have 2 or 3 settings?
Hi Colin,
Thank you for contacting us at Delta Faucet! Please accept our sincere apology for the inconvenience you are experiencing. Here is what we can do to resolve your issue for you.
This Delta Faucet RP51480 wand assembly has two settings, spray and stream.
Please contact us directly by phone at 1-800-345-3358 or email at customerservice@deltafaucet.com if further assistance is needed at this time.
We appreciate your loyalty to Delta Faucet Company.
Best Regards,
Tim
Date published: 2024-03-28
How do you replace the sprayer head on Leland 9178T-SP-DST and what is part number for spotshield stainless, Thanks
Hi fred69, thank you for contacting Delta Faucet Company!
To replace the wand assembly on your 9178T-SP-DST please refer to the instructions and links below. The ShieldSpray® wand part number is RP90841SP and the wand without ShieldSpray® is RP51480SP.
To see a video for all of our pull-down faucets, please refer to the link below.
https://www.deltafaucet.com/video-gallery/install/how-replace-or-upgrade-deltar-kitchen-faucet-pull-down-spray-wand
1. Pull down the wand assembly to expose the hose.
2. Gently tie the hose so it will stay in place.
3. Look for the hose and wand connection, you will see a small button.
4. Press the small button while rotating counterclockwise to remove the wand. Keep rotating until the wand is ready to come off.
We appreciate your inquiry. Please reach out directly if you have further questions!
Best Regards,
Kyra
Digital Communications Specialist
Date published: 2024-03-28
What is the best way to clean the spray head after being partially plugged, significantly reducing the water fliw?
Hello RonLars!
Thank you for your question and we are happy to help. We apologize for this information not being readily available to you. The best way to clean the Delta LELAND® Spray Assembly - Pull-Down Kitchen MODEL#: RP51480 is to soak it in a 50% warm water and 50% white vinegar solution. We also recommend flushing the valves of the faucet.
To flush the unit, we recommend the following:
Start with the easy stuff:
Remove your aerator, wand or hose to check the flow through the unit without that part installed.
If the flow is good, the piece you’ve removed is where the issue is.
Soaking the part in a 50/50 mixture of white vinegar and water could help remove any particles or debris blocking the flow.
If the water does not have a good flow, the problem could be in the faucet.
Next, check the supply lines for debris:
Turn the supply off to both the hot and cold-water lines.
Once off, turn the handle on the faucet to the on position and leave it there to bleed the lines of any excess water.
Next, disconnect the hot water supply line and place it inside of a bucket.
Once the line is securely positioned into the bucket, turn on the cold-water supply.
Since the handle was left in the on position, the water will flow up the cold supply line, through the faucet cartridge and back down the hot water line into the bucket. Leave this flowing for at least 30 seconds. After flushing, reconnect the hot water line and repeat this process with the cold-water line to ensure all particles have been removed from both supplies.
With any further questions or concerns, please do not hesitate to reach out to us directly. Thank you for being a loyal Delta customer.
Best Regards,
Carrie
Date published: 2024-03-28
One of the small circular screens is missing from the sprayer head. Can I buy one and is it easy to install?
Hi Casey!
Thank you for your question and we are happy to help. Unfortunately, the entire Delta RP51480 would need to be replaced. With any further questions or concerns, please do not hesitate to reach out to us again.
Best Regards,
Carrie
Date published: 2023-03-20
Does this faucet head spray assembly include the wrench when ordering a replacement?
Hello Carol,
Thank you for contacting us! I am happy to help you!
No, the wrench from the Delta Faucet Aerator & Wrench - Pull-Out Or Pull-Down, part number RP50815, does not come included with the Delta Faucet Spray Assembly - Pull-Down Kitchen, model RP51480.
RP50815 —
https://www.deltafaucet.com/parts/product/RP50815.html
Please contact us with any questions or for further assistance.
Thank you for being a loyal Delta Faucet customer.
Best Regards,
Emma
Date published: 2024-03-28
How can I determine if I need to replace only the spray assembly or the entire sprayer with hose? The sprayer is toggle is sticky so I can easily toggle between spray or running water but I'm wondering if I'm best served by replacing the both parts.
Hi Shannan28,
Thank you for your question about the Delta Faucet RP51480.
This replacement sprayer includes a replacement hose. Soaking the sprayer in 50/50 white vinegar and water can help remove mineral deposits that cause an issue with the button. If the issue remains, we recommend replacing the sprayer.
Please reach out for further assistance or with any additional questions!
Best Regards,
Bryan
Digital Communications Specialist
Date published: 2024-06-19
I have the Leland kitchen faucet without the shield spray. It works fine so I don’t really need to replace the entire faucet. Could I buy just the spray attachment because I’m wanting the shield spray?
Hello, Lizzy!
Thank you for contacting us at Delta Faucet! Please accept our sincere apology for the inconvenience you are experiencing. Here is what we can do to resolve your issue for you.
Yes, you can simply install the Delta Faucet RP90841 wand assembly with ShieldSpray onto your existing hose assembly.
Please contact us directly by phone at 1-800-345-3358 or email at customerservice@deltafaucet.com if further assistance is needed at this time.
We appreciate your loyalty to Delta Faucet Company.
Best Regards,
Tim
Date published: 2024-03-28
Is there a way to dissasseble this spray head and clean it (vs. spending $185)??? I was able to extract the diffuser screan but am still having flow problems, even after soaking in CLR. I believe the issue may be inside the switch manifold.
Hi Adam,
Thanks so much for contacting Delta Faucet Company!
We would recommend soaking the wand RP51480SS in a 50/50 solution of white vinegar and water, we do not advise disassembling the wand.
Please contact us directly if you have any questions or need additional assistance.
Best Regards,
Nicole
Digital Communications Specialist
Date published: 2024-03-28
I have a Leland 9178-SP-DST faucet and I have water flow issues. Can the spray assembly be taken apart and cleaned? How can I determine the finish that I have? The faucet was installed in November of 2019.
Hi Roger,
Thank you for your question regarding our Delta Faucet RP51480AR.
To flush the unit, we recommend the following:
Start with the easy stuff:
Remove your aerator, wand or hose to check the flow through the unit without that part installed.
If the flow is good, the piece you’ve removed is where the issue is.
Soaking the part in a 50/50 mixture of white vinegar and water could help remove any particles or debris blocking the flow.
If the water does not have a good flow, the problem could be in the faucet.
Next, check the supply lines for debris:
Turn the supply off to both the hot and cold-water lines.
Once off, turn the handle on the faucet to the on position and leave it there to bleed the lines of any excess water.
Next, disconnect the hot water supply line and place it inside a bucket.
Once the line is securely positioned into the bucket, turn on the cold-water supply.
Please feel free to contact us directly for technical information at 800-345-3358. We are available Monday through Friday from 8 a.m. to 8 p.m. and Saturdays from 9 a.m. to 6 p.m. Eastern Standard Time. Thank you for being a loyal Delta Faucet customer. Best Regards, Themar Digital Communications Specialist (800) 345-3358 customerservice@deltafaucet.com
Date published: 2024-03-22
What is the normal function of the spray selector? If I select spray and then shut off the water, should it automatically return to stream for the next time that I turn the water on, or is it only toggled back and forth manually?
Hello brianc,
Thank you for your question! The button to change from stream to spray is toggled manually.
Best regards, Bryan
Date published: 2024-03-28
I have a Kitchen pull down faucet that was installed a few years back. I believe the model is the Leland. The spray head is getting harder to change the setting between spray and regular flow. Are parts replaced at no cost? Need a new spray head.
Hello Valued Customer,
Thank you for contacting Delta Faucet Company!
We apologize for the issues you are experiencing and we are happy to help! We have reached out to you directly to further assist you with this matter.
We appreciate your inquiry. Please reach out directly if you have further questions!
Best Regards,
Kyra
Digital Engagement Specialist
Date published: 2024-03-28
I have a lifetime warranty on this faucet 9178-ARDST. I am requesting part RP51480 (sprayer and hose assembly) plus RP80977 (wand retainer and replacement part) Lewis Cox, 28 Dawson Manor Way, Dawsonville GA 30534. Phone. 706-265-1275.
On a 9178 Ar-Dst, seems clogged,, do you need to replace the whole spray head ? Or is there a replacement for the aerator?
Hello DMcCoy,
Thank you for your question! We apologize for your clogged wand/aerator and I am happy to assist you!
Please try removing the Delta RP51480AR wand assembly from the hose, then turn the water on to check the flow through the hose itself and check for debris in the wand. Be careful not to let go of the hose with the wand removed or it may retract into the faucet. You can also soak the wand in a 50/50 white vinegar and water solution for about 1 hour to help dissolve any mineral buildup. If the issue remains, we recommend replacing the wand assembly.
Please contact us back with any further questions.
Best Regards,
Skyler
Date published: 2024-03-28
Spray assembly doing same thing in reviews. Trickle of water independent of the main stream, causing a mess. Seems the lever that controls spray vs. stream is allowing water to come out the alternate option. Vinegar didn't help. Can anything be done?
I have a Delta Leland 9178T-SP-DST. When I pull down the the sprayer and return it, it no longer goes directly back into place. When the sprayer returns it now stops just before seating itself. I have to turn the head a little and then it sits properly.
Hello DonS,
Thank you for your question. We are happy to help!
Check for any obstructions below the sink that may be interfering with the hose or weight. Clean the magnet at the end of the spout and spray head. A replacement magnet and retainer kit is available as part number RP80977.
Please reach out directly if you have any questions or need additional assistance.
Best regards,
Bryan
Date published: 2024-03-28
trying to install this part in 10 yrs old faucet, it seems the collar on the spray head is now bigger and will not allow to seat in faucet body. What am i missing?
Hello Randy 57,
Thank you for your question about the Delta Faucet RP51480SP LELAND® Spray Assembly - Pull-Down Kitchen. I apologize for any difficulty finding this information. We are happy to help!
This spray head hose connection has been redesigned but should be backward compatible with your original hose. It may come with the locking mechanism for a new DST style hose. On older models, this part may need to be removed from the spray head before installing the wand onto the original hose assembly.
Please reach out directly at customerservice@deltafaucet.com or 1-800-345-DELTA if you have any questions or need additional assistance. We appreciate your business and look forward to continuing to serve you!
Best regards,
Bryan
Date published: 2024-03-28
I have a delta owendale pull down kitchen faucet with shield spray can I replace the faucet wand with just the 2 way and no shieldspray and if I can what wand would I need thanks
Hi Blueman!
Thank you for your question and we are happy to help. Unfortunately, the Delta 19875Z-SD-DST does not have an option for a spray head without ShieldSpray. With any further questions or concerns, please do not hesitate to reach out to us again.
Best Regards,
Carrie
Date published: 2023-02-10
Is this part covered under the warranty? Have had nothing but problems with this faucet and it is only three years old.
The toggle switch on the head of my 9178-AR-DST faucet only partially switches from stream to shower. Is the part warranted?
Hi Dave,
Please accept our sincere apology for the inconvenience you are experiencing. We have reached out to you via email to further assist at this time.
Best Regards,
Tim
Digital Communications Specialist
Date published: 2024-02-14
Remodel 10 years ago,all Delta plumbing.For kitchen,we chose the 2 hole Leland.Past 3 mns,started dripping & now aerator is completely broken.Is their a simple replacement for wand?Online price is very expensive:#RP51480RB.Generic parts won't fit.Pls help
Hi Travis!
Thank you for your question and we are happy to help. The Delta RP51480RB is the only replacement and attaching products that are not Delta Faucet original parts will void the warranty. With any further questions or concerns, please do not hesitate to reach out to us again.
Best Regards,
Carrie
Date published: 2024-04-09
How do I tell the difference in the colors for RP51480?
Hello sscott615!
Thank you for your question and we are happy to help. The Delta RP51480AR is in Arctic Stainless. The following are the other colors-chrome, Venetian bronze(RB), Spotshield stainless (SP), and Stainless steel (SS). With any further questions or concerns, please do not hesitate to reach out to us directly.
Best Regards,
Carrie
Date published: 2024-03-28
