Delta®

Bonnet Cap in Chrome

N.º de modelo: RP51502
Agregar a favoritos
Busque instaladores locales de Delta®
Delta®
Bonnet Cap in Chrome
N.º de modelo: RP51502
Precio de lista: $15.40
Precio en línea: $12.32
Envíos sin cargo para todos los pedidos de más de $49
Agregar a favoritos
Busque instaladores locales de Delta®
Documentos y especificaciones
Información de instalación
Altura total:
7/8
Voltaje:
0
Tipo de válvula:
NA
RESEÑAS
Rated 5 out of 5 by from So far so good. It's only been a few months but I expect it to last years. Only time will tell
Date published: 2024-03-30
  • y_2024, m_11, d_4, h_7
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.42
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_1
  • loc_en_US, sid_RP51502, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 5ms
  • reviews, product
Preguntas y respuestas

how do i remove part RP51502 unscrew or pry off?

Asked by: mike
Thank you for your question, Mike! The RP51502 bonnet cap unscrews counter-clockwise. Best regards, Edward
Answered by: Delta Faucet
Date published: 2024-03-28

How tight should this cap be put on? (example: Delta recommendation for the bonnet nut is hand tight plus one half turn)

Asked by: Pete
Hi, Pete! Thank you for your question. The Delta RP51502 Cap Assembly should be hand tightened. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

How do I get the cap off after I unscrew the single plastic handle with phillips screw?

On the Bonnet Cover Cap shown above there is no band of ribs visible. On my cap there is a 1/4 inch band of ribs that looks like where to apply a pipe wrench to unscrew the cap (countercw) if it does not unscrew easily by hand. When I apply the pipe wrench with power nothing unscrews. That cannot be good. Does the upper portion of the cap unscrew leaving the part with the band of ribs in place? If so how? Is a strap wrench needed or is hand strength enough? Is counter cw correct? I am ready with a ball RP212F that matches the ball tip I see that is sticking up from the cover I want to remove to replace it if needed. The faucet spout itself not the body or base (looks like a 501 or 522 model) is sometimes leaking but always stops if the single faucet handle is moved slightly left or right. The leaking cannot be consistently demonstrated. Part of me wants to leave it alone....but .... since I am the owners handyman I am not voting.
Asked by: BruceOnTheBike
Thank you for your question. Regarding your bonnet cap, the whole thing should be able to unscrew by hand or with a channel strap. It is possible that there are mineral deposits built up underneath the cap. We recommend using a towel soaked with a 50/50 solution of white vinegar and cold water. Soak the area for a couple of hours or overnight is better.
Answered by: Delta1
Date published: 2024-03-28

SPECIFICATIONS AND DIMENSIONS NEEDED

I had a granite countertop installed. The hole drilled is too small for my faucet to drop all the way down. It has an estucheon (cover plate) but it won't work because the sink is curved on the back. Will a product like this work to hide the plastic part sticking above the countertop?
Asked by: Granna

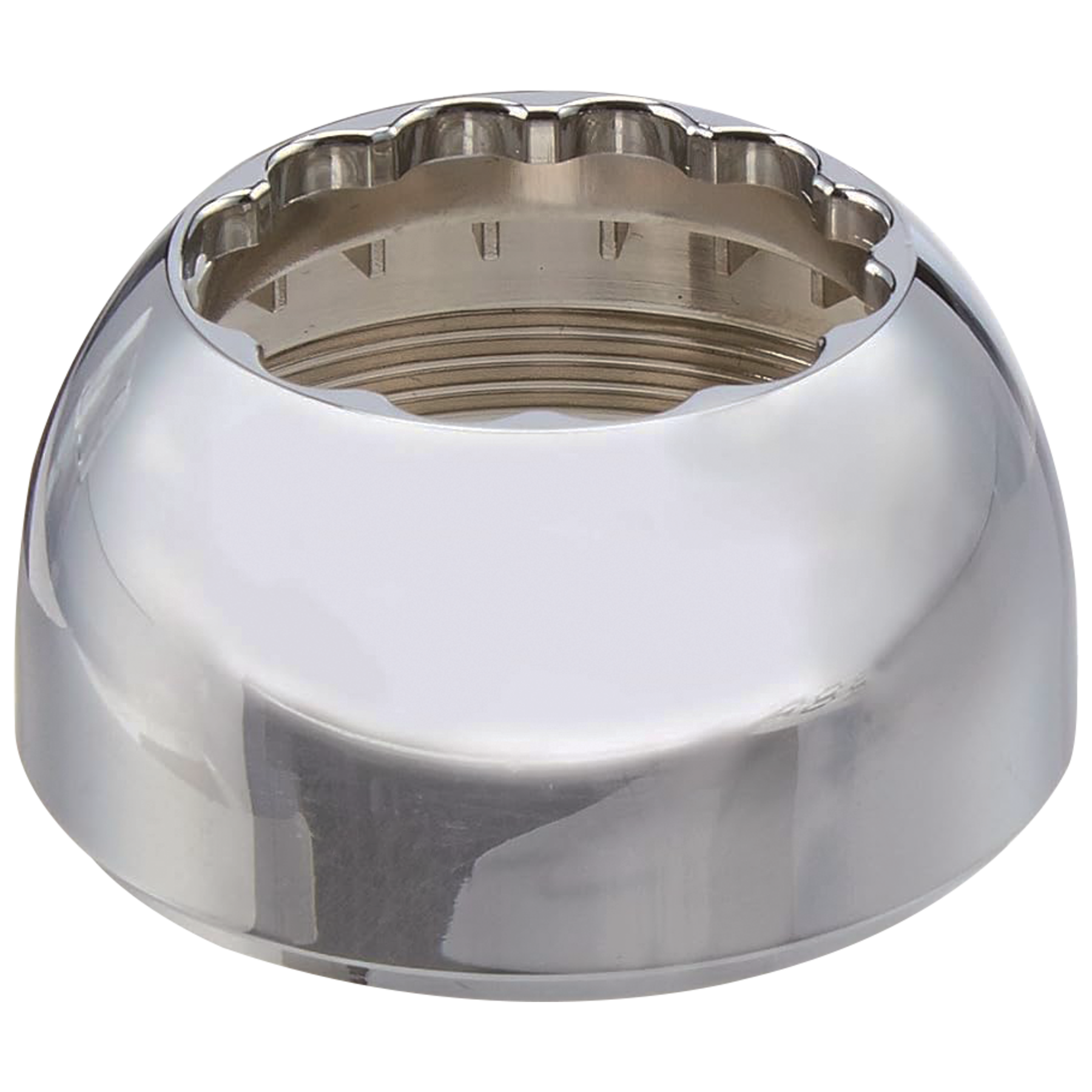

Hi Granna, The dimensions for this part are as follows: The outside diameter of the larger opening on the bottom of this part is 1 5/8" and the inside diameter of the smaller opening is 1 1/8". The piece is a little less than 1" tall. I hope this information is helpful.
Answered by: JessW
Date published: 2024-03-28

RP51503 BONNET DOES IT HAVE AN O-RING AND IF YES WHAT IS THE SIZE AND REFERENCE NUMBER?

Asked by: JOHN 123
Hi, JOHN 123! Thank you for your question. The RP51503 has a v ring, it is not available as a separate item. The entire RP51503 bonnet nut would have to be ordered if the v-ring is needed. Best regards, Themar
Answered by: DeltaFaucet7
Date published: 2024-03-28

HOW DO YOU REMOVE THE CAP ON THE 9192T-DST KITCHEN FAUCET? DO I PRY IT OFF OR TWIST IT OFF?

Asked by: TONY
Hi Tony, Thank you for your question about the Delta Faucet RP51502 Bonnet Cap. We will be happy to assist you as quickly as possible. This cap, included with faucet model 9192T-DST, unscrews counterclockwise. We recommend soaking the area with 50/50 white vinegar and water, then rinsing, if it is difficult to turn. Please contact us directly if you have any questions or need additional assistance. We appreciate your business and look forward to continuing to serve you! Best Regards, Bryan Digital Communications Specialist
Answered by: Customer Service
Date published: 2024-03-28

Does the bonnet cap for Leland Model 9178T-RB-DST come in Venetian Bronze?

Asked by: CCFR
Hi CCFR, Thank you for your question! Yes, the bonnet cap is in the Venetian bronze finish. Please reach out with further questions! Best Regards, Tim Digital Communications Specialist
Answered by: Customer Service
Date published: 2024-02-14

Is this bonnet/cap compatible with Delta Sink Faucet Canadian CLassic 536 Single lever

Asked by: Rex Matibag
Hello Rex Matibag, Thank you for contacting Delta Faucet Company! I am sorry this information was not readily available, and I am happy to help you! Our Delta Faucet Bonnet Cap MODEL#: RP51502 does work with the 536-DST faucet, I have included a link below to the parts diagram for the faucet. https://media.deltafaucet.com/PartsDiagram/PD-210373%20Rev%20A.pdf Thank you for being a loyal Delta Faucet customer. Please contact us back with any further questions. Best Regards, Nicole
Answered by: Delta7
Date published: 2024-03-28
