DELTA

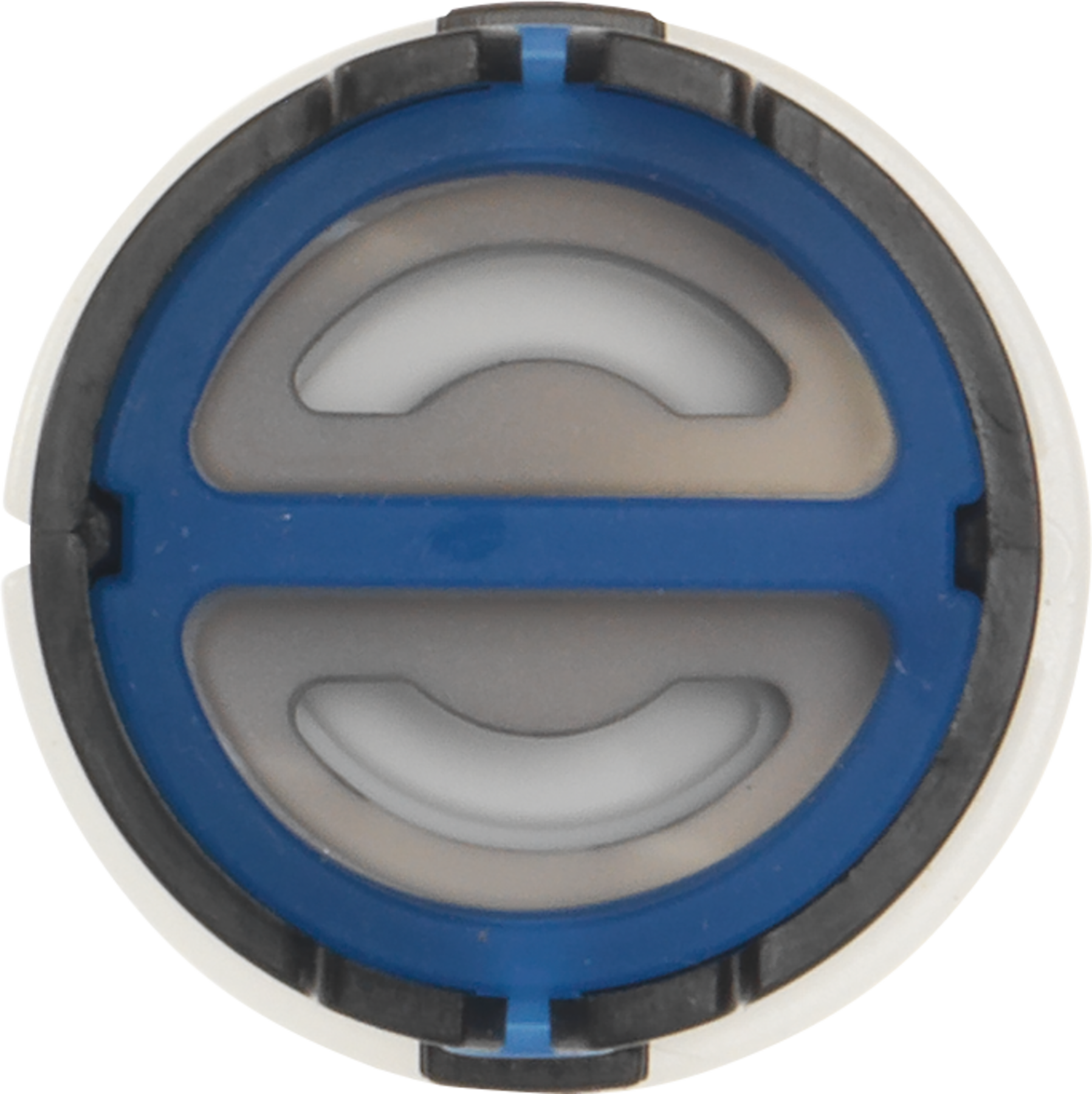

Válvula DIAMOND™ 2H
N.º de modelo: RP60400
Image Thumbnail, click to view zoomed product image
nulo
Documentos y especificaciones
Información de instalación
Overall Height (in.) :
1 3/4
Tipo de válvula:
NA
RESEÑAS
Rated 2 out of
5
by
BrianC from
Was Sent The Wrong Part
Was sent the wrong part.
While I appreciate Delta’s lifetime free replacement parts, it doesn’t do any good when you’re sent the wrong part. Despite telling the service rep the year when I bought the faucet, I was sent a replacement part for a newer version of it. Didn’t realize it was the wrong part until I had taken everything apart and compared the new to the old.
I’m giving two stars because at least Delta has this program and the rep was helpful and friendly when I called. Next time I’ll look up the part myself and confirm the part number needed.
Date published: 2025-02-08
Rated 2 out of
5
by
huntingdog from
Fits but is not quarter turn
We have the 35718-SP-DST Delta Lakewood Two Handle Widespread Bathroom Faucet in Spotshield Brushed Nickel. Followed the diagram and brought this cartridge to replacing leaking one. Installed but is not quarter turn. Handle will turn all the way around, every quarter turn you are either turning water on or off.
Date published: 2025-01-14
Rated 1 out of
5
by
DCnoluck from
Incorrect stem
This stem is not the same as what's being replaced. Doesn't appear correct for the Victorian double handle faucet at all.
Date published: 2024-05-15
Rated 5 out of
5
by
KC from
So many to pick from.
Rep steered me to the correct part and poof! It’s fixed.
Date published: 2024-02-09
Rated 1 out of
5
by
Frustrated from
Poor customer service
I purchased online Dec. 10, and paid extra postage to be shipped faster. Item did not get shipped until Dec. 15. Tried calling Delta, but their 800 number is a joke. No one answers. Finally emailed them, and after several attempts, was able to express my concerns. This entire order was difficult and frustrating. Faucet is only 2 years old, yet I am already buying expensive replacement parts. Never again, Delta.....never again.
Date published: 2022-12-28
Rated 5 out of
5
by
Set 45 from
Replaced original unit which was leaking.
See above comments on unit
Date published: 2022-12-13
Rated 5 out of
5
by
Anthony 54 from
Worked perfectly
I bought this product directly from manufacturer because I couldn’t find it in the local stores and it fit perfectly
Date published: 2022-12-11
Rated 5 out of
5
by
LG1234 from
Super easy
I had a hard time finding a match for my faucet, but with a little time and your site I found the stem quickly
Date published: 2022-11-20
Preguntas y respuestas
I have a delta kitchen faucet with two handles model 2256 SS which is leaking do i need the valve part RP60400 only to change?
do I also need to purchase a gasket and bonnet nuts?
Hi Petrop, Thank you for your question. To determine the proper repair part you need to determine if you have the 2256-SS-DST or the older non-dst version 2256SS-216SS. Please look at the attached parts breakdowns for both models compared to what your under the sink connections look like.
http://www.deltafaucet.com/customersupport/documentation/2256-ss-dst.html?document=pd&fromDetailArea=kitchen&documentIndex=0#flashWrapper
http://www.deltafaucet.com/customersupport/documentation/2256ss-216ss.html?document=pd&documentIndex=0#flashWrapper
The RP60400 valve assembly would be the correct part to change on the 2256-SS-DST. The non-dst version would need the RP24096 stem assembly and the RP4993 seats and springs to stop a faucet leaking from the spout.
Thanks,
Dave
Date published: 2024-03-28
is this the correct part for a victorian delta 2 handle faucet? I can't get in the hole to replace.
Thank you for your question, Terry! A DST two handle Victorian model will use the RP60400 valve cartridge assemblies; however, if you have the older, non-DST version, you will need the RP25513 stem unit assemblies and/or the RP4993 seats and springs depending on the nature of the issue. Please contact us directly if you need further assistance.
Best regards, Edward
Date published: 2024-03-28
does this fit 3559-rbmpu-dst ?
Hello,
Thank you for your question!
Yes, that model uses the RP60400 stem units.
Please reach out with further questions!
Best Regards,
Tim
Digital Communications Specialist
Date published: 2025-03-07
What cartridge does my faucet take?
I appear to have a Delta Pilar Double Handle Kitchen Faucet. The number stamped in the rear if the faucet is 413763. What are the proper hot and cold water faucet replacement cartridges?
Thank you for your question. If you do have the Delta Faucet model # 2480-DST, then your replacement cartridge is the RP60400.
Date published: 2024-03-28
Are a RP60400 and a RP25513 inter changeable?
Hi, PM5423!
Thank you for your question. The Delta RP60400 valve cartridge assembly is not interchangeable with the Delta RP25513 stem unit assembly.
Best Regards,
Rosanna
Date published: 2024-03-28
Will this valve replace the valve in my faucet that looks exactly like this faucet, but mine is about 12 years ago. This valve looks a little different on the bottom. Mine has an opening where there is a spring and rubber grommet/washer.
Thank you for your question, Randy! The RP60400 valve assembly is for the DST (Diamond Seal Technology) version of your faucet. If you have seats and springs, this is not the correct part and you will most likely need the RP25513 stem assemblies along with the RP4993 seats and springs. Please refer to your maintenance and installation manual as some models may use different repair kits and feel free to contact us directly if you have any questions or need further assistance.
Best regards, Edward
Date published: 2024-03-28
What size of Allan wrench do I need to take off the handles
Thank you for your inquiry, Fred! Normally, to remove the set screws in the Delta metal lever handles you would use a 3/32" Allen wrench.
Best regards,
Tanya
Date published: 2024-03-28
Will this cartridge fit the 3551SS faucet?
Hello CHouse!
Thank you for your question regarding the Delta DRYDEN™
Two Handle Widespread Bathroom Faucet model 3551-SS! I am happy to help.
The Delta RP60400 cartridge will not fit the Delta 3551-SS lavatory faucet. The correct stem unit would be RP25513.
Here is a link to the parts diagram:
https://media.deltafaucet.com/PartsDiagram/DPD-L-3551LF%20Rev%20C.pdf
Please reach out to us directly if you need further assistance.
Thank you for being a loyal Delta customer.
Best Regards,
Antoine
Date published: 2021-03-17
I have a a 16yr old Masco bathroom faucet which leaks above the sink at both faucets. A112.15 is stamped under the spout. What cartridge do I need?
All locally available cartridges do not match up. I change the spring and washer and it helped but there is an o-ring around the cartridge this has started to deteriorate. Any idea what part number I nee? I had the same problem with the aerator and never could get a part number or the part (one was sent by Delta and it did not work).
Hi Dare, Thank you for your question!
You will need the RP42216 stem unit and RP10700 seats and springs to resolve your issue.
Best regards,
Brandis
Date published: 2024-03-28
Is the RP60400 Valve for both Hot and Cold Water handles
I purchased 4 valves through your site, the spec sheet did not indicate if you need a separate valve for hot and cold - so I ordered 4 - I have 2 delta faucets kitchen and bath that are leaking and need the same valve. My plumber wanted me to check if there is a difference since the value for the hot handle is normally red. All 4 came in blue. Can you please let me know if there is a difference.
Thanks,
Maryann
Hi Maryann, Thank you for your question. The RP60400 is the valve assembly that is used on both the hot and cold sides. The top of the valve is adjusted to the hot or cold position. Step 5 on page 9 of the attached manual covers how to change the position of the handle stop.
http://www.deltafaucet.com/customersupport/documentation/2256-dst.html?document=mi&fromDetailArea=kitchen&documentIndex=0#flashWrapper
Thanks,
Dave
Date published: 2024-03-28
Model 2256-DST vs. Non-DST
I need to replace the value under the faucet handle due to leaking above the link from under the handle. How do I tell if I have model 2256-DST vs. the older non-DST? The diagrams referenced in the prior similar question don't help me too much...what should I look for? Thanks so much.
Hi RAC, Thank you for your question. The easiest way to identify a DST faucet versus non-DST faucet is to look at the supply lines. The DST faucet lines are a gray pex(plastic) material that are 32" long integrated supply lines that are part of the faucet and connect directly to the shut off valves. Non-DST faucets normally have short copper supply lines with 1/2" male fittings on the end that require the purchase of additional supply lines.
Thanks,
Dave
Date published: 2024-03-28
Hammering sound when open cold water
The faucet in our bathroom looks like this model. When opening the cold water we hear a loud hammering noice when open full.
I was wondering if we need to replace the valve? As there seems to be no other element in the handle.
Hi Edwin, Thank you for your question. It sounds like there may be some debris in the cold water line. We recommend flushing the faucet and cleaning the valve assembly. Here is a link to our how to flush your faucet video.
http://www.deltafaucet.com/tools-resources/research/video-gallery/video.html?v=wWM-HK3si5k&cat=
Thanks,
Dave
Date published: 2024-03-28
My faucet with the old RP60400 removed has a plastic piece that does not let me access the pin and spring at the bottom (if it has one?). Do I just put the new RP60400 in right after removing the defective on or do I try to get further down in the handle
Hello,
Please accept our sincere apology for the inconvenience you are experiencing. We have reached out to you via email to further assist at this time.
Best Regards,
Tim
Digital Communications Specialist
Date published: 2025-05-07
need installation instructions for RP60400
Hi Greg,
Thank you for reaching out! Please refer to page 6 of the Installation Instructions linked below.
First, make sure your hot and cold supply lines are turned off under the sink. Next, loosen the set screw on the handle and pull the handle off. Unscrew the bonnet nut using an adjustable wrench, and then pull out the valve cartridge. Reinstall in reverse order.
https://media.deltafaucet.com/MandI/90351%20Rev%20A.pdf
Best regards,
Jon
Date published: 2016-11-21
Valve cartridge compatibility
I have a two handle bathroom sink faucet that is leaking at the hot supply handle. From your product ID web site, the faucet appears to be a "Victorian" centerset. Unfortunately you list two different models, 2555-MPU-DST and 2555LF-216. Each model uses a different valve cartridge, RP25513 and RP60400. How do I know what to purchase? Are these parts interchangable?
Thank you for your question. Delta Faucet models 2555-MPU-DST and 2555LF-216 do have cartridges that are not interchangeable. There is a way to tell the difference between the two faucets.
If you look underneath the sink and you see copper supply lines, you have the 2555LF-216. You will need the RP255513 cartridge.
If you look underneath the sink and you see pex supply lines, then you have 2555-MPU-DST. You will need the RP60400 cartridge.
Date published: 2024-03-28
I have a delta faucet about 3-4 years old that is extremely close to the lahara 3538-mpu-dst. However the valve on the hot water side is dripping and searching the replacement pieces and parts does not at all look like the current valve?
Hi, Mark!
Thank you for your question. You may have a non-DST 3538 lavatory faucet. The seats and springs for this faucet is RP4993. The stem unit assembly is RP24096. The RP25513 will also work. Here is a link to each part:
https://www.deltafaucet.com/parts-product-detail?modelNumber=RP4993
https://www.deltafaucet.com/parts-product-detail?modelNumber=RP24096
https://www.deltafaucet.com/parts-product-detail?modelNumber=RP25513
You can usually find Delta faucet parts at any dealer that sells Delta faucets. Some good places to check can be found on our website under Where To Buy.
http://www.deltafaucet.com/where-to-buy/index.html
To order parts directly from Delta, you may call the toll-free Delta Help Line at 1-800-345-3358. We accept Visa or MasterCard for parts orders over the telephone.
Best Regards,
Rosanna
Date published: 2024-03-28
Valve cartridge compatibility
I have the same question as Rocco: "I have a two handle bathroom sink faucet that is leaking at the hot supply handle. From your product ID web site, the faucet appears to be a "Victorian" centerset. Unfortunately you list two different models, 2555-MPU-DST and 2555LF-216. Each model uses a different valve cartridge, RP25513 and RP60400. How do I know what to purchase? Are these parts interchangable?"
Delta Staff said: "If you have copper supply lines, you need the RP255513 cartridge. If you see pex supply lines, you need the RP60400 cartridge."
However, my supply lines are a braided metal mesh. So which cartridge applies? Thanks.
Hi KevinG, Thank you for your question. The RP60400 cartridge is used in the 2555-MPU-DST faucet which comes with the pex supply lines that are molded as part of the faucet, not separate lines that are attached to the faucet.
The 2555LF faucet has 1/2" threaded connections which the installer would have to purchase supply lines to run from the water shut off to the faucet. If you have braided metal supply lines you will need the RP25513 stem assembly and the RP4993 seats and springs as your replacement parts.
Thanks,
Dave
Date published: 2024-03-28
what valve will fit
Thank you for your question, Scott! RP60400 is a DST stem unit meant only for two handle DST faucets. To learn more about Diamond Seal Technology models, please click on the link below.
https://www.deltafaucet.com/design-innovation/innovations/kitchen/diamond-seal-technology#anchor-products
Best regards, Edward
Date published: 2024-03-28
Why hot side leaking when cold side turned on?
I've replaced one sink's cold side with RP25513 stem unit & spring & gasket RP4993. Works great. Cold side no longer leaks. NOW the other sink's hot side is leaking, not when hot is turned on, but when cold is on. (same faucet set both sinks) Why is that? I have extra RP25513 and RP4993. What do you suggest I try first?
Hi Vi,
Thank you for your question! If the water is coming from under the handle, please try replacing both the stem unit, seat, and spring.
Thanks,
Jon
Date published: 2024-03-28
Can you purchase the blue rubber gasket in a RP60400 replacement cartridge
Hi T,
Thank you for your question. The blue gasket is not available separately.
Best regards,
Jon
Date published: 2024-03-28
I have a bathroom faucet model 2538. I cannot get the RP25513 valve assembly to fit the cold water (right side faucet). What valve assembly should I be using?
Hello,
I apologize for the issue you are experiencing and I am happy to help you.
If your model 2538 has long dark grey thin supply lines that extend from the faucet itself all the way to the shut-off valves then you have the DST version which uses the RP60400 stem units. If your faucet has copper supply lines it will use the RP25513 stem units.
Please reach out with further questions!
Best Regards,
Tim
Digital Communications Specialist
Date published: 2025-03-17
Does this valve work for the Delta Victorian widespread two handle faucet? And if so does it work for both the hot and cold sides?
Hello,
Thank you for your question!
Yes, this works for both hot and cold sides.
Please reach out with further questions!
Best Regards,
Tim
Digital Communications Specialist
Date published: 2024-12-10
is valve assembly RP60400 for both Hot & Cold sides? I have a spare Hot assembly that I tried to use on cold side but the valve handle alignment was 180 out.
Hello,
Thank you for your question!
If the handle orientation is incorrect you will need to remove the RP60400 cartridge an flip it 180 degrees and reinstall the handle.
Please reach out with further questions!
Best Regards,
Tim
Digital Communications Specialist
Date published: 2025-05-13
Bar / Prep Faucet valves
We have a bar / prep faucet that is about 10 years old. Looking at the models online, it closely matches the 2155-RB-DST. The only difference is that our model has separate supply connections and the literature for the model I was looking at online indicates that it has built in supply lines. Do I still use the RP60400 valve or would it be the RP25513 valve?
Hi Moondance,
Thank you for your question! A unit matching the 2155-RB-DST from before 2012 would be the 2155-RBLHP. Your faucet uses the RP25513 stem unit and RP4993 seat and spring. The RP24096 is the same stem unit as the RP25513, but does not include the quarter-turn stop. The stop can usually be reused.
Thanks,
Jon
Date published: 2024-03-28
Is this hot and cold or just the one?
Hello,
Thank you for your question!
This is just one RP60400 cartridge that can be used on either the hot or cold side.
Please reach out with further questions!
Best Regards,
Tim
Digital Communications Specialist
Date published: 2024-12-12
We have a 2 handle DST bathroom faucet. Developed a leak on hot water side. Part number RP60400 should be for both sides based on what I have read. How is the rotation changed to make the cartridge work for either side? Thank you in advance
Hi, Faith308! Thank you for your question. The RP60400 Cartridge will work on both sides by adjusting the handle stop. Please refer to page 8 of the Installation Instructions for help adjusting the stop.
https://media.deltafaucet.com/MandI/90875%20Rev%20G.pdf
Best regards, Jon
Date published: 2024-03-28
how do you get it out of the faucet
Thank you for your question!
You remove the Delta RP60400 by removing the set screw from the handle, remove the handle, unscrew the cap and bonnet nut, then the stem unit simply lifts straight out.
Best Regards,
Christina
Date published: 2024-03-28
I have a 2256-DST with a sprayer, the main spout drips constantly, what replacement parts do I need to remedy this drip.
Hi Jason, Thank you for question!
You will need the rp60400 valve cartridge to resolve the leak on your 2256-DST faucet.
Best regards, Brandis
Date published: 2024-03-28
Will this part fit the Lahara 3538 mpu-dst ?
Thank you for your question Will3538! Yes, the RP60400 valve assembly is used in the Lahara 3538-MPU-DST.
Best regards, Bryan
Date published: 2024-03-28
does this fit older faucets i have the RP60400 and it will not fit al the way down in faucet it goes in the hole but will not push down all the way help please
Hi richard,
Thank you for contacting Delta Faucet Company! Please accept our sincere apology for the inconvenience you are experiencing. Here is what we can do to resolve your issue for you.
Our Delta Faucet DIAMOND™ valve - 2H MODEL#: RP60400 works for our two handle lav faucets that have long dark charcoal gray PEX supply, The cartridges are model specific.
Thank you for being a loyal Delta Faucet customer. We appreciate your business and look forward to continuing to serve you. Please contact us back with any further questions.
Best Regards,
Nicole
Date published: 2024-03-28
