Delta®

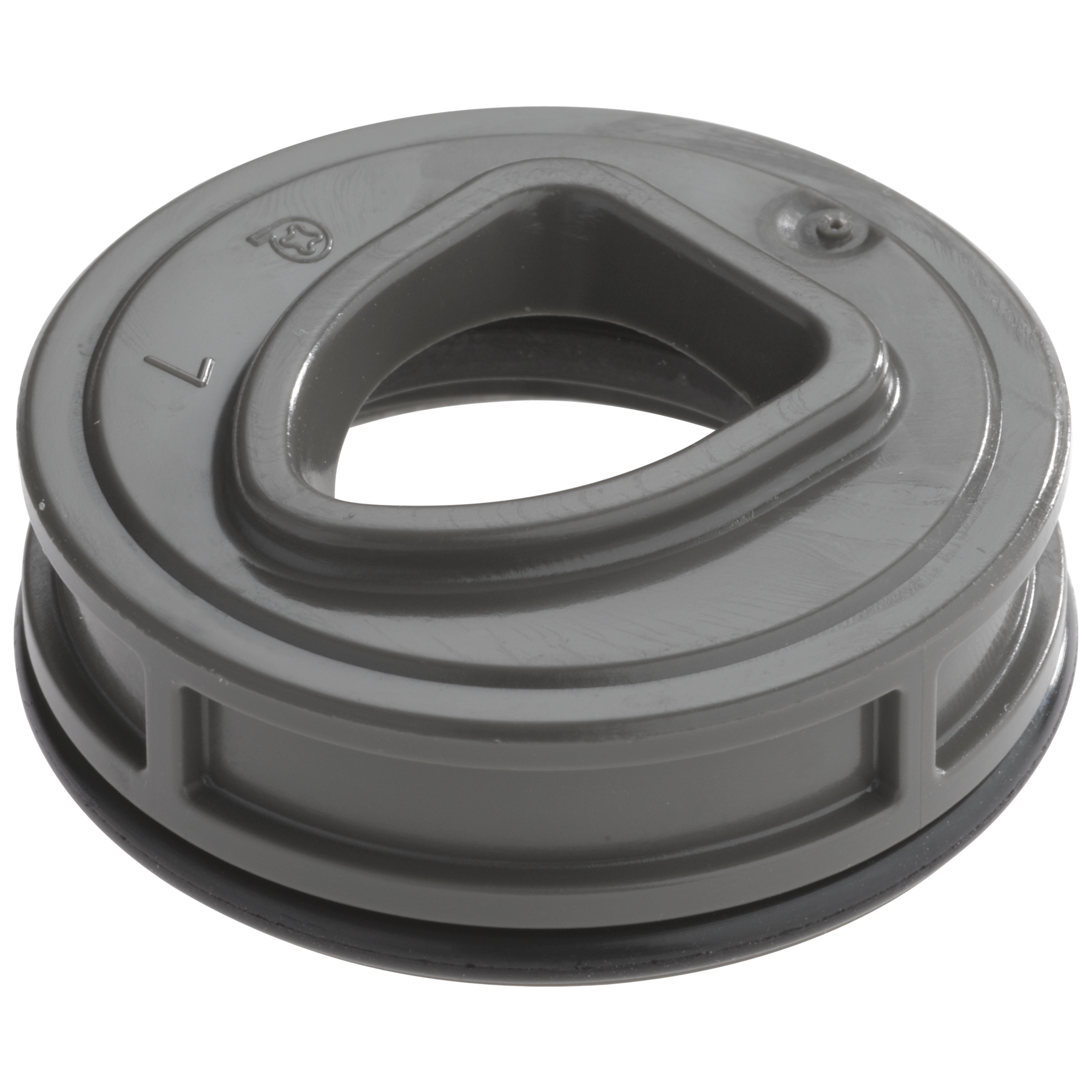

Conjunto de leva, manija tipo palanca
N.º de modelo: RP61
Image Thumbnail, click to view zoomed product image
CARACTERÍSTICAS DEL PRODUCTO
- Incluye leva y empaquetadura
- Para usar con llaves de una manija tipo palanca
- Compatible con llaves para cocina y baño de Delta
- Las piezas originales de Delta tienen garantía de por vida
- La garantía limitada de por vida cubre defectos de las piezas y el acabado.
Documentos y especificaciones
Información de instalación
Altura total:
1
Voltaje:
0
Tipo de válvula:
NA
RESEÑAS
Rated 5 out of
5
by
will from
Did the job perfectly
Easy to install and worked fine with the other parts
Date published: 2016-04-09
Rated 4 out of
5
by
STan from
Manufactures repair part
The selection of parts and service was very good. That said, trying to match my Delta faucet and find the correct parts was somewhat difficult. This seems to be normal for Delta parts as I searched for the part to fix my faucet.
Date published: 2014-11-01
Rated 4 out of
5
by
ajswens from
Glad to find parts for discontinued faucet
Snug fit but finally got to fit 8 yr old faucet. Hope parts
not discontinued.
Working very well now - leak fixed thanks to you.
Re Shipping/handling charges-pretty outrageous.
Date published: 2013-11-05
Rated 5 out of
5
by
pwjsb from
Cam assembly
Great fit, fast delivery and I now have a leak free faucet!
Date published: 2013-04-17
Rated 4 out of
5
by
Orie from
It Fit and worked
What else can one say it was delivered in a timely fashion, it fit, and it worked as needed.
Date published: 2012-05-08
Rated 5 out of
5
by
deltadoer from
EASY ALSO
very easy install great product works right the first time
Date published: 2010-10-14
Rated 5 out of
5
by
Bob44 from
Good part
I replaced the cam assembly and the seats and springs and the leak was fixed.
Date published: 2010-07-16
Rated 5 out of
5
by
Zigger from
Product worked as it should. No problems
Date published: 2010-01-25
Preguntas y respuestas
does this include the packing
Hi, Jean!
Thank you for your question. The Delta RP61 includes a redesigned cam and packing that come as one part.
Best Regards, Rosanna
Date published: 2024-03-28
Just curious...The old style white cam has a tab on the left side to align with the faucet housing, and I assume prevents movement. Does the new style also have this tab?
Hi, CaptnCliffy!
Thank you for your question. The new Delta RP61 Cam & Packing does have a small tab on the side of the part to align inside of the valve body.
Best Regards, Rosanna
Date published: 2024-03-28
Does this part have the washer with the plastic liner that sit on top of the ball assembly
Hi Mike,
Thank you for your question. The cam is now one assembly and will replace the two-piece cam and packing. Also, the plastic adjusting ring inside the cap is no longer required with the new Cam Assembly.
Best regards,
Jon
Date published: 2024-03-28
inside this piece have a plastic piece with a spring
when you buy this piece that piece have inside or we need to buy a separate, because have a leak and that piece have spring around it is off , whata I need to do thanks
Hi Hueso, Thank you for your question. The RP61 Cam assembly used to come as 2 separate pieces called the cam and packing. It now comes as 1 piece unit that has the 2 parts together. If your cap that goes over the cam assembly still has the adjusting ring in place then the adjusting ring should be removed.
Thanks,
Dave
Date published: 2024-03-28
Will this cam replace my old style cam that came with my mid 1980 single handle faucet
Thank you for your question. Delta Faucet model # RP61 will replace your old cam and packing. You will need to remove the adjusting ring in your cap as it is no longer needed.
Date published: 2024-03-28
470-BS Kitchen Faucet Drips
Is this repairable for average homeowner or is it warranty issue? Any advice on what/how to repair? I got the model from delta identifier app so hopefully i was correct. Picture is attached. The faucet came with the home and is likely 10 - 15 years old. We bought home 2 years ago.
Hi Rick, Thank you for your question. An average homeowner should be able to repair the dripping model 470-BS. As you are not the original purchaser of the faucet this is not a warranty issue. The faucet needs to have the RP4993 seats and springs replaced. Here is a link to our How to replace the seats and springs video.
http://www.deltafaucet.com/tools-resources/research/video-gallery/video.html?v=O-pCJdvD4oc&cat=
Thanks,
Dave
Date published: 2024-03-28
When I install this Cam and Packing on my old faucets i get a small stream of water that comes out between the cam and the ball assembly. What am I doing wrong? What can I do to fix this. Its hard to find the old style 2 piece cam and packing.
Thank you for your inquiry, Rich! The RP61 cam assembly has been redesigned; you will no longer use the adjusting ring that is currently in the top of dome shaped cap assembly (if applicable). You may need to remove and discard the adjusting ring when you install the new cam assembly.
Best regards,
Tanya
Date published: 2024-03-28
What is the function of RP61? We ordered part and the little spring that fits into the packing was destroyed because there were no instructions and we tried to push it in not realizing that the cam and packing separated for easy installation.
Thank you for your question, Kath! I'm sorry for any confusion with this part. The RP61 Cam and packing assembly is not meant to separate as the original version did. This part was redesigned to be one single piece and is meant to keep pressure on the ball assembly. If you have an adjusting ring in the cap, this will need to be removed as it is no longer needed.
Best regards, Edward
Date published: 2024-03-28
