Cassidy®

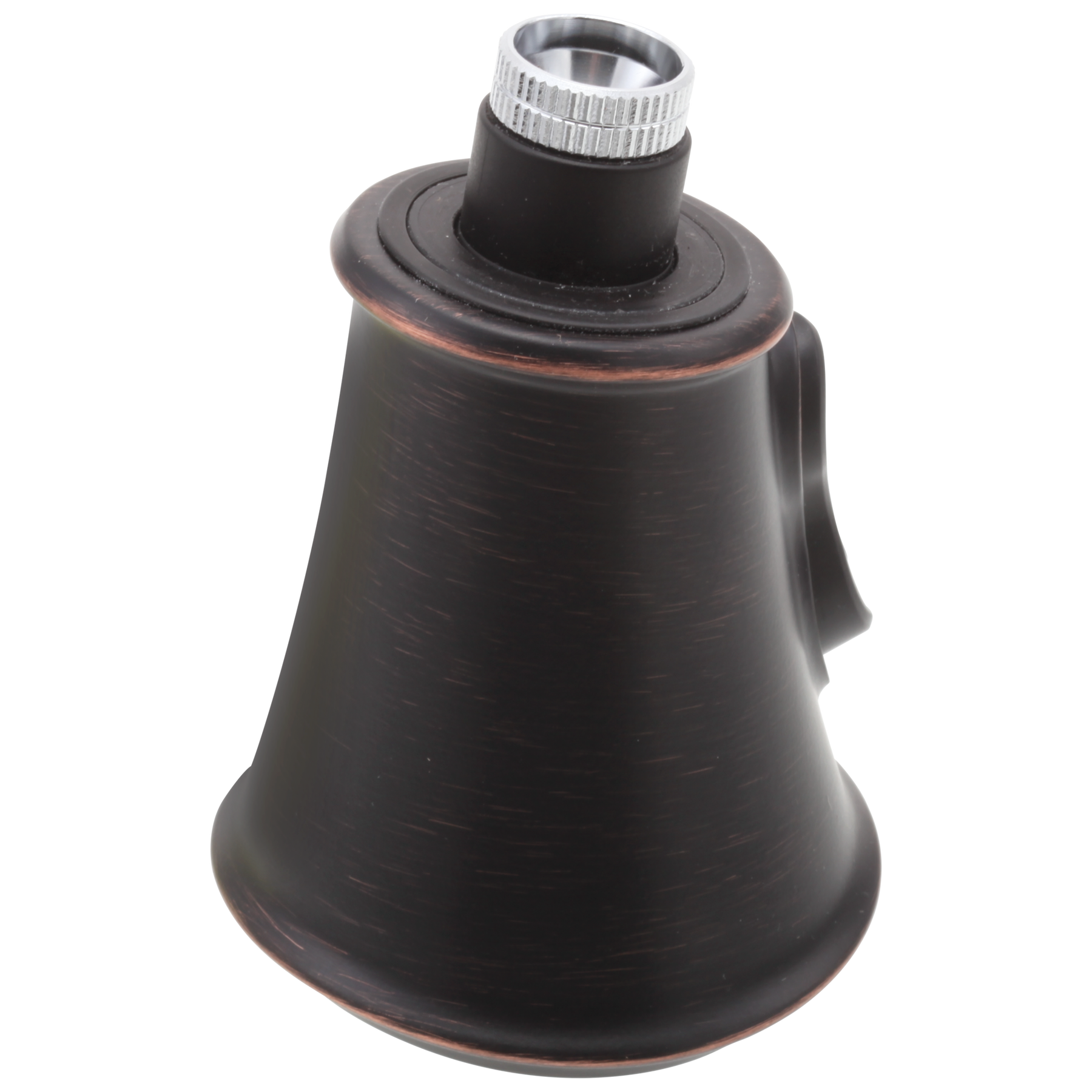

Conjunto de rociador - Extensible en Venetian Bronze
N.º de modelo: RP72680RB
Image Thumbnail, click to view zoomed product image
CARACTERÍSTICAS DEL PRODUCTO
Por sus líneas definidas y detalles elegantes, la colección Cassidy™ es ideal para lograr una cocina de estilo tradicional con un diseño atemporal. Los acabados Lumicoat™ se limpian sin sustancias químicas o limpiadores, y está garantizado que resisten las marcas de agua y la acumulación de minerales. Puede realizar la instalación con la tranquilidad de saber que esta es una pieza original de Delta®.
Documentos y especificaciones
Información de instalación
Overall Height (in.) :
3 3/4
Voltaje:
0
Caudal:
1.5 gpm a 60 psi, 5.7 l/min. a 414 kPa
Tipo de válvula:
NA
RESEÑAS
Preguntas y respuestas
Is this part the replacement nozzle that includes the Shield Spray technology and can be used on the older Cassidy model? If not, what is the new part number so that I can order the nozzle with the Shield Spray for a retrofit?
Thank you for your question, Leslie! You can purchase and install the RP90839 Wand Assembly with ShieldSpray on an existing 9197-DST faucet. Installation is as easy as unscrewing the original wand from the hose and screwing the new one back on. This part can be purchased online or over the phone at 1-800-345-3358.
Best regards,
Tanya
Date published: 2024-03-28
Is the aerator removable and if so, what is the RP number of the part and tool? Thank you.
Hi Troy,
Thank you for your question. The aerator is not designed to be removed. You can clean it by removing the and from the hose and soaking the wand assembly in a half and half solution of white vinegar and water.
Best regards,
Jon
Date published: 2024-03-28
The aerator on my Cassidy faucet spray assembly broke off. Is their a replacement for the aerator or do I need to replace the entire assembly?
I replaced the aerator in my 9197-AR-DST with a new aerator, part number RP70746. The aerator was clearly removable, I had no problem removing and replacing it.
Date published: 2024-03-28
New home/new faucet...very poor water pressure. Are there water restrictors that can be removed to increase water pressure?
Hi, Jerry.
Thank you for your question, and I am sorry to hear that you are experiencing an issue with your Delta faucet. Unfortunately, there is not a way to remove the water restrictor. We do recommend to clean the sprayer by removing the sprayer from the hose assembly and soaking the unit in a solution of 50% white vinegar and 50% water mixture. This can be soaked for an hour or even overnight. If you are still experiencing low flow, please contact us back.
Best Regards,
Rosanna
Date published: 2024-03-28
How do you remove the sprayer assembly shield spray from the faucet handle to clean? Cassidy shield spray
Thank you for your question, Donna. The sprayer assembly can be unscrewed from the ridged nut on the end of the hose. You can then check for debris in the sprayer and soak it in a 50/50 white vinegar and water solution for 30-60 minutes to help dissolve mineral buildup.
Best regards, Jon
Date published: 2024-03-28
The magnetic part of the sprayer of this faucet is not staying attached to the faucet, Can I replace the magnet or the sprayer?
Hello veeda,
Thank you for your question! We are happy to help. The magnet and spray head can be replaced. For a Cassidy faucet that uses the RP72680RB spray head, the magnet replacement kit is RP80977. Please reach out directly if you have any questions or need additional assistance.
Best regards,
Bryan
Date published: 2024-03-28
Need the handle set screw broken and spring handle falls off cannot stay on,
Hi Joan,
Thanks for your question regarding RP72680RB! Our products have a Lifetime Limited Warranty that covers parts and finishes being free of defects in material and workmanship for the original owner/purchaser. Electronic parts have a 5-Year Limited Warranty.
https://media.deltafaucet.com/PartsDiagram/DPD-K-9197-DST.pdf
Please feel free to contact us with any questions or for further assistance.
Best Regards,
Emma
Digital Communications Specialist
Date published: 2023-09-10
Is there an o-ring replacement kit for this spray head ( Delta RP72680RB)?
Hi Kai23,
Thanks so much for contacting Delta Faucet Company about, RP72680RB! We do not have a gasket repair kit for our wands, soaking the wand in a 50/50 solution of white vinegar and eater will rectify some issues.
Please contact us directly if you have any questions or need additional assistance.
Best Regards,
Nicole
Digital Communications Specialist
Date published: 2023-05-22
