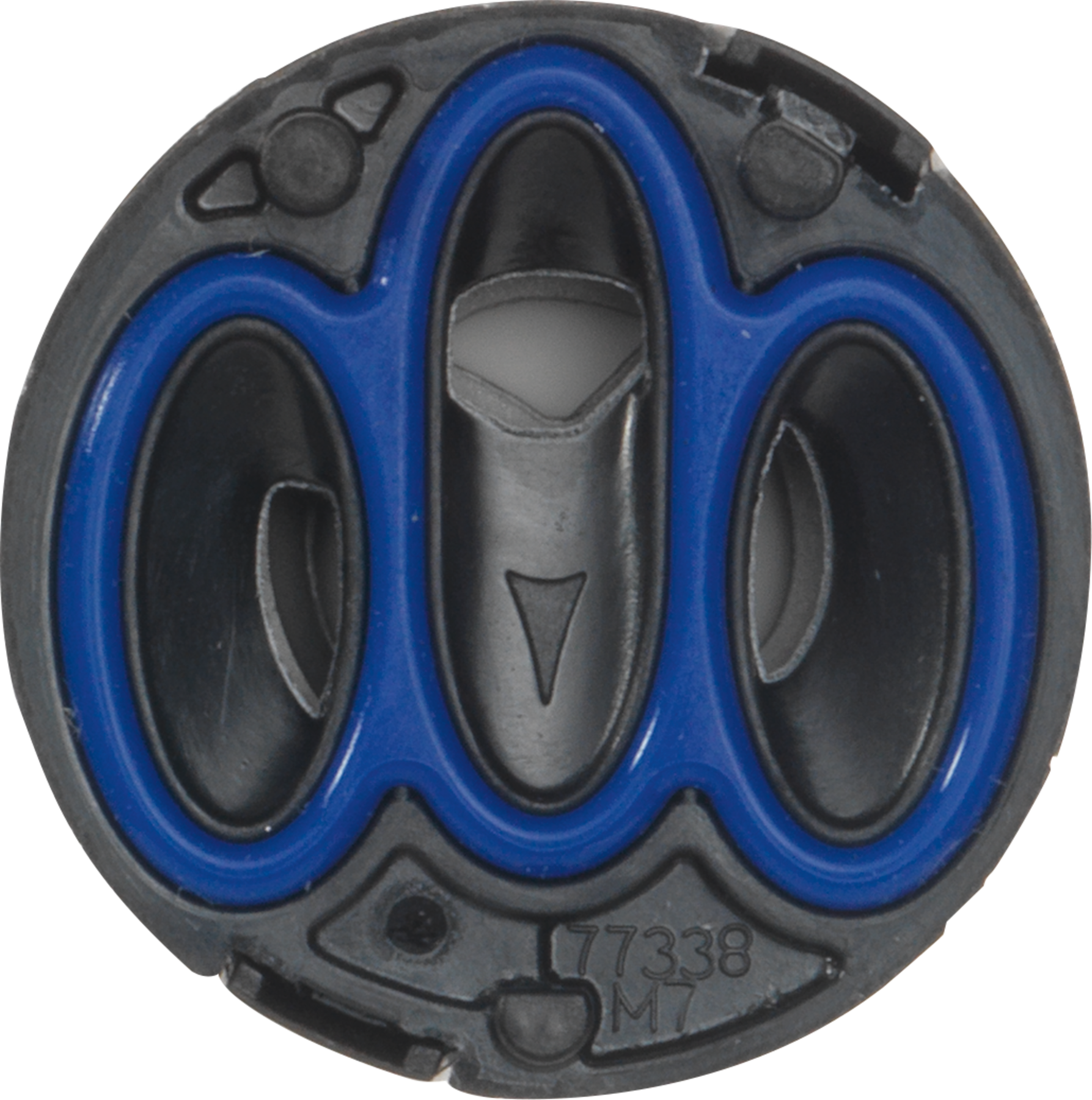

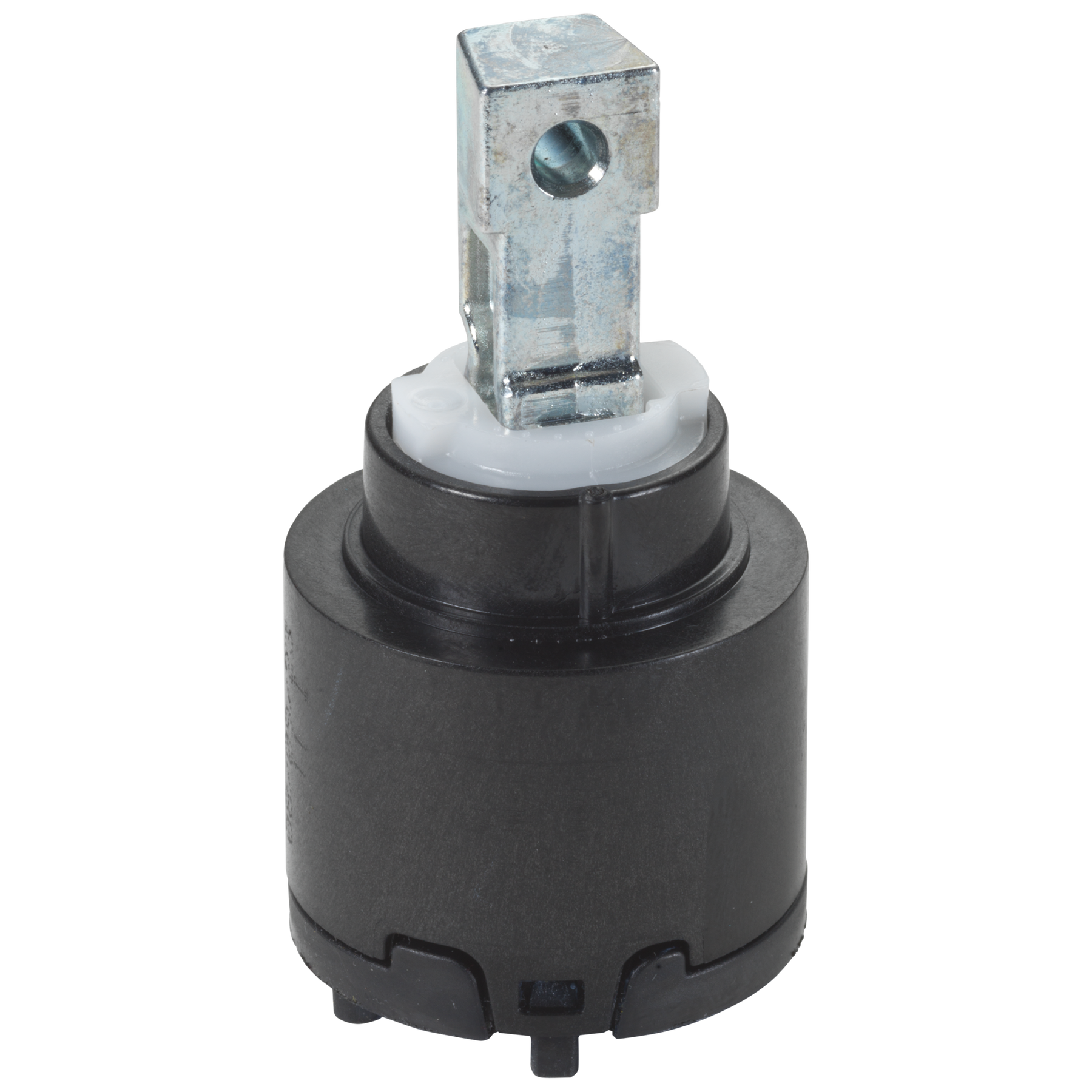

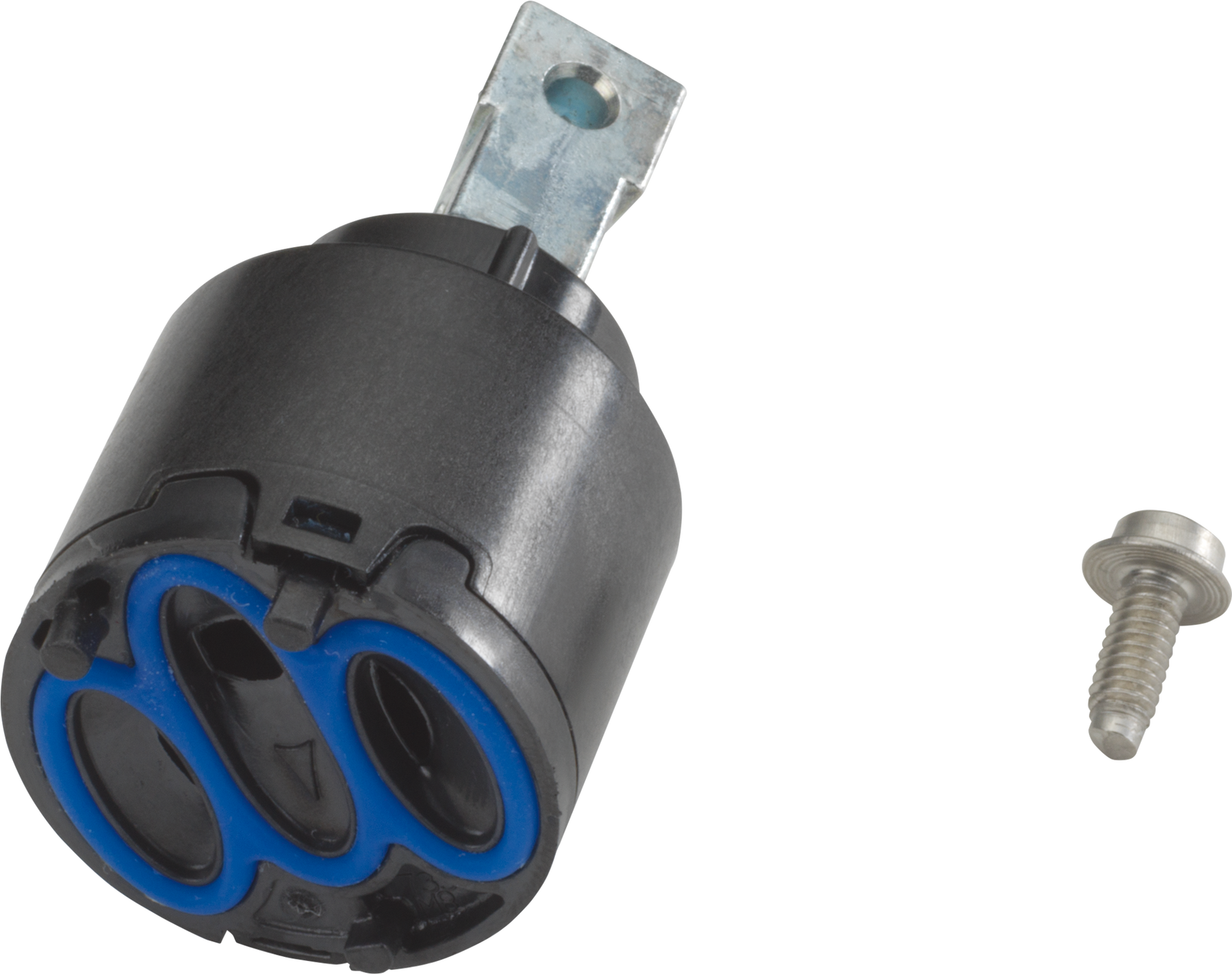

Válvula DIAMOND™, Euro-Motion, vástago corto
N.º de modelo: RP73000
Image Thumbnail, click to view zoomed product image
nulo
nulo
nulo
CARACTERÍSTICAS DEL PRODUCTO
El cartucho de válvula para llaves de una manija de Delta® es ideal para llaves para cocina y lavamanos de una manija. Las llaves con tecnología de sellado DIAMOND Seal® de Delta® funcionan como si fueran nuevas de por vida porque cuentan con un diseño patentado gracias al cual se reducen los puntos de fuga, la instalación es más sencilla y duran el doble que el estándar de la industria. Puede realizar la instalación con la tranquilidad de saber que los productos de Delta están respaldados por nuestra garantía limitada de por vida.
- La tecnología de sellado DIAMOND Seal® facilita la instalación y permite que su llave funcione como si fuera nueva toda la vida, ya que reduce los puntos de fuga y dura dos veces más que los productos estándar de la industria.
- Innovadoras superficies de sellado con diamantes
- Para usar con llaves para cocina y lavamanos de una manija (no incluidas)
- Pieza original de Delta
- Respaldado por la garantía limitada de por vida de Delta Faucet
Documentos y especificaciones
Soporte para productos, repuestos y especificaciones técnicas
Información de instalación
Overall Height (in.) :
2 1/4
Voltaje:
0
Tipo de válvula:
Válvula DIAMOND(TM) Euromotion
RESEÑAS
Rated 2 out of
5
by
mrkuppy from
Quality part though lacking QC
The cartridge seems like a quality part but the manufacturing quality control is lacking. Upon installing the new cartridge I noticed the hole on metal stem was missing threads, all Part seems to be of quality components except that the metal stem was missing threads. This is something that should have been caught during the manufacturing process. Another trip back to the big box store for a good replacement. Fit and operation were fine with the new cartridge. Would have been 4 stars without this added inconvenience.
Date published: 2024-07-19
Rated 4 out of
5
by
Randy from
Easy to install with help
The stem on my valve broke in half after 6 years of use. Delta sent me a replacement free of charge. I really appreciated the quick response and overnight shipping of the part. However, some instructions are needed to replace the unit. There is a hole in the stem where the handle is attached with a screw. The hole is not threaded and I thought it was the wrong part, but after sending an email to customer support, I learned the screw taps the threads when you screw it in the hole. This can't be done with the valve installed in the faucet as it requires too much force to start the threads. Once I understood this the valve was replaced and worked as designed.
I am very happy with Delta's warranty and their rapid response sending replacement parts.
Date published: 2024-05-23
Rated 5 out of
5
by
Dale from
Works like new
Exact fit.
Date published: 2024-04-28
Rated 1 out of
5
by
Greg from
Cheap Plastic
Our new faucet is only 1.5yrs old and is already leaking. Not happy spending $60 for a replacement cart. Greg
Date published: 2024-03-27
Rated 2 out of
5
by
Jake from
Bad design
My wife went with an entire line of faucets that use these cartridges. I have to buy them by the dozen as they never last more than 2-2.5 years. In the old days I could replace the rubber cups for pennies, now it is a ton of money.
Date published: 2024-03-22
Rated 5 out of
5
by
Anonymous from
Fast service, the order was correct!
They had the e act part that I needed to repair my kitchen faucet, priced and speedy delivery!
Date published: 2024-03-19
Rated 3 out of
5
by
Kboggs from
RP73000
We have a faucet we purchased less than a year ago and we had a leak under the sink and once I tightened the valve the leak stopped, but we lost our cold water. I’m now ordering a new valve in hopes this fixes our problem.
Date published: 2024-02-04
Rated 1 out of
5
by
Joe2 from
PLASTIC JUNK
This plastic valve broke just after 6 years of use. Nobody locally carries the part because the designs change too often and require different parts. What a waste.
Date published: 2024-01-03
Preguntas y respuestas
How do you attach the screw that holds the handle on then. Is it meant to be self tapping
Hi Delta question,
Thanks for reaching out! The set screw on the handle is self-tapping. The hole in the stem of the cartridge does not come with threads, but once installed the cartridge may have threads cut into it by the set screw.
Best regards, Jon
Date published: 2024-03-28
Can the cartridge be adjusted to change the maximum temperature of the water coming out of the faucet?
Thank you for your question, Joey! This cartridge is not adjustable and does not actually control the temperature coming into the faucet but rather simply controls the amount of hot and cold water allowed to mix in the valve. You may need to check the setting on your water heater, however we do not recommend setting this above 120 degrees.
Best regards, Edward
Date published: 2024-10-27
How hard is it to replace a cartridge in a single handle Trinsic kitchen faucet? Do you need any special tools and if so do they come with the replacement cartridge?
Hi Mac486,
Thank you for your inquiry! Please see the below Maintenance/Installation document link for installing the Delta Euro Valve Cartridge RP73000. Please feel free to call, email, or message us on social if there is anything else you need.
https://media.deltafaucet.com/MandI/103705%20Rev%20A.pdf
Best regards,
Tanya
Phone: 1-800-345-3358 | Email: customerservice@deltafaucet.com | Facebook/Twitter: @deltafaucet
Date published: 2024-03-28
Does the Delta RP73000 fit the Delta Esso Touch20 single handled faucet Model# 9113T-AR-DST?
Hi, lanieb!
Thank you for your question. The Delta RP73000 Valve Cartridge Assembly does work with the Delta 9113T-AR-DST Faucet.
Best Regards, Rosanna
Date published: 2024-03-28
I received a replacement for this unit and it didnot have any threads in the post for the screw to be attached. Was this defective?
Hi Dan,
Thank you for your question. The hole in the stem is not intended to have threads.
Best regards,
Jon
Date published: 2024-03-28
Does the cartridge include the "infinity" shaped rubber seal that goes on the end of the cartridge?
Hello Agree,
Thanks for reaching out! We do not manufacture any o-rings or "infinity" seals for our faucet cartridge assembly. The set screw on the handle is self-tapping. The hole in the stem of the cartridge does not come with threads, but once installed the cartridge may have threads cut into it by the set screw.
Best regards,
Tanya
Date published: 2024-03-28
I have a leak in my Trinsic faucet, model no. 9159-AR-DST. On your website it says the replacement cartridge would be RP60114, but the tech person answering the phone said it was RP73000. Why is it different on your website?
Hello Mac486,
Thank you for your inquiry! For the Trinsic models produced before 08/01/2018 take an RP60114 cartridge, rather than an RP73000 cartridge. I have included a link to the RP60114 cartridge's web page, for you to refer to.
https://www.amazon.com/Brizo-Venuto-Euro-Motion-Valve-Assembly/dp/B004E280G6/ref=sr_1_1?crid=2SB8LTV7BHVK7&keywords=rp60114&qid=1572287957&s=hi&sprefix=rp60114%2Ctools%2C170&sr=1-1
Best regards,
Tanya
Date published: 2024-03-28
what size is the screw that holds the handle on?
Hi Scott,
Thank you for your question. The hole in the stem of the Delta Euro Valve Cartridge RP73000 cartridge does not come with threads, but once installed the cartridge may have threads cut into it by the set screw. The set screw uses a 1/8" Allen wrench for installation.
Best regards,
Tanya
Date published: 2024-03-28
