Foundations®

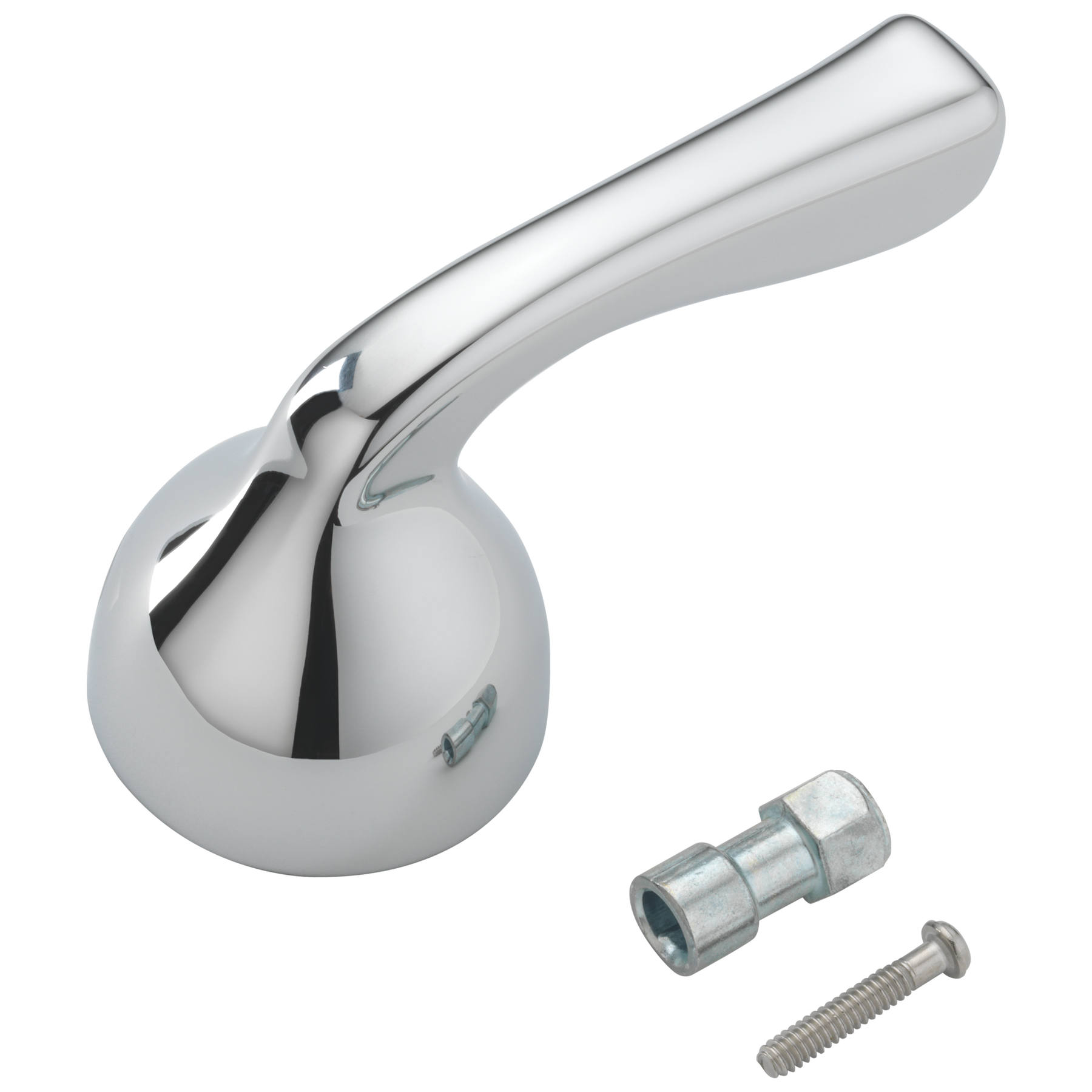

Kit de manija tipo palanca de metal - Ducha y bañera en cromado
N.º de modelo: RP74148
Image Thumbnail, click to view zoomed product image
CARACTERÍSTICAS DEL PRODUCTO
Technology and Special Features
Cumplimiento con la ADA
Cumplimiento con la ADA
Algunas personas y códigos locales requieren que los artefactos cumplan con la Ley para estadounidenses con discapacidades (Americans with Disabilities Act). Si es posible que reciba visitas de personas con capacidades especiales o si cree que sus futuros clientes podrían apreciar esta función, Delta ofrece diversos artefactos que cumplen con esta ley.
Documentos y especificaciones
Información de instalación
Overall Height (in.) :
2 1/2
Tipo de válvula:
NA
RESEÑAS
Rated 5 out of
5
by
Tiff30 from
EXACTLY what I needed
After purchasing what I believed to be the correct faucet set, just for the handle piece, from Amazon and Home Depot, I finally just came to the Delta site to find what I was looking for. The only reason I didn't come to the site sooner was because I believed it would be more expensive, I found that I was wrong. In fact Delta sold the exact part I was looking for and it was cheaper than the set I purchased from Amazon and Home Depot. It was EXACTLY what i needed.
Date published: 2024-08-24
Rated 5 out of
5
by
Ghoostrider24 from
Good product that I bought
Good product that I bought
Date published: 2022-05-15
Preguntas y respuestas
Is it possible to just buy the screw for this part?
I am missing the screw that holds the handle to the valve. Where can I get that missing screw without buying the whole RP74148?
Hi Ray, Thank you for your question. Unfortunately the screws to the RP74148 handle assembly are not available as separate items. The screw that holds the adapter onto the stem is a #10-24, the set screw that holds the handle to the adapter is a metric M5 x .08.
Thanks,
Dave
Date published: 2024-03-28
is the handle adapter (with hex head) available by itself? (as used with a RP74148 handle). Does it have a p/n? Thanks.
Hi Dougie,
Thank you for your question. Unfortunately the adapter and screw to the RP74148 handle assembly are not available as separate items for purchase. The full handle would need to be purchased.
Best regards,
Tanya
Date published: 2024-03-28
length of #10-24 screw
I need to buy a screw that holds the adapter onto the stem. Your previous answer says #10-24. What is the length?
Hi Sanders,
Thank you for your question! The shank of the screw is 1".
Best regards,
Jon
Date published: 2024-03-28
Hello, What is the dimension of the philips head bolt/screw that fastens the adapter to the valve cartridge? It looks to be made of stainless steel. Thank you.
Hi, Needhelp!
Thank you for your question. The screw size for the Delta RP74148 handle adapter is #10-24 screw.
Best Regards,
Rosanna
Date published: 2024-03-28
how to order the above part (RP74148)
Hi Matthew, Thank you for your question. The RP74148 handle assembly can be ordered from online vendors as well as your local retailer or wholesaler that sells Delta products. Our Where to Buy tool will help locate Delta dealers in your area.
http://www.deltafaucet.com/where-to-buy/index.html
Thanks,
Dave
Date published: 2024-03-28
how do I seperate the handle assembly to reinstall the 10-24 screw?
Hi Joe M,
Thank you for your question. To access the adapter screw, simply loosen the set screw on the side of the handle using a 2.5 mm Allen wrench then slide off the handle.
Best regards,
Jon
Date published: 2024-04-13
What is the thread size of set screw rp79243 ?
Hello Harold,
Thank you for your question. The RP79243 set screw has metric M5 x.5 threads.
Best regards,
Tanya
Date published: 2024-06-09
I have a 40 year old shower mixer valve that I can't find a replacement handle for. It is a small diamond shape and I have tracked it down to possibly a #212. Would a MODEL#: RP74148 fit this. I can't see the other end of the adaptor in the pictures.
Hello,
Thank you for your question!
No, the 600 series shower unit will use the RP17443 lever handle. We also offer the RP54870 renovation kit as well.
https://www.deltafaucet.com/parts/product/RP54870.html
Please reach out with further questions!
Best Regards,
Tim
Digital Communications Specialist
Date published: 2025-03-28
