Delta®

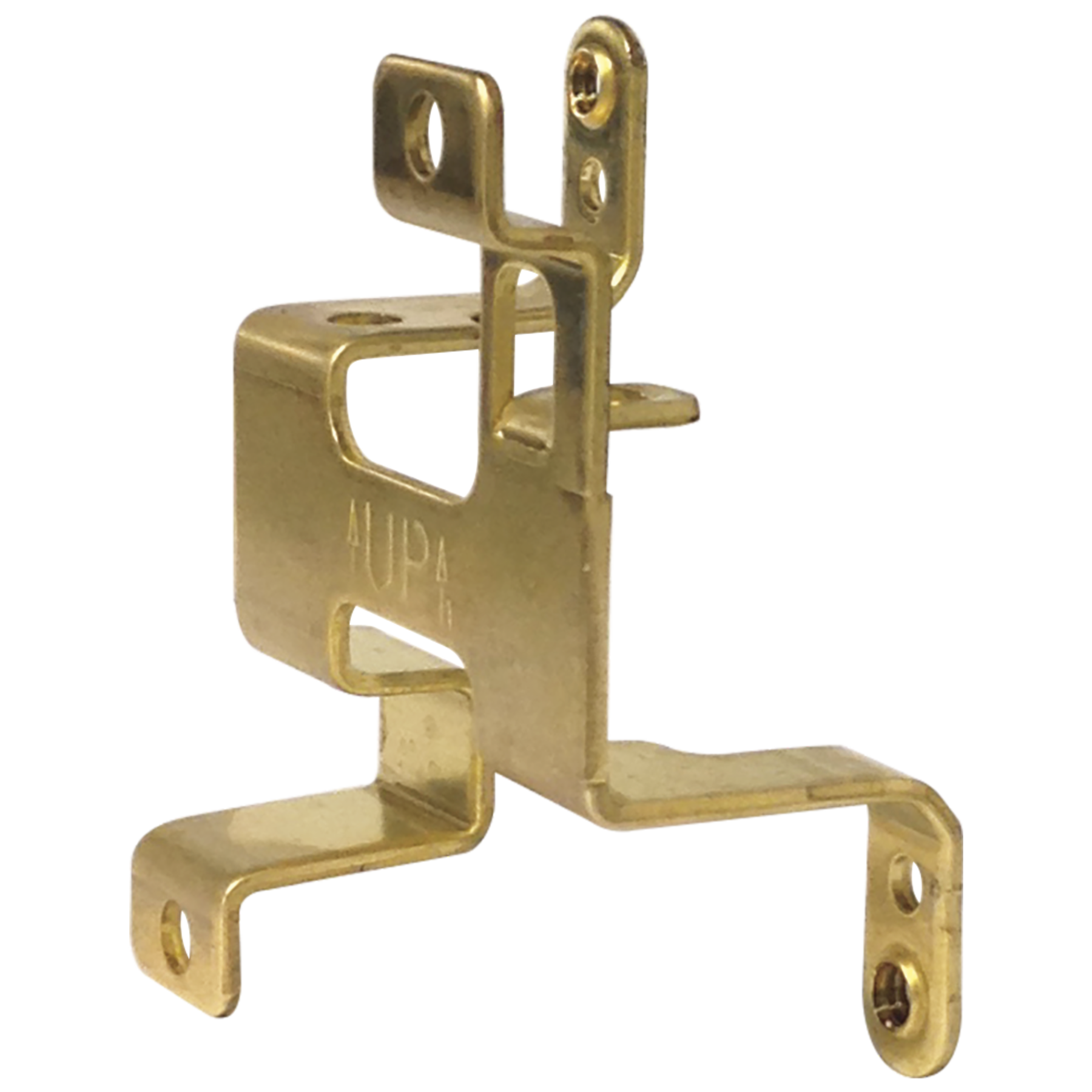

Soporte, MultiChoice® universal
N.º de modelo: RP83888
Image Thumbnail, click to view zoomed product image
Documentos y especificaciones
Información de instalación
Altura total:
3
Voltaje:
0
Tipo de válvula:
NA
RESEÑAS
Rated 1 out of
5
by
Cam94 from
Melted
Melted while soldering water supply
Date published: 2023-03-23
Rated 5 out of
5
by
Anonymous from
Delta shower bracket
Excellent value and delivered timely
Date published: 2020-10-06
Preguntas y respuestas
how do i get the bracket screws?, part #?
Hello TimB,
Thank you for your question! Any standard wood screw will work for mounting the valve with the R83888 bracket to the stringer.
Best regards,
Tanya
Date published: 2024-03-28
does this come with screws?
Hi Alex,
Thank you for your question. The screws are not included.
Best regards,
Jon
Date published: 2024-03-28
What size/type of screws are required to mount this bracket to the drain body?
Hi, Corm! Thank you for your question. We recommend to purchase Delta part number RP37730 for the needed screws.
Best regards,
Themar
Date published: 2024-03-28
I believe this is the necessary part to install the trim piece on my shower wall. Is there installation instructions for this part? Is this what the screws for the trim piece would screw into to hold the trim on the wall?
Hi Chris,
Thanks for your question regarding RP83888! This bracket is manufactured for the R10000-UNBX rough-in valve. Most of our trims require the Plasterguard (RP46075).
Please feel free to contact us with any questions or for further assistance.
Best Regards,
Emma
Digital Communications Specialist
Date published: 2024-03-28
What is the part number for the two screws that mount the bracket to the valve?
Hello Curtis!
Thank you for your question! I will be happy to help.
Unfortunately, there is no part number for the screws, however, you are able to purchase RP37730 and use the screws with the kit, or go locally to purchase screws that are size #10-24 x 1/4 Type "I" or "IA" Cross reference with a #8 pan head screws. I apologize again for any inconvenience this may cause.
Feel free to contact us directly, if you need further assistance.
Best Regards,
Kyra
Date published: 2024-03-28
Does this bracket accept the RP196 #10-24X2.75 screws for the escutcheon?
Hi Niki,
Thank you for your question!
Yes, this bracket utilizes the RP196 escutcheon trim screws.
Please reach out with further questions!
Best Regards,
Tim
Digital Communications Specialist
Date published: 2023-04-24
Delta long and shorter stainless steel screws do not fit in openings What size screw is it supposed to be
Hi kmsbanr,
Thank you for your question!
The screw size for the Delta MultiChoice Universal R10000-UNWSBXT Rough In Valve Body is #10-24 x1/4.
Please reach out with further questions!
Best Regards,
Tim
Digital Communications Specialist
Date published: 2024-02-23
Are there any dimensional drawing for this bracket?
Thank you for your question, Mike! We do not have any specification diagrams for just the RP83888 bracket. This bracket is manufactured for the Delta R10000-UNBX rough valve. I have included a link to the specifications diagram for that model, for you to refer to.
https://media.deltafaucet.com/SpecSheet/DSP-B-R10000%20Rev%20J.pdf
Best Regards, Benjamin
Date published: 2024-03-28
