Pivotal®
Ver toda la colección para cocina Pivotal®

Llave para barra de una manija en cromado

N.º de modelo: 1993LF
Agregar a favoritos
Busque instaladores locales de Delta®
Pivotal®
Ver toda la colección para cocina Pivotal®
Llave para barra de una manija en cromado
N.º de modelo: 1993LF
Precio de lista: $59220
Agregar a favoritos
Busque instaladores locales de Delta®
CARACTERÍSTICAS DEL PRODUCTO
La distinguida inclinación de la colección Pivotal® la convierte en un agregado impactante a la geometría contemporánea de su cocina, para lograr un diseño que marca estilo. Indicadores de agua fría y caliente con acabado para un fácil ajuste de la temperatura del agua. Usted puede realizar la instalación con confianza, ya que tendrá la tranquilidad de saber que las llaves de Delta están respaldadas por nuestra garantía limitada de por vida.
  • Se adapta a instalaciones con 1 orificio

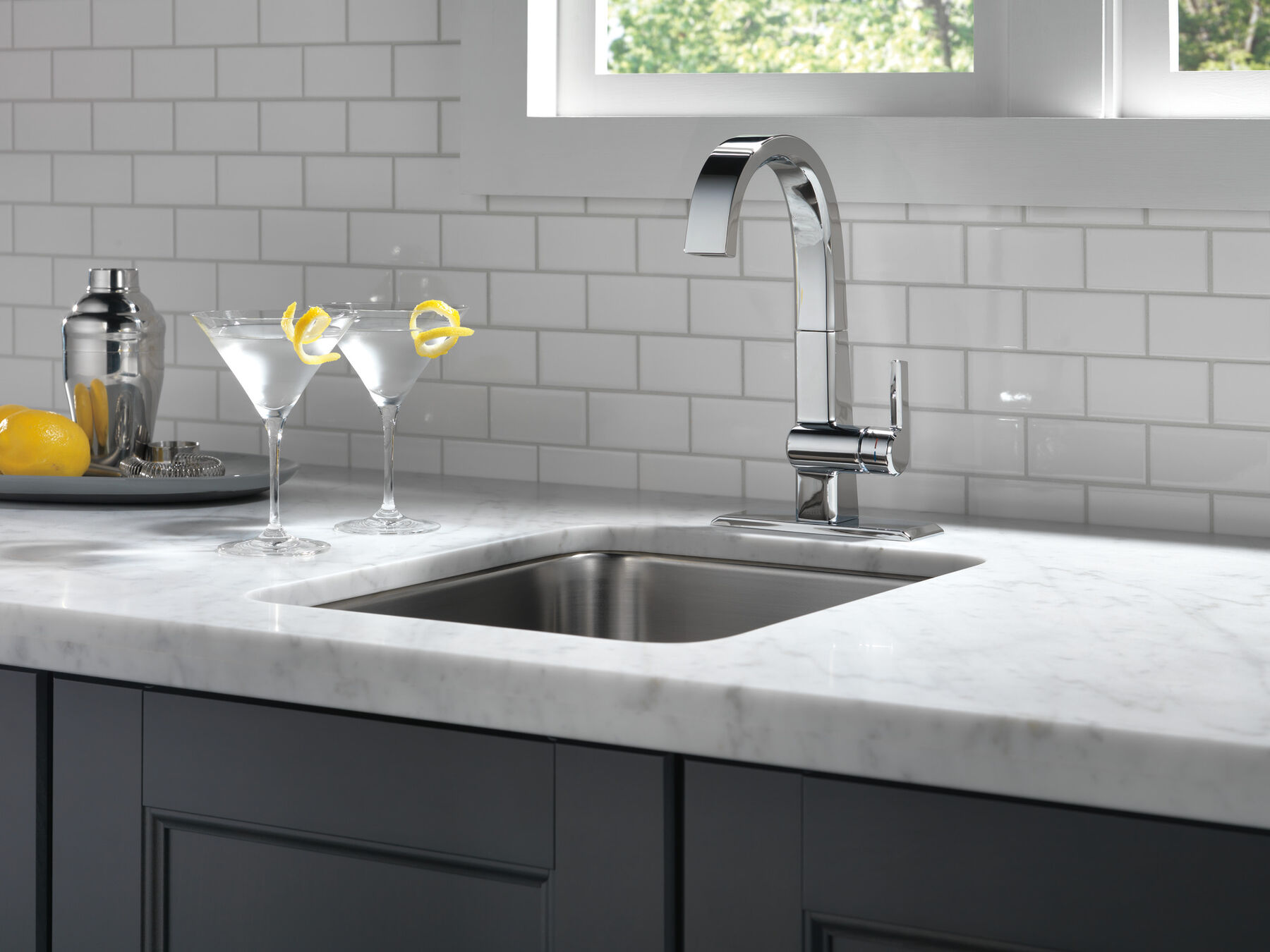

  • Cubierta opcional disponible para instalaciones con 3 orificios (se compra por separado)
  • Cumplimiento con la ADA
  • El tubo de salida estándar gira 120 grados.
  • Espesor máximo de instalación de encimera de 2.5"
Technology and Special Features
Cumplimiento con la ADA
Libres de plomo
Documentos y especificaciones
Soporte para productos, repuestos y especificaciones técnicas
Ver especificaciones técnicas
Ver hoja de mantenimiento e instalación
Ver diagrama de repuestos y accesorios
Registrar su producto
Recursos
Archivos de diseño
Información de instalación

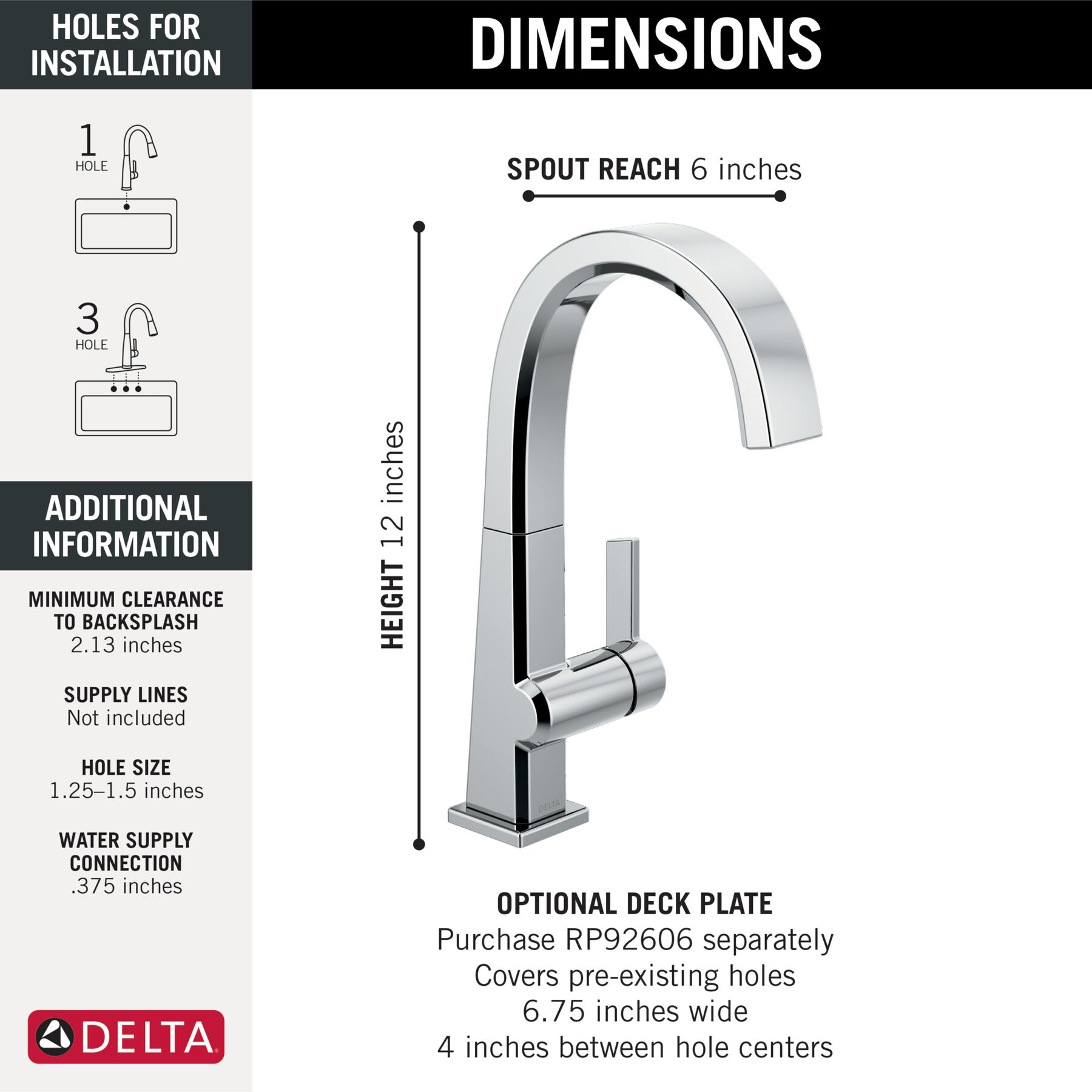

Instalación con 1 o 3 orificios de 4"
Instalación con 1 o 3 orificios de 4"
Longitud total:
4
Overall Height (in.) :
12
Voltaje:
0
Caudal:
1.50 gpm a 60 psi, 5.7 l/min. a 414 kPa
Tipo de válvula:
Cartucho de cerámica Euromotion

SOPORTE PARA LA INSTALACIÓN

¿Necesita ayuda con la instalación? Busque instaladores locales de Delta® Obtenga cotizaciones. Lea reseñas.

IR
Escriba un código postal válido.
Mike y Hanna
Miniatura del logotipo de Delta

¿Necesita ayuda con la instalación? ¡Mike y Hannah están aquí para ayudar! Reciba consejos de los profesionales para todo, desde la instalación hasta el cuidado del producto.

Explorar videos
LISTA DE PIEZAS

LISTA DE PIEZAS

Image-RP92289 Secondary Image-RP92289

Sawyer™

Sawyer™ Repuesto - Cartucho y tornillo

Precio de lista: $52.30
Precio en línea: $41.84
Free Ground Shipping All Orders $49+
Acabados estándar

RP92289

Image-Master-RP92592

DELTA

DELTA Tornillo, botón y llave Allen

Precio de lista: $11.65 - $27.55
Free Ground Shipping All Orders $49+
Acabados estándar

RP92592

Discontinuado
Discontinuado
Image-RP92589
Discontinuado

DELTA

DELTA Kit de cubo

Precio de lista: $6.85
Acabados estándar

RP92589

Image-RP47030

Leland®

Leland® Llave inglesa de baño

Precio de lista: $8.30
Precio en línea: $6.64
Free Ground Shipping All Orders $49+
Acabados estándar

RP47030

1.00 2
Image-RP72728

Cassidy®

Cassidy® Bonnet Nut

Precio de lista: $13.85
Precio en línea: $11.08
Free Ground Shipping All Orders $49+

RP72728

Image-RP92606 Secondary Image-RP92606

Pivotal®

Pivotal® Cubierta y junta - Estilo de transición o contemporáneo (barra)

Precio de lista: $48.10
Precio en línea: $38.48
Free Ground Shipping All Orders $49+

RP92606

Image-RP51737-1.2

Victorian®

Victorian® Reductor de flujo e inserto de latón - 1.2 GPM

Precio de lista: $17.35
Precio en línea: $13.88
Free Ground Shipping All Orders $49+

RP51737-1.2

Image-Master-RP92588

DELTA

DELTA Conjunto de tubo de salida

Precio de lista: $248.05 - $407.25
Free Ground Shipping All Orders $49+
Acabados estándar

RP92588

Image-Master-RP92599

DELTA

DELTA Manija, tornillo de fijación y botón - Estilo de bar auténtico

Precio de lista: $36.00 - $86.45
Free Ground Shipping All Orders $49+
Acabados estándar

RP92599

Image-Master-RP92597

DELTA

DELTA Base y junta

Precio de lista: $26.05 - $62.95
Free Ground Shipping All Orders $49+
Acabados estándar

RP92597

Image-RP47029

Leland®

Leland® Soporte de montaje, 1H, baño

Precio de lista: $15.05
Precio en línea: $12.04
Free Ground Shipping All Orders $49+
Acabados estándar

RP47029

5.00 2
RESEÑAS
Rated 3 out of 5 by from Looks great Looks amazing my only thing was I had to take the whole handle assembly apart and clean out the flow restrictior before I did that is the amount of water coming out was a joke I pulled all the stuff in the picture plus more out and now it works great
Date published: 2022-04-19
  • y_2024, m_12, d_25, h_7
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.42
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_1
  • loc_en_US, sid_1993LF, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 10ms
  • reviews, product
Preguntas y respuestas

Specs suggest min 2.18” clearance to backsplash. Is that measurement taken from the middle or back of the hole?

Asked by: Brojack
Hi, Brojack! Thank you for your question. The minimum clearance to back splash measures 2 1/8" from the middle of the hole for the Delta 1993LF Faucet. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

What is the procedure for removing the areator on a 1993LF Pivotal bar faucet?

Asked by: Arnie
Thank you for your question, Arnie! The type of aerator used for this model is not meant to be removed as it does not filter water but is in place to help soften and evenly distribute the stream. If you believe there may be a blockage, we would recommend checking the flow restrictor. First make sure that the hot and cold water supplies are turned off under the sink. Remove the handle, then remove the cap, unscrew the bonnet nut, and pull the cartridge out. You can use a pair of needle nose pliers to remove the restrictor. Please contact us directly if you need further assistance at 1-800-345-DELTA (3358) Monday - Friday 8 a.m. - 8 p.m. EST, Saturday 9 a.m. - 6 p.m. EST Best regards, Edward
Answered by: Delta Faucet
Date published: 2024-03-28

I need a beverage faucet to match the arctic stainless Delta pivotal kitchen faucet. Can I use this bar faucet with a cold water line only? I want to use it with my under sink water filtration system.  My system does not need an air gap faucet (not RO)

Asked by: Executivechef
Thank you for your question, PDSMTS! Model 1993LF-AR is a Bar Prep faucet and intended for both hot and cold water. A Beverage faucet is; however, intended for a cold water line hook up only and can be used with a RO unit with or without an air gap. Unfortunately we do not offer a specific matching beverage faucet for the Pivotal Collection. https://www.deltafaucet.com/kitchen/specialty-faucets/beverage Best regards, Edward
Answered by: Delta Faucet
Date published: 2024-03-28

when will this be available

Asked by: RebelDev66
Hello RebelDev66, Thank you for your inquiry! The Delta Pivotal Bar 1993LF-PN faucet is currently available for ordering. However, the faucet is scheduled to start shipping out 7/24/2018. Best regards, Tanya
Answered by: Delta Faucet
Date published: 2024-03-28

Can this be used for instant hot water?

Asked by: Ssss
Hi Ssss! Thank you for your question and we are happy to help. The Delta 1993LF is not designed for instant hot water. With any further questions or concerns, please do not hesitate to reach out to us again. Best Regards, Carrie
Answered by: Customer Service
Date published: 2024-11-14

What is the height from the counter to the handle?

Asked by: Lisa
Hello Lisa, Thank you for your question! I am happy to help you! The Delta faucet 1993LF has a measurement of 1.89” from the base to the bottom of the handle and 2.61” from the base to the center of the handle. Please contact us back for any further questions. Best Regards, Nicole
Answered by: Delta7
Date published: 2024-03-28

My Delta Faucet Model 1993LF has unacceptable water pressure. My older faucet had strong pressure. The RP51737 is 3 parts, Can I remove the flow restrictor only as I need more flow? Or is there an undated kit to fix the issue?

Asked by: MioxMeisterBob
Hi MioxMeisterBob, Thank you for your question about the Delta Faucet model 1993LF Pivotal® Single Handle Bar Faucet In Chrome. Please accept our sincere apology for the inconvenience you are experiencing. We will be happy to assist you in resolving this issue as quickly as possible. This faucet model should have a maximum flow rate of 1.5 GPM. A low flow issue is most likely caused by debris trapped in the flow restrictor. We recommend cleaning the flow restrictor to troubleshoot the issue. Please contact us directly if you have any questions or need additional assistance. Thank you for being a loyal Delta Faucet customer. We appreciate your business and look forward to continuing to serve you! Best Regards, Bryan Digital Communications Specialist
Answered by: Customer Service
Date published: 2024-03-28

Is it mixer with hot and cold water?

Asked by: Daniel24012603
Hi Daniel24012603, Thank you for contacting Delta Faucet Company! Please accept our sincere apology for the inconvenience you are experiencing. Here is what we can do to resolve your issue for you. Our Delta Faucet Pivotal® Single Handle Bar Faucet In Chrome MODEL#: 1993LF has both hot and cold supply and will also produce warm water. Thank you for being a loyal Delta Faucet customer. We appreciate your business and look forward to continuing to serve you. Please contact us back with any further questions. Best Regards, Nicole
Answered by: Customer Service
Date published: 2024-03-28
