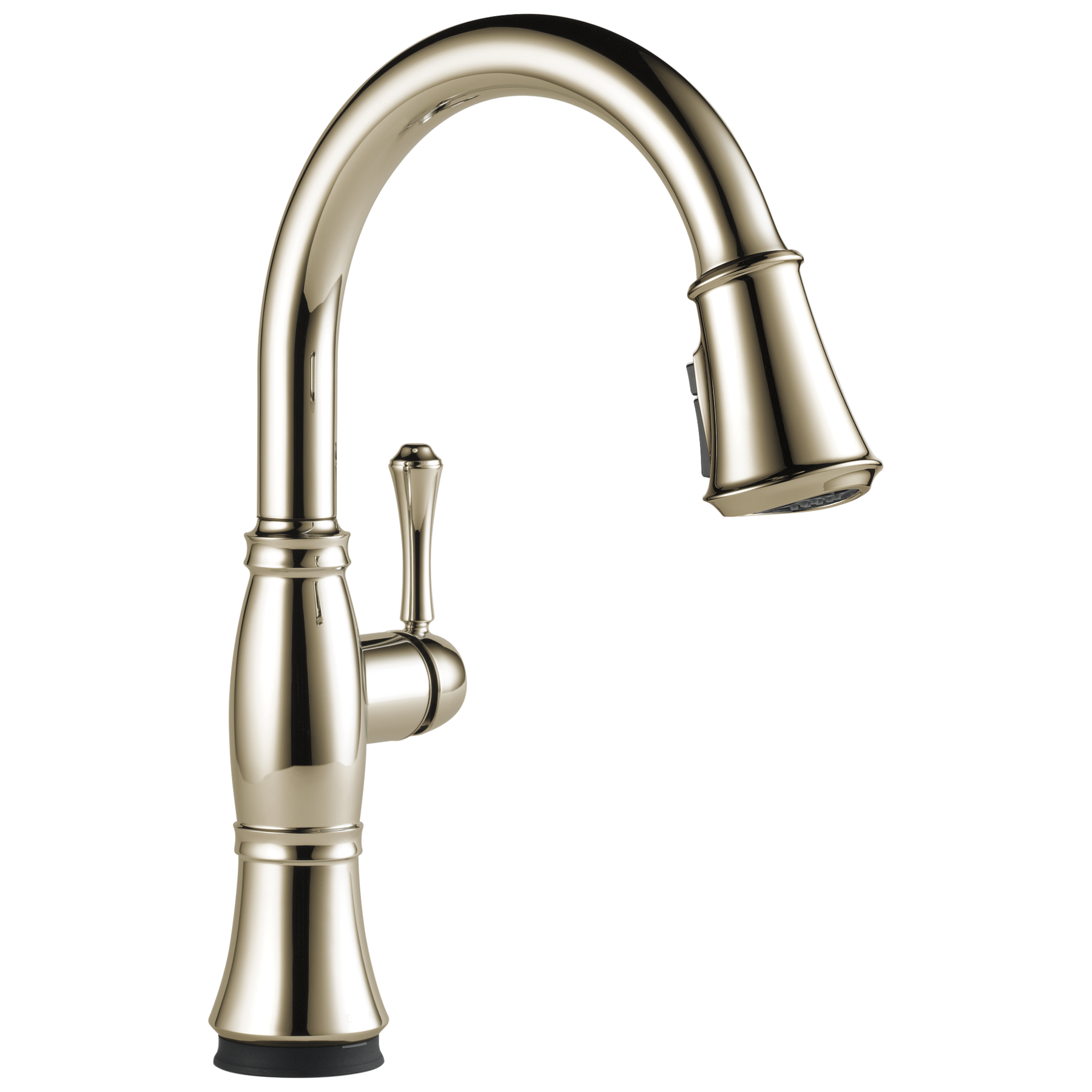

Single Handle Pull-Down Kitchen Faucet with Touch<sub>2</sub>O® and ShieldSpray® Technologies in Lumicoat® Polished Nickel

N.º de modelo: 9197T-PN-PR-DST
Single Handle Pull-Down Kitchen Faucet with Touch<sub>2</sub>O® and ShieldSpray® Technologies in Lumicoat® Polished Nickel
N.º de modelo: 9197T-PN-PR-DST
Precio de lista: $1,09285
CARACTERÍSTICAS DEL PRODUCTO
Tóquela para que se abra. Tóquela para que se cierre. Ya sea que tenga las manos ocupadas o los 10 dedos sucios, la tecnología Touch2O® de Delta® ayuda a mantener la limpieza de su llave para cocina, incluso cuando tiene las manos sucias. Un simple toque en cualquier parte del tubo de salida o de la manija con la muñeca o el brazo activa el flujo de agua a la temperatura establecida según el ajuste de la manija. La luz de LED TempSense™ de Delta cambia de color para indicarle la temperatura del agua y descartar cualquier sorpresa o incomodidad posibles. Las llaves para lavabo de cocina con orificios rociadores Touch-Clean® le permiten limpiar con facilidad la acumulación de calcio y cal con solo deslizar el dedo. La tecnología ShieldSpray® de Delta® limpia con precisión láser y, a su vez, evita el desorden y las salpicaduras. Un chorro concentrado quita con potencia los restos difíciles de comida y, a la vez, un innovador escudo de agua contiene las salpicaduras y elimina el desorden. De esta manera, usted pasará menos tiempo remojando, fregando y cambiándose de camisa. Los acabados Lumicoat™ de Delta® se limpian sin necesidad de limpiadores o sustancias químicas, y está garantizado que resisten las marcas de agua y la acumulación de minerales. La superficie ultralisa repele los líquidos, resiste las manchas de agua y se mantiene limpia por más tiempo, para que su llave conserve su belleza. Las llaves para cocina con tecnología de sellado DIAMOND™ Seal de Delta® funcionan como si fueran nuevas de por vida porque cuentan con un diseño patentado gracias al cual se reducen los puntos de fuga, la instalación es más sencilla y duran el doble que el estándar de la industria*. Las llaves para lavabo de cocina con orificios rociadores Touch-Clean® le permiten limpiar con facilidad la acumulación de calcio y cal con solo deslizar el dedo. Usted puede realizar la instalación con confianza, ya que tendrá la tranquilidad de saber que las llaves para cocina de Delta están respaldadas por nuestra garantía limitada de por vida. Los componentes electrónicos están respaldados por nuestra garantía para componentes electrónicos por 5 años. *Estándar de la industria basado en ASME A112.18.1 de 500,000 ciclos.
  • Con tecnología Touch2O®, con solo tocar cualquier parte de la salida de la tina o la manija se abre y se cierra el flujo de agua
  • Permite mantener la llave más limpia, porque al lavarse las manos no tiene por qué ensuciar su llave
  • La luz LED azul indica cuándo se activa el modo táctil, y la luz roja, cuándo la batería se está acabando
  • El corte automático del flujo de agua después de cuatro minutos ayuda a ahorrar agua
  • La luz de LED TempSense™ integrada indica la temperatura del agua: cambia de azul a magenta y de magenta a rojo a medida que aumenta la temperatura.
  • Requiere 6 baterías AA (incluidas) o 6 baterías C.
  • Más del 90% de los hogares usa las llaves Touch2O® 20 minutos por día o menos.
  • La tecnología Touch2O® intuitiva detecta la diferencia cuando se toca el producto y cuando se lo golpea, y así, se reducen las posibilidades de activación falsa
  • El adaptador de CA EP102157 opcional puede pedirse por separado
  • El acoplamiento MagnaTite® utiliza un potente imán integrado para colocar la varilla rociadora de la llave de manera precisa en su lugar y mantenerla allí para que permanezca acoplada cuando no está en uso, y no se cae con el tiempo
  • La tecnología ShieldSpray® soluciona el problema sin provocar problemas
  • El chorro concentrado evita el desorden y el escudo de agua innovador reduce las salpicaduras
  • Lumicoat® Finishes are guaranteed to resist water spots and mineral buildup and easily wipe clean without the need for cleaners or chemicals
  • Los suaves orificios rociadores de goma Touch-Clean® le permiten limpiar fácilmente la acumulación de calcio y cal con solo deslizar el dedo
  • Gracias a la tecnología de sellado DIAMOND™ Seal, la instalación es más fácil y la llave funciona como si fuera nueva de por vida, ya que se reducen los puntos de fuga y la duración es dos veces superior en comparación con los productos estándar de la industria.
  • Todo lo que necesita en una conveniente caja, que incluye líneas de suministro PEX InnoFlex®
  • El dispensador de jabón a juego se vende por separado (RP71543PN).
  • Instalación de 8" con 1 o 3 orificios.

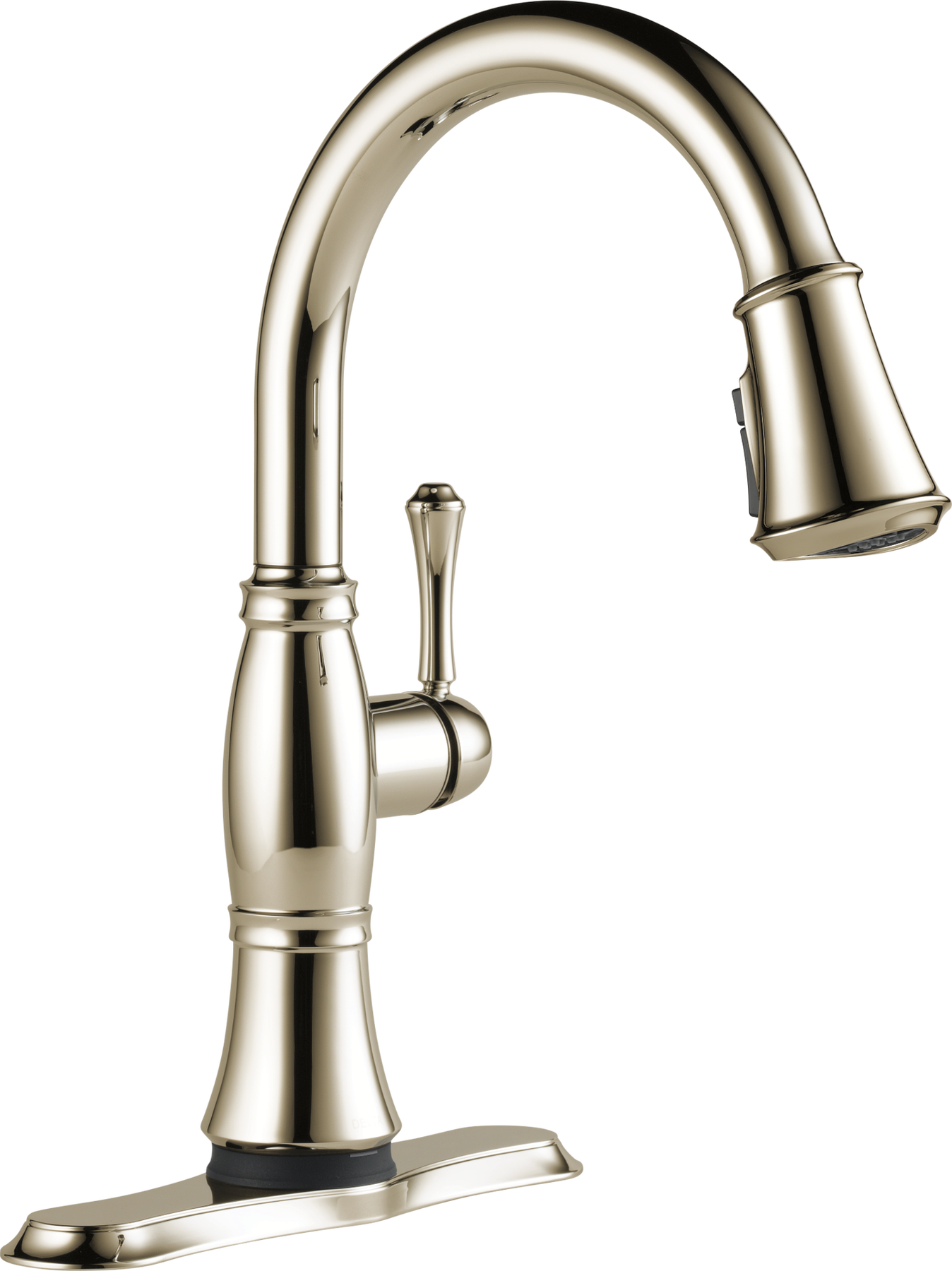

  • Cubierta opcional de 10 1/4" disponible para comprar por separado (RP71545PNPR).
  • El diseño de cuello de ganso con arco elevado gira 360 grados con una manguera retráctil de 20" para una comodidad superior durante las tareas cotidianas de la cocina.
Technology and Special Features
Cumplimiento con la ADA
Libres de plomo
Uso eficiente del agua
VoiceIQ® Compatible
Documentos y especificaciones
Información de instalación

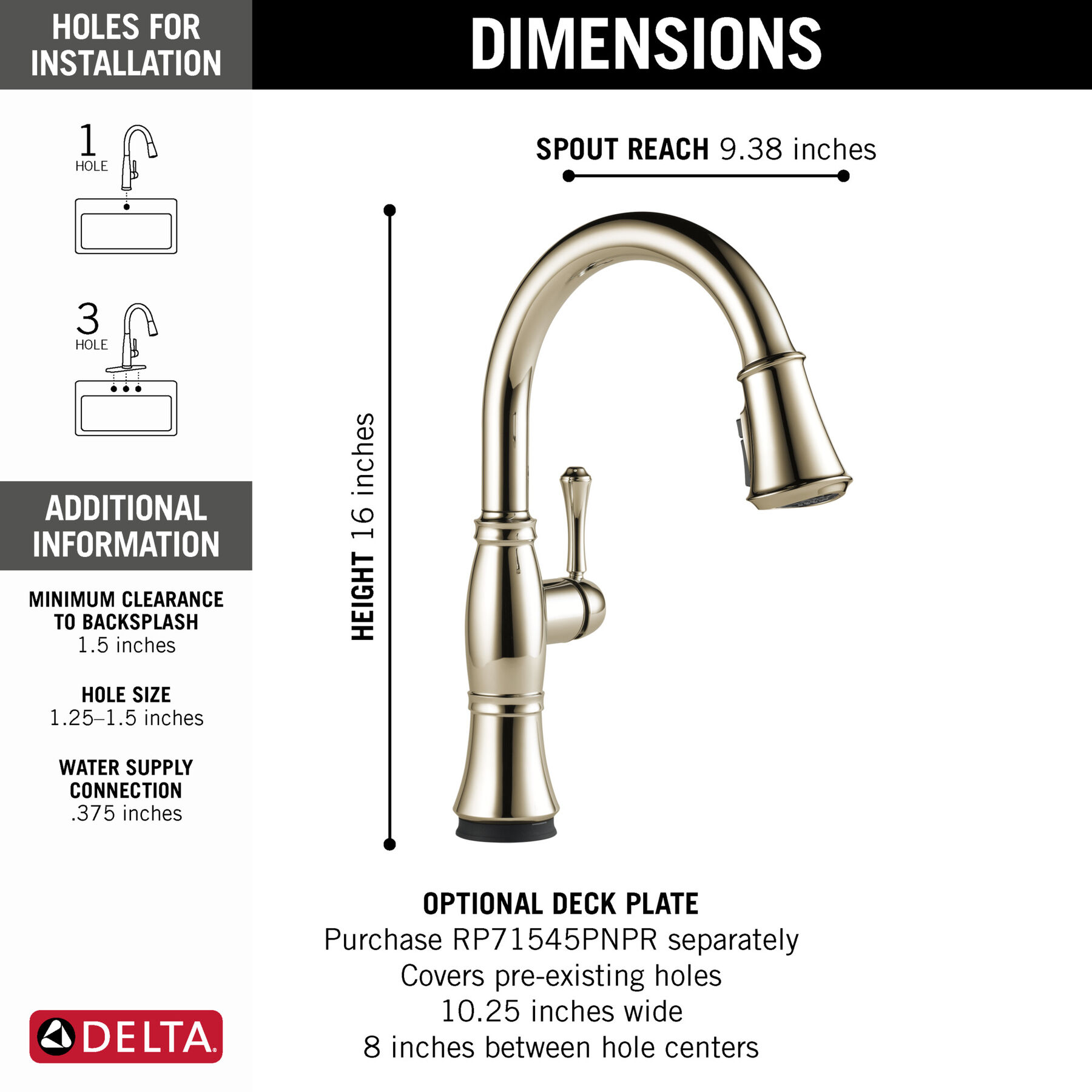

Instalación con 1 o 3 orificios de 8"
Instalación con 1 o 3 orificios de 8"
Overall Height (in.) :
16
Voltaje:
0
Caudal:
1.8 gpm a 60 psi, 6.8 l/min. a 414 kPa
Tipo de válvula:
Disco cerámico

SOPORTE PARA LA INSTALACIÓN

¿Necesita ayuda con la instalación? Busque instaladores locales de Delta® Obtenga cotizaciones. Lea reseñas.

IR
Escriba un código postal válido.
Mike y Hanna
Miniatura del logotipo de Delta

¿Necesita ayuda con la instalación? ¡Mike y Hannah están aquí para ayudar! Reciba consejos de los profesionales para todo, desde la instalación hasta el cuidado del producto.

LISTA DE PIEZAS

LISTA DE PIEZAS

Image-RP80619

DELTA

DELTA Tuerca de bonete

Precio de lista: $19.65
Precio en línea: $15.72
Free Ground Shipping All Orders $49+
Acabados estándar

RP80619

Image-RP80977

Delta®

Delta® Kit de imanes de recambio

Precio de lista: $58.35
Precio en línea: $46.68
Free Ground Shipping All Orders $49+
Acabados estándar

RP80977

3.35 34
Image-RP80523

Delta®

Delta® Conjunto de contrapeso de manguera

Precio de lista: $44.60
Precio en línea: $35.68
Free Ground Shipping All Orders $49+
Acabados estándar

RP80523

Image-EP100855 Secondary Image-EP100855

DELTA

DELTA VoiceIQ® Module

Precio de lista: $200.15
Precio en línea: $160.12
Free Ground Shipping All Orders $49+
Acabados estándar

EP100855

4.30 99
Image-RP60923

Delta®

Delta® Espaciadores de rozamiento y abrazadera - Cocina

Precio de lista: $20.35
Precio en línea: $16.28
Free Ground Shipping All Orders $49+
Acabados estándar

RP60923

5.00 2
Image-RP80522

Delta®

Delta® Conjunto de manguera

Precio de lista: $79.85
Precio en línea: $63.88
Free Ground Shipping All Orders $49+
Acabados estándar

RP80522

5.00 1
Image-RP78741

Tesla®

Tesla® Resorte de baño, contacto táctil

Precio de lista: $28.00
Precio en línea: $22.40
Free Ground Shipping All Orders $49+
Acabados estándar

RP78741

Image-RP60911

Delta®

Delta® Abrazadera para manguera de conexión rápida

Precio de lista: $15.80
Precio en línea: $12.64
Free Ground Shipping All Orders $49+
Acabados estándar

RP60911

2.64 11
Image-RP13938

Delta®

Delta® Junta tórica

Precio de lista: $6.90
Precio en línea: $5.52
Free Ground Shipping All Orders $49+
Acabados estándar

RP13938

4.50 2
Image-Master-RP90839

Cassidy®

Cassidy® Wand Assembly-ShieldSpray

Precio de lista: $106.25 - $161.15
Free Ground Shipping All Orders $49+
Acabados Lumicoat
Acabados estándar

RP90839

Image-EP102157 Secondary Image-EP102157

DELTA

DELTA Fuente de alimentación de CA

Precio de lista: $66.75
Acabados estándar

EP102157

4.12 16
Image-RP73000 Secondary Image-RP73000

Trinsic®

Trinsic® Válvula DIAMOND™, Euro-Motion, vástago corto

Precio de lista: $71.95
Precio en línea: $57.56
Free Ground Shipping All Orders $49+

RP73000

3.11 9
Image-RP54975

Lahara®

Lahara® Junta tórica

Precio de lista: $13.40
Precio en línea: $10.72
Free Ground Shipping All Orders $49+
Acabados estándar

RP54975

Image-RP92714

DELTA

DELTA Tornillería de montaje

Precio de lista: $38.45
Precio en línea: $30.76
Free Ground Shipping All Orders $49+
Acabados estándar

RP92714

4.33 3
Image-RP6092

Delta®

Delta® Tuercas y arandelas (2) - Serie 500

Precio de lista: $15.65
Precio en línea: $12.52
Free Ground Shipping All Orders $49+
Acabados estándar

RP6092

Image-Master-RP92377

DELTA

DELTA Botón de manija

Precio de lista: $55.25 - $84.25
Free Ground Shipping All Orders $49+
Acabados Lumicoat
Acabados estándar

RP92377

RESEÑAS
Rated 1 out of 5 by from Solenoid doesn't last 2 years I bought this faucet in 2018 and the solenoid has died every year or two since. Each replacement solenoid lasts a maximum of 2 years and now Delta says they won't replace it.
Date published: 2024-07-01
Rated 1 out of 5 by from NOT A FAN!! I was excited about the On/Off Activation but in reality it is terrible. It often randomly turns off when in use. (I imagine from water splashing up and "touching" it off.) The pressure is also not good at all. Then the battery dies!
Date published: 2024-03-20
Rated 5 out of 5 by from Faucet Fixation I love my new faucet & hope it continues to perform longer than the 7 months our former Lowe’s products were lasting.
Date published: 2023-12-06
Rated 1 out of 5 by from Junk Faucet Complete failure after four years. I had several issues with this faucet: 1. it ate batteries like crazy; 2. the magnets rusted out; 3. the touch feature finally stopped working; 4. and now the mounting base and screw rod completely rusted out and broke. At this point, the faucet is useless.
Date published: 2023-11-15
Rated 1 out of 5 by from Terrible terrible terrible Multiple issues with ghosting, solenoid, etc. not worth it
Date published: 2023-11-03
Rated 4 out of 5 by from Set and Forget This kitchen faucet is the "touch" type. My husband insisted on being technologically forward, so I went ahead and purchased this. It has taken a little bit of getting used to, but, all in all, it is an adequate faucet for my daily needs. The water stream seems to come from different places on the faucet head depending on when I use it. It's not a bothersome feature, just one that leads me to ask the question, "Why?" It does work as advertised. Touching the faucet with the back of my hand or grabbing the handle turns the faucet on and off. Grabbing the faucet will not. This is pretty sophisticated engineering from my perspective, and I am very satisfied with it. The only reason that I gave this 4 stars rather than 5 is the fact that one must "set" the faucet handle in order to use the touch feature. I don't know how this can be engineered differently, and I think I would have been just as happy with this faucet if it were operated only by the handle.
Date published: 2023-10-16
Rated 4 out of 5 by from Great customer service This Cassidy faucet came with a newly remodeled home we purchased so likely a brand new faucet. After nearly 6 years, the head of the hose would not spring back into position and was just hanging. I called Cust Svc and did not have to wait long on hold. They sent me a new part that was easy to install and problem solved. About a year later, the touch feature was not working right. Sometimes touching would not turn on. We changed the batteries but still having trouble. I called Cust service again and they walked me through disconnecting the sensor box under the sink and are sending me a new one. In the meantime, I can use the sauce without it. Very happy that they were so helpful, I didn't have to wait on hold at all, and are sending free replacement parts. The 4 star is for the device having so many issues. But they make up for it by having great Cust service. and free replacement parts.
Date published: 2023-07-27
Rated 5 out of 5 by from Good product Very nice product and shipping was super fast
Date published: 2023-01-24
  • y_2024, m_12, d_20, h_7
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.42
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_168
  • loc_en_US, sid_9197T-PN-PR-DST, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 6ms
  • reviews, product
Preguntas y respuestas

Can I bypass the automatic drip shut off so that I can leave a drip going during below zero temps outside? This would prevent my pipes from freezing.

Asked by: Karen
Hi Karen, Thank you for your question. If you remove the cap from the battery box while the water is running, the faucet will be in manual mode. This will prevent the 4 minute automatic shut-off. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2017-01-17

Can this faucet be installed with the handle on the left?

Asked by: Karen
Thank you for your question. Delta Faucet model # 9197T-AR-DST can be mounted on the left but your hot and cold handle will be reversed.
Answered by: Delta1
Date published: 2024-03-28

What is the height from the counter to the bottom of the handle?

Asked by: Tina O
Thank you for your question, Tina O! The height from the counter to the handle will measure approximately 4 3/4&quot; without the optional escutcheon plate. Best regards, Edward
Answered by: Delta Faucet
Date published: 2024-03-28

It is better to manually shut the faucet off with the handle when not in use For a while or can it be left open? &nbsp;For example, does leaving it open drain batteries after or put more strain on the faucet in some way? &nbsp;

Asked by: MT Richmond
Hi, MT Richmond! Thank you for your question. The Delta 9197T-AR-DST Faucet handle can be left in the 'on' position. This will not drain the batteries or put a strain on the faucet. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

I have a Cassidy kitchen faucet with touch technology. It has started turning on without being touched and only goes off when touched on the base, no other location on the faucet. I have replaced the batteries but no change with this problem.&nbsp;

Asked by: Coder 16
Dear Asker Coder16, Thank you for your question, I will be happy to help you with this. I have reached out to you via personal email to assist you. Best Regards, Samantha Phone: 1-800-345-3358 | Email: customerservice@deltafaucet.com
Answered by: DeltaFaucet7
Date published: 2024-03-28

Should the red LED be on during normal use? Sometimes the red LED is on and sometimes not. It is not blinking. My mother in law has the same faucet but there is a blue LED during use. Where are the instructions about this?

Asked by: RyanfromIowa
Hi, RyanfromIowa! Thank you for your question. A red light on the LED light base indicates hot water in use. The red light can also indicate the batteries do need to be replaced. Best Regards, Rosanna
Answered by: DeltaFaucet11
Date published: 2024-03-28

When will the Cassidy model be available for purchase. The web site says &quot;coming soon'.

Asked by: Andy
Thank you for your question. Delta Faucet model # 9197T-DST is available for purchase now but it is not shipping from our plants until September 7, 2012.
Answered by: Delta1
Date published: 2024-03-28

Installation restrictions

We want to purchase a Delta Touch20 Technology kitchen faucet. We like the Cassidy, Trinsic or Pilar style. Our problem is the back splash is 2-1/8&quot; from the vertical centerline of the faucet to the back splash. The back splash height is 6&quot;. The 2-1/2&quot; base diameter of the faucet would not be an issue. My problem is all the technical drawings for these faucets state the minimum faucet centerline to back splash dimension is 2-1/2&quot;. Unless the faucet handles go backwards beyond vertical, I do not see why I could not install this faucet. Any thoughts.
Asked by: Mat
Good question, Mat, but you should be in luck! Although the installation might be marginally more difficult under the sink from the reduced clearance, it should work fine. This model features the Euro-Motion handle which only rotates forward to eliminate backsplash interference.
Answered by: SR54
Date published: 2024-03-28

PVD treated -- polished nickel

I am interested in getting a polished nickel faucet, but I am concerned about the maintenance. Can you let me me know what kind of maintenance is required? Also, is it PVD treated?
Asked by: H. Speyer
Hi H. Speyer, Thank you for your question! Polished Nickel is a Brilliance finish, which is applied by PVD. https://www.deltafaucet.com/service-parts/faq/faq-tablist-area/tabularlist/other/faq-item-15#answer-c7b01a1a-1844-47d1-a6ad-00871999e26d Here's a link to our guide for cleaning and care. https://www.deltafaucet.com/design-innovation/inspiredliving/how-to-clean-a-faucet Regards, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28

What is the correct replacement solenoid for this model with the AR finish?

Asked by: JCR1
Thank you for your question, JCR1! The part number for the replacement solenoid is going to depend on which solenoid you currently have, and when the faucet was first installed. Any 9197T-DST, that was purchased and installed prior to January 2018 is going to take an EP74855 solenoid. The numbers off the white sticker on the solenoid, will also tell you which replacement you would need. If the white sticker has numbers X00074950, you would need an EP74855 solenoid assembly. If the white sticker has numbers X00090218, you would need EP92546. If you need further assistance, feel free to contact us directly. Best Regards, Benjamin
Answered by: Delta Faucet
Date published: 2024-03-28

What does a solid red light mean when faucet is running

Asked by: Smitty
Hello Smitty, Thank you for your question. A solid red light on your Delta Cassidy Kitchen Pull-Down 9197T-DST faucet, usually means that the solenoid valve is open, water temperature is greater than 110&deg;F (43&deg;C).The red, flashing light means the batteries need to be replaced at the battery pack. Best regards, Tanya
Answered by: Tanya
Date published: 2024-03-28

how long do the batteries last and what type was used

Can only batteries be used or do you have a transformer that can also do the job? Also, about how long is battery life using NiMh rechargeable, lithium, alkaline if never using the touch capability (i.e., longest life) and alternatively the average life for normal use?
Asked by: gar
Thank you for your question. Our touch faucets are recommended to be used with alkaline batteries for the longest life. They will usually last 1-2 years depending on the use of the faucet. There is not a way to hardwire the faucet into a transformer.
Answered by: Delta1
Date published: 2024-03-28

Does the 0 touch work on and off manually if the batteries go dead?

Asked by: Laura
Hello Laura, Thank you for your question. If the batteries powering the Delta Cassidy Kitchen Touch2O 9197T-RB-DST faucet, go completely dead, you would need to replace them in order to get water back running manually and touch wise. Best regards, Tanya
Answered by: Delta Faucet
Date published: 2024-03-28

My nozzle droops. &nbsp;What does the magnet look like? &nbsp;It will stay in place but once tapped to start water flow, the nozzle pops out nearly an inch or more.

Asked by: Lee1953
Hi, Lee1953! Thank you for your question. I am sorry to hear that you are experiencing an issue with your faucet. The magnet kit is available for the Delta 9197T-DST faucet. The magnet kit is RP80977. Here is a link to the part: https://www.deltafaucet.com/parts-product-detail?modelNumber=RP80977 Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

Can you eliminate the batteries and just use the adapter. How much is the adapter?

Asked by: Patricia
Hi Patricia, Thank you for your question. Yes, this faucet can be used with the adapter only, but we advise keeping the batteries attached for back-up. Best regards, Tanya
Answered by: Delta Faucet
Date published: 2024-03-28

HI IM PLANING TO ORDER NEW MODEL#91971T-RB-DST AND I WOULD LIKE TO KNOW WHAT IS THE BODY MADE OUT OF ?

Asked by: CHETNA
Hello Chetna, Thank you for your inquiry! The body of the Delta Cassidy Touch2O Pull-Down Kitchen 9197T-RB-DST faucet is made of metal. Best regards, Tanya
Answered by: Delta Faucet
Date published: 2024-03-28

What is the size hole I need to drill out for single hole installation?

Asked by: Nate
Hi, Nate! Thank you for your question. We recommend the whole size for this faucet to be 3X 1 1/4&quot;to 1 1/2&quot; (32 mm to 38 mm) Hole Size. Here is a link to the technical specifications for this faucet: https://media.deltafaucet.com/SpecSheet/DSP-K-9197T-DST%20Rev%20D.pdf Best Regards, Rosanna
Answered by: Rosanna
Date published: 2017-03-16

I've looked, and can't find anyone who has this faucet in stock. Have you actually started shipping them now?

Asked by: kim
Yes. I would have given you a specific supplier and address if I knew your location, but you may also easily find the Cassidy available online at Amazon, FaucetDirect.com and others. Go to the 'Where to Buy' tab at Delta Faucet for many other authorized suppliers
Answered by: SR54
Date published: 2024-03-28

Hello, Wiil the new ShieldSSpray head fit the hose fittings on an older 9197-rb-dst ? If so ,what is the part number, and the web site address ? Thanks, Mark

Asked by: mark
Hello Mark, Thank you for your question. Yes, the ShieldSpray wand/sprayer assembly RP90839RB will attach to the hose assembly of the older Cassidy Pull-Down Kitchen 9197-RB-DST faucet model. Both model styles uses the same hose assemblies. https://media.deltafaucet.com/PartsDiagram/DPD-K-9197-DST_B.pdf Best regards, Tanya
Answered by: Delta Faucet
Date published: 2024-03-28

Is there a user's manual for this faucet?

Asked by: Philip
Hi Philip, Thank you for your question! Below is a link to the owners manual for the 9197T-AR-DST: http://www.deltafaucet.com/customersupport/documentation/9197t-ar-dst.html?document=mi&amp;fromDetailArea=kitchen&amp;documentIndex=0#flashWrapper Best regards, Brandis
Answered by: DeltaFaucet7
Date published: 2024-03-28

I just installed one of these in our kitchen and I notice that water doesn&rsquo;t get hot even with the handle in full hot position. All lines have been connected properly, are full open, no leaks. Is there an internal limiter in this model that I can adjust?

Asked by: Frostbeard
Hi, Frostbeard! Thank you for your question. There is a limit stop on the valve cartridge assembly, located under the handle, that can be adjusted for hotter water. The diagram and directions for this can be seen on page 8, here: https://media.deltafaucet.com/MandI/X00080320_C.pdf Here are the written directions: Setting The Handle Limit Stop (Optional) This faucet includes an integrated handle limit stop that has two positions. Position 1, to the left, allows full handle motion (the full range between &ldquo;all cold&rdquo; to &ldquo;all hot&rdquo;). The faucet is set in position 1 in the factory. Position 2, to the right, allows half of the normal handle motion (&ldquo;all cold&rdquo; to &ldquo;mixed hot/cold&rdquo;). The handle limit stop can be adjusted by the homeowner once the faucet is installed. Setting the handle limit stop in position 2 may help to prevent scalding because it limits the amount of hot water in the mix; however, this handle limit stop will not always prevent scalding because it does not compensate for incoming pressure or sudden water temperature changes. To change positions of the handle limit stop: remove the handle; move the valve stem to the all cold position so the water is on; change the position of the handle limit stop; turn off the water; reinstall the handle. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

Delta: Why is this listed as an &quot;Electronic Faucet&quot; under your technology filter which appears to mean proximity activated, but that feature is not mentioned anywhere in the description?

Asked by: Barb99
Hi, Barb99! Thank you for your question. The 9197T-DST is a Touch2O&reg; Technology faucet. OurTouch2O.xt&reg; Technology Proximity feature is only available on some of our Lavatory faucets at this time. Our apologies for this confusion. Best Regards, Rosanna
Answered by: DeltaFaucet11
Date published: 2024-03-28

Can you shut off the Touch technology and use as a regular faucet if the Touch is acting up or stops working?

I saw a lot of mixed reviews regarding this product. If the touch technology does act up, can you just use this faucet as a manual faucet or would you have to completely replace the faucet?
Asked by: Meredith
Dear Meredith, Thank you for your inquiry! Yes, the Delta Cassidy Kitchen Pull-Down 9197T-DST faucet can be used as a regular faucet. You would simply remove the batteries from the faucet, while it is running or completely remove the solenoid and battery box assemblies and connect the faucet as standard pull-down faucet. Please review &quot;Manual Bypass&quot; section on page 44 of the below document, for diagram instructions. https://media.deltafaucet.com/QuickstartDiagram/QS-82180%20Rev%20E.pdf Best regards, Tanya
Answered by: Tanya
Date published: 2017-05-27

My backsplash is too close. What can be done?

Can the Cassidy faucet cartridge and handle be installed at an angle increasing the forward motion while reducing the required clearance to the backsplash? If not, can the entire faucet be rotated in the mounting hole to move the handle forward?
Asked by: Steve
Thank you for your question. Delta Faucet model # 9197T-DST has to have a minimum clearance to the backsplash of 2 1/2 inches. If you using a single hole mount, you can rotate the faucet so that the handle is in the front to avoid the handle hitting the backsplash. However, your hot and cold will then be side to side instead of back to front.
Answered by: Delta
Date published: 2024-03-28

Lately the light has been flashing red 3 times when I touch the faucet to either turn it on or turn it off. Does anyone have any idea what this could be signaling? I replaced the batteries less than 6 months ago so that shouldn't be an issue.&nbsp;

Asked by: Don20
Thank you for your question, Don20! The only time a Delta Touch20 Faucet indicator will blink red three consecutive times is if the battery power is getting low. Please be sure all batteries are brand new, inserted in the correct direction, and that no wires are touching anything metallic, electronic or each other. We also only recommend Alkaline batteries as Lithium Ion batteries will not last as long. Please contact us directly if you need further assistance with this model and we'd be glad to help. Best regards, Edward
Answered by: Delta Faucet
Date published: 2024-03-28

Can I put a Cassidy sprayer assembly on a Leland faucet?

Asked by: MS
Hello MS, Thanks for your question. Unfortunately, the spray head assembly that comes with the faucet is the only one that will fit properly. Best Regards, Justin
Answered by: DeltaFaucet4
Date published: 2024-03-28

Is there a deck plate available for this faucet? Model # in stainless

Asked by: Annette
Dear Annette, Thank you for your inquiry! The RP71545AR is the escutcheon plate in Arctic Stainless finish for the Delta Cassidy Touch2O Technology Kitchen 9197T-AR-DST faucet model. https://media.deltafaucet.com/PartsDiagram/DPD-K-9197T-DST.pdf Best regards, Tanya
Answered by: Tanya
Date published: 2024-03-28

DOES DELTA MAKE A 3.0 GPM PULL DOWN KITCHEN FAUCET? HOW ABOUT A 2.5? WHICH ONES?

Asked by: Jack
Hi there Jack, Thank you for your question. All Delta Pull-Out/Down Kitchen faucets come with either 1.5 or 1.8 GPM flow rate. We do not make any 2.5 or 3 GPM flow rate unit do to local and state plumbing codes and policies. Best regards, Tanya
Answered by: Tanya
Date published: 2024-03-28

Can I use a solenoid to plug this in instead of using batteries?

Asked by: Cathy
Hi Cathy, Thank you for your question! You can use the EP73954 Power Supply instead of batteries. However, we recommend to have batteries installed in case the power goes out. https://www.deltafaucet.com/parts-product-detail?modelNumber=EP73954 Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2017-08-03

Our faucet has many issues, but the latest is... When we turn it off via the touch feature, it take about 5-30 seconds to shut off. It just Very Slowly decreases pressure until it is off. How can I fix this? (I already changed the batteries)

Asked by: Charlie
Hi, Charlie! Thank you for your question, and I am sorry to hear that you are experiencing a leak from your Delta faucet. I am happy to help you. Leaking from the faucet in the touch off mode comes from debris inside the solenoid. You may flush the solenoid by following these next steps. 1. Turn the water supply by putting your handle in the manual off position. 2. Disconnect the sprayer hose by removing the blue retaining clip. 3. Place a bucket under the male adapter coming out from the solenoid. 4. Run water into the bucket for 2-3 minutes. Debris located inside the solenoid should be flushed out after completing these steps. Please contact us back if you have any questions or need further assistance. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28
  • y_2024, m_12, d_20, h_7CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.42
  • cp_2, bvpage2n
  • co_hasquestionsanswers, tq_122
  • loc_en_US, sid_9197T-PN-PR-DST, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 8ms
  • questions, product
* El precio real puede variar, y lo determina el minorista/mayorista/distribuidor que vende el producto.
