Delta®

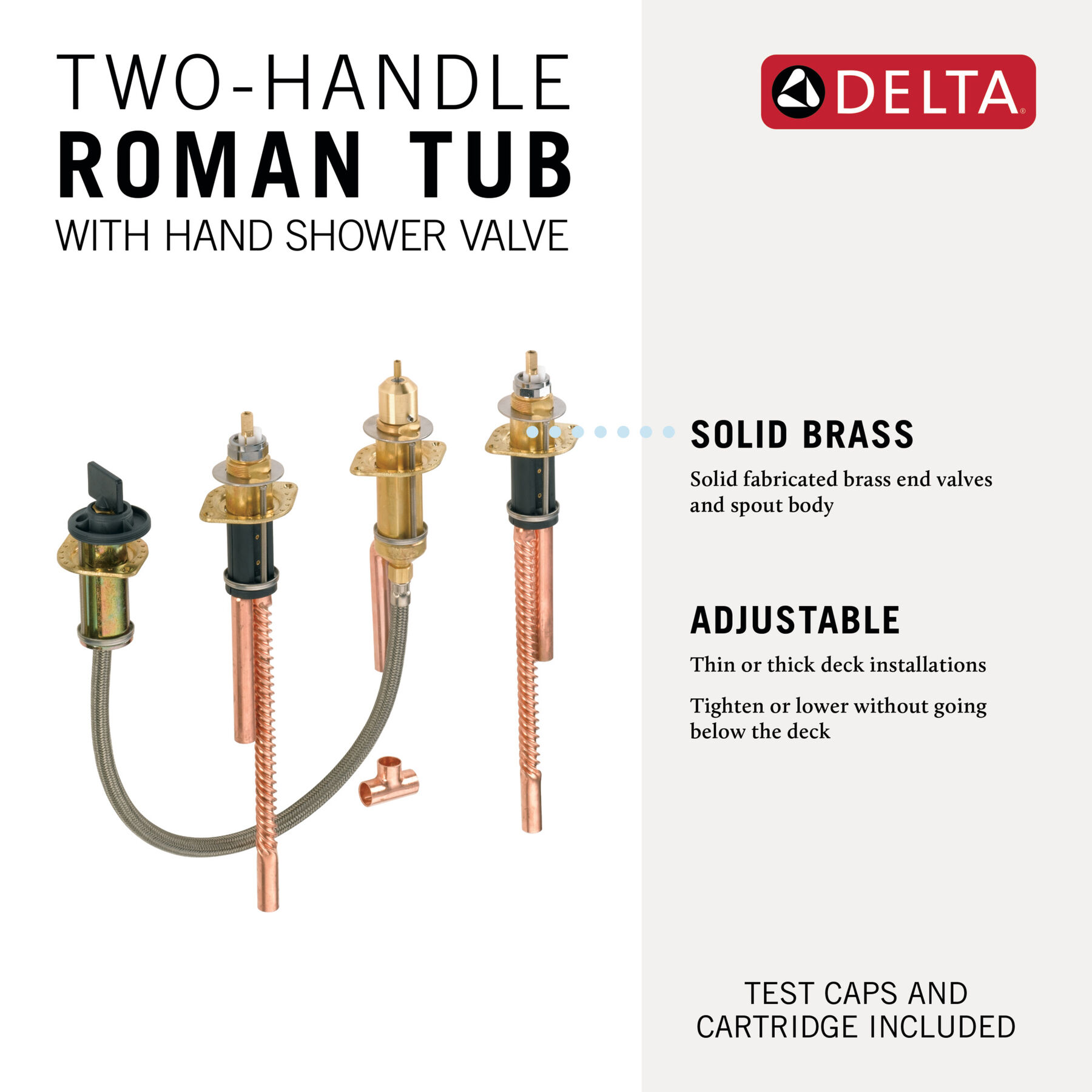

Montaje flexible para dos manijas con ducha manual
N.º de modelo: R4707
- CARACTERÍSTICAS DEL PRODUCTO
- Documentos y especificaciones
- RESEÑAS
- Preguntas y respuestas
- LISTA DE PIEZAS
CARACTERÍSTICAS DEL PRODUCTO
- Incluye válvula interior para ducha manual que facilita más la instalación
- La fácil instalación también permite el ajuste sobre la encimera
- La disposición de montaje variable aporta flexibilidad el diseño
Información especial
ADVERTENCIA de la Proposición 65 de California
ADVERTENCIA DE LA PROPOSICIÓN 65 de California
Este producto puede exponerle al plomo, que según el estado de California causa cáncer y anomalías congénitas u otros daños reproductivos.
Para obtener más información, visite http://www.P65Warnings.ca.gov.
Documentos y especificaciones
Soporte para productos, repuestos y especificaciones técnicas
Información de instalación
Instalación con 4 orificios de 8-16"
Overall Height (in.) :
1 3/4
Voltaje:
0
Tipo de válvula:
Cartucho de vástago sin arandelas
SOPORTE PARA LA INSTALACIÓN
¿Necesita ayuda con la instalación? Busque instaladores locales de Delta® Obtenga cotizaciones. Lea reseñas.
¿Necesita ayuda con la instalación? ¡Mike y Hannah están aquí para ayudar! Reciba consejos de los profesionales para todo, desde la instalación hasta el cuidado del producto.
LISTA DE PIEZAS
LISTA DE PIEZAS
View Product
![Image-RP4993]()
Delta®
Delta® Asientos y muelles (2 c/u)
Precio de lista: $8.85
Precio en línea: $7.08
Free Ground Shipping All Orders $49+
Acabados estándar
RP4993
4.69 97
View Product
![Image-RP40507]()
Discontinuado
Delta®
Delta® Arandela inferior y cuerpo - Bañera tipo romana - R2700/R4700
Precio de lista: $6.45
Acabados estándar
RP40507
View Product
![Image-Master-RP6060]()
Delta®
Delta® Tuercas de bonete (2) - Para cocina o baño de dos manijas
Precio de lista: $19.80 - $38.20
Free Ground Shipping All Orders $49+
Acabados estándar
RP6060
View Product
![Image-RP40505]()
Delta®
Delta® Arandela superior y cuerpo - Bañera tipo romana - R2700/R4700
Precio de lista: $8.95
Precio en línea: $7.16
Free Ground Shipping All Orders $49+
Acabados estándar
RP40505
View Product
![Image-RP40615]()
Delta®
Delta® Conjunto de desviador para cuerpo de tubo de salida - Bañera tipo romana - R4700
Precio de lista: $112.85
Precio en línea: $90.28
Free Ground Shipping All Orders $49+
Acabados estándar
RP40615
View Product
![Image-RP18361]()
Discontinuado
Delta®
Delta® Conector en T
Precio de lista: $7.65
Acabados estándar
RP18361
View Product
![Image-RP24096]()
![Secondary Image-RP24096]()
Delta®
Delta® Conjunto de unidad de vástago
Precio de lista: $34.95
Precio en línea: $27.96
Free Ground Shipping All Orders $49+
Acabados estándar
RP24096
4.60 42
View Product
![Image-RP40503]()
Discontinuado
Delta®
Delta® Tornillo - Bañera tipo romana - R2700 y R4700
Precio de lista: $3.45
Acabados estándar
RP40503
View Product
![Image-RP40668]()
Delta®
Delta® Conjunto de válvula de desviador - Bañera tipo romana - R4700
Precio de lista: $41.60
Precio en línea: $33.28
Free Ground Shipping All Orders $49+
Acabados estándar
RP40668
2.50 8
View Product
![Image-RP40666]()
Delta®
Delta® Conjunto de vástago para ducha manual - R4700 - Bañera tipo romana
Precio de lista: $28.05
Precio en línea: $22.44
Free Ground Shipping All Orders $49+
Acabados estándar
RP40666
View Product
![Image-RP40667]()
Delta®
Delta® Manguera principal - Bañera tipo romana - R4700
Precio de lista: $28.05
Precio en línea: $22.44
Free Ground Shipping All Orders $49+
Acabados estándar
RP40667
1.00 2
View Product
![Image-RP40510]()
Delta®
Delta® Conjunto de válvula de extremo - Bañera tipo romana - R2707/R4707
Precio de lista: $82.50
Precio en línea: $66.00
Free Ground Shipping All Orders $49+
Acabados estándar
RP40510
4.00 1
RESEÑAS
Rated 5 out of
5
by
PlumberMN73 from
Install for me = Child’s Play
Easy basic typical install. Installed 120 of these in new condo building.
Date published: 2023-10-15
Rated 2 out of
5
by
Priss from
Install Issues
I bought this unit for a Roman tub set up. After installation the plumber and I realized the handles (valves) turn a half turn rather than a quarter, as specified. So now my handles interfere with each other. Plus, the diverter will not allow the hand held shower to come on unless there is a lot of water pressure and the hand held shower will not cut off unless the water is turned off. It cannot be operated with the plunger behind the spout.
Date published: 2023-10-05
Rated 5 out of
5
by
Shaun from
Easy and universal
Easy and universal to install
Date published: 2023-01-24
Rated 5 out of
5
by
djfixer from
Easy to install
Easy to install and easy to replace cartridges when necessary
Date published: 2022-09-12
Rated 5 out of
5
by
PT from
Nice
Goes with Roman tub set purchased as separates
Date published: 2022-06-18
Rated 5 out of
5
by
Redtail from
Easy to install
Plumber had no problem installing
Date published: 2022-04-24
Rated 5 out of
5
by
SMB from
Nice product
Parts are high quality and work great.
Date published: 2021-10-25
Rated 5 out of
5
by
Mrs D from
No issues
Perfect fit for the faucet. Works well.
Date published: 2021-07-14
Preguntas y respuestas
Is this the correct kit to use when mounting to the tub rather than the deck?
I am looking at purchasing the T4751SS Dryden roman tub faucet with hand shower. To complete the rough ins it is my understanding that I need the R4707 rough in kit. Will this work for mounting to the tub rather than the deck. Also, is there an additional valve that needs to be purchased and if so what is the model number. Thanks!
Thank you for your question. Delta Faucet model # T4751-SS and R4707 are only recommended to be deck mounted.
Date published: 2024-03-28
do you have a 3/4" valve roman tub set and rough set available?
Thank you for your question. Delta Faucet Roman Tub models are 1/2" valves.
Date published: 2024-03-28
Minimum Spread
I have am looking for appropriate deck mount faucet for a Kohler Sunstruck freestanding tub. From the tub measurements the space available on the deck is 9 13/16 "" wide. It looks to me that the roughin diagram requires a minimum space of 10-12" to install this rough in. Is that accurate?
Hi Thomas, Thank you for your question. We do not offer a roman tub faucet with hand shower that will fit in a 9-13/16" space. You may want to look at the Brizo Quiessence model 67214 as it is a single handle roman tub faucet trim with hand shower and doesn't require as much space to mount.
http://www.brizo.com/search/results.html?collection=BRZ_all&num=20&q=67214
Thanks,
Dave
Date published: 2024-03-28
What if my tub deck is thick?
Im using the Delta Leland Venetian T2775 faucet on my tub deck. My deck before tile and backer board is 3 inches thick(high). Is there a rough in valve that will work with this faucet and tub deck? My backerboard is going to be 1/2 inch thick and the tile is an additional 1/4 inch thick.
Thank you for your question. The maximum deck thickness for Delta Faucet model # R4707 is 2 1/2 inches. Since you say that your tile is thicker than that, we recommend installing before you mud and tile.
Date published: 2024-03-28
Is this the correct rough for Lahara 4 hole roman tub Model T4738-ss
Thank you for your question. Delta Faucet model # T4738-SS will need the R4707 to make a complete faucet.
Date published: 2024-03-28
good morning, I need to replace the shower valve in the master bath. I will only have access from the wall behind. So I need a two handle shower valve I really need temperature control or flow control so I dont get scolded when someone turns the water
Hello Al,
Thank you for your inquiry! Unfortunately, Delta no longer manufactures two and/or three handled shower and tub/shower faucets and valves. We would advised installing a new Delta MultiChoice Universal Shower R10000-UNBXHF valve and your choice of style of the 17 Series Shower Trim kits. Please see valve and trim kit links below.
https://www.deltafaucet.com/bathroom/product/R10000-UNBXHF
https://www.deltafaucet.com/search-results?searchTerm=17%2520Series%2520Valve%2520trim
Best regards,
Tanya
Date published: 2024-03-28
Do you have an extension kit for mounting on a 2 3/4" thick counter top?
Hi, Michael911!
Thank you for your question. The Delta R4707 Two Handle Flexible Mount with Hand Shower is an adjustable Rough-In for Thin or Thick deck installations. It is designed to fit 2 1/2" (63.5 mm) Max. Deck
Thickness only however and does not have an available extension kit unfortunately.
Best Regards,
Rosanna
Date published: 2024-03-28
Granite provider want hole cut in plywood tub deck to allow faucets & sprayer to be attached directly to granite. How big of an opening should I cut
Granite provider wants one opening cut in plywood tub deck to allow for faucets and sprayer to be attached directly to granite. How big should that opening be to allow for that ?
Dear Rob,
Thank you for your inquiry! The Delta Roman Tub Rough-In Valve R4707 has recommended holes sizes of 2" (51 mm) diameters. Please review the below Technical Specifications for this unit.
https://media.deltafaucet.com/SpecSheet/DSP-B-R4707%20Rev%20D.pdf
Best regards,
Tanya
Date published: 2017-06-06
what size holes to drill in the tub surround deck to install the 4092 rough in kit for a roman tub faucet 4792
the directions say 1 1/2' for standard and 2" for thick tile... how do you tell the difference? I have a tile deck, but all of the rough parts look like they fit in 1 1/2'... I am confused and do not want to drill the wrong size holes through my tile and deck. Thank you.
Thank you for yor question. Delta Faucet model # R4707 has a maximum deck thickness of 2-1/2" and while we do not recommend drilling the holes until you have the product, we do understand that sometimes it is necessary. Included are the specs for the product that should show you what you need.
http://www.deltafaucet.com/customersupport/documentation/r4707.html?document=ts&documentIndex=0#flashWrapper
Date published: 2024-03-28
My plumber says I need a mixing valve to install the R4707 deck mount roman tub. Someone else said it is integrated with this Rough-In kit. Do we need the mixer valve? Thanks
Hello Sherri,
Thank you for your question. There is no mixing valve needed when installing the Delta Two Handle Roman Tub Rough-In Valve R4707.
Best regards,
Tanya
Date published: 2024-03-28
What is the flow rate for this valve?
Thank you for your question, Tilly! The R4707 valve does not have a flow restrictor, so the flow rate will depend entirely on the pressure or PSI in your home. This should be between 15-20 gallons per minute at 40-80 PSI.
Best regards, Edward
Date published: 2024-03-28
I have the delta r4707 deck mount roman tub and hand shower rough in kit installed and ready to solder the connections. Do I need to disassemble the valves in any way before soldering the 5 connectors?
Hi, Gonzo!
Thank you for your question. You do not have to remove or disassemble the valve assembly before installing the connections.
Best Regards,
Rosanna
Date published: 2024-03-28
Use with PEX supply lines
My housed is being re-plumbed with PEX supply lines. A plumber will be installing new bath fixtures including deck mount tub faucet.
Can R4707 be used for roman tub faucet with handshower or do I have to find model R4707-PX?
Hi Dee,
Thank you for your question. You may use the R4707 rough-in valve if you install PEX adapters.
Best regards,
Jon
Date published: 2024-03-28
On the center valve. Does it one water inlet and two outlets one for shower and one for faucet. I have a jacuzzi with a 5 hole.
Hi, Cornelius!
Thank you for your question. The Delta R4707 Roman Tub Rough Valve includes a connection for a hand shower, two handle valve ends, and a spout valve end that includes a diverter to diver water from the spout to the attached hand shower.
Best Regards, Rosanna
Date published: 2024-03-28
Have roman tub filler with sprayer. Lift rod no longer raises diverter. Removed the rod and threads look ok. assume diverter valve is stripped. Talked with customer service and they are sending new one. How do I replace. Does it just screw out?
Hello Bigzog2,
Thank you for your question. Yes, the diverter assembly unscrew from the end of the lift rod. You would just want to screw the new one on the end of the old rod.
Best regards,
Tanya
Date published: 2024-03-28
does this come with an anti-scald valve?
My plumber is telling me if I have a handshower in the tub I am required to have an anti scald valve- does this have the anti-scald feature required? If not, please let me know what part number is needed to satisfy this requirement.
Thank you for your question. Delta Faucet model # R4707 is not an anti-scald valve. You can make it this by installing Delta Faucet model # R2570-MIXLF to hot side of your valve. This will help regulate your temperature to prevent scalding.
Date published: 2024-03-28
What are the connections on the leader hose RP51099?
Thank you for your question, JBtx. Delta Faucet part # RP51099 has two different thread sizes. One side is 1/4 -18 and the other side is 15 X 1MM.
Best Regards, Benjamin
Date published: 2024-03-28
Can't find detail for connection of roman tub shower handle to rough hardware for model # R4707
Thank you for your question, Ralp! The information needed to install this roman tub flexible mount with hand shower can be found in the maintenance and installation manual.
https://media.deltafaucet.com/MandI/80162%20Rev%20C.pdf
Best regards, Edward
Date published: 2024-03-28
I don’t have 3” between the hole and the wall. Can I still use this?
Thank you for your question, Ambernada! Unfortunately, there would need to be a minimum distance of 5 inches, from the center of the holes to the finished wall.
Best Regards, Benjamin
Date published: 2024-03-28
what is the GPM rating on r4707?
Thank you for your question, Dana! The R4707 valve body has a maximum flow rate of 18.0 gpm @ 60 psi.
Best Regards, Benjamin
Date published: 2024-03-28
What trim kits are suitable for the R4707 Rough
Hi Robert,
Thank you for your question. Any deck mounted T47_ Roman Tub trim kit with a hand shower will work with this valve. Please click the link below and select "Roman Tub with Hand Shower" to browse our current selection.
https://www.deltafaucet.com/bathroom/bathing/tub-fillers
Best regards,
Jon
Date published: 2017-02-23
What top mount tub faucet matches this rough in kit
Thank you for your question, Sara! Any Delta deck mounted Roman Tub trim kit with a hand shower will work with this valve. These models will begin with T47. Below is a link to our current selections, simply select "Roman Tub with Hand Shower".
https://www.deltafaucet.com/bathroom/bathing/tub-fillers
Best regards, Edward
Date published: 2024-03-28
Is your Two Handle Flexible Mount With Hand Shower (MODEL#: R4707) compatible with the Orchestra 6032 AcrylX Freestanding Tub (MODEL NUMBER: 106150-000-002)?
Hi BillC,
Thank you for contacting Delta Faucet. Please accept our sincere apology for the inconvenience you are experiencing. We will be happy to assist you in resolving this issue as quickly as possible.
Our Delta Faucet Delta Two Handle Flexible Mount With Hand Shower
MODEL#: R4707 is compatible with Delta Faucet roman tub trims. Please search the link below of our recommend trims.
https://www.deltafaucet.com/search-results?q=delta+Faucet+roman+tubs&lang=en_US
Thank you for being a loyal Delta Faucet customer. Please feel free to call, email, or message us on social if you need anything else.
Best Regards,
Themar
Digital Communications Specialist
Date published: 2024-03-28
can i extend the hose to the handheld to place it on the ither side of the tub on a r4707 rough
Hi tony, thank you for contacting Delta Faucet Company!
Yes, you can extend the handshower to the other side of the tub. The 7' foot leader hose part number will need to be purchased, RP51099.
We appreciate your inquiry. Please reach out directly if you have further questions!
Best Regards,
Kyra
Digital Engagement Specialist
Date published: 2024-03-28
Plumber accidentally installed one of the handle sides backwards so the handle spins outwards instead of inwards. Can I just remove and flip the cartridge around?
Hello Starsky95!
Thank you for your question and we are happy to help. The Delta cartridges quarter turn stop may be removed and replaced to repair your handle. With any further questions or concerns, please do not hesitate to reach out to us again.
Best Regards,
Carrie
Date published: 2025-01-07
I need to know if T4732 is the proper trim for MODEL#: R4707? Thanks
Hi tb plumbing,
Thank you for your question about the Delta Faucet model R4707. I am sorry this information was not readily available, and I am happy to help!
Yes, the Roman Tub Trim with Hand Shower model T4732 would use the R4707 valve rough.
Please contact us directly if you have any questions or need additional assistance. We appreciate your business and look forward to continuing to serve you!
Best Regards,
Bryan
Digital Communications Specialist
Date published: 2024-03-28
You have the ornament, can you send me a link to purchase it? I need the ornament, someone responded to my previous message but it only took me to their website which didn't help me at all.
Hello Valued Customer,
Thanks so much for contacting Delta Faucet Company!
The Two Handle Flexible Mount With Hand Shower MODEL#: R4707 can be purchased online or locally. Please see our Where to Buy page for help finding dealers in your area or online.
https://www.deltafaucet.com/where-to-buy?pid=R4707
Please reach out with further questions!
Best Regards,
Kelley
Digital Communications Specialist
Date published: 2024-03-28
Are there installation pdfs somewhere to review?
Hi Ronn,
Thanks so much for contacting Delta Faucet Company about, R4707!
I have included a link below to the installation instructions for the rough valve.
https://media.deltafaucet.com/MandI/109457%20Rev%20C.pdf
Please contact us directly if you have any questions or need additional assistance.
Best Regards,
Nicole
Digital Communications Specialist
Date published: 2024-03-28
Can you please provide information how this can be adjusted above the deck once installed? The handles point the wrong way and the plumber needs to be able to adjust the lever placement above deck now that it is installed without access below.
Hi JM88,
Thank you for contacting Delta Faucet Company!
We apologize for the issues you are experiencing and we are happy to help! The valve cannot be adjusted when the finished deck has already been installed. We have reached out to you directly to further assist you with this matter.
We appreciate your inquiry. Please reach out directly if you have further questions!
Best Regards,
Kyra
Digital Communications Specialist
Date published: 2024-06-11
Are the R4707 and or the R4707-MF or R4707- PX interchangeable with the R64707 Brizo product for Roman bathtub in California?
Hi Ram_08,
Thank you for your question!
The Delta Faucet R4707 and Brizo R64707 can be used interchangeably.
Please reach out with any additional questions!
Best Regards,
Bryan
Digital Communications Specialist
Date published: 2023-08-25
Información especial
ADVERTENCIA de la Proposición 65 de California
ADVERTENCIA DE LA PROPOSICIÓN 65 de California
Este producto puede exponerle al plomo, que según el estado de California causa cáncer y anomalías congénitas u otros daños reproductivos.
Para obtener más información, visite http://www.P65Warnings.ca.gov.
Precios de Delta en línea
Este precio en línea es exclusivo de DeltaFaucet.com. El precio de lista puede aparecer en productos ofrecidos fuera de la sección de la tienda outlet en DeltaFaucet.com. Pueden usarse precios tachados para mostrar descuentos.
