Ara®
Ver toda la colección para baño Ara®

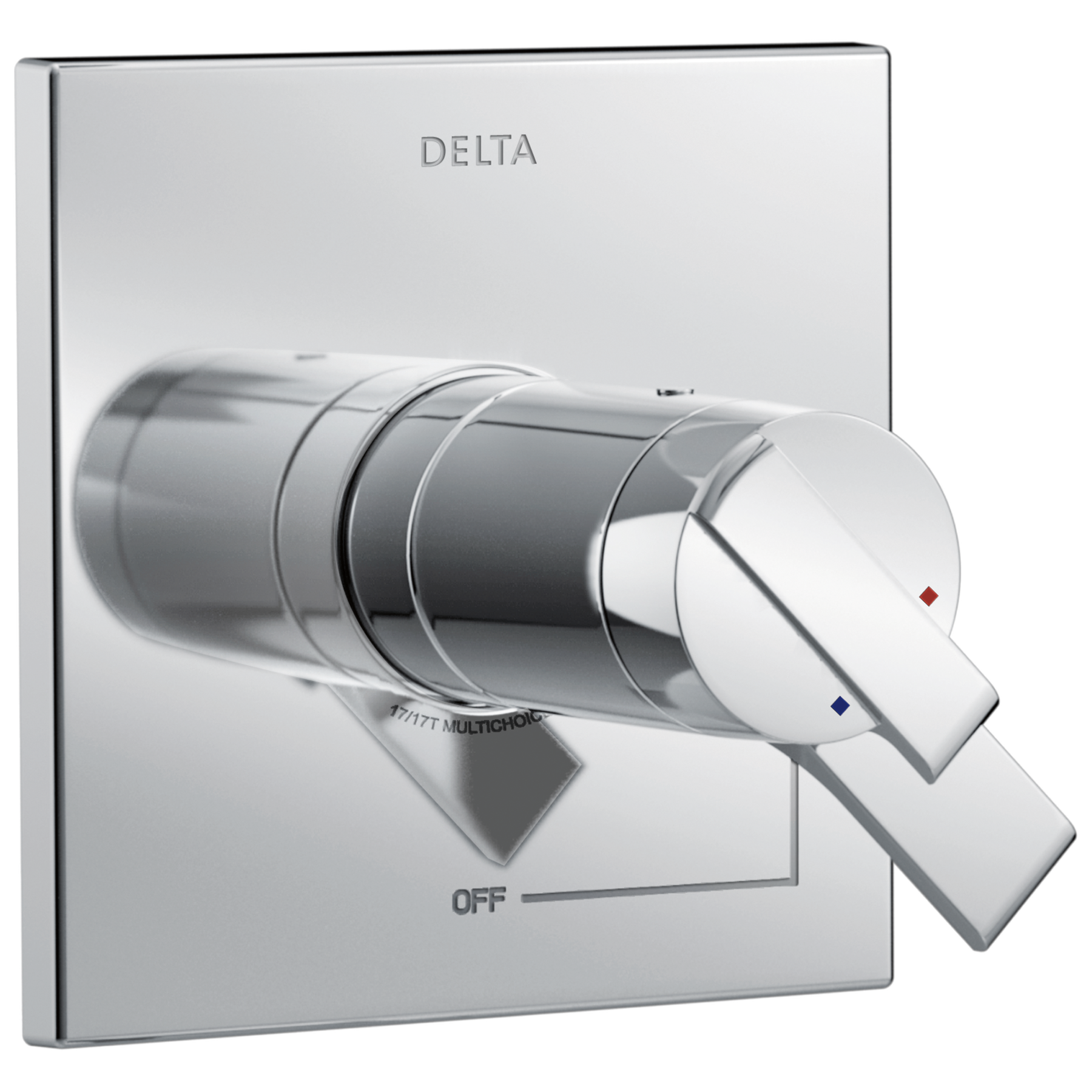

TempAssure® 17T Series Valve Only Trim in Chrome

N.º de modelo: T17T067
Agregar a favoritos
Busque instaladores locales de Delta®
Ara®
Ver toda la colección para baño Ara®
TempAssure® 17T Series Valve Only Trim in Chrome
N.º de modelo: T17T067
Precio de lista: $52865
Agregar a favoritos
Busque instaladores locales de Delta®
CARACTERÍSTICAS DEL PRODUCTO
Con manijas separadas para controlar el volumen y la temperatura, esta bañera/ducha de Delta brinda una experiencia de ducha más refinada. Simplemente configure el agua a su temperatura preferida y abra o cierre la ducha con la manija de control de volumen, sin interrumpir la temperatura establecida. El cromado se ha convertido rápidamente en uno de los acabados más populares en todos los estilos de decoración de baño gracias a su impactante brillo y versatilidad natural. Combinado con líneas definidas y blancos brillantes, crea un contraste moderno y audaz, pero combina igualmente bien con estilos de época y espacios tradicionales para transmitir un toque de nostalgia.
  • Controle el volumen y la temperatura del agua de forma independiente con dos manijas por separado para un control más refinado de su experiencia de ducha
  • La válvula termostática TempAssure mantiene el agua a una temperatura segura dentro de los +/-3º F (+/-1.6º C) y así, protege contra cambios repentinos en la presión del agua fría o caliente.
  • Juego de terminación solamente, se debe pedir la válvula universal MultiChoice® por separado para completar la unidad
  • La manija de la palanca de metal cumple con las normas de la Ley para Estadounidenses con Discapacidades (ADA, por sus siglas en inglés)
  • Tubería interna de 1/2".
  • Capacidad de instalación dorso contra dorso
  • Ajustable en campo para limitar la rotación de la manija en la zona de agua caliente.
  • Se ajusta para un espesor de pared de hasta 1".
  • Los gráficos indican el ajuste de temperatura caliente/fría.
Información especial
Imagen de advertencia
ADVERTENCIA de la Proposición 65 de California
Technology and Special Features
Cumplimiento con la ADA
Control de volumen
Válvula universal MultiChoice®
TempAssure™
Documentos y especificaciones
Soporte para productos, repuestos y especificaciones técnicas
Ver especificaciones técnicas
Ver hoja de mantenimiento e instalación
Ver diagrama de repuestos y accesorios
Registrar su producto
Recursos
Archivos de diseño
Información de instalación
Overall Height (in.) :
6 1/2
Voltaje:
0
Tipo de válvula:
Cartucho termostático de doble función

SOPORTE PARA LA INSTALACIÓN

¿Necesita ayuda con la instalación? Busque instaladores locales de Delta® Obtenga cotizaciones. Lea reseñas.

IR
Escriba un código postal válido.
Mike y Hanna
Miniatura del logotipo de Delta

¿Necesita ayuda con la instalación? ¡Mike y Hannah están aquí para ayudar! Reciba consejos de los profesionales para todo, desde la instalación hasta el cuidado del producto.

Explorar videos
LISTA DE PIEZAS

LISTA DE PIEZAS

Image-Master-RP75438

Ara®

Ara® Cubierta y junta - Serie 17

Precio de lista: $134.10 - $207.05
Free Ground Shipping All Orders $49+
Acabados estándar

RP75438

Image-Master-RP196

Delta®

Delta® Tornillos (2) - Accesorio de cubierta

Precio de lista: $8.85 - $17.40
Free Ground Shipping All Orders $49+
Acabados estándar

RP196

Image-RP47201 Secondary Image-RP47201

Delta®

Delta® Conjunto de cartucho - Válvula universal MultiChoice® - Serie 17T

Precio de lista: $527.00
Precio en línea: $421.60
Free Ground Shipping All Orders $49+
Acabados estándar

RP47201

2.45 20
Image-RP23336

Delta®

Delta® Junta tórica - Grande - Todas las series Monitor®

Precio de lista: $6.75
Precio en línea: $5.40
Free Ground Shipping All Orders $49+
Acabados estándar

RP23336

5.00 5
Image-RP52384

Delta®

Delta® Tornillo de fijación, llave y cubierta de botón

Precio de lista: $13.75
Precio en línea: $11.00
Free Ground Shipping All Orders $49+
Acabados estándar

RP52384

Image-Master-RP50879PCPR

Dryden®

Dryden® Trim Sleeve - Tub

Precio de lista: $38.65 - $68.75
Free Ground Shipping All Orders $49+
Acabados Lumicoat
Acabados estándar

RP50879PCPR

Image-Master-RP51035

Delta®

Delta® Bracket & Screws - Shower

Precio de lista: $36.35 - $42.10
Free Ground Shipping All Orders $49+
Acabados estándar

RP51035

Image-RP12630

Delta®

Delta® Tornillos (2) - Extralargo - Accesorio de cubierta

Precio de lista: $16.20
Precio en línea: $12.96
Free Ground Shipping All Orders $49+
Acabados estándar

RP12630

4.22 9
Image-Master-RP75442

Ara®

Ara® Metal Lever Handle Kit - 17T Series

Precio de lista: $88.00 - $115.30
Free Ground Shipping All Orders $49+
Acabados estándar

RP75442

Image-Master-RP51034

Vero®

Vero® Brida - ducha

Precio de lista: $23.25 - $41.65
Free Ground Shipping All Orders $49+
Acabados estándar

RP51034

Image-Master-RP75441

Ara®

Ara® Temperature Knob & Cover - 17 Series

Precio de lista: $43.35 - $58.25
Free Ground Shipping All Orders $49+
Acabados estándar

RP75441

Image-RP75136

Delta®

Delta® Kit de extensión TempAssure® serie 17T

Precio de lista: $89.80
Precio en línea: $71.84
Free Ground Shipping All Orders $49+
Acabados estándar

RP75136

Image-Master-RP75435

Ara®

Ara® Tubo de salida para bañera - Desviador con tirador hacia arriba

Precio de lista: $88.75 - $170.85
Free Ground Shipping All Orders $49+
Acabados estándar

RP75435

RESEÑAS
Rated 3 out of 5 by from Not impressed with the value of this trim As others noted: a plastic temperature control knob? At this price point? There's not even a set screw, it just snaps on. Time will tell if this faucet will last, but construction versus similar Hansgrohe is night and day. I would not buy this again.
Date published: 2024-08-08
Rated 4 out of 5 by from Cheap plastic temp handle! This product is superior in design and would have been a five star rating...except for the temperature handle. The handle is cheap plastic that snaps on and wobbles around due to a loose fitting design. I replaced the temperature handle with the RP62959SS which is metal and is secured with a screw for a nice tight fit. Shame on Delta for making such a poor design decision. Delayed my project and cost me more.
Date published: 2023-05-23
Rated 5 out of 5 by from Design and practical Appreciate the innovative practical use and heavy duty built
Date published: 2022-06-03
  • y_2025, m_1, d_22, h_6
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.42
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_3
  • loc_en_US, sid_T17T067, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 4ms
  • reviews, product
Preguntas y respuestas

Is it recommended to caulk around the T17T067 trim escutcheon plate?

The trim is snug against tile and has some kind of foam gasket inside. However, it seems inevitable that water will travel behind the trim and, possibly, into the wall. Is caulk required? Recommended?
Asked by: Steve S
Hi Steve, Thank you for your question. The escutcheon in the model T17T067 will seal with the foam gasket. You can seal with an additional bead of caulk if you desire, but it is not required. Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2024-03-28

My T17T067 turned all the way to hot is only warm

In my new build home, the shower valve when set to maximum hot only allows warm water. nearby faucets and other showers produce very hot water so its not a water temperature issue. Is this a something to do with the temperature feature of this shower valve? How do I correct?
Asked by: Briz55
Hi Briz55, Thank you for your question! The cartridge can be adjusted to allow for hotter water. Please see our How-To Video below for adjusting the Rotational Limit Stop. https://www.deltafaucet.com/cms/render/live/en/sites/delta/home/video-gallery/video-page.html?videoId=n2_uZ7wgV1I Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2016-11-22

Is hot water to the left or right?

My plumber just installed this valve trim. It seems that the hot water is to the right and the cold to the left. This is different than all my other delta faucets. Did he install it the wrong way?
Asked by: NY homeowner
Hi NY homeowner, Thank you for your question! The hot side is normally on the left. Rotating the temperature dial counter-clockwise should increase the temperature. In a reverse or back-to-back installation, you can install the cartridge upside down to achieve the correct handle operation. Please click the link below to view the back-to-back installation instructions on page 3. http://www.deltafaucet.com/customersupport/documentation/t17t067.html?document=mi&fromDetailArea=bath&documentIndex=0#flashWrapper Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28

What is the GPM for this faucet?

Asked by: Chris
Thank you for your question, Chris! The flow rate will depend on the rough-in valve that you use and the pressure in the home. The flow rate from the tub spout port will be between about 7 and 7.8 GPM from the tub spout port at 60 PSI. Please see the flow rate chart at the bottom of the Technical Specifications linked below. https://media.deltafaucet.com/SpecSheet/DSP-B-T17T067%20Rev%20E.pdf Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2017-07-25

How do you set the temperature

Asked by: Ronnie
Hi, Ronnie! Thank you for your question. The temperature for the Delta TempAssure T17T067 Valve Trim Kit can be set by turning the temperature control handle left for hot and right for cold. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

Hi My question is, This trim set is good to install in a delta model 30 years old? Thx for the answer

Asked by: Scarano Inc
Thank you for your question, Scarano Inc! Model T17T067 is a TempAssure unit that uses a Thermostatic cartridge which does not fit into the older Delta rough-in valve bodies. You will need a current MultiChoice Universal Rough-in valve such as the R10000-UNBX to install this trim. Alternatively, the Ara collection does offer a standard 17 series valve trim which will work as a replacement for 1500 or 1700 series kits that have screw placements at the 1 and 7 o'clock positions. The valve body itself will not accept current cartridges so the RP32104 assembly must be used instead. https://www.deltafaucet.com/bathroom/product/T17067 Best regards, Edward
Answered by: Delta Faucet
Date published: 2024-03-28

Does your T17T067 includes the 17t cartridge?

Asked by: Moon
Hi Moon, Thank you for your question! The RP47201 cartridge is included with the trim kit. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2017-04-28

Can this be used for an exterior shower?

Asked by: Greg
Hi, Greg! Thank you for your question. Unfortunately none of our shower faucets are specifically designed to be installed outdoors. They are not designed to withstand extreme cold weather conditions (freezing) or direct sunlight from the sun in the summer months. If you do decide to install one of our faucets outdoors, then please remember that our warranty only covers manufactures defects. Damage incurred to the faucet by the extreme weather conditions are not covered by our warranty program. Best Regards, Rosanna
Answered by: DeltaFaucet11
Date published: 2024-03-28
