Cassidy®

View Full Cassidy® Bathroom Collection

Llave para baño de una manija en Champagne Bronze

Name: Single Handle Bathroom Faucet
Brand: Delta
SKU: 597LF-CZMPU
Price: 620.65 USD
Rating: 4.7547 (53 reviews)

N.º de modelo: 597LF-CZMPU

Haga clic para girar

Agregar a favoritos

Busque instaladores locales de Delta®

Cassidy®

View Full Cassidy® Bathroom Collection

Llave para baño de una manija en Champagne Bronze

N.º de modelo: 597LF-CZMPU

Precio de lista: $620⁶⁵

Agregar a favoritos

Busque instaladores locales de Delta®

CARACTERÍSTICAS DEL PRODUCTO

Featuring clean lines with elegant design details, the Cassidy^® Collection is an obvious choice for a timeless, traditionally styled bath. Las llaves con tecnología de sellado Diamond Seal^® de Delta^® funcionan como si fueran nuevas de por vida porque cuentan con un diseño patentado gracias al cual se reducen los puntos de fuga, la instalación es más sencilla y duran el doble que el estándar de la industria. Las llaves con etiqueta WaterSense^® usan al menos un 20 % menos agua que los productos estándar de la industria y le permiten ahorrar agua sin sacrificar el desempeño. Puede realizar la instalación con la tranquilidad de saber que las llaves de Delta^® están respaldadas por nuestra garantía limitada de por vida.

La tecnología de sellado Diamond Seal^® facilita la instalación y permite que su llave funcione como si fuera nueva toda la vida, ya que reduce los puntos de fuga y dura dos veces más que los productos estándar de la industria.
Todo lo que necesita en una conveniente caja, que incluye líneas de suministro PEX InnoFlex^®
Fits 1 or 3-hole 4 in. installations with optional deck plate (not included)
Optional 5-27/32 in. deck plate (RP102236CZ) sold separately for 3-hole installations
El conjunto de desagüe con emergente a presión de metal con acabado a juego (incluido) cumple con la ADA y es fácil de instalar, operar y limpiar.
Se incluye anillo indicador de temperatura rojo/azul opcional.
Cumple con la ADA.
Las llaves con clasificación WaterSense^® usan al menos 20 % menos agua que los productos estándar de la industria sin sacrificar desempeño
La salida de tina rígida no gira
Accesorios de compresión de 3" a 8"
Respaldado por la garantía limitada de por vida de Delta Faucet

Ecológica

Con etiqueta WaterSense^®

Technology and Special Features

Cumplimiento con la ADA

Libres de plomo

Acabado Brilliance^®

Uso eficiente del agua

Documentos y especificaciones

Soporte para productos, repuestos y especificaciones técnicas

Ver especificaciones técnicas

Ver hoja de mantenimiento e instalación

Ver diagrama de repuestos y accesorios

Registrar su producto

Recursos

Archivos de diseño

Información de instalación

Instalación con 1 o 3 orificios de 4"

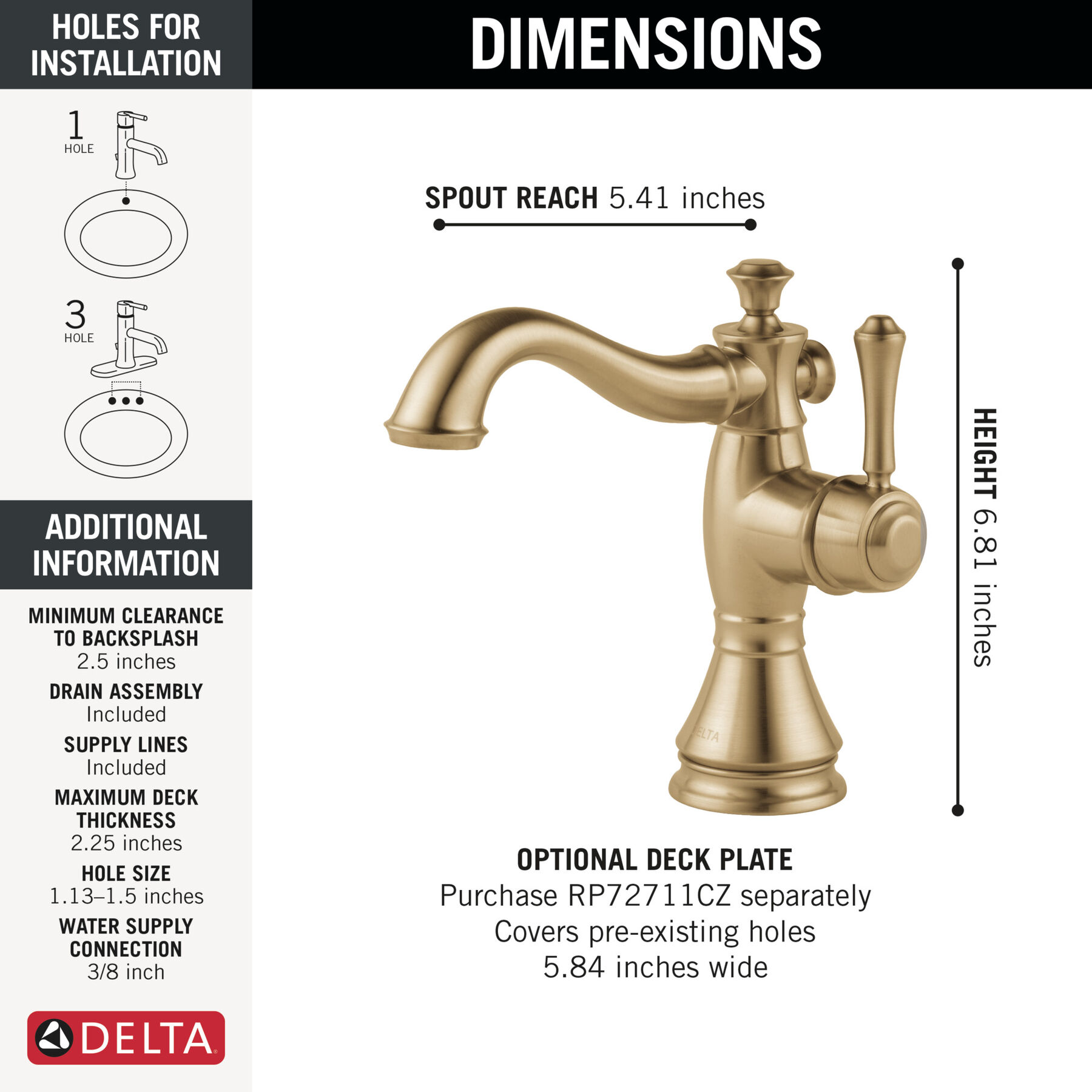

Overall Height (in.) :

6 13/16

Caudal:

1.2 gpm a 60 psi, 4.5 l/min. a 414 kPa

Tipo de válvula:

Disco cerámico

SOPORTE PARA LA INSTALACIÓN

¿Necesita ayuda con la instalación? ¡Mike y Hannah están aquí para ayudar! Reciba consejos de los profesionales para todo, desde la instalación hasta el cuidado del producto.

Explorar videos

LISTA DE PIEZAS

Delta®

Delta® Filtro con rejilla y desborde - Tipo vasija (baño)

Precio de lista: $87.60 - $147.35

Free Ground Shipping All Orders $49+

RP6346

Delta®

Delta® Conjunto de desagüe de metal - Sin tirador de desagüe (baño)

Precio de lista: $88.55 - $186.00

Free Ground Shipping All Orders $49+

RP26533

Cassidy®

Cassidy® Bonnet Nut

Precio de lista: $15.30

Precio en línea: $11.64

Free Ground Shipping All Orders $49+

RP72728

Cassidy®

Cassidy® Escutcheon w/ Gasket - 4" - 1 Hole Bathroom & Bar

Precio de lista: $60.10

Precio en línea: $45.80

Free Ground Shipping All Orders $49+

RP72711CZ

Victorian®

Victorian® Tornillería de montaje, 1H, baño

Cassidy® Metal Lever Handle Kit - Traditional Bar

Precio de lista: $49.50

Precio en línea: $37.72

Free Ground Shipping All Orders $49+

RP72710RB

Cassidy®

Cassidy® Escutcheon w/ Gasket - 4" - 1 Hole Bathroom & Bar

Precio de lista: $51.50

Precio en línea: $39.24

Free Ground Shipping All Orders $49+

RP72711RB

Cassidy®

Cassidy® Escutcheon w/ Gasket - 1 Hole Bathroom

Precio de lista: $26.20

Precio en línea: $19.96

Free Ground Shipping All Orders $49+

RP72712RB

RESEÑAS

Rated 5 out of 5 by coastal32 from Love the style We purchased two of these faucets when redoing our master bath. The finish is beautiful and has updated the look. Love the Delta warranty on the finish. Very easy to use with arthritic hands. Lots of water pressure. Easy installation. Very happy with this purchase.

Date published: 2016-11-09

Rated 5 out of 5 by ScottieOwner from Love it! [This review was collected as part of a promotion.] We recently tore out a fiberglass "slop" sink in our utility room for a more updated look and better function. Hubby built a sink base, installed a granite counter top and stainless sink. We added this faucet in the Venetian color to compliment the granite. I love everything about this faucet - the single lever function, the uncluttered look and the color. We love it so much we are replacing the faucet as well as the coordinating towel bars and TP holder in the utility bathroom. I currently have the similar kitchen faucet in the arctic stainless color on order for the kitchen sink. I love the Cassidy Collection line and have the dual handle bathroom vanity faucets in the stainless color in my other two bathrooms as well as the coordinating towel bars, TP holder and hand towel ring.

Date published: 2016-09-06

Rated 5 out of 5 by Granite71 from Excellent product Is everything I expected. Attractive well done finish. Valve works smoothly and easily, very easy to control flow. I have been using Delta faucets for over 50 years and this continues their ongoing parade of superior products.

Date published: 2016-07-01

Rated 5 out of 5 by Bob1964 from This product more than exceeds our needs. it is very functual and is a asset to our bathroom decorations And additional Delta shower faucet and shower head.

Date published: 2016-05-13

Rated 5 out of 5 by jclark454 from Top of the line bar faucet Purchased this for our basement bar, and it is gorgeous in color, easy to install, and looks absolutely wonderful. I love it so much we are going to replace our kitchen sink with the kitchen-sized version.

Date published: 2016-05-07

Rated 5 out of 5 by Joey from Great One Hole Delta Faucet I just had this faucet installed in my Guest Bath. The vanity is 30" so I bought a smaller undermount oval sink and this faucet is perfect as it doesn't take up much countertop space. Unique and has two different base pieces, one to slightly raise the faucet or a plate about 4-5". I chose to set the faucet directly on the countertop to give it a neat and clean look, plus it is less pieces to clean. Love it!

Date published: 2016-04-01

Rated 5 out of 5 by Markalaw from Easy to install Delta continues with innovative designs and features that are easy for the non-professional to install. My only issue was with the drain control lever at the back of the faucet. With granite countertops and backsplash, there was too little room for it to operate, a problem I was finding with nearly all single lever faucet options I saw. The solution was to purchase and install a Delta spring loaded pop up drain flange which works independently of the faucet's pop up lever mechanism.

Date published: 2016-02-15

Rated 5 out of 5 by Captain from Excellent Product This pop-up assembly is all metal. Is strong ! My other Delta Faucet, Lower-end of Delta, which I bought has a vertical strap that is inferior { plastic }

Date published: 2015-11-19

Rated 5 out of 5 by anghough from Elegant and Simple It's beautiful, & I love the simplicity of a single handle. It's a seamless match with my decor, so I bought this faucet for 2 bathrooms. Great design, Delta!

Date published: 2015-04-24

Rated 3 out of 5 by KimberlyManor from Great presentation; poor design This produce in stainless is a great show piece but the design of the drain plug is a total failure. We had the plumber come out 2x to attempt to get the sink to hold water when the lever was activated, never worked. We finally contacted the area rep for Delta and he explained how the part would have to be reversed to industry standard - really? after the price we paid? the plumber nor my husband could get it to work. Our retailer provided replacement drains but we still have to pay a plumber to reinstall these!

Date published: 2015-02-28

Rated 4 out of 5 by AHerrick from nice faucet This is a nice looking faucet. I bought the entire Cassidy line for my master bath remodel. Initially I couldn't figure out how to stop the drain because it seems like the top is an handle you would pull up on to stop the drain- it's not. The thing you pull is actually behind the faucet, you can see it barely if you look in this picture. I don't prefer it being here because it makes it tight since it's pretty close to the backsplash even though I had my contractor put the hole as far away as possible from the backsplash on a new custom build vanity. They can only do it so close to the sink because there is a rim on the under mount sink. I wanted to have the sink as close to the front of the counter as possible but they can only do it so close because there has to be a good buffer so the granite doesn't break. I'd say if you don't have much room from your sink hole to the backsplash, this faucet may not work for you do to the location of the drain stopper. I also have to advise against the Brilliance Stainless finish because it stains much like a stainless steel dishwasher does. I wipe water off of it after each use but many people won't do that. Another irritation is that the on/off handle is not adjustable so for it to be all the way on hot, the handle touches the backsplash. So I have to be careful not to scratch the backsplash. I wanted to have my contractor adjust the handle so it wouldn't touch but it's not adjustable in that way. It doesn't actually touch the backsplash when it is on in the hot position, it barely misses it. It only touches if the handle is in the off position but all the way hot. So it wouldn't be a deal breaker. So it is a nice looking faucet, I do like it and have gotten compliments, it just won't be great for a tight space. But you may not even need the stopper if you don't plug the sink. My prior faucet was Delta as well, and with my old vanity, I didn't even have enough room to have that part installed whatsoever.

Date published: 2015-01-13

Rated 5 out of 5 by remodelwarrior from Beautiful - just right for our master remodel We bought these fixtures to add a traditional touch to our black/white/grey master bath remodel. The quality is great - these are solid fixtures. The price, unbeatable. Ours were ordered in polished chrome - just beautiful

Date published: 2014-05-16

Rated 5 out of 5 by 77355 from Exactly what we wanted Style, performance, usefulness, ease of maintenance - perfect. We like setting the lever to our usual preferred setting and gently toggling for water flow. I wanted an attractive faucet that was high enough/far enough reach for thorough face washing. We use Rain-X car wax to maintain a mirror like shine with easy touch-up.

Date published: 2014-01-13

Rated 5 out of 5 by naumank from Beautiful faucet We were very happy with the quality of this product and it came very fast.

Date published: 2013-11-12

Rated 4 out of 5 by Anonymous from Really pretty Got 2 of these for my double vanity in the master. They go wonderfully with my claw foot tub. What the plumber didn't like was there was no way to change the handle so he could have both handles facing the outside of the vanity. I have one hand on the facing inside of vanity and one facing outside of vanity. Is ok but would look better if the handles were capable of being changed.

Date published: 2013-08-16

Rated 5 out of 5 by Spydergirl1 from Beautiful Faucet After buying two other faucets on special order and then returning them, this faucet had everything I was looking for. It is simply beautiful! I haven't had any issues with leakage and it looks stunning in our tuscan-style powder room. I would definitely recommend this faucet to anyone looking for a modern faucet, with a little bit of old world charm. Nice quality piece!

Date published: 2013-08-16

Rated 4 out of 5 by Inara from Almost Excellent I purchased this faucet to replace 20 year old builder grade faucets in a reno we recently purchased. The quality is almost excellent, the styling is beautiful and more importantly very functional. I wanted handle features that turned easily on and off with one hand and this is perfect. The only issue was the sink stopper, though metal, was attached to plastic and was broken off when received. Deltal replaced very quickly with no issues other than inconvenience for my contractor.

Date published: 2013-03-26

Preguntas y respuestas

I purchased the Cassidy bronze singe faucet for bath. I need to fill the two holes on each side as they were 6 " and not 4". Are there bronze plugs available for purchase?

Asked by: Nancy

Hi, Nancy. Thank you for your question. We do not manufacture plugs for sink application. The escutcheon plate for the Delta 597LF-MPU faucet is a 4" center installation and will not cover 6" installation. Best Regards, Rosanna

Answered by: DeltaFaucet11

Date published: 2024-03-28

Do I need a thick deck mounting kit?

Reading reviews of another delta faucet I learned that some cannot be installed on standard 1 1/4" thick granite or quartz vanity top without also purchasing a delta thick deck mounting extension kit. Can this faucet be installed on 1 1/4 vanity tops or would I need to purchase an additional product? Thank you

Asked by: Claire

Dear Claire, Thank you for your inquiry! The Delta Cassidy Lavatory 597LF-PNMPU faucet requires 2 1/4" (57mm) maximum deck thickness. We do not make a thick deck mounting kit for this single handled model. https://media.deltafaucet.com/SpecSheet/DSP-L-597LF%20Rev%20G.pdf Best regards, Tanya

Answered by: Tanya

Date published: 2017-08-14

HOW DO I RELEASE THE WATER PLUG

Asked by: SHARON

Hello, Thank you for your question! This model uses a push pop-up drain which you press with your hand to pop up and again to engage. Please reach out with further questions! Best Regards, Tim Digital Communications Specialist

Answered by: Timothy

Date published: 2025-03-06

Is a .5 gpm aerator available for this faucet

Asked by: jim

Thank you for your question, Jim. Unfortunately, we do not have an aerator for this unit with a lower flow rate. Best regards, Jon

Answered by: DeltaFaucet3

Date published: 2017-05-11

does this faucet come with left side handle?

Asked by: cm811

Dear Cm811, Thank you for your question! The Delta Cassidy Lavatory 597LF-MPU faucet is only designed with the handle on the right side of the faucet. https://media.deltafaucet.com/PartsDiagram/DPD-L-597LF-MPU.pdf Best regards, Tanya

Answered by: Tanya

Date published: 2017-08-14

How do I remove the metal pop-up piece from the sink?  The small lever on the back of the faucet raises and lowers the metal pop-up, but I cannot remove it completely to clean out hair from it.

Asked by: JStar

Hi, JStar! Thank you for your question. There is a small pivot seal and gasket that would need to be unscrewed to remove the stopper from the horizontal rod underneath the sink. Once this is unscrewed off, you can remove the stopper from above the sink. Here is a link to the parts diagram for the pop up drain assembly to show these parts to you: https://media.deltafaucet.com/PartsDiagram/RP26533_Pop_Up_Drain.pdf Best Regards, Rosanna

Answered by: Delta Faucet

Date published: 2024-03-28

Does this faucet swivel?

Asked by: Buster

Thank you for your question, Buster! Model 597LF-SSMPU does not swivel however the 1997LF Bar Prep does swivel 360 degrees and could be installed as a lavatory faucet if needed. https://www.deltafaucet.com/product-comparison?modelNumber=1997LF&modelNumber=597LF-MPU Best regards, Edward

Answered by: Delta Faucet

Date published: 2024-03-28

What is the thread size for the faucet water connectors?

Asked by: ryja

Hi, Ryja! Thank you for your question. The 597LF-PNMPU supply line connections are 1/2" connections. Best Regards, Rosanna

Answered by: DeltaFaucet11

Date published: 2024-03-28
