Monitor® 17 Series H<sub>2</sub>Okinetic® Shower Trim in Matte Black

N.º de modelo: T17267-BL
Monitor® 17 Series H<sub>2</sub>Okinetic® Shower Trim in Matte Black
N.º de modelo: T17267-BL
Precio de lista: $47075
CARACTERÍSTICAS DEL PRODUCTO
Con bordes y ángulos geométricos definidos, la colección para baño Ara crea un estilo funcional de elegancia contemporánea Las duchas H2Okinetic® de Delta® se ven diferentes, simplemente porque son diferentes. Gracias al uso de tecnología avanzada, las duchas H2Okinetic esculpen el agua mediante un patrón de ondas exclusivo que le brinda el triple de cobertura en comparación con una regadera estándar*. El resultado es una ducha que brinda más cobertura, más calidez y más intensidad para vivir una experiencia de ducha verdaderamente torrencial. Con manijas separadas para controlar el volumen y la temperatura, esta bañera/ducha de Delta brinda una experiencia de ducha más refinada. Simplemente configure el agua a su temperatura preferida y abra o cierre la ducha con la manija de control de volumen, sin interrumpir la temperatura establecida. Las válvulas de equilibrio de presión de Delta® usan la tecnología Monitor® para protegerlos a usted y a su familia de los cambios repentinos de temperatura. El negro mate da personalidad a su espacio, genera un aire sofisticado y combina perfectamente con casi todos los demás detalles y accesorios. Con tonos brillantes, el negro mate es innegablemente moderno con un fuerte contraste, pero también puede complementar espacios tradicionales o de transición cuando se combina con colores neutros cálidos para brindar una sensación rústica similar al hierro fundido. Las llaves, las duchas y los inodoros con clasificación WaterSense de Delta usan al menos 20% menos agua que los productos estándar de la industria y le ahorran dinero sin sacrificar desempeño.
  • La tecnología de ducha H2Okinetic moldea el agua en un diseño de ondas único, que forma un potente rocío
  • Le brinda la sensación de contar con más agua sin utilizar más agua
  • Controle el volumen y la temperatura del agua de forma independiente con dos manijas por separado para un control más refinado de su experiencia de ducha
  • La válvula de presión balanceada Monitor mantiene el agua a una temperatura segura dentro de los +/-3º F (+/-1.6º C) y así, protege contra cambios repentinos en la presión del agua fría o caliente.
  • Los ajustes de rociado incluyen: Rociador H2Okinetic
  • El rociador H2Okinetic crea una ducha con más calidez, cobertura e intensidad
  • Juego de terminación solamente, se debe pedir la válvula universal MultiChoice® por separado para completar la unidad
  • Cumplimiento con la ADA
  • Las regaderas con clasificación WaterSense usan al menos 20 % menos agua que los productos estándar de la industria sin sacrificar desempeño
Información especial
Imagen de advertencia
ADVERTENCIA de la Proposición 65 de California
Ecológica
Con etiqueta WaterSense®
Technology and Special Features
Documentos y especificaciones
Información de instalación

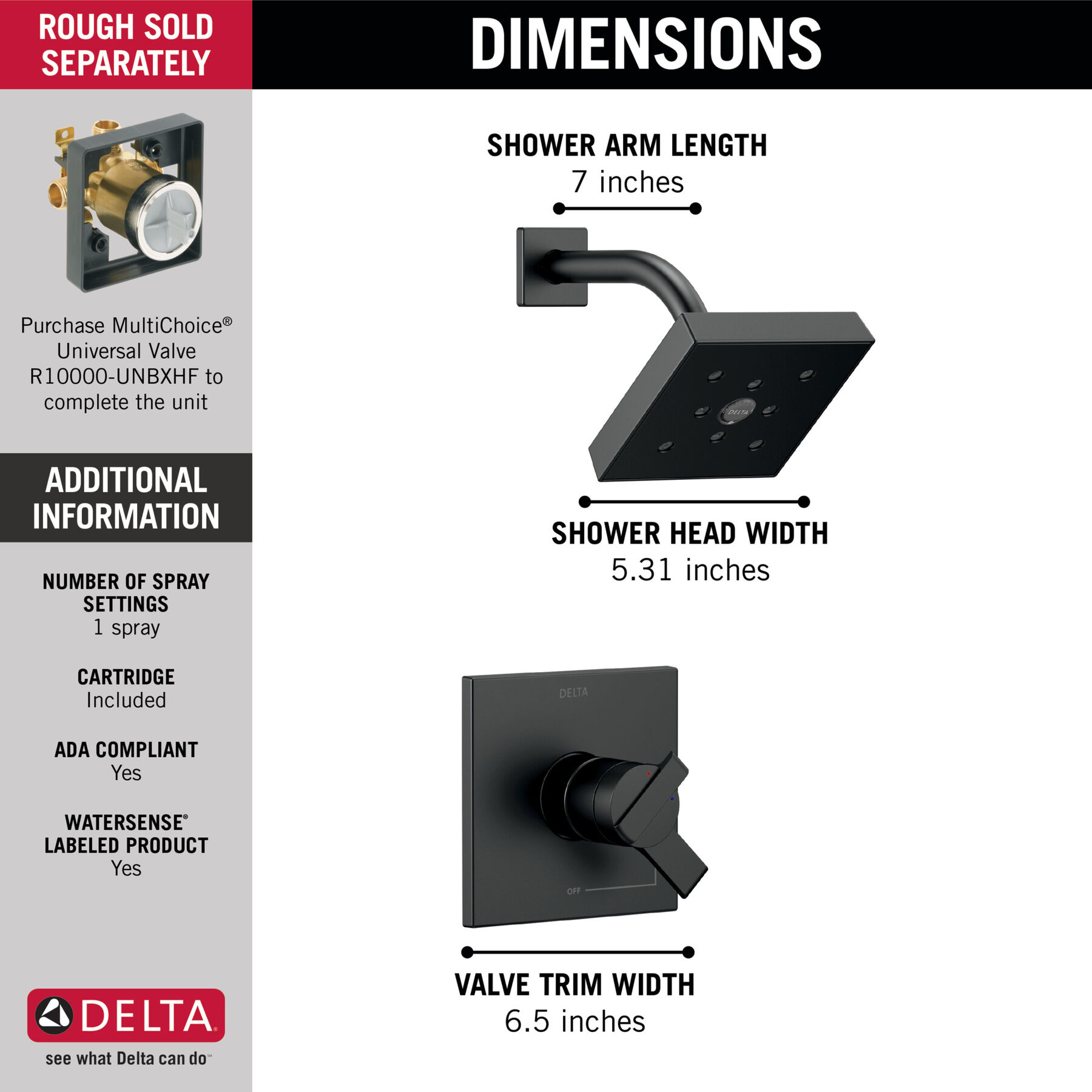

Altura total:
6 1/2
Voltaje:
0
Caudal:
1.75 gpm a 80 psi, 6.6 l/min. a 552 kPa
Tipo de válvula:
Cartucho con equilibrio de presión de función doble

SOPORTE PARA LA INSTALACIÓN

¿Necesita ayuda con la instalación? Busque instaladores locales de Delta® Obtenga cotizaciones. Lea reseñas.

IR
Escriba un código postal válido.
Mike y Hanna
Miniatura del logotipo de Delta

¿Necesita ayuda con la instalación? ¡Mike y Hannah están aquí para ayudar! Reciba consejos de los profesionales para todo, desde la instalación hasta el cuidado del producto.

LISTA DE PIEZAS

LISTA DE PIEZAS

Image-Master-RP75439

Ara®

Ara® Kit de manija tipo palanca de metal - Serie 17

Precio de lista: $56.10 - $75.55
Envíos sin cargo para todos los pedidos de más de $49
Acabados estándar

RP75439

Image-Master-RP75438

Ara®

Ara® Cubierta y junta - Serie 17

Precio de lista: $127.70 - $194.40
Envíos sin cargo para todos los pedidos de más de $49
Acabados estándar

RP75438

Image-Master-RP196

Delta®

Delta® Tornillos (2) - Accesorio de cubierta

Precio de lista: $8.40 - $16.55
Envíos sin cargo para todos los pedidos de más de $49
Acabados estándar

RP196

Image-RP46463 Secondary Image-RP46463

Delta®

Delta® Conjunto de cartucho - Válvula universal MultiChoice® - Serie 17

Precio de lista: $135.20
Precio en línea: $94.64
Envíos sin cargo para todos los pedidos de más de $49
Acabados estándar

RP46463

3.92 38
Image-RP23336

Delta®

Delta® Junta tórica - Grande - Todas las series Monitor®

Precio de lista: $6.40
Precio en línea: $5.12
Envíos sin cargo para todos los pedidos de más de $49
Acabados estándar

RP23336

5.00 5
Image-Master-RP40593

Delta®

Delta® Brazo de ducha

Precio de lista: $36.00 - $84.10
Envíos sin cargo para todos los pedidos de más de $49
Acabados estándar

RP40593

Image-RP32105

Delta®

Delta® Tornillo - Manija - Monitor® serie 17

Precio de lista: $9.65
Precio en línea: $7.72
Envíos sin cargo para todos los pedidos de más de $49
Acabados estándar

RP32105

1.00 1
Image-Master-RP50880PCPR

Delta®

Delta® Manguito de accesorio - Series 17 y 18

Precio de lista: $25.10 - $44.10
Envíos sin cargo para todos los pedidos de más de $49
Acabados Lumicoat
Acabados estándar

RP50880PCPR

Image-RP46073

Delta®

Delta® Adaptador de cartucho - MultiChoice® serie 17

Precio de lista: $20.80
Precio en línea: $16.64
Envíos sin cargo para todos los pedidos de más de $49
Acabados estándar

RP46073

3.89 9
Image-Master-RP51035

Delta®

Delta® Bracket & Screws - Shower

Precio de lista: $36.35 - $40.05
Envíos sin cargo para todos los pedidos de más de $49
Acabados estándar

RP51035

Image-Master-RP75440

Ara®

Ara® Temperature Knob & Cover - 17 Series

Precio de lista: $37.45 - $50.45
Envíos sin cargo para todos los pedidos de más de $49
Acabados estándar

RP75440

Image-RP51019

Delta®

Delta® Tornillo de fijación y botón

Precio de lista: $18.10
Precio en línea: $14.48
Envíos sin cargo para todos los pedidos de más de $49
Acabados estándar

RP51019

Image-Master-RP75435

Ara®

Ara® Tubo de salida para bañera - Desviador con tirador hacia arriba

Precio de lista: $84.50 - $160.40
Envíos sin cargo para todos los pedidos de más de $49
Acabados estándar

RP75435

Image-RP32102

Delta®

Delta® Tope de límite de rotación Delta - Serie 17

Precio de lista: $6.40
Precio en línea: $5.12
Envíos sin cargo para todos los pedidos de más de $49
Acabados estándar

RP32102

4.00 2
RESEÑAS
Rated 2 out of 5 by from Frustrated After the plumber installed our shower handle I told him it was not correct because the handle does not point down to the OFF position when off. He told me it was installed correctly & I defended Delta saying they would not make a handle this way. Well apparently I am wrong. I can not believe this is passable quality control. I really don't think I'm asking too much. Either fix the direction of the handle or move the location of the ON/OFF on the cover plate. Super frustrating
Date published: 2024-05-14
Rated 5 out of 5 by from Shower Simple but stylish shower control and head. It suits my taste and provides good water flow
Date published: 2024-02-04
Rated 5 out of 5 by from Great product! This is a unique looking set and my contractor did a great job picking it out and installing it. I like the individual flow of water that is different to a rain-like feeling.
Date published: 2023-08-11
Rated 3 out of 5 by from Average shower faucet The water pressure is lower than I had expected and the finish isn’t as forgiving with water spots as I had hoped. I am keeping it, but would not purchase again, nor would I recommend it for my clients.
Date published: 2022-02-19
Rated 2 out of 5 by from only warm water I had 2 installed on my new construction home in the master shower & they worked great for 3 years. Now I have to turn one all the way hot just to get it warm. Our other one works great, but not the other.
Date published: 2022-01-25
Rated 5 out of 5 by from The best system Love this product from a great seller
Date published: 2022-01-17
Rated 4 out of 5 by from High quality except the showerhead. Love the look and the quality with the exception of the shower head itself. It drips from the front seam where the face meets the body of the device. I especially appreciate the high flow valve body with the stops so I don't have to shut off the water to the whole house when checking or replacing the valve. I do wish the diverter valve had more flexibility. It could only be located directly above the valve and the handle could only be attached to the left of the diverter. It works great I just wanted to have it positioned on the right side.
Date published: 2021-12-28
Rated 5 out of 5 by from Great Shower! Great plumbing for the bathroom. Shower head and two body sprays work well in tandem with water pressure.
Date published: 2021-11-24
  • y_2024, m_11, d_4, h_7
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.42
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_39
  • loc_en_US, sid_T17267-BL, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 6ms
  • reviews, product
Preguntas y respuestas

Two questions, one about diverter valve, one about material

1. I am installing a fixed and hand shower only, no tub faucet. Do you have a diverter that allows water from both the showerhead and hand shower simultaneously? 2. What material are the trim plate and handles made of? Thank you.
Asked by: Crash
Hi Crash, Thank you for your question. Our 3-setting diverters will allow you to run the shower head and hand shower together or individually. The matching 3-setting diverter for the Ara collection is the T11867 trim and R11000 valve. http://www.deltafaucet.com/bath/details/t11867.html http://www.deltafaucet.com/bath/details/r11000.html The escutcheon plate and handles for these units are metallic. The temperature knob on the 17 series trim is non-metallic. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28

The Temperature adjustment knob is plastic. What is the trick to installing the temperature knob, without cracking the plastic latch tabs? How does it align, is it a straight push and snap? Suggestion?

Asked by: Dale
Thank you for your question, Dale. To attach the temperature knob cover, hook the front of the cover onto the knob and then press the back of the cover until it clicks into place. Please refer to page 7 of the Installation Instructions for a diagram: https://media.deltafaucet.com/MandI/X00076652_G.pdf Best regards, Jon
Answered by: Delta Faucet
Date published: 2024-03-28

Can I buy the Ara shower control only, without the shower head?

The Ara Monitor 17 series features the dial and shower head. I would like to purchase the dial only as I want to have a handshower. Is it possible to just buy the dial? Thanks.
Asked by: Nanette
Hi Nanette, Thank you for your question! You can purchase the valve-only version of the trim, model number T17067. http://www.deltafaucet.com/bath/details/t17067.html Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28

Is this shower head part of your Touch-clean technology or does the head need to be cleaned with a vinegar solution?

Asked by: HeyJudeOregon
Hello HeyJudeOregon, Thank you for your inquiry! The Delta H2OKinetic Shower Head RP70171 that comes with the Ara Shower Trim T17267 does not come with the touch clean feature. The cleaning care we advise for all Delta units state: Always blot dry any water from faucet surface. Allowing water to evaporate on the surface can lead to build up of mineral deposits. Cleaning with a damp non-abrasive sponge and buffing it dry with a clean soft cloth should help keep your product looking beautiful. To remove water spots, use warm water and a soft, damp cloth. Hard water stains may be removed using a 50/50 solution of white vinegar and water. Make certain that you rinse thoroughly with water afterward. If additional cleaning is required, all of our finishes may be cleaned with the following household cleaners: Formula 409&reg; Antibacterial All Purpose Cleaner, Fantastik&reg; All Purpose Cleaner, or Windex&reg; Original Glass Cleaner, when used according to the manufacturers' instructions for use. Avoid using the following which can damage your finish: Avoid industrial cleaners and abrasive cleaners, such as those used for toilet bowls, green Scotch-Brite heavy duty scrub sponges, Scrubbing Bubbles Bathroom Cleaner and Lysol Basin Tub, Soft Scrub, and Tile Cleaner. Avoid products that state on the label that they remove tarnish and rust, and those containing hydrofluoric, hydrochloric and/or phosphoric acids and caustic agents. Avoid harsh abrasives or polishes. Avoid bleach-based cleaners Best regards, Tanya
Answered by: Delta Faucet
Date published: 2024-03-28

What other parts I need to complete installation. Include Temp control and volume control valve

Asked by: BK
Hi BK, Thank you for your question. The T17267 is the faucet trim, you will also need to order the R10000-UNBX multichoice universal rough to make a complete faucet. Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2024-03-28

T17267-BL I need the handle to adjust temperature&nbsp; Part number please&nbsp;

Asked by: Donald
Hi Donald! Thank you for contacting us at Delta Faucet! I will be happy to help. The temperature dial for this model is the RP75440BL. Please contact us directly if further assistance is needed at this time. Best Regards, Tim
Answered by: Delta
Date published: 2024-03-28

Hello, We just got the&nbsp;MODEL#: T17267-BL installed in our newly redesigned master bath. How can we turn the shower on and off without the temp control moving out of place. When we turn on the shower, the temp control switches to max heat.&nbsp;

Asked by: MasterBathDC
Hi MasterBathDC, thank you for contacting Delta Faucet Company! We apologize for the issues you are experiencing! It is possible the temperature knob screw is too tight. Please loosen the screw. Please note that the temperature knob will turn with the volume handle, however, the temperature should not change. We appreciate your inquiry. Please reach out directly if you have further questions! Best Regards, Kyra Digital Communications Specialist
Answered by: Customer Service
Date published: 2024-03-28

Is there a Wall Mountable Rain shower head you would recommend with the ARA Matt Black System. I am not impressed with the standard shower head.&nbsp;

Asked by: MasterBathDC
Hi MasterBathDC, thank you for contacting Delta Faucet Company! We apologize our product does not meet your expectations! We have a wide variety of shower heads that may match the bathroom design. Please refer to the link below. https://www.deltafaucet.com/bathroom/showering/showerheads--handshowers?cgid2=Delta_Bathroom_Showering_Shower-Heads-%26-Hand-Showers&amp;prefn1=clearance&amp;prefv1=false&amp;prefn2=finish&amp;prefv2=Matte_Black&amp;prefn3=narrowResults&amp;prefv3=hideDiscontinued&amp;prefn4=recertified&amp;prefv4=false We appreciate your inquiry. Please reach out directly if you have further questions! Best Regards, Kyra Digital Communications Specialist
Answered by: Customer Service
Date published: 2024-03-28
  • y_2024, m_11, d_5, h_8CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.42
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_17
  • loc_en_US, sid_T17267-BL, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 32ms
  • questions, product
Información especial
Imagen de advertencia
ADVERTENCIA de la Proposición 65 de California

BUNDLES FEATURING THIS PRODUCT

Solo en minoristas en línea
Image-Master-FVS12-AR311-BL
Solo en minoristas en línea

Ara®

Ara® 6-Setting (Non-Integrated) Custom Shower Bundle

Precio de lista: $2,170.70
Acabados estándar

FVS12-AR311-BL

* El precio real puede variar, y lo determina el minorista/mayorista/distribuidor que vende el producto.
